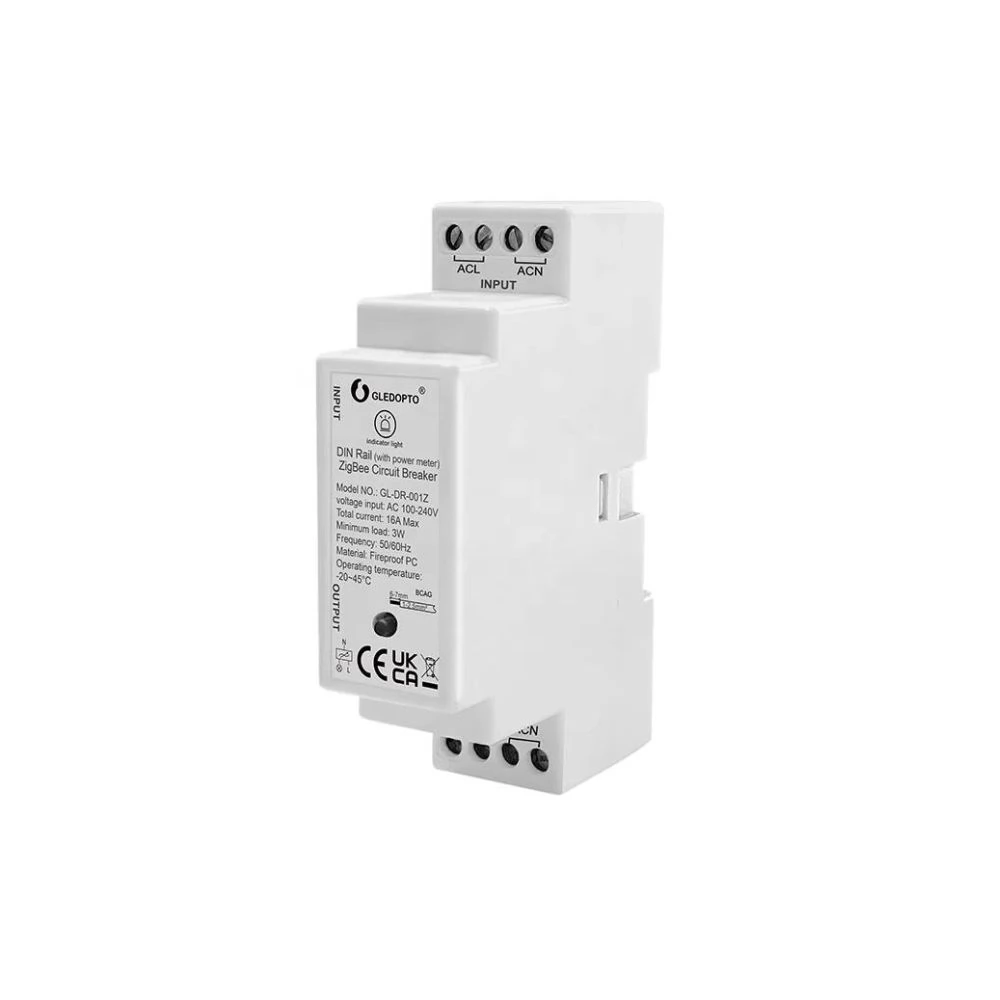

Gledopto GL-DR-001Z is a Tuya Zigbee DIN rail compatible relay module designed for smart home applications. This device supports a maximum current of 16A and operates in a voltage range of AC 100-240V. It has a compact design and fire-resistant PC material, which ensures safety and reliability in various smart lighting systems.

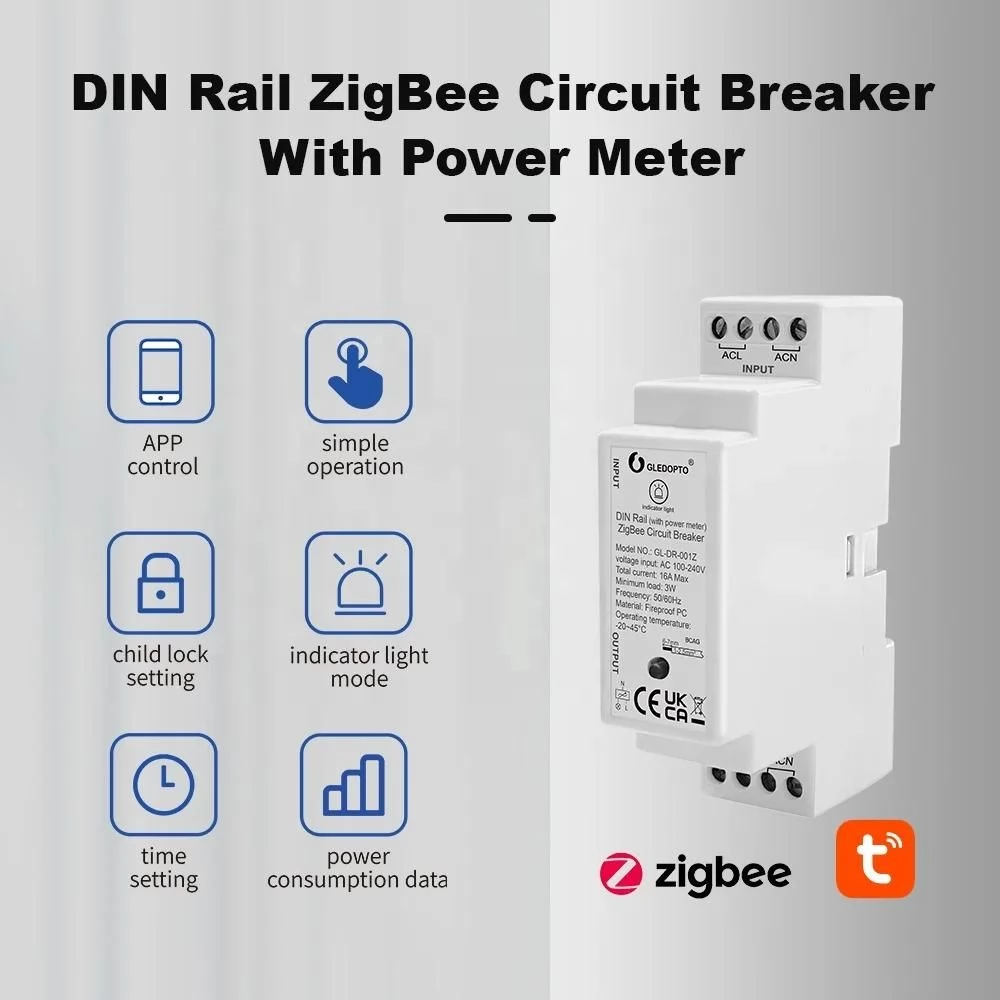

Main Features

- ZigBee protocol: Ensures seamless integration with various Zigbee hubs and smart home systems.
- High current capacity: It supports a current of up to 16A, so it is suitable for controlling most consumers.
- Alexa compatibility: Works with Alexa for voice-controlled operation.
- Durable design: Made of fire-resistant PC material, which ensures safety and a long service life.
- Compact design: Easy to install on a DIN rail, optimizing the space in the electrical cabinet.

Smart home protocols and integrations

The device requires a compatible Zigbee gateway for remote control or smart home integration. Compatible with many Zigbee hubs, such as Tuya / SmartLife Zigbee gateways or Conbee.

Technical specifications

- Product model: GL-DR-001Z
- Input voltage: AC 100~240V
- Output current: 16A
- Control protocol: Tuya Zigbee
- Power meter: Yes
- Material: Fireproof PC
- IP protection: IP20
- Operating Temperature: -20°C~45°C
- Lifespan: 50,000 hours

Description:

- Manufacturer: Gledopto
- Factory article number: GL-DR-002W
- Product type: Tuya Zigbee 16A switch relay for DIN rail
- Color: White

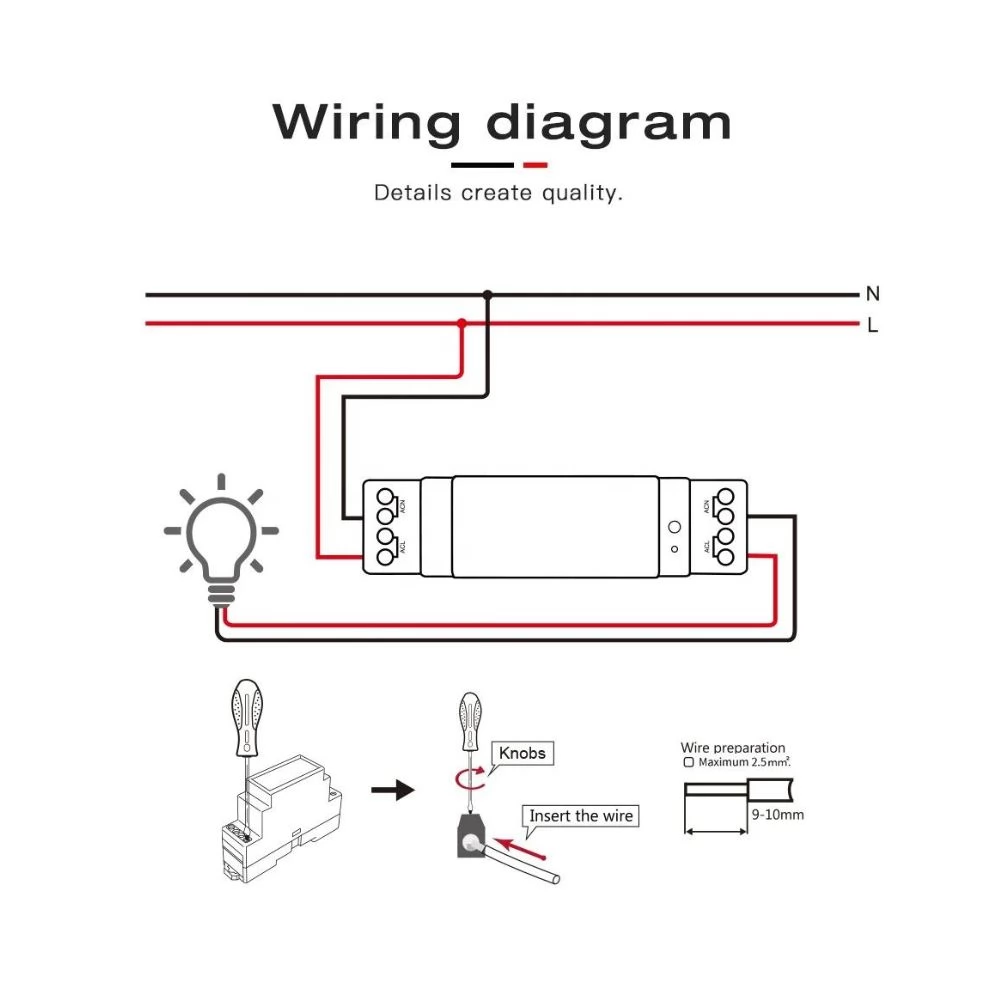

Installation / operation

- Operating power supply: 230V phase + neutral
- Connection: 230V phase + zero is required for its operation
- Fixing / installation: can be mounted on a DIN rail
- Can be mounted on a DIN rail: Yes
- Operating ambient temperature: 20°C-45°C
- IP protection: IP20

Controlled (/measured) circuit

- Switch / switch relay: Yes
- Dimming / Brightness control: No
- Consumption measurement: Yes
- Number of circuits: 1
- Number of switched poles: 1P
- Potential-free switching: No
- Rated voltage: 100-240V AC
- Nominal current: 16A

Electrical properties

- Max. wire cross-section: 2.5mm2
- Local / manual switching: Yes, push button on the device
- Input for external switch: No

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes
- Thread: No
- Z-Wave: No
- Bluetooth: No

Remote control, smart control

- Can be controlled remotely via the Internet: Yes
- Can be switched by voice control: depending on the Zigbee Bridge
- Cloud mode (with factory firmware): depending on Zigbee Bridge
- Local network mode (with factory firmware): depending on Zigbee Bridge
- MQTT support (with factory firmware): Zigbee2MQTT
- Supported integrations: Google Home, Amazon Alexa

Smart functions

- History: Depending on Zigbee Bridge

Other

- Communication protocols: ZigBee
- Overload protection: Yes
- Product type: Switch relay
- Dimensions: 5.9 × 2.4 × 9.2 cm
