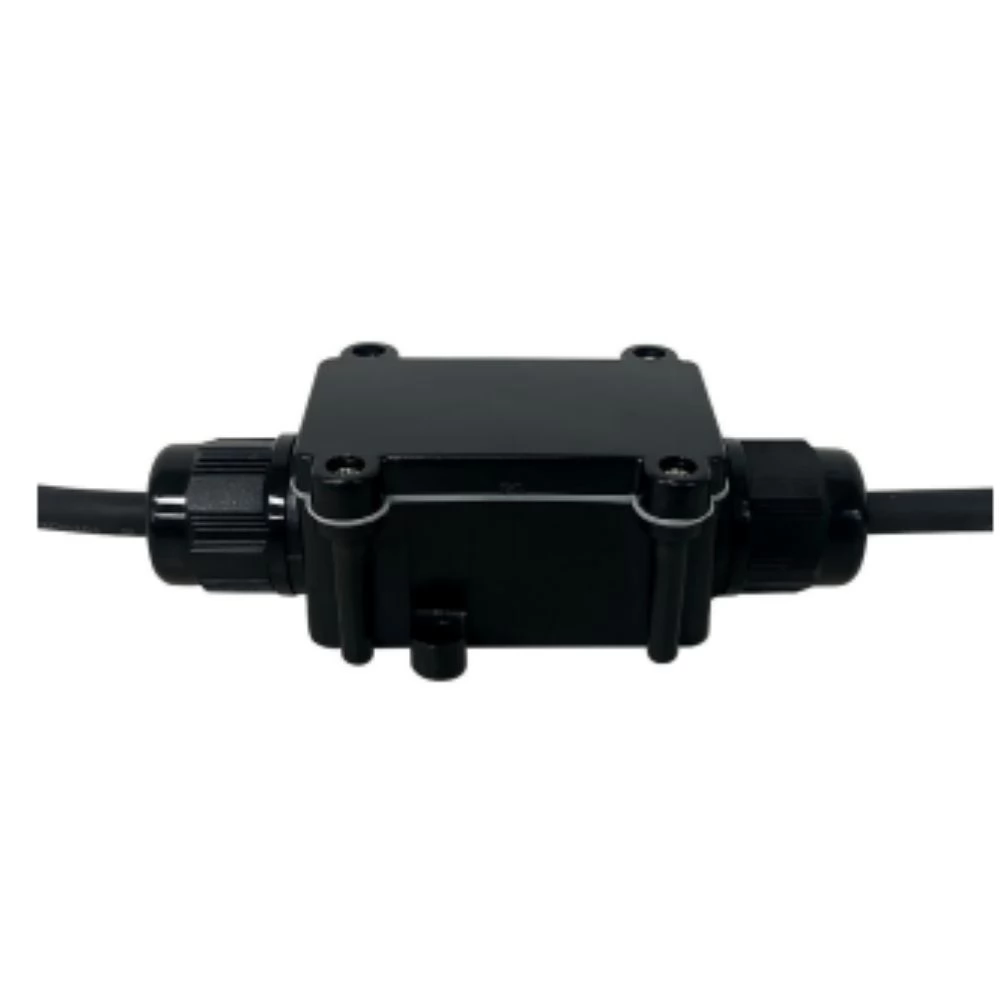

GLEDOPTO GL-C-012WL is a WLED waterproof RGB+CCT LED controller designed for outdoor smart lighting. This IP65-rated device supports voltages between 5V and 24V and allows precise lighting control via Wi-Fi and a mobile app. With its microphone music synchronization function, this versatile controller enhances the lighting experience, making it ideal for outdoor and indoor applications.

The module is an RGB+CCT controller, which means that it supports RGB color LEDs and CCT (color temperature controllable white LEDs as well) and their combined RGBCCT versions. CCT allows you to adjust white light between warm and cool color temperatures. It also supports color temperature adjustment (for white light) and control of colored mood lights.

Main features

- Waterproof design: IP65 rating for outdoor installations, ensuring durability in wet environments.
- Wide voltage range: supports input voltage between 5V and 24V for various LED strips.
- Music synchronization: Microphone integration enables real-time music-synchronized lighting effects.
- App and voice control: Fully compatible with mobile app control and smart home assistants, enabling smooth operation.
- High performance: It handles a load of up to 240W, which provides bright, efficient lighting.

Smart home protocols and integrations

The GL-C-012WL is Wi-Fi based, enabling smart control through compatible apps and voice assistants, easily integrated with popular smart home systems. The WLED firmware also provides local web interface control for all settings.

Technical data

- Model: GL-C-012WL
- Input voltage: 5V 24V DC
- Maximum load power: 240W
- Protection level: IP65
- Dimensions: 16 x 38 x 151 mm
- Weight: 132g
- Control method: Wi-Fi (WLED application)
