Gledopto GL-C-008WL WLED is an ESP8266 chip IC LED strip controller, applicable to 5V-24V DC power IC LED strips, maximum output current 10A. It is capable of addressing 800 digital LEDs and is compatible with the most common LED strip types (SM16703P, SK6812, WS2811, WS2812B, etc.)

Features of WLED LED strip controllers:

WLED is an open source platform developed for ESP chip (ESP8266 and ESP32) controllers. The sole purpose of these controllers is to control digitally addressable LEDs. The platform supports many digital LED strip types and offers users flexible parameterization and pre-created control modes.

GL-C-008WL WLED device features:

- ESP8266 chip (4MB)
- Upgradable with official WLED firmware.

Communication protocol:

Gledopto WLED uses the WLED app to control the LED strips and connects wirelessly to the network via Wi-Fi.

Dynamically changing operating modes:

The WLED application has more than 100 different control colors, from which you can choose to your liking.
Thanks to the different controls, the LED strip will help you in everyday life, from boosting the mood to creating intimate moments.

DIY Modes:

In addition to the built-in modes, the Gledopto WLED LED strip controller supports custom modes, so you can create unique control images according to your preferences.

LED strip compatibility:

Gledopto WLED LED controller can address up to 800 IC LEDs on one LED strip and is compatible with many IC LED types WS2812B, SM16703P, SK6812, WS2811, etc. In this way, it provides you with flexible options so that you can create the LED lighting from the components that suit you.

Application Scenarios: Gledopto WLED LED Strip Controller can be widely used in different places such as your home, business premises, entertainment or even exhibitions etc. You can create different moods in these areas of use to make life even more colorful.

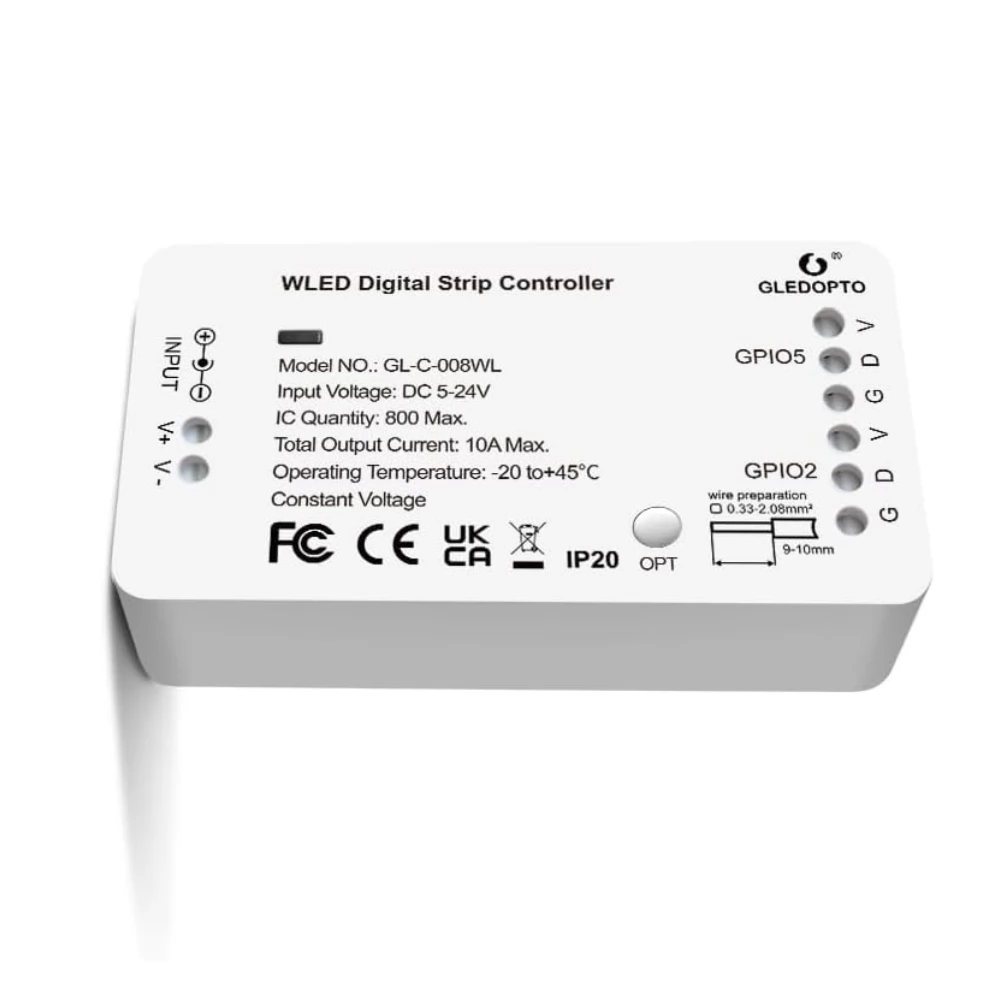

Product features:

- Product name: WLED IC LED strip controller
- Model number: GL-C-008WL
- Voltage: DC 5-24V
- IC quantity: 800 pieces Max.
- Total current: 10A Max.
- Size: 89 48 23.5 mm
- Operating temperature: -20-45 °C
- Compatible tape: WS2811, SK6812, SM16703P, WS2812B, etc.
- Microphone: None
- UART (USB port for firmware modification): None

Description:

- Manufacturer: Gledopto

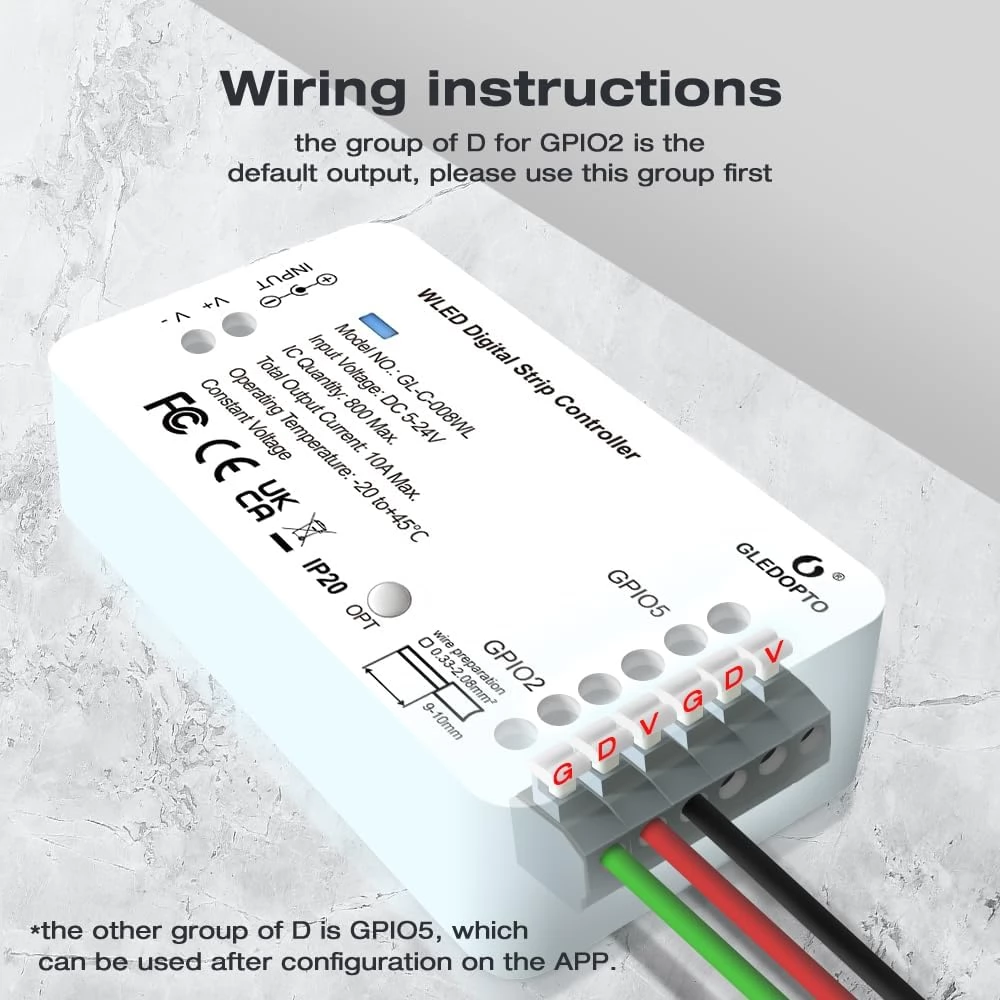

Installation / operation

- Operating power supply: 12V or 24V DC, 5V DC
- Connection: must be connected after a 12V or 24V power supply, 5V DC

Controlled (/measured) circuit

- Dimming / Brightness control: Yes
- Nominal current: 10A

Supported protocols

- Wi-Fi: Yes
- RF / radio control: Yes, 2.4GHz RF receiver
