GARMIN ECHOMAP Ultra 2 122SV beacon without

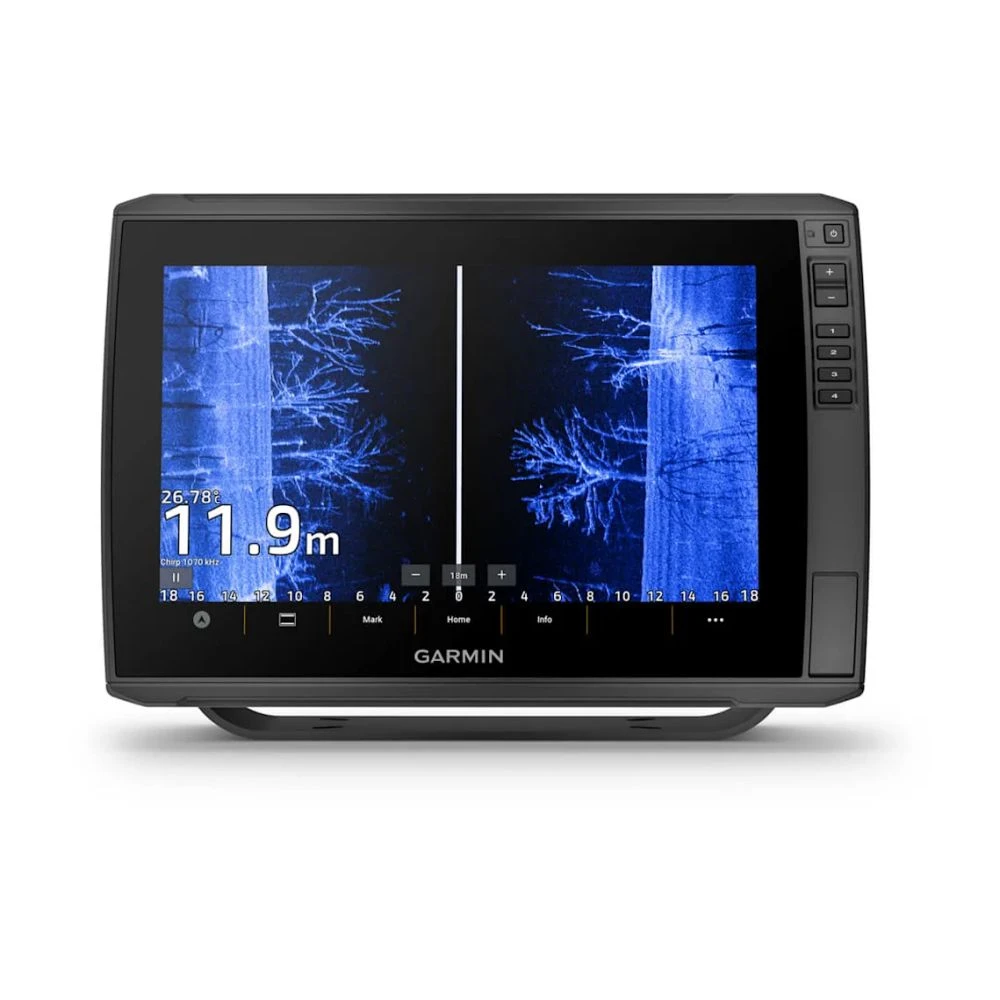

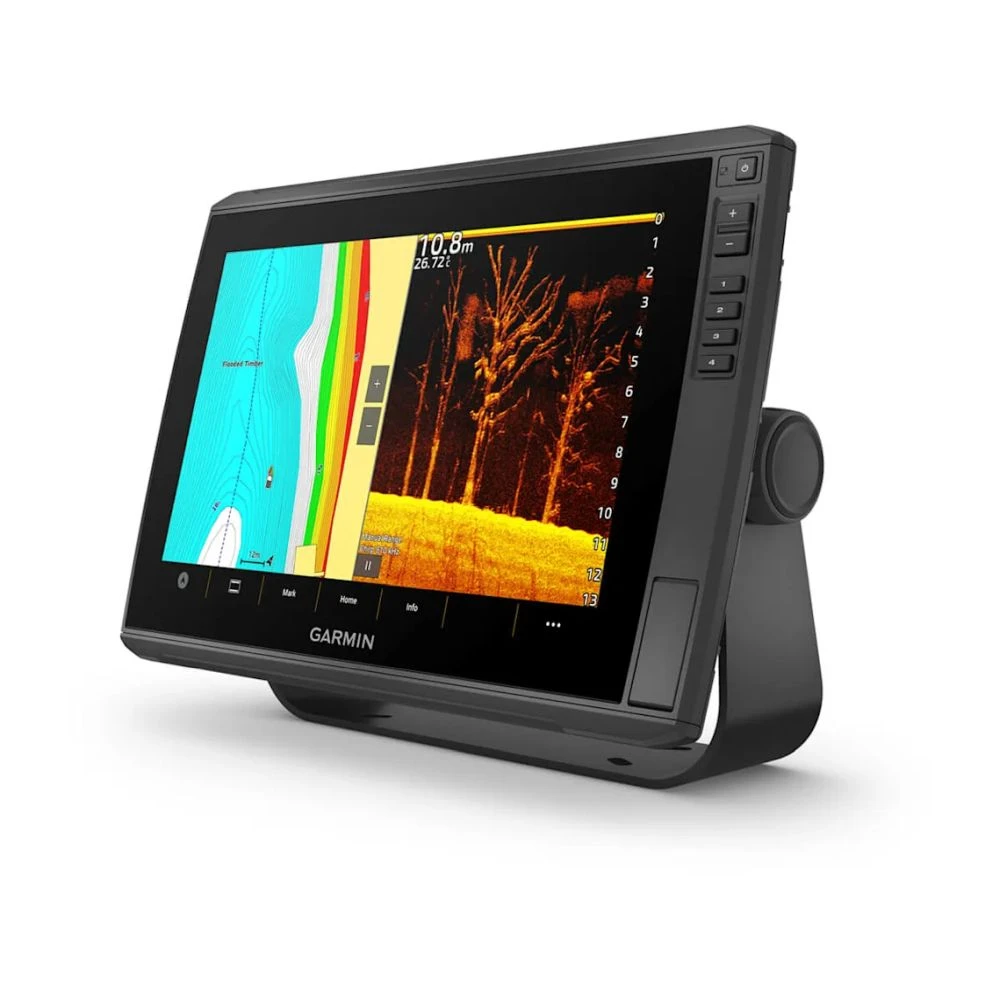

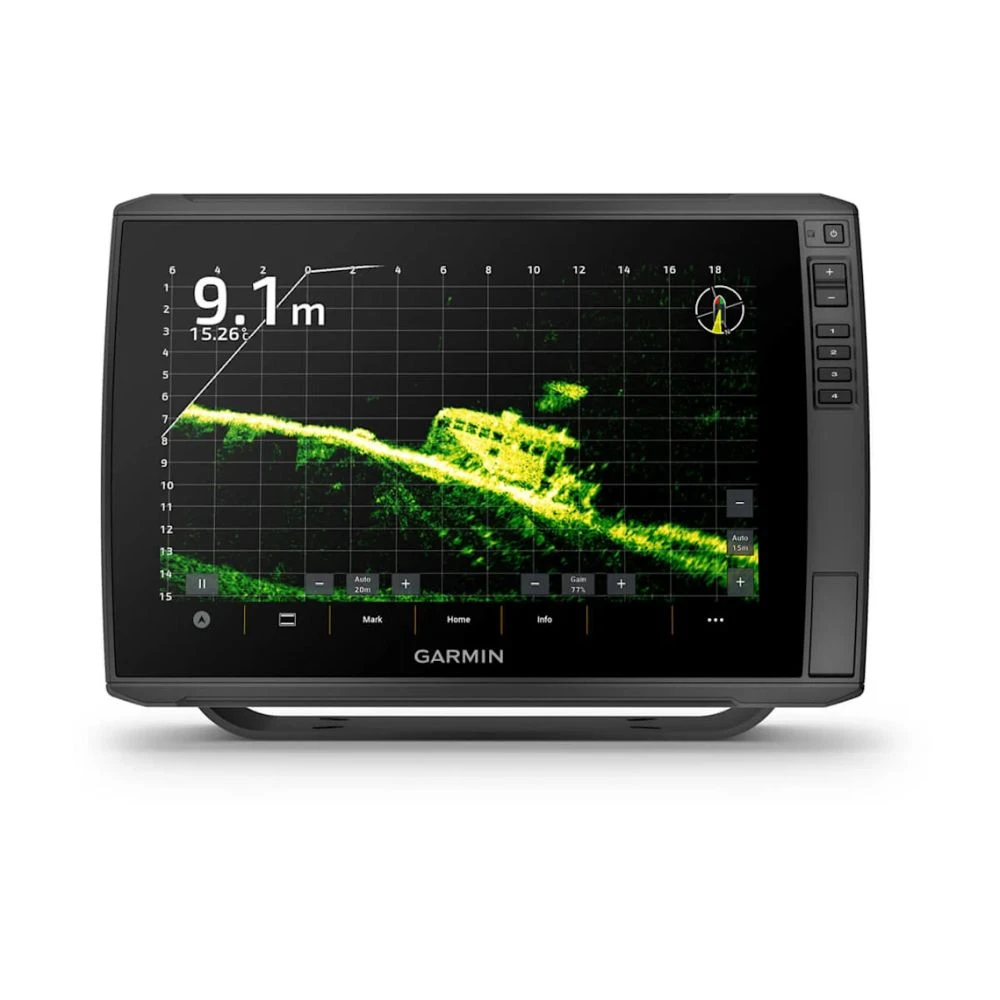

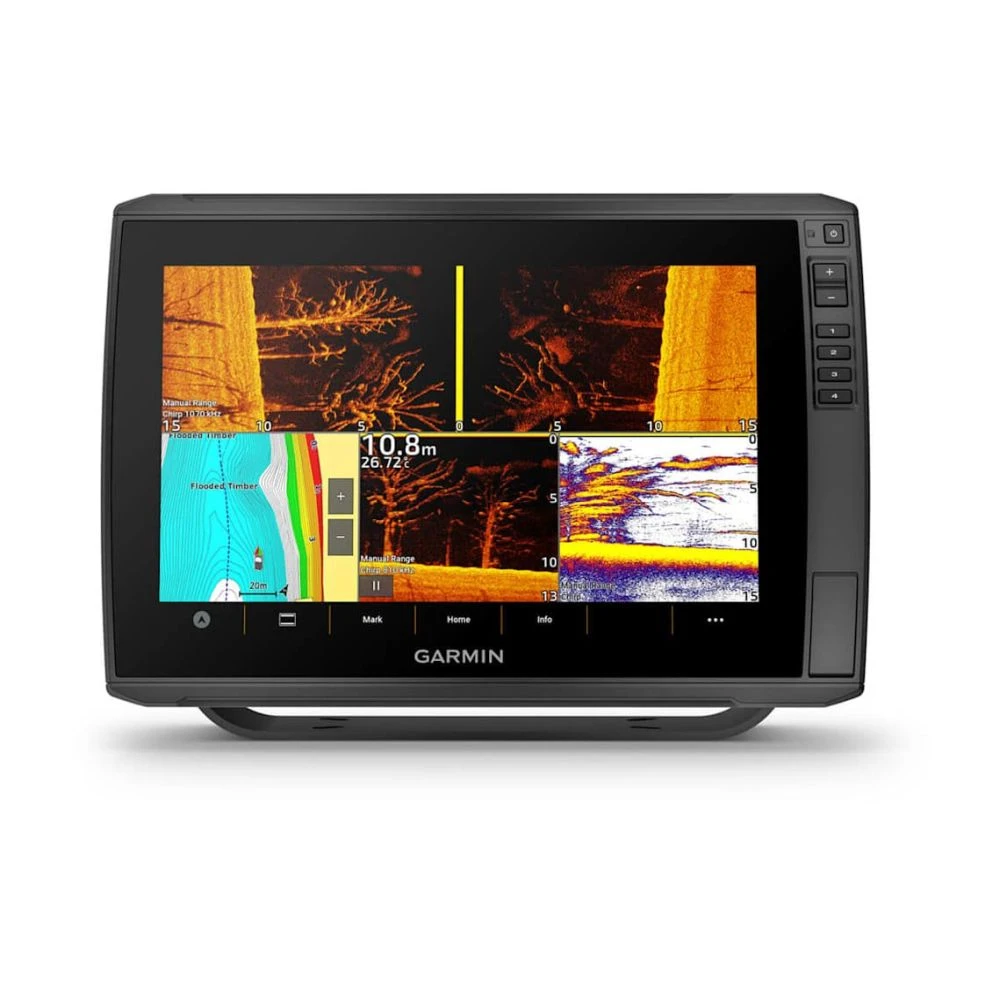

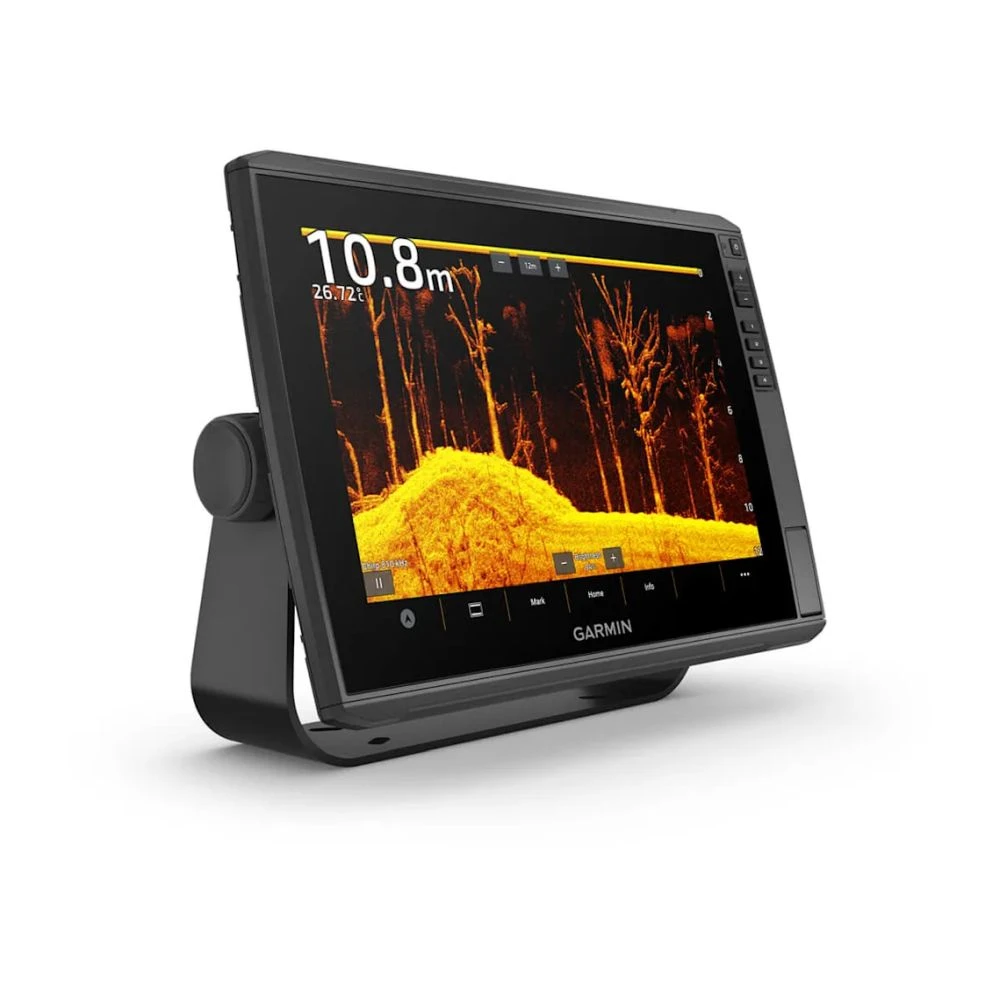

The Garmin ECHOMAP Ultra 2 is an essential tool for professional fishermen and boaters, which supports water navigation and fish radar with a large, sunlight-readable 12" touchscreen display and outstanding performance. The device is compatible with LiveScope™ live scanning sonar, so it provides a real-time, detailed picture of the underwater environment.

Built-in Garmin Navionics+™ and expandable Garmin Navionics Vision+™ map support provide highly detailed coastal and inland water area data with daily updated content and Auto Guidance+™ route planning. The device can share data wirelessly with other compatible ECHOMAP Ultra 2 or UHD2 units, so sonar images, routes and waypoints can be easily synchronized. The high-contrast Vivid color palettes make it even easier to identify target fish and various underwater structures.

Thanks to multi-band GPS, positioning is faster and more accurate, while NMEA 2000® compatibility allows the device to be connected to many on-board systems, such as autopilots or Fusion-Link™ audio. The ActiveCaptain® app offers additional options: software updates, saving screenshots, accessing Quickdraw™ social maps and many other functions directly from your phone. With the quick-release holder, the device can be easily removed and taken with you, so you can have it with you even when you are not on the boat.

General data:
- Size: 34.1 × 22.9 × 9.8 cm
- Weight: 2.5 kg
- Water resistance: IPX7
- Display: 12.1" WXGA IPS
- Display size: 26.1 × 16.3 cm
- Resolution: 1280 × 800 px
- Operation: Touch screen with Keyed Assist keyboard
- Fastening: Bail or recessed

Navigation and maps:
- Map support: Garmin Navionics+, Garmin Navionics Vision+
- Additional compatibility: BlueChart g3, BlueChart g3 Vision, TOPO 100K, Garmin Quickdraw Contours
- Auto Guidance+: supported
- Data card: 2 × microSD
- Waypoints: 5000
- Track points: 50,000
- Saved tracks: 50
- Routes: 100

Satellite positioning:
- GPS / GLONASS / Galileo / BeiDou
- Multi-frequency, multi-constellation GPS
- Built-in receiver: 10 Hz
- WAAS compatible

Contacts:
- Garmin Wi-Fi network
- ANT+
- NMEA 2000® port: 1
- Garmin Marine Network port: 2 (large connector)
- Fusion-Link™ audio support
- ActiveCaptain® compatibility
