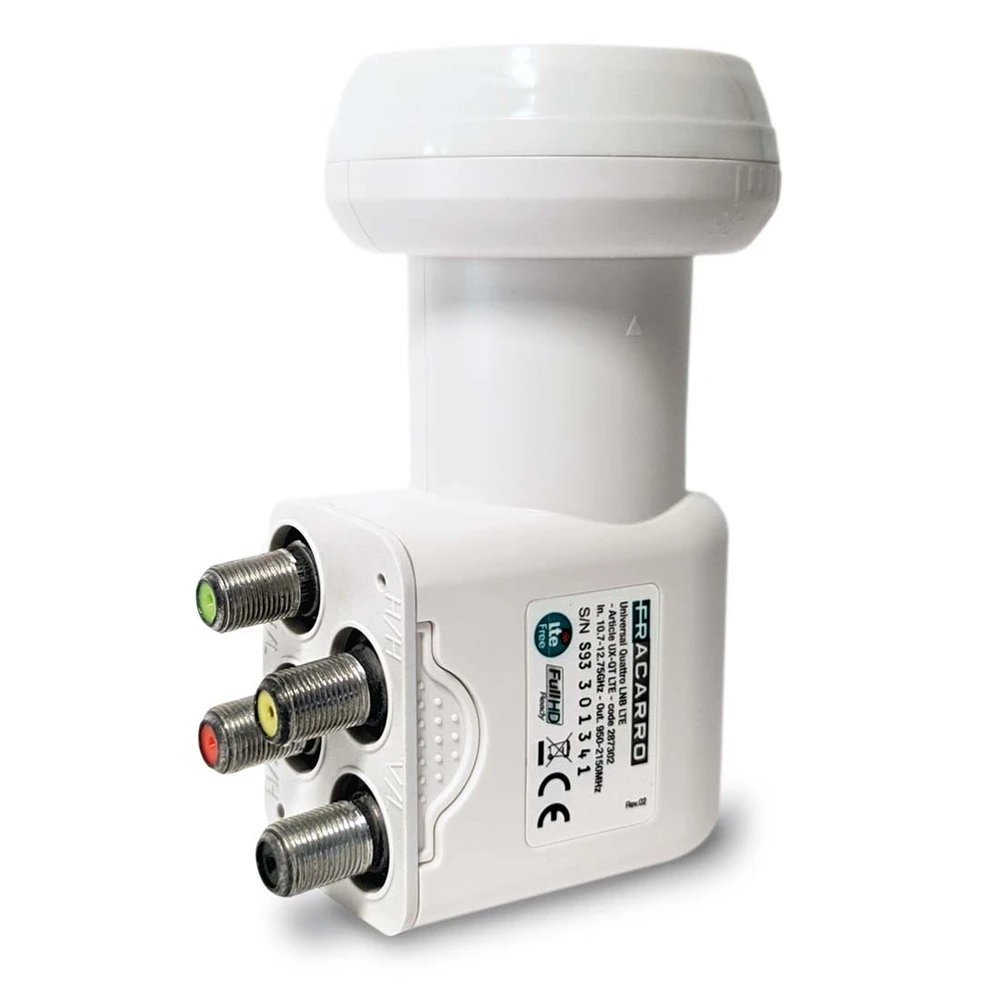

The UX series satellite receiver heads provide excellent reception performance and suit all needs – from simple, single-user systems to complex, multi-user, centrally distributed solutions. They ensure maximum signal quality for all high definition channels.

The built-in LTE filter prevents the mobile communication signal from interfering with satellite reception, so the satellite receiver head is protected against interference caused by LTE.

They have a low noise level, high reliability, compact design and low energy consumption.

The Quattro satellite receiver head is not connected directly to the indoor unit, but to a multiswitch (distributor). The multiswitch selects which band and polarization each apartment/customer will receive. Therefore, it should not be confused with a Quad satellite receiver head.

Polarization band combinations:

- VL Vertical Low (vertical, lower bar)
- VH Vertical High (vertical, top bar)
- HL Horizontal Low (horizontal, lower band)
- HH Horizontal High (horizontal, upper band)

Description:

- Input frequency: 10.7-11.7 MHz / 11.7-12.75 MHz
- Output frequency: 950-2150 MHz
- Gain: 57 dB
- Supply voltage: 11.5–19 V
- Consumption: (12V): 160 mA
- LTE protection: -60 dB
- Number of outputs: 4, which give polarization and band separately
- Dimensions: 75 x 84 x 115 mm
- Weight: 0.175 kg
