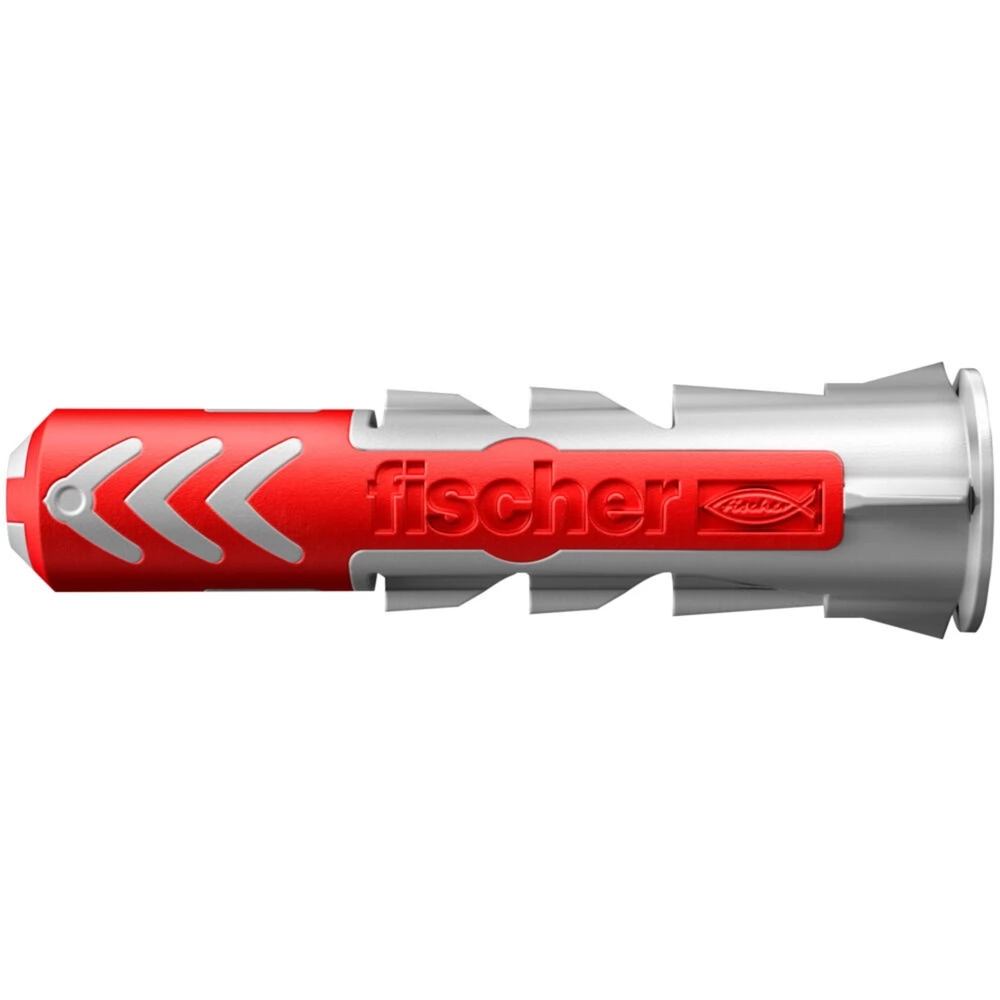

FISCHER DuoPower 6 x 30 PH TX lencsefejű anchor 200 pcs screw
not available
Product description
The two different materials and the multiple functional abilities (tension, shaping, knotting) extend the applicability to additional building materials with maximum load capacity. The red tension part results in optimal spreading and additional safety. A simple screw-in and the correct "tightening" for tensioning. The screw must not be overtightened. The preformed edge prevents the dowel from sliding into the hole. The supplied lens-head screws fit optimally into the DuoPower plug.
- Two-component materials provide the best load values.

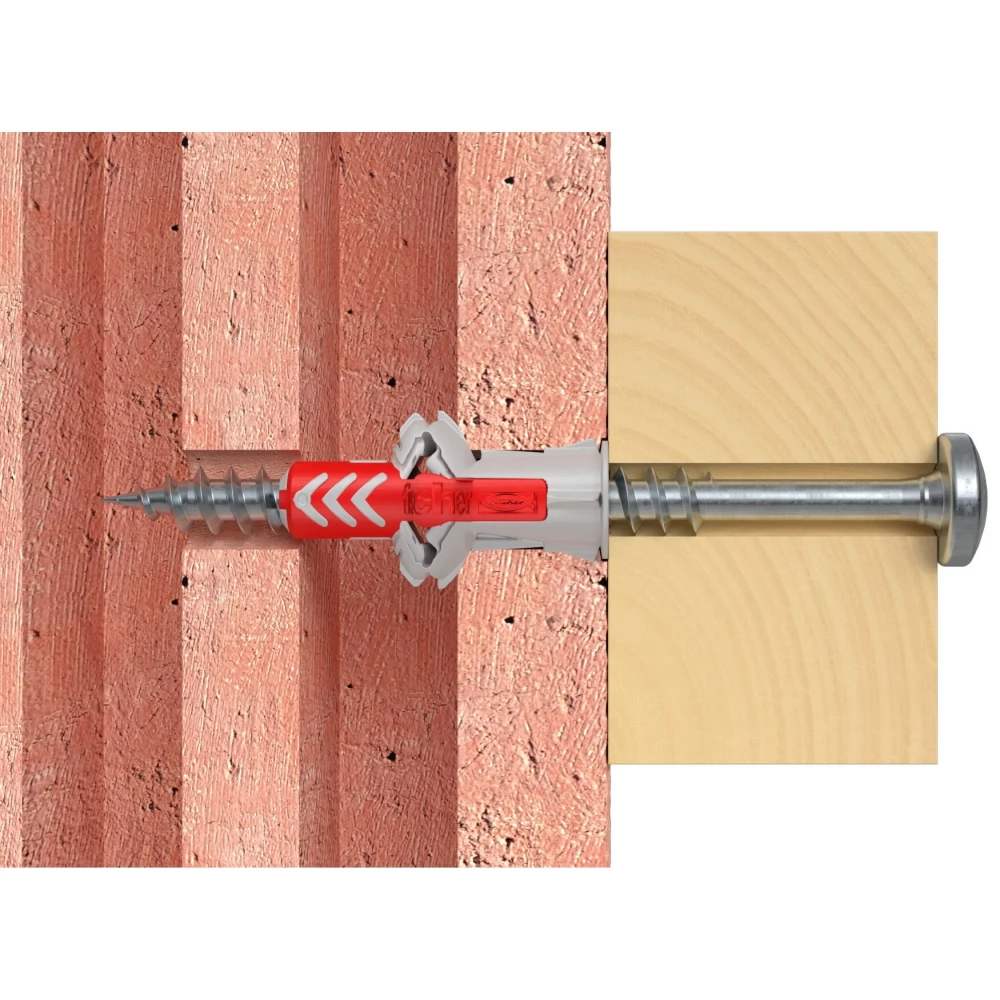

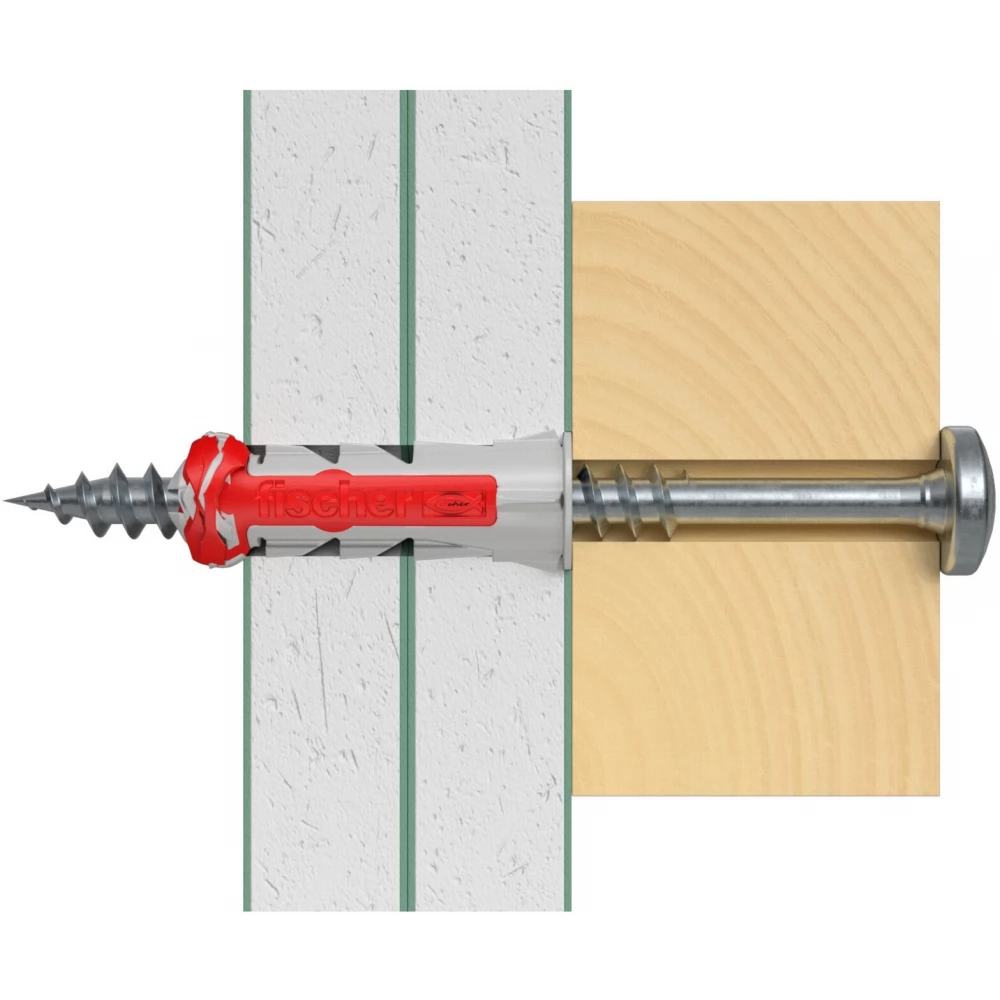

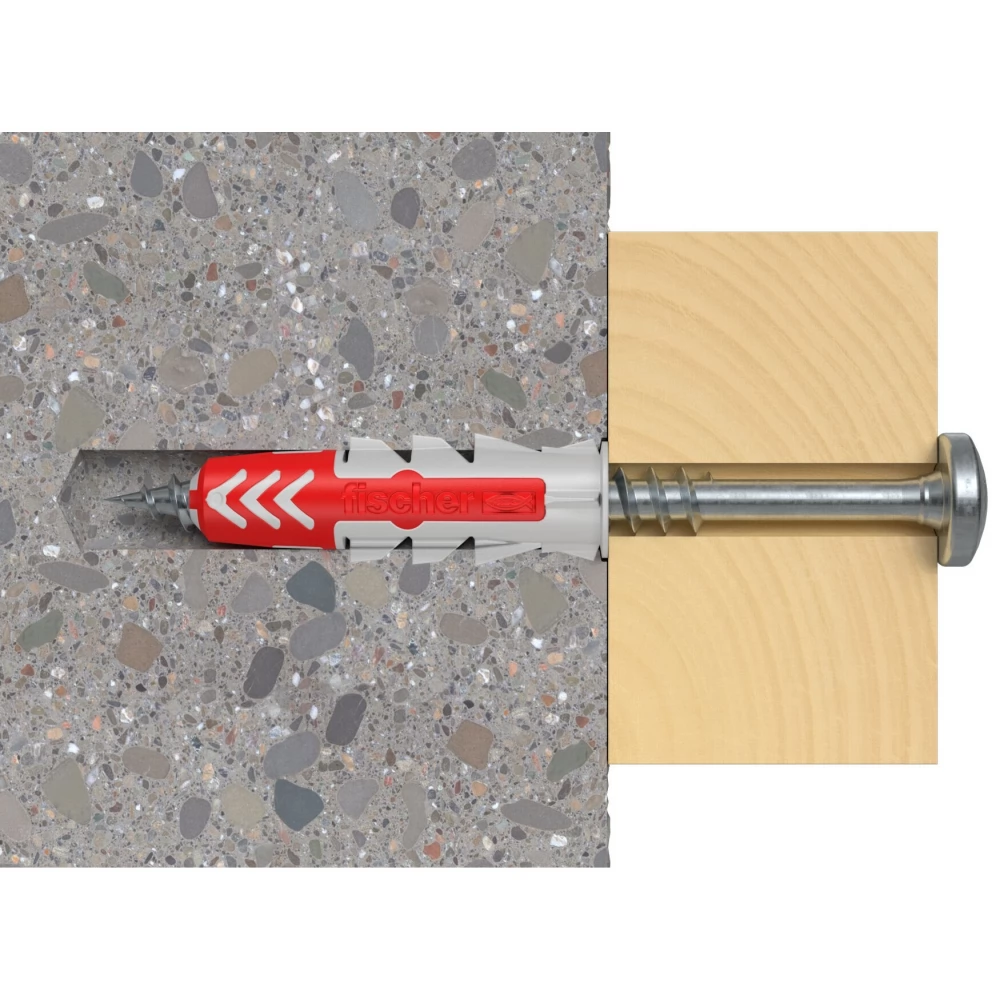

- Safe operation in solid building material (tension) and hollow building material, or building slabs (shaping, clumping).
- Easy installation: the narrow dowel collar prevents unwanted sliding into the hole.
- The best controllability can be felt when the dowel is fixed.

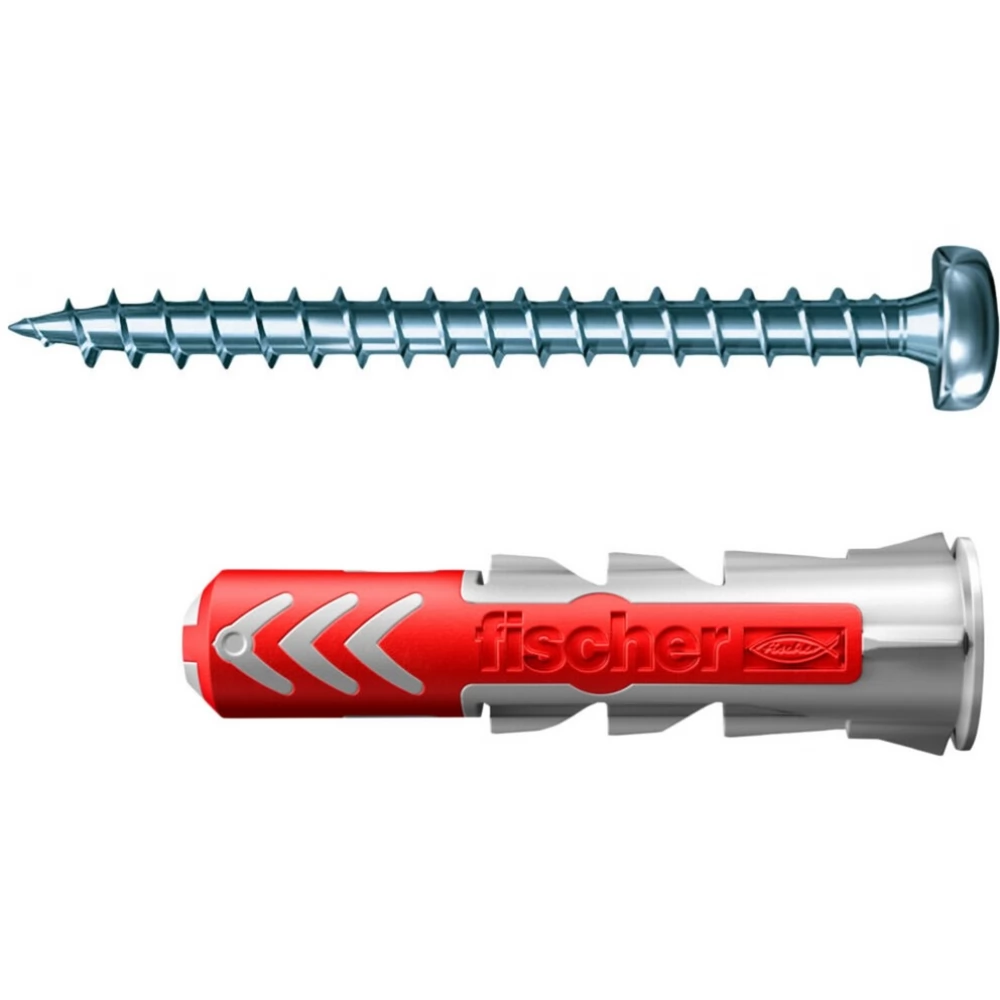

- With lens head 4.5 x 40 screw for perfect attachment.
Specifications
- Drill diameter: 6 mm
- Dowel length: 30 mm
- Minimum hole depth: 45 mm
- Screw-in depth min.: 34 mm
- Plate thickness min.: 12.5 mm
- Fixing thickness max.: 6 mm
