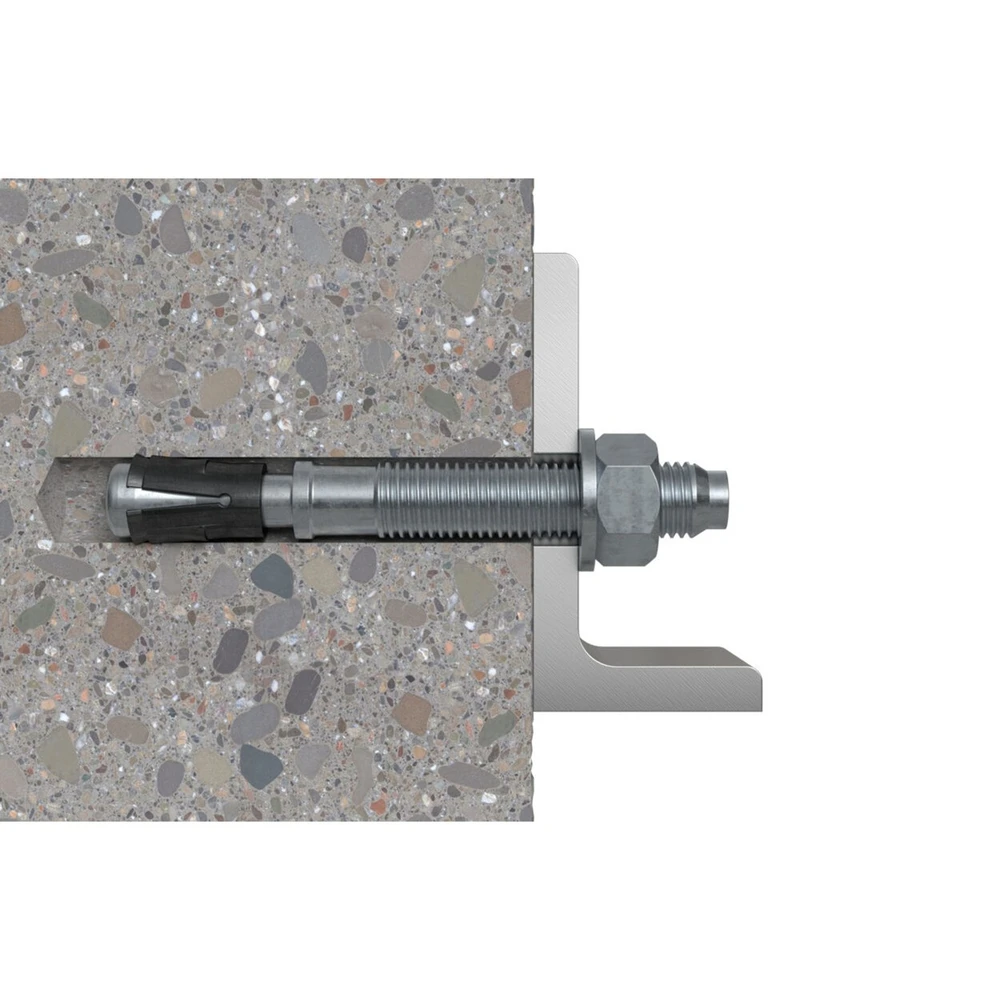

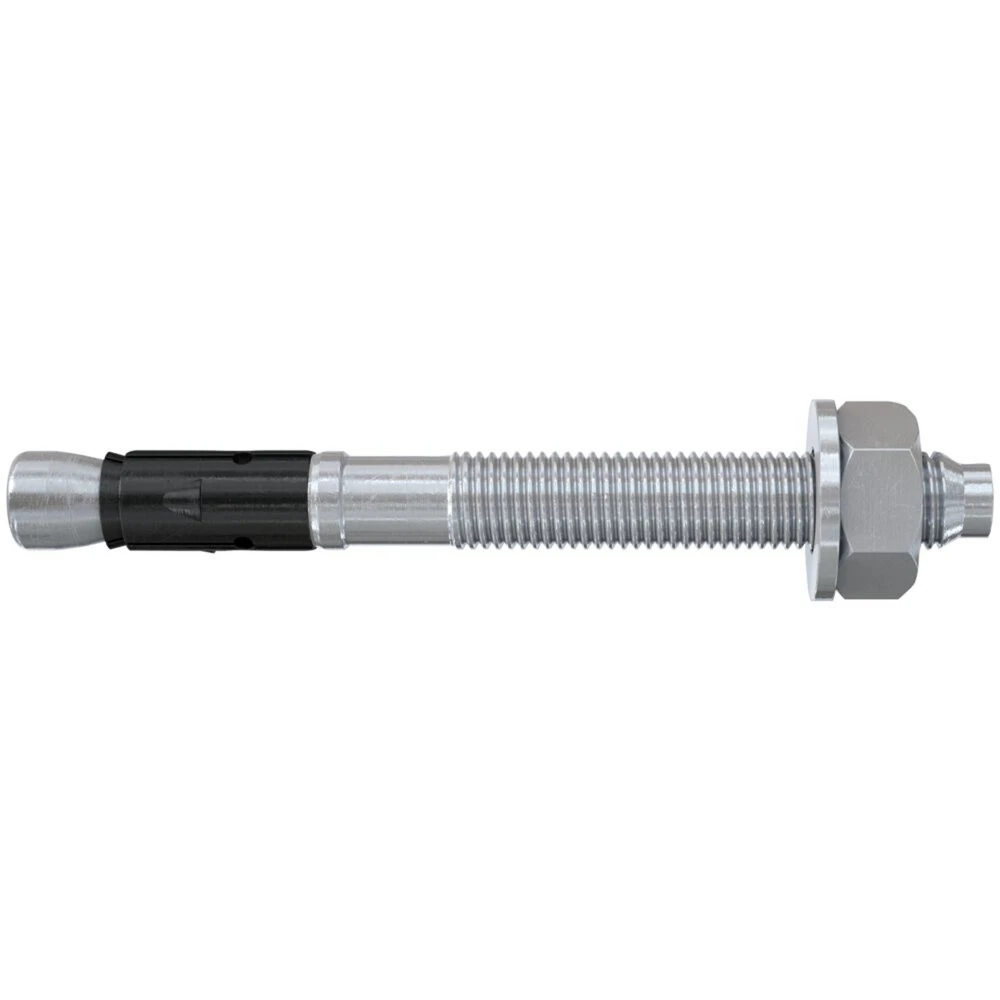

The fischer FAZ II Plus 10/20 anchor screw is the ideal steel anchor for the most demanding applications, offering a high shear capacity for fixing heavy objects in concrete. This steel anchor allows you to secure heavy loads, even in cracked concrete. It also withstands high seismic loads and is used for things like machinery, lifting platforms, stairs, gates and more. Thanks to variable mounting depth and easy installation, the FAZ II Plus offers exceptional flexibility. The steel anchor can be easily hammered in and then tightened with a torque wrench. The proven tension clamp safely transfers the loads into the concrete, ensuring maximum load capacity. FAZ II Plus is easier and faster to install (M8 - M24) as it eliminates borehole cleaning. The version made of electrogalvanized steel is suitable for indoor applications. This steel anchor is also ideal for fixing steel structures, ladders, cable trays, facades and wooden structures.

Technical data
- FAZ II Plus series
- Quantity: 135 pieces
- Material: Galvanized steel
- Dimensions: Drill head diameter: 10 mm
- Pin length: 105 mm
- Minimum drilled hole depth: 95 mm
- Minimum screw-in depth: 40 mm
- Includes the following screws: M10 thread, 63 mm thread length, washers, 17 mm nuts

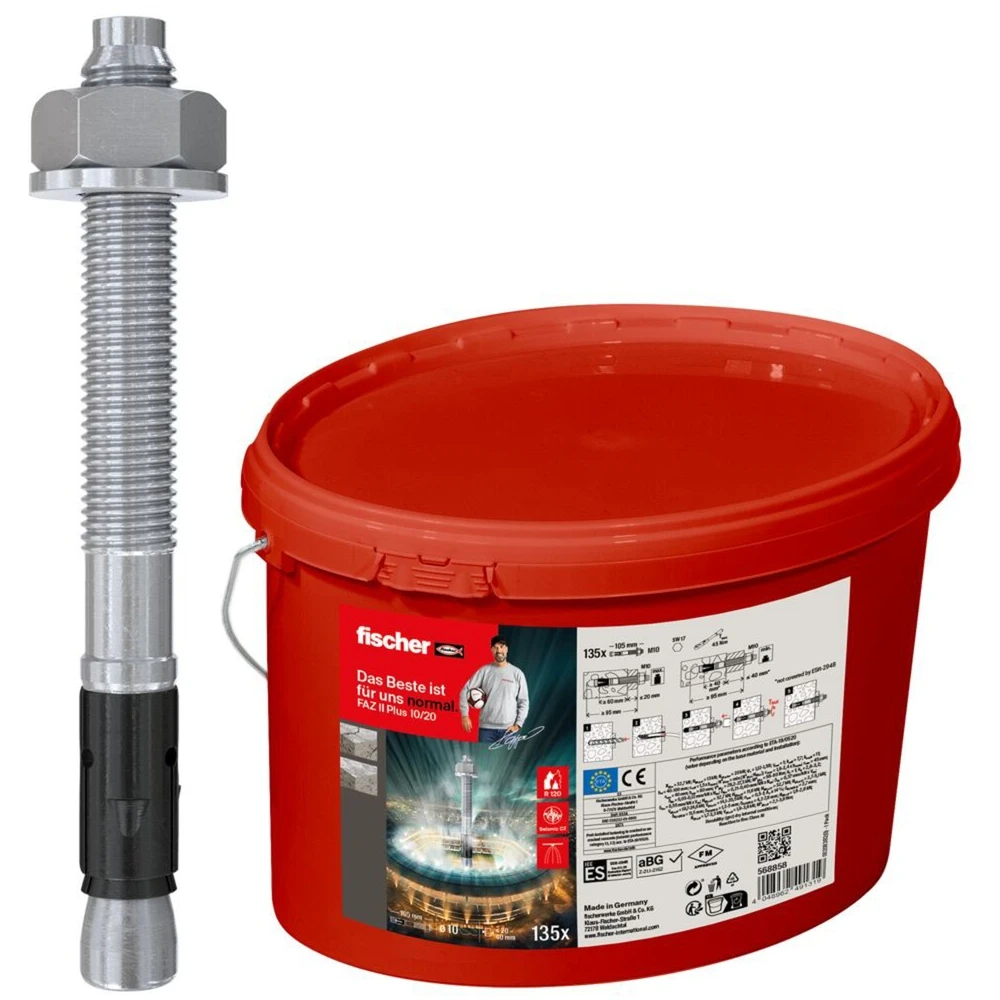

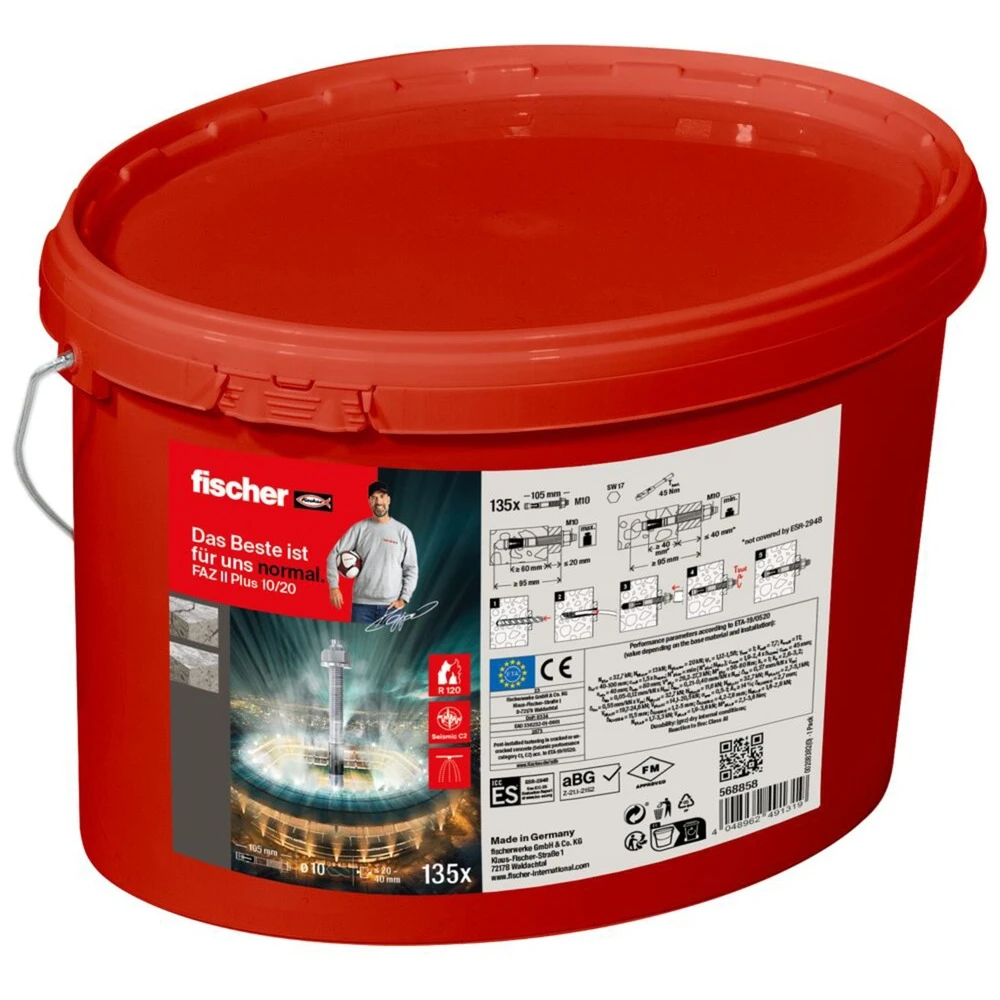

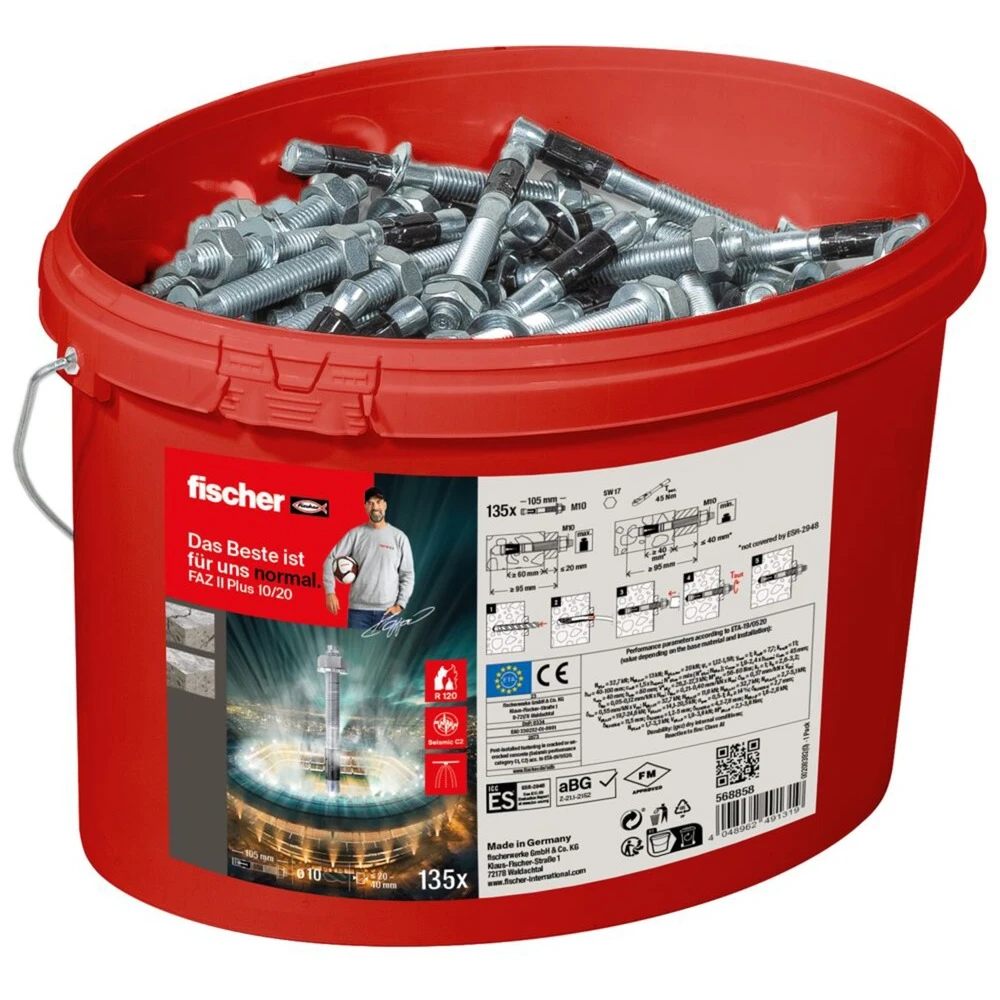

- Container: Plastic bucket with lid

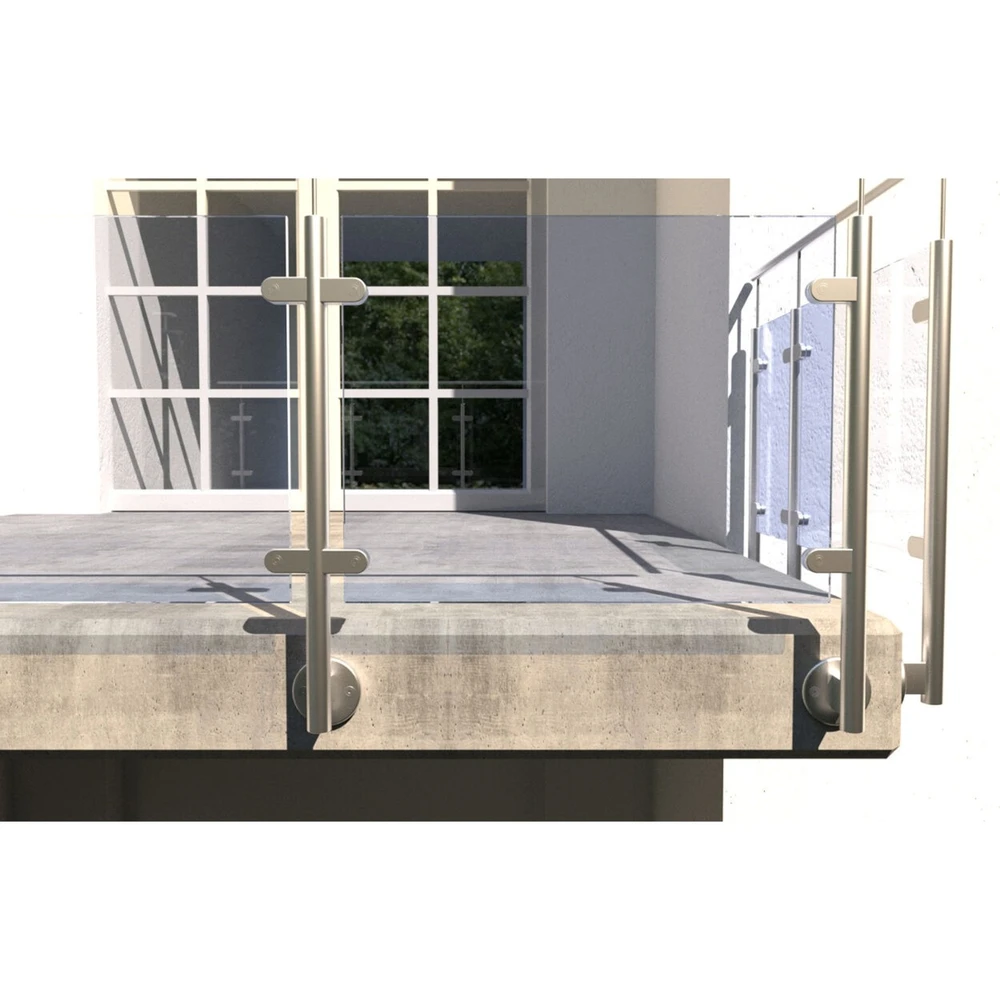

- Areas of application: Barriers, TV consoles
- Suitable building materials: Concrete, solid calcium silicate brick
- Mounting torque (Tinst): 45 Nm
