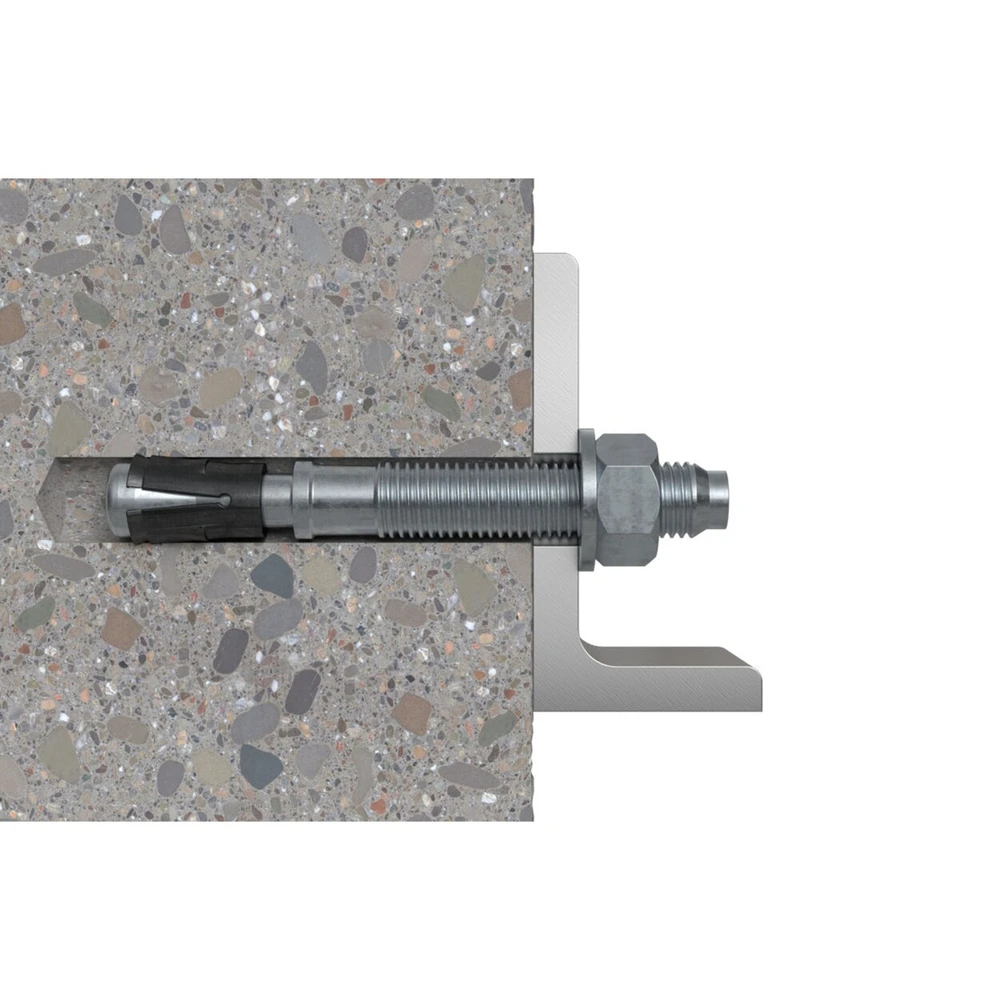

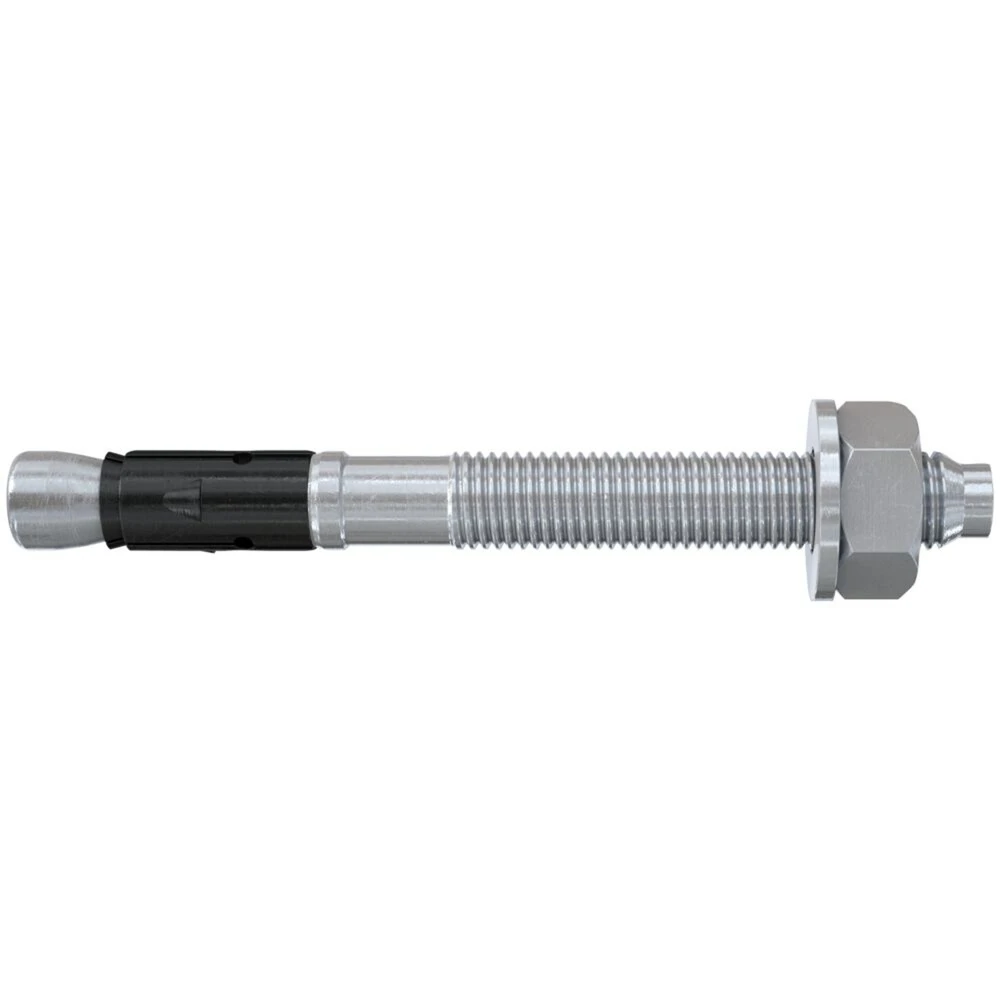

The fischer FAZ II Plus 10/10 screw anchor is the ideal steel anchor for the most demanding applications, offering a high shear capacity for fixing heavy objects in concrete. This steel anchor allows you to secure heavy loads, even in cracked concrete. It also withstands high seismic loads and is used for things like machinery, lifting platforms, stairs, gates and more. Thanks to its variable mounting depth and easy installation, the FAZ II Plus offers exceptional flexibility. The steel anchor can be easily hammered in and then tightened with a torque wrench. The proven tension clamp safely transfers the loads into the concrete, ensuring maximum load capacity. FAZ II Plus is easier and faster to install (M8 - M24) as it eliminates borehole cleaning. The electro-galvanized steel version is suitable for indoor applications. This steel anchor is also ideal for fixing steel structures, ladders, cable trays, facades and wooden structures.

- FAZ II Plus series
- Quantity: 145 pieces
- Material: Galvanized steel
- Dimensions: Drill head diameter: 10 mm
- Dowel length: 95 mm
- Minimum drill hole depth: 85 mm
- Minimum screw-in depth: 40 mm
- Includes the following screws: M10 thread, 53 mm thread length, washers, 17 mm nuts

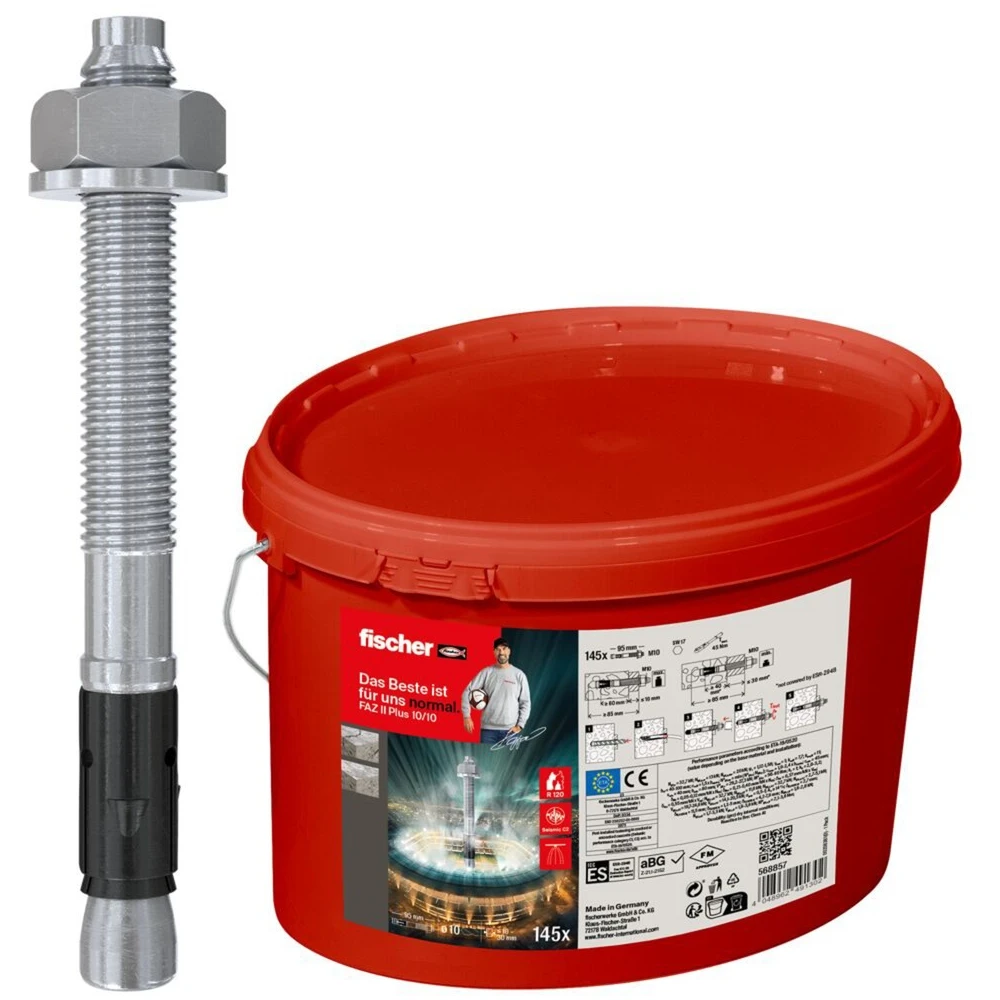

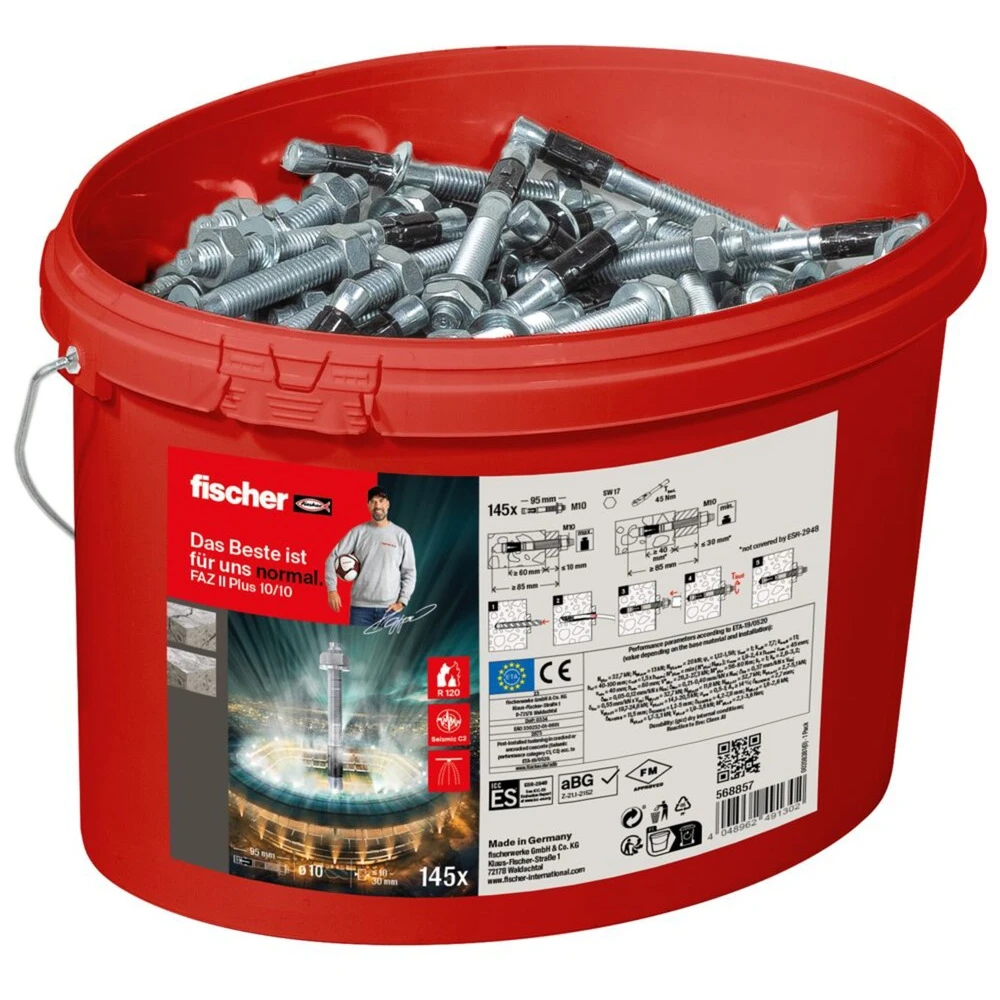

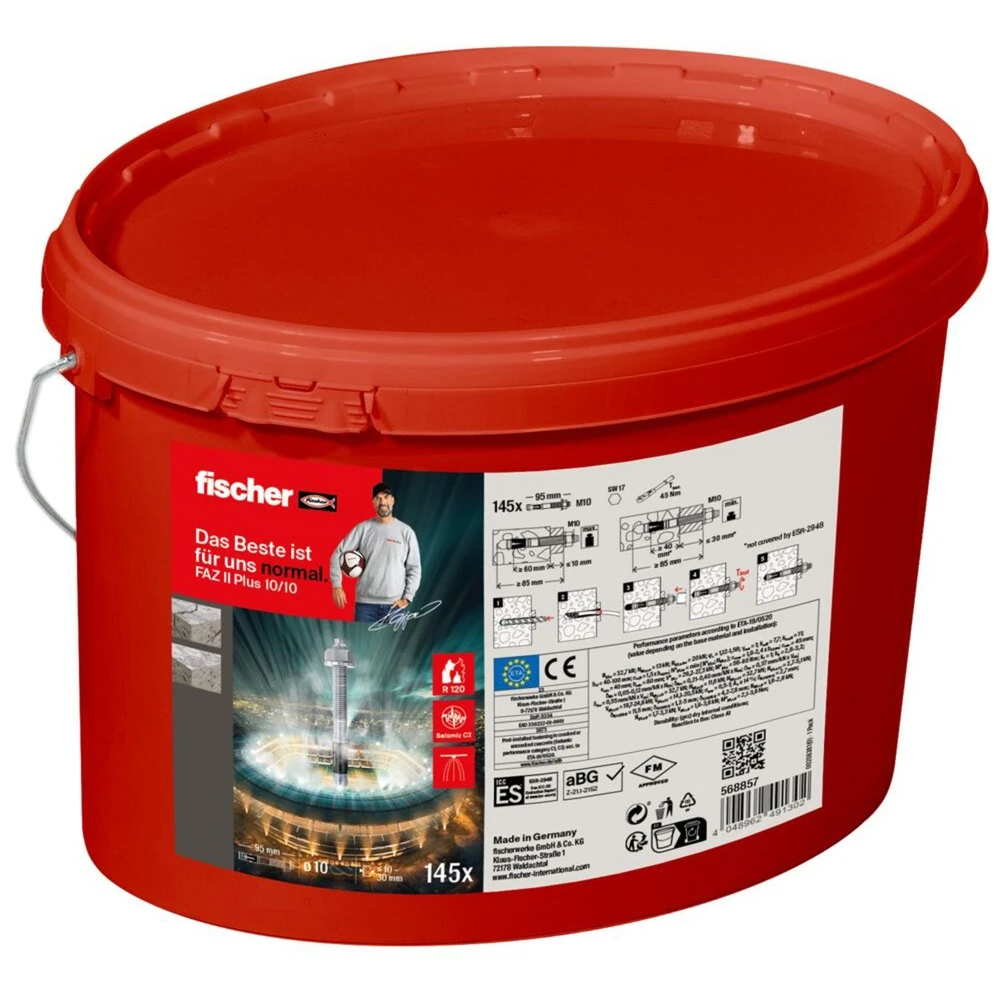

- Container: Plastic bucket with lid
- Areas of application: Barriers, TV consoles
- Suitable building materials: Concrete, solid calcium silicate brick
- Installation torque (Tinst): 45 Nm
- Approved for cracked and uncracked concrete from C20/25 to C50/60, also suitable for C12/15 concrete, C80/95 concrete and steel fiber reinforced concrete
