FEELWORLD LUT7 PRO - 7" 4K HDMI kameramonitor F970-es outer erőforrás and install szett-tel

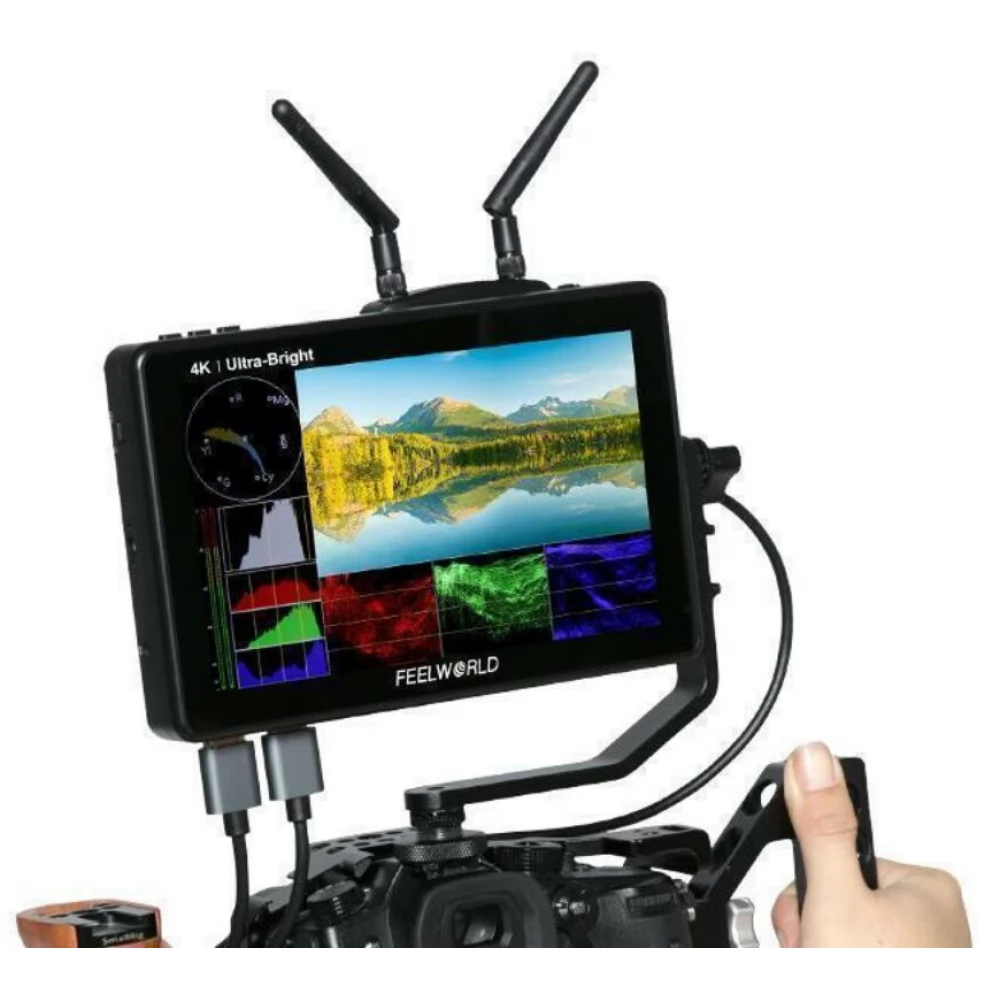

LUT7 PRO touchscreen 7" high brightness, lightweight camera monitor from FEELWORLD. Typically for members of the PRO series, this camera monitor also received the F970 external install set, with which we can apply/power additional devices without particularly complicated solutions directly from the camera monitor (e.g. auxiliary light, Wi-Fi transmitter, etc.).

- Screen size: 7 inch touch screen FULL HD IPS
- Resolution: 1920x1200 pixels
- Pixel height: 0.07875 (H) x 0.07875 (W) (mm)
- Aspect ratio: 16:10
- Brightness: 2200 cd/m²
- Contrast ratio: 1200: 1
- Viewing angle: 80°/80°(L/R) 80°/80°(U/D)

Specifications
- Input voltage: DC7 ~ 24V
- Consumption: ≤16W

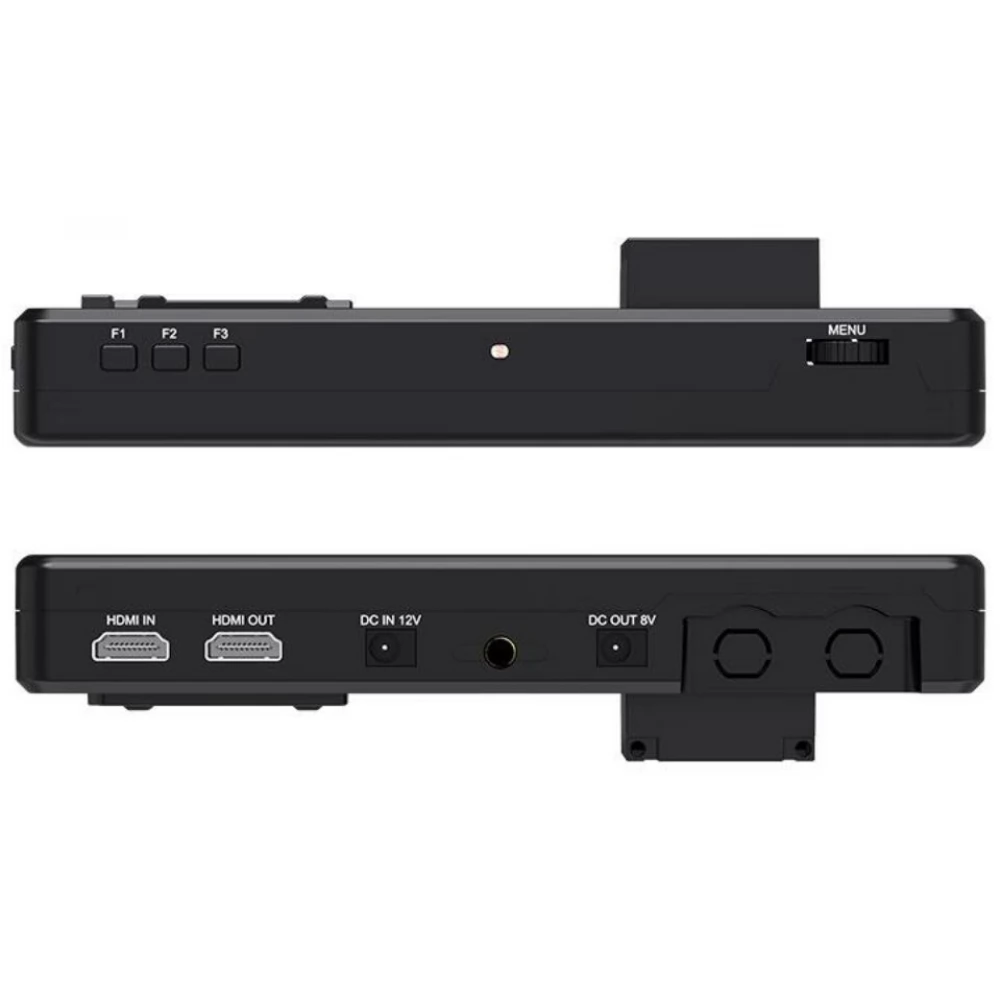

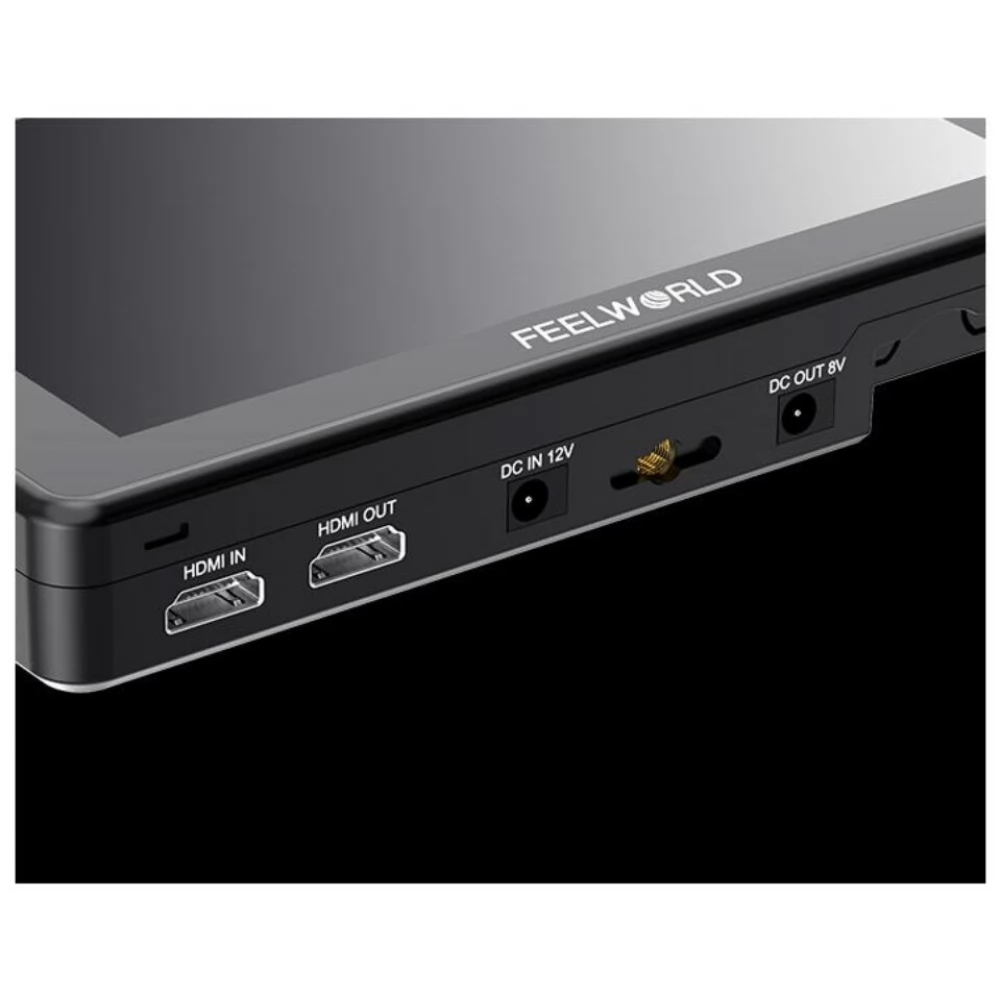

- Connectors: DC
- Operating temperature: -20°C ~ 50°C
- Storage temperature: -30°C ~ 60°C
- Installation method: ¼ threaded points (bottom, left, right)
- Battery Plate: DUAL NP-F970
- Unit size: 190Lx126Hx27D (mm)
- Unit weight: 450g

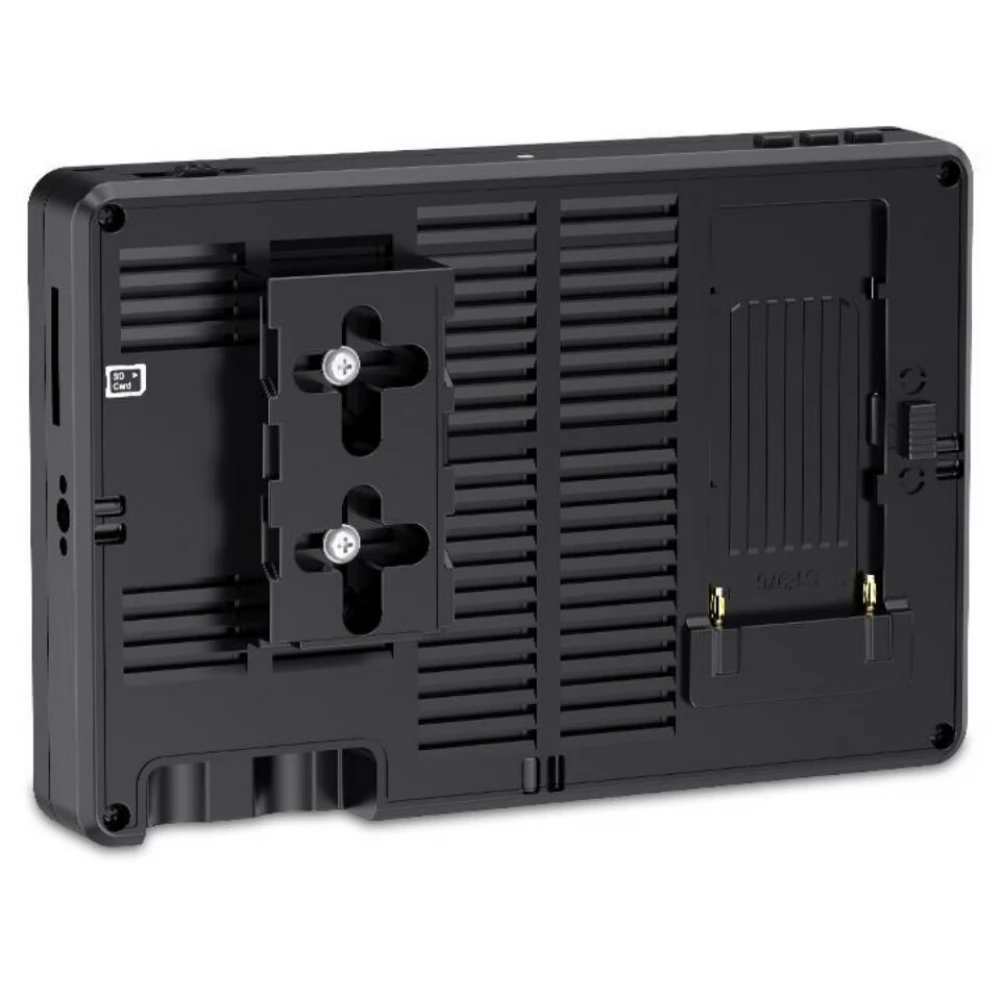

- Dual NP-F970 battery base
- Compatible batteries: Sony F970, F960, F950, F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM71, FM71, FM71 . Canon LP-E6
- 3D LUT support Log to Rec.709, user 3D LUT custom upload support
- Touch activated menu system

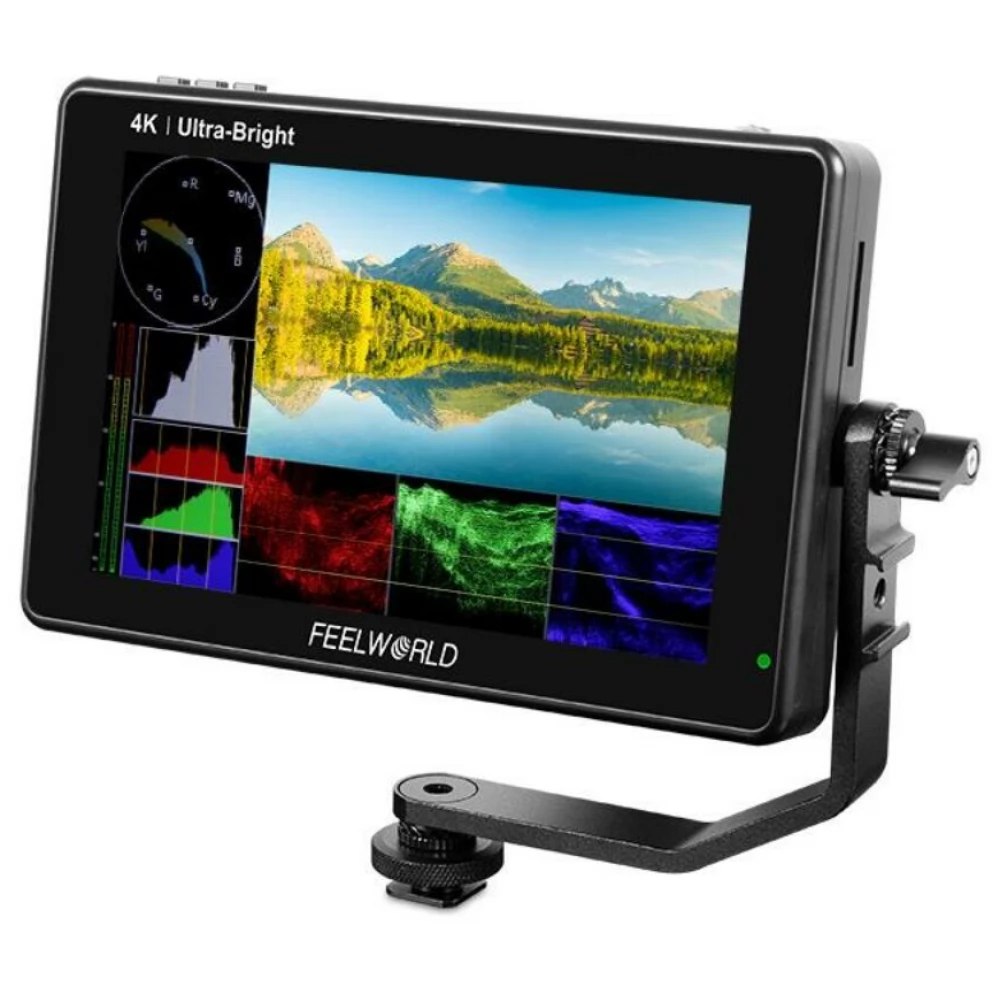

- All Waves
- Parade (RGB, YUV, Y)
- Vector
- RGB Histogram
- Brightness Histogram
- Peaking Focus Assistant (red, green, blue, white, yellow support five different and selectable colors; adjustable strength between 1~10
- False Colors
- Zebra Exposure (adjustable between 1%~100%)
- Check Field (red, green, blue, gray)
- Scan Mode (Under Scan, Over Scan)
- Anamorphic composition aid modes (1.25x, 1.33x, 1.5x, 2.0x, 2.0x zoom)
- Picture shooting (M, V, M/V)
- Image Freeze
- Composition guidelines
- Center Marker
- Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
- Marker colors (red, green, blue, white, black, yellow)
- Aspect ratio setting (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- Color temperature setting options (5600K, 6500K, 9300K, individual user)
- Zoom (100%~300%)
- Pixel to Pixel

Contents of the box
- 1× FeelWorld LUT7PRO 7" DCI 4K HDMI input touchscreen camera monitor
- 1× Mini/Micro-HDMI HDMI cable
- 1× Tiltable camera support arm
- 1x Assembly key
- 1× User manual
