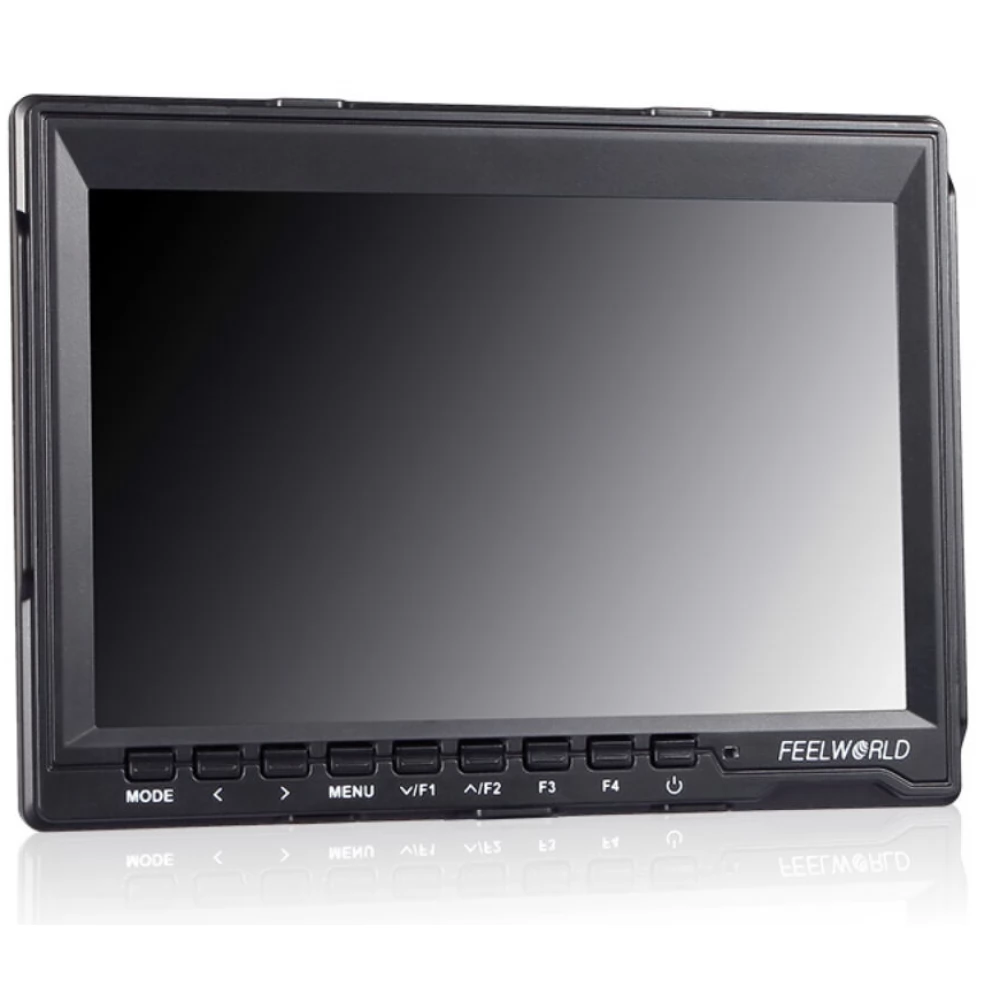

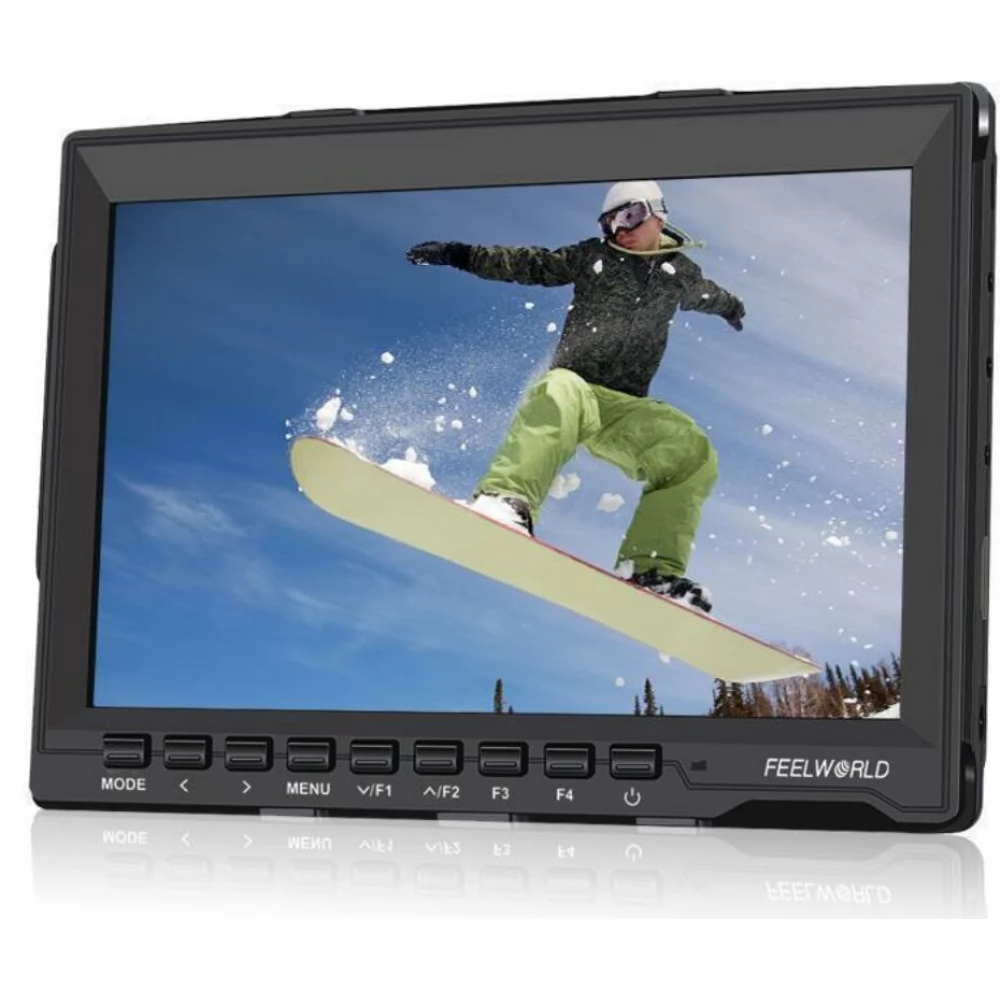

7" inch diagonal camera monitor.

- Screen size: 7 inch screen FULL HD IPS
- Resolution: 1280 x 800 pixels
- Pixel height: 0.11775(H) × 0.11775(V) mm
- Aspect ratio: 16:10
- Brightness: 400cd/m²
- Contrast ratio: 800:1
- Viewing angle: 89°/89°(L/R) 89°/89°(U/D)

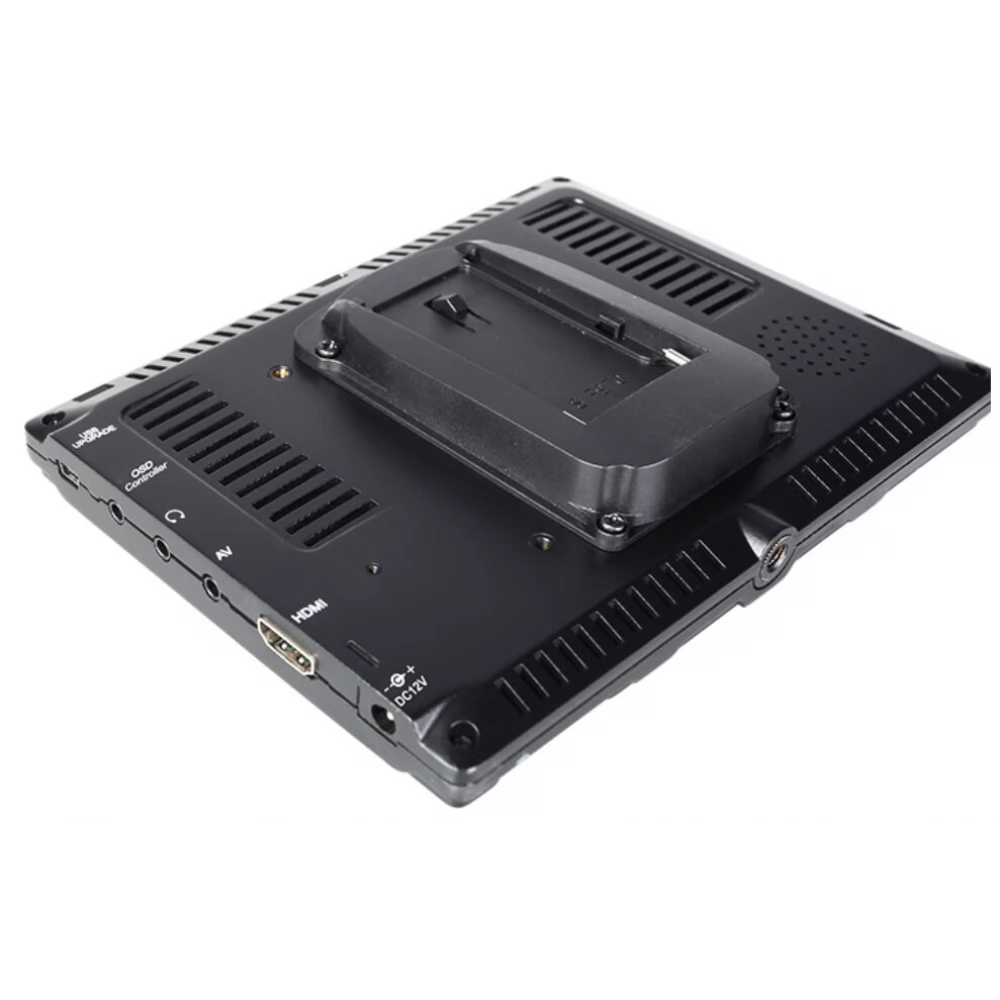

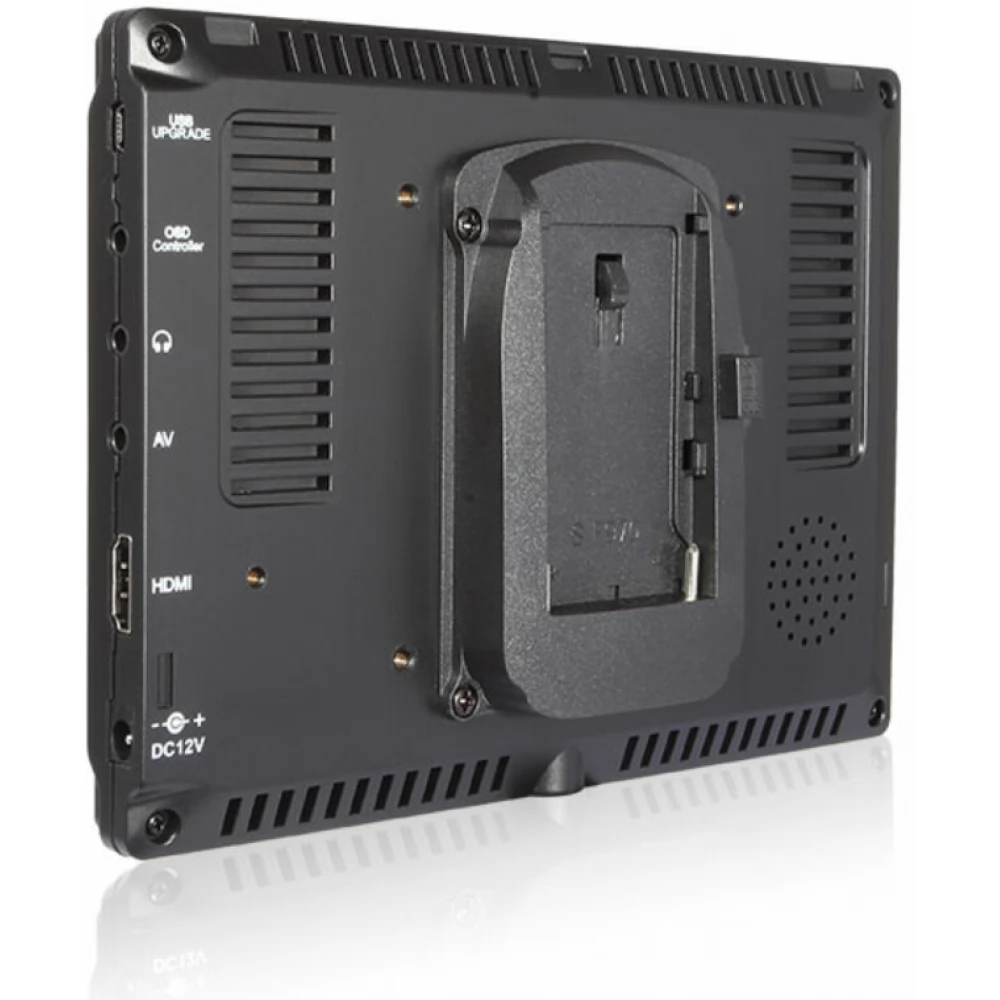

Input
- 1 X HDMI
- 1 X AV
- 1x Remote OSD controller input

Output
- 1 X Audio Out Stereo headphone output
- HDMI supported parameters:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

Other properties
- Input voltage: DC7 ~ 24V
- Consumption: ≤5W
- Connectors: DC
- Operating temperature: -20°C ~ 50°C
- Storage temperature: -30°C ~ 60°C
- Installation method: ¼ threaded points (bottom)

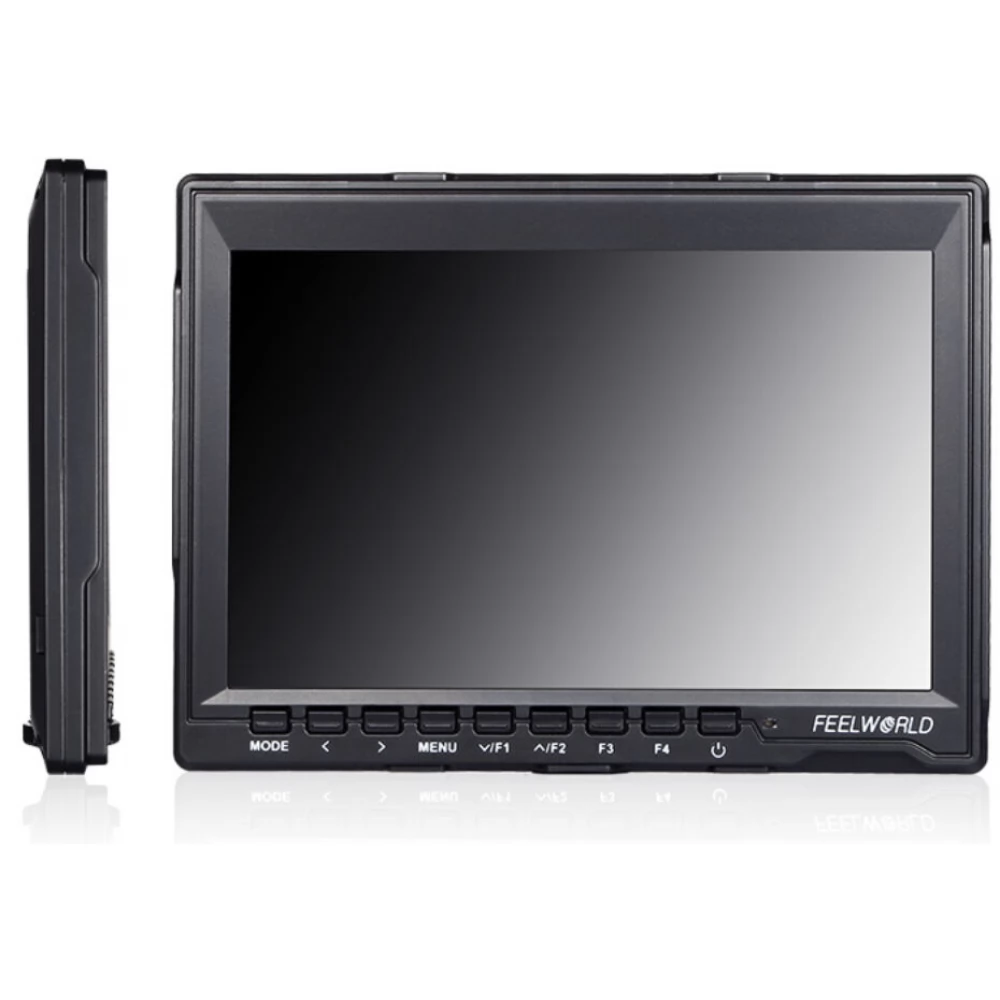

- Unit size: 176L×130H×17D (mm)
- Unit weight: 300g
- Compatible battery: Sony F970, F960, F950, F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Canon LP-E6
- Brightness Histogram
- Peaking Focus Assistant (red, green, blue, white, yellow support five different and selectable colors; adjustable strength between 1~10
- False Colors
- Zebra Exposure (adjustable between 1%~100%)
- Check Field (red, green, blue, gray)
- Anamorphic composition aid modes (1.3X, 2.0X、2.0X magnification)
- Flip H/ Flip V (All open, H/V flip)
- Image Freeze
- Composition guidelines
- Center Marker
- Screen Marker (80%,85%,90%,93%,96%, 2.35:1))
- Marker colors (red, green, blue, white, black, yellow)
- Aspect ratio adjustment (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Color temperature setting options
- Nine Grid
- Pixel to Pixel

The package does not include the battery required for operation!
Always turn off the monitor with the power button before disconnecting the power supply!

Contents of the box
- 1x FEELWORLD FW759 ultra-thin 7" HDMI i/o camera monitor

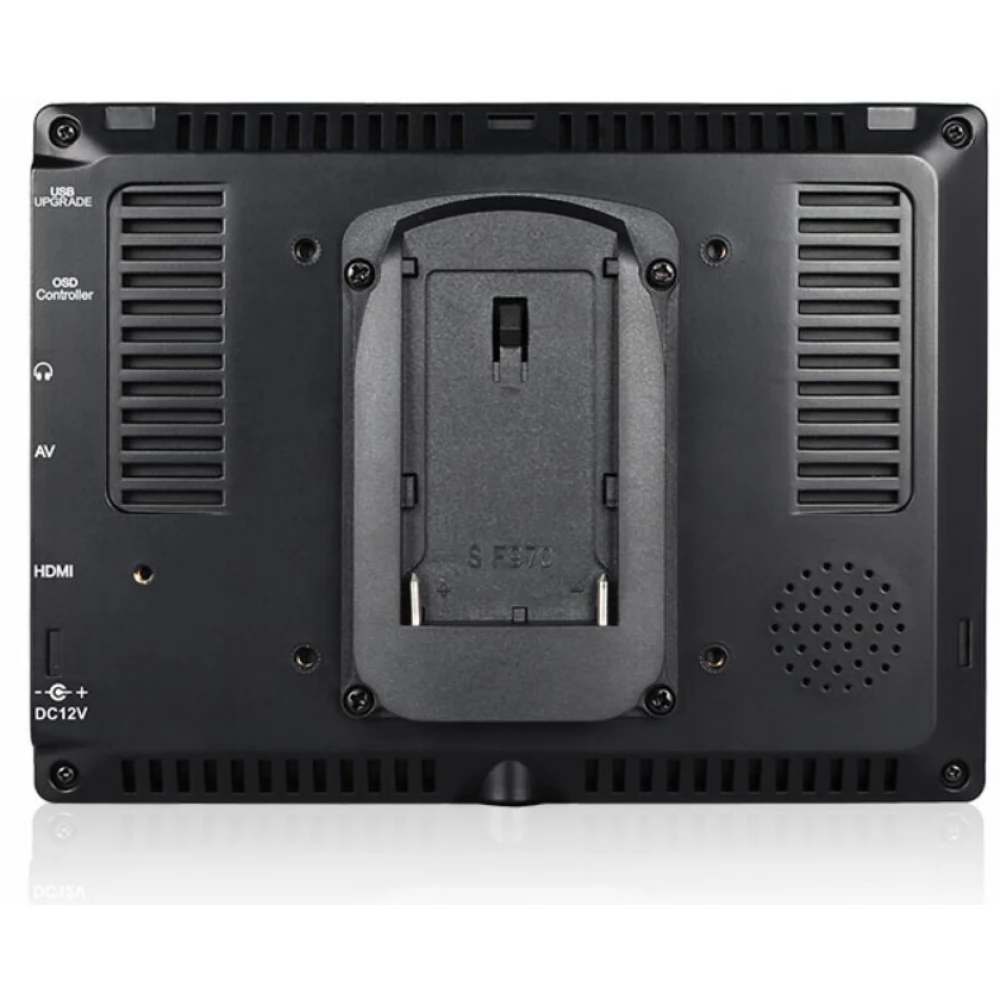

- 1x F970 Battery Plate

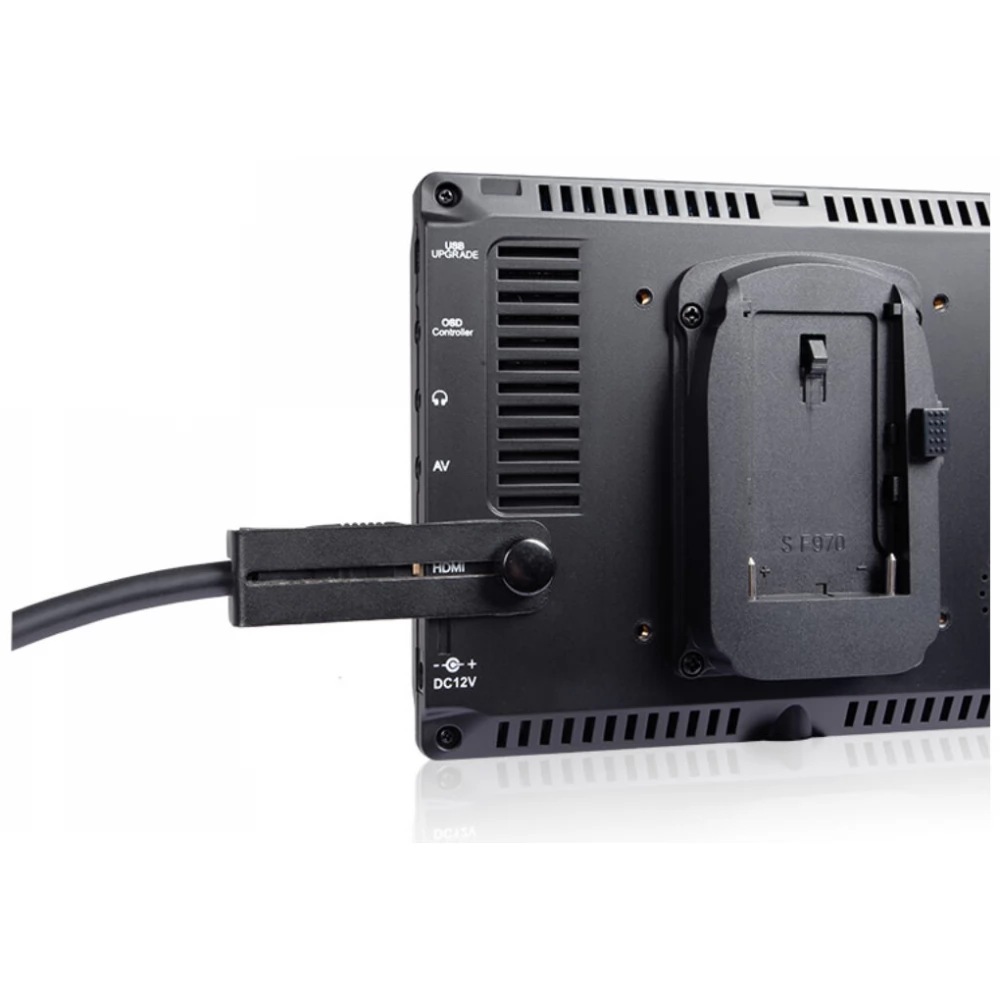

- 1× HDMI cable

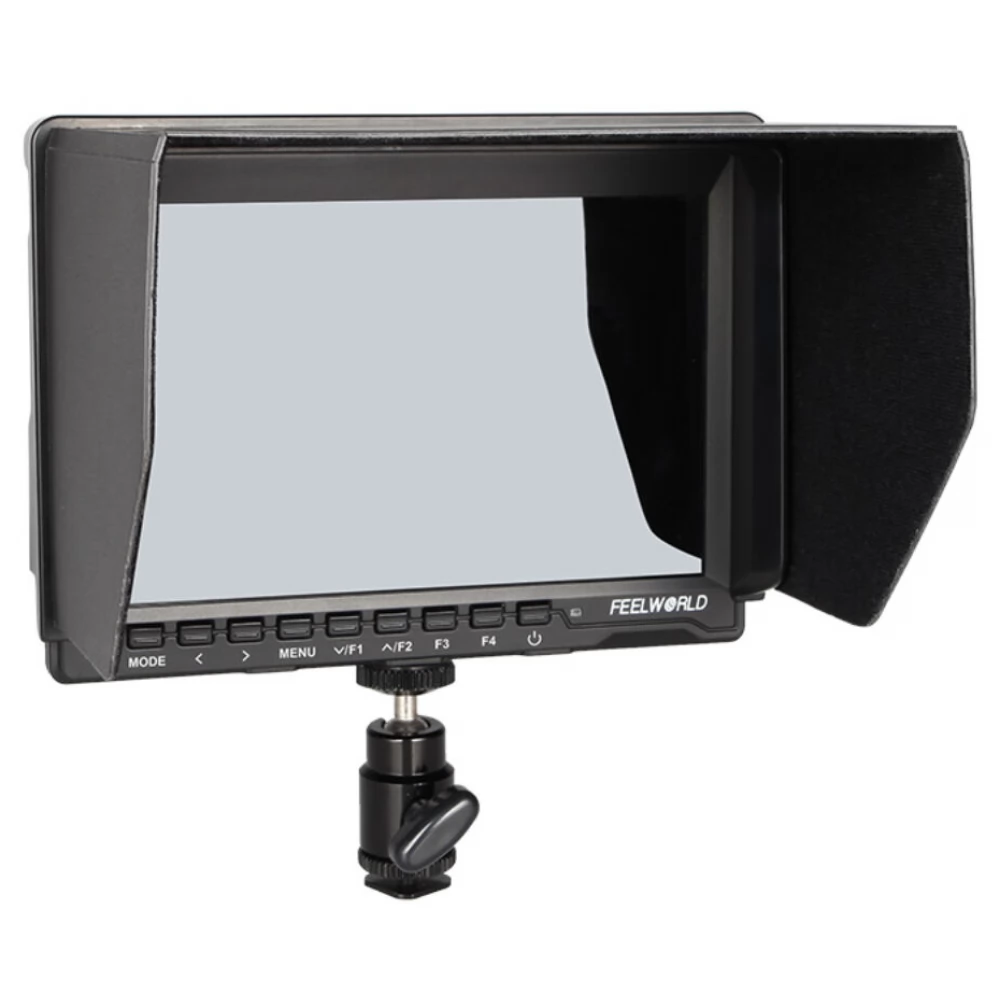

- 1× Sunshade
- 1× User manual
- 1x lightning shoe
