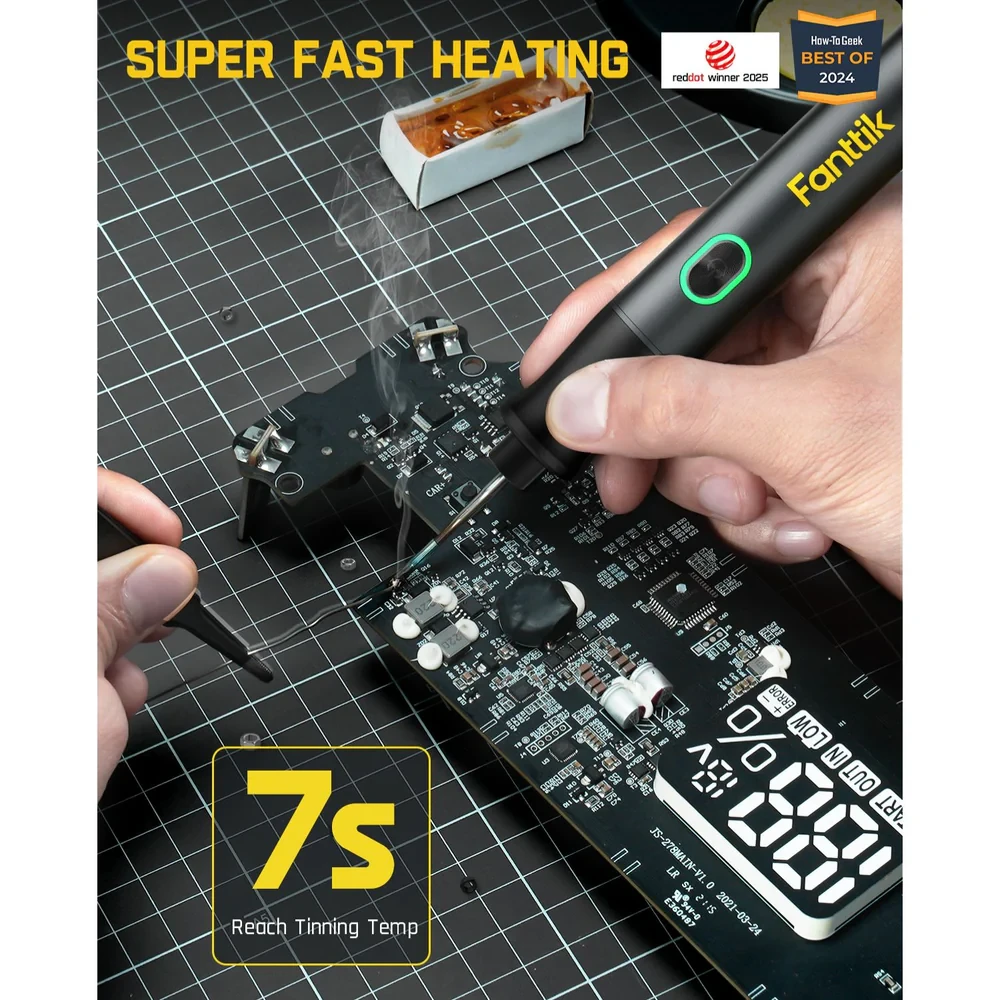

Fanttik T1 Max is a compact soldering iron equipped with four soldering tips (C210-I, C210-IS and two C210-K) with long service life and oxidation resistance. The tips have the shortest warm-up time of only 7 seconds, which reduces waiting time and increases productivity. A tin puller and precision tweezers are also included for safe and accurate soldering.

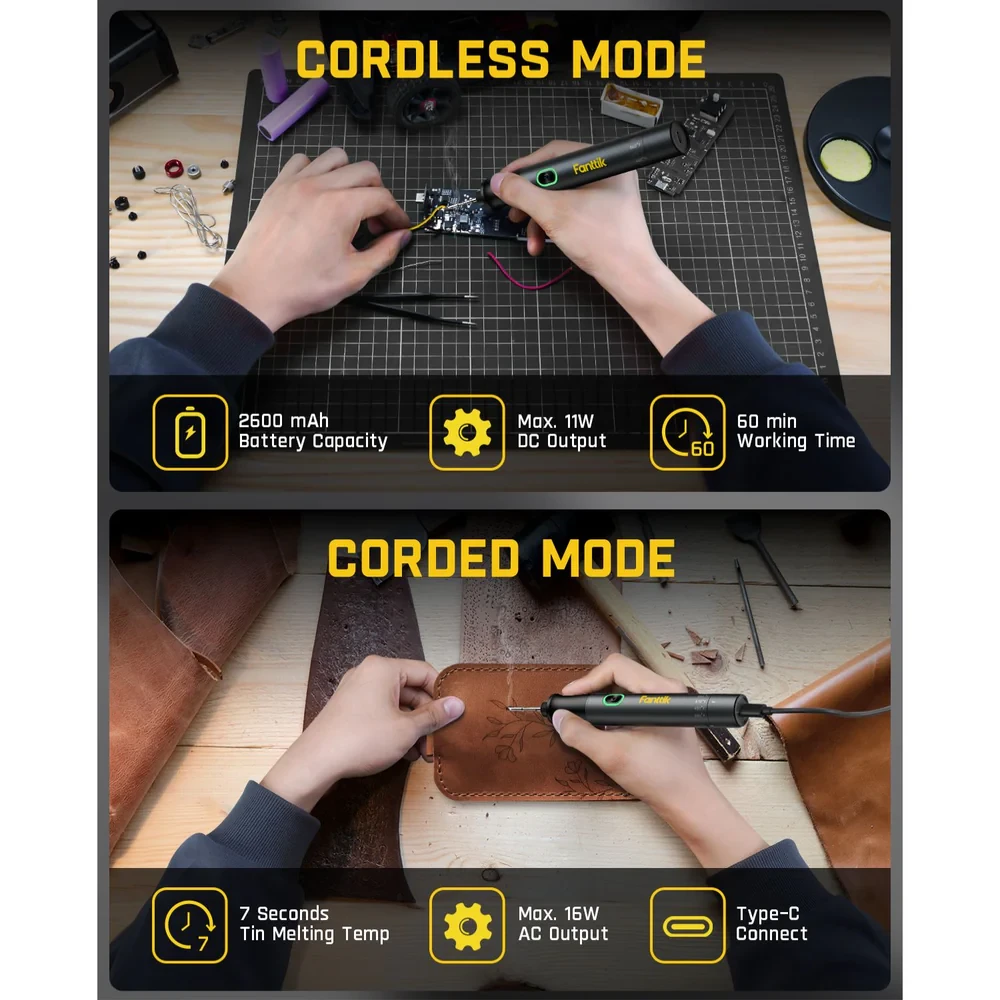

Wireless and wired mode
In wireless mode, the built-in 2600 mAh rechargeable battery provides up to 11 watts of direct current (DC) output power and up to 60 minutes of operating time at 450°C. Thanks to its compact size, maintenance work can be carried out anywhere. In wired mode, the soldering iron offers up to 16W of AC (alternating current) output power and can be powered from a charger or power bank with a USB-C (Universal Serial Bus Type-C) port.

Intelligent motion sensor
The built-in gravity sensor automatically switches the soldering iron to sleep mode after 15 seconds of inactivity. Lifting the device will reheat it to the set temperature. The red LED will flash during heating and the green LED will be steady when the target temperature has been reached.

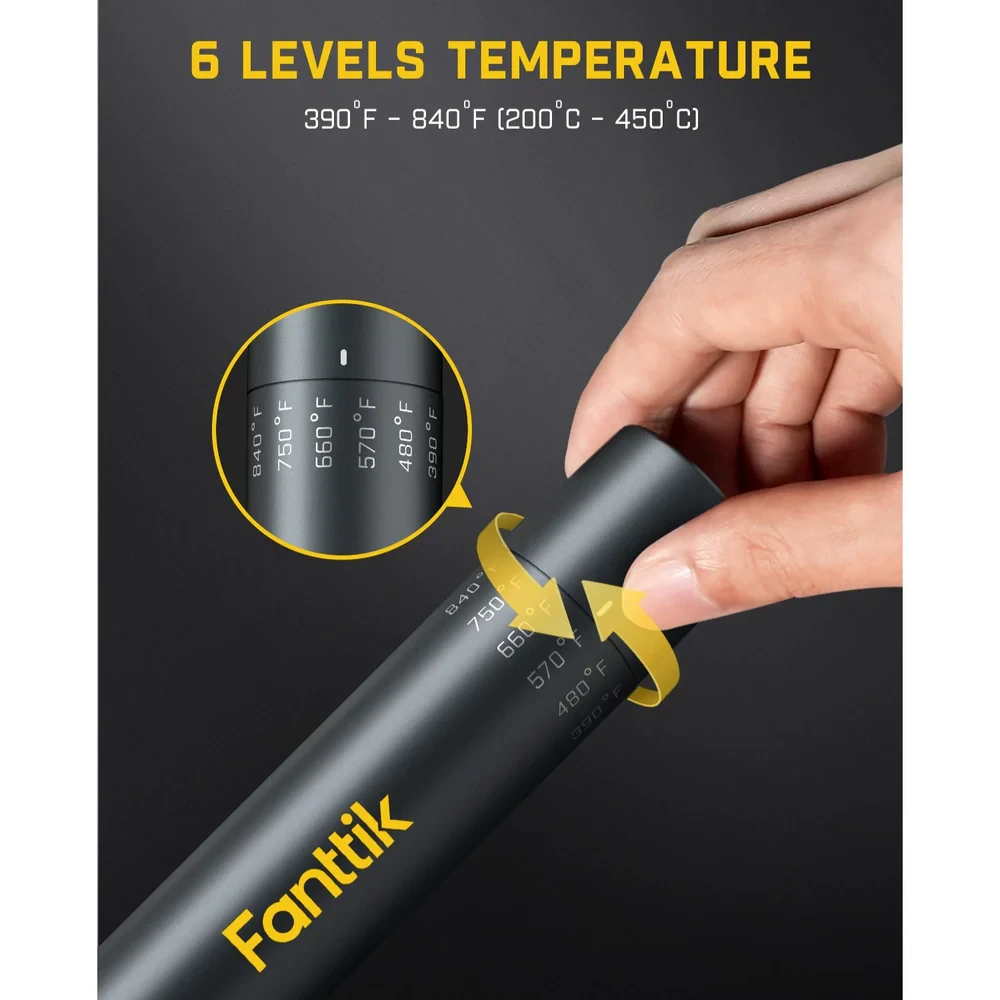

Precise temperature control
The rear button allows you to select six temperature levels from 200°C to 450°C, so you can adjust the heating power for different applications and protect heat-sensitive components.

Stable construction and convenient storage
The aluminum housing hides a built-in pointed storage compartment that slides out when pressed. Thanks to its thoughtful design, the soldering iron looks aesthetically pleasing on the workbench, while keeping the worktop tidy.

Technical data
- Soldering iron dimensions: 24 x 180 mm
- Rotatable stand dimensions: 146 x 116 mm
- AC output power: 16 W
- DC output power: 12 W
- Charging voltage: 5V/2A
- Nominal voltage: 3.65V
- Rechargeable battery: Lithium, 2600 mAh
- Charging time: 1.5-2 h

Package contents
- Soldering iron

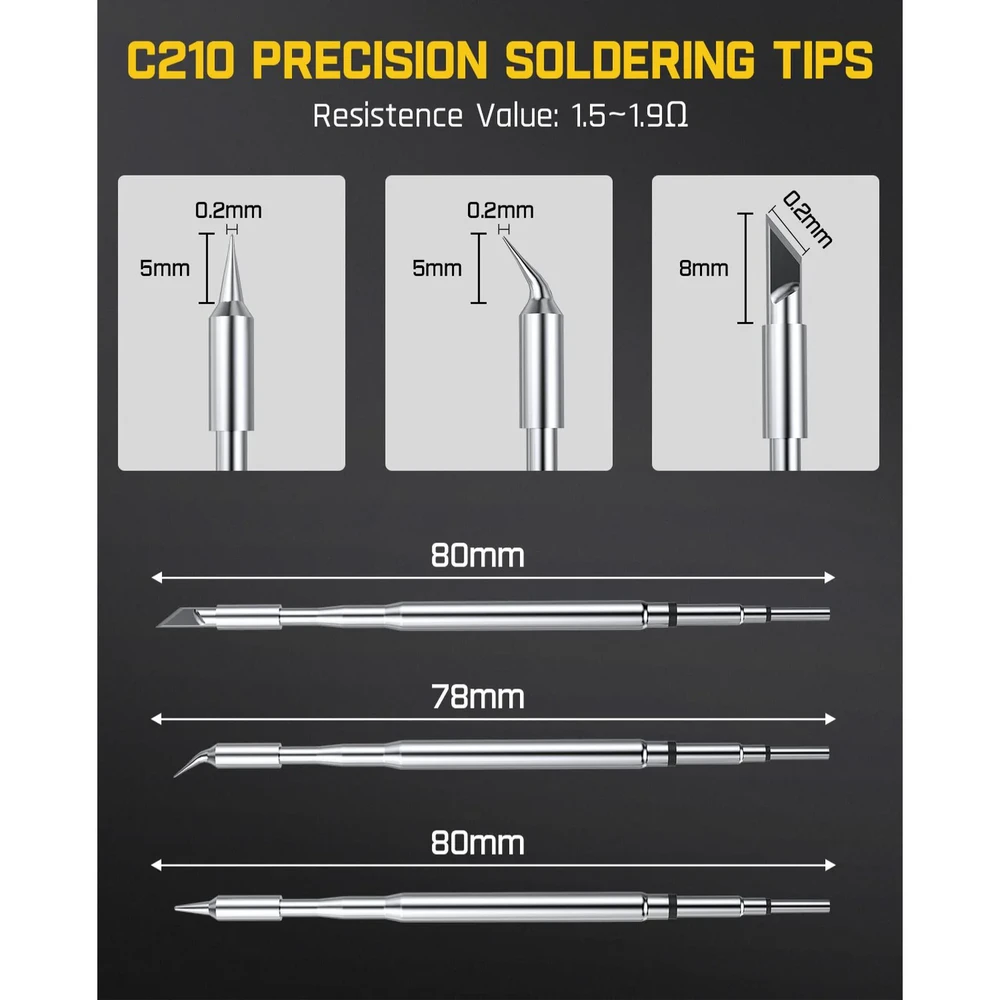

- 4 precision soldering tips C210 (I / IS / K)
- Aluminum stand
- 360° rotatable stand
- 10 sponges (5 yellow, 5 black)
- Soldering pump
- 10 cut desoldering tubes
- ESD tweezers
- Cable between USB-A and USB-C
