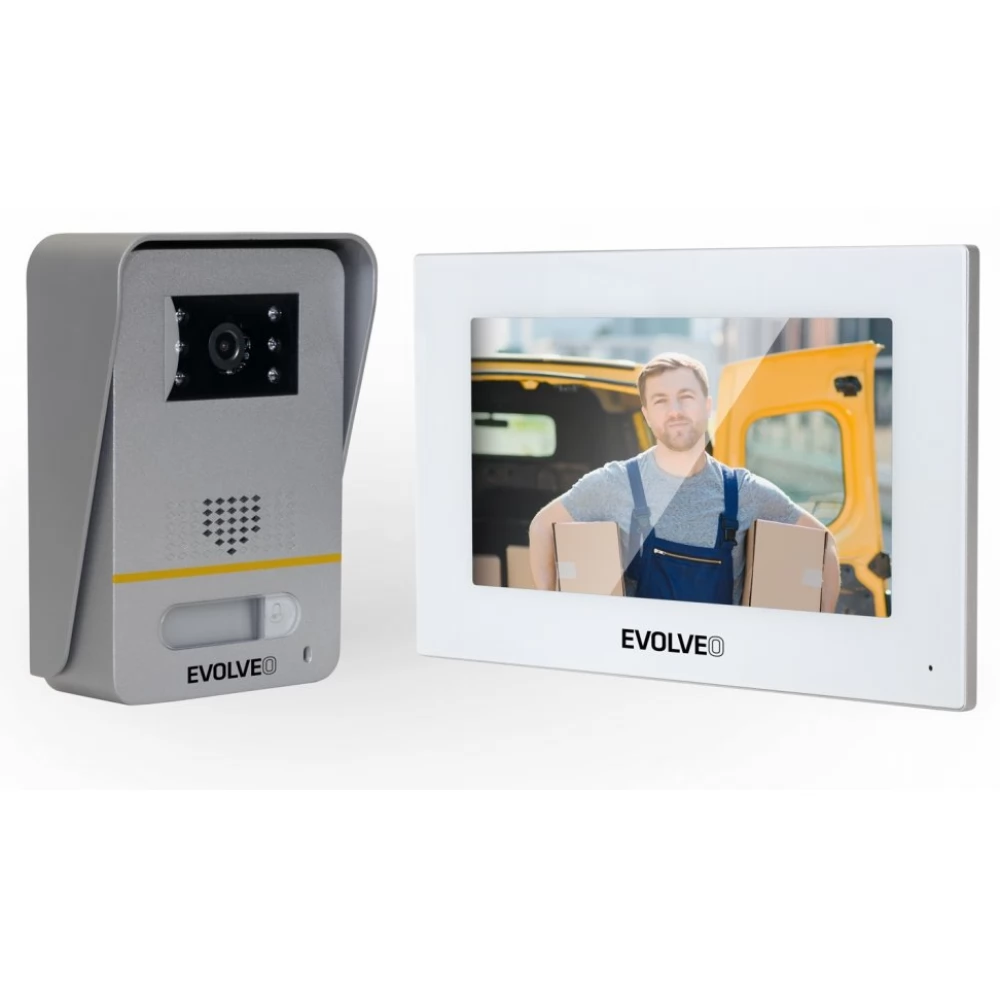

Videophone EVOLVEO AP1 is a modern videophone with SMART LIFE application for remote control, Full HD video, a pair of relays to control the opening of the entrance gate and entrance gate. Installation can be done by anyone thanks to simple wiring with only two wires. In addition, the monitor has an internal memory of 32 GB for recording the events that take place in front of the camera, so that you will not miss the postman who delivers the package.

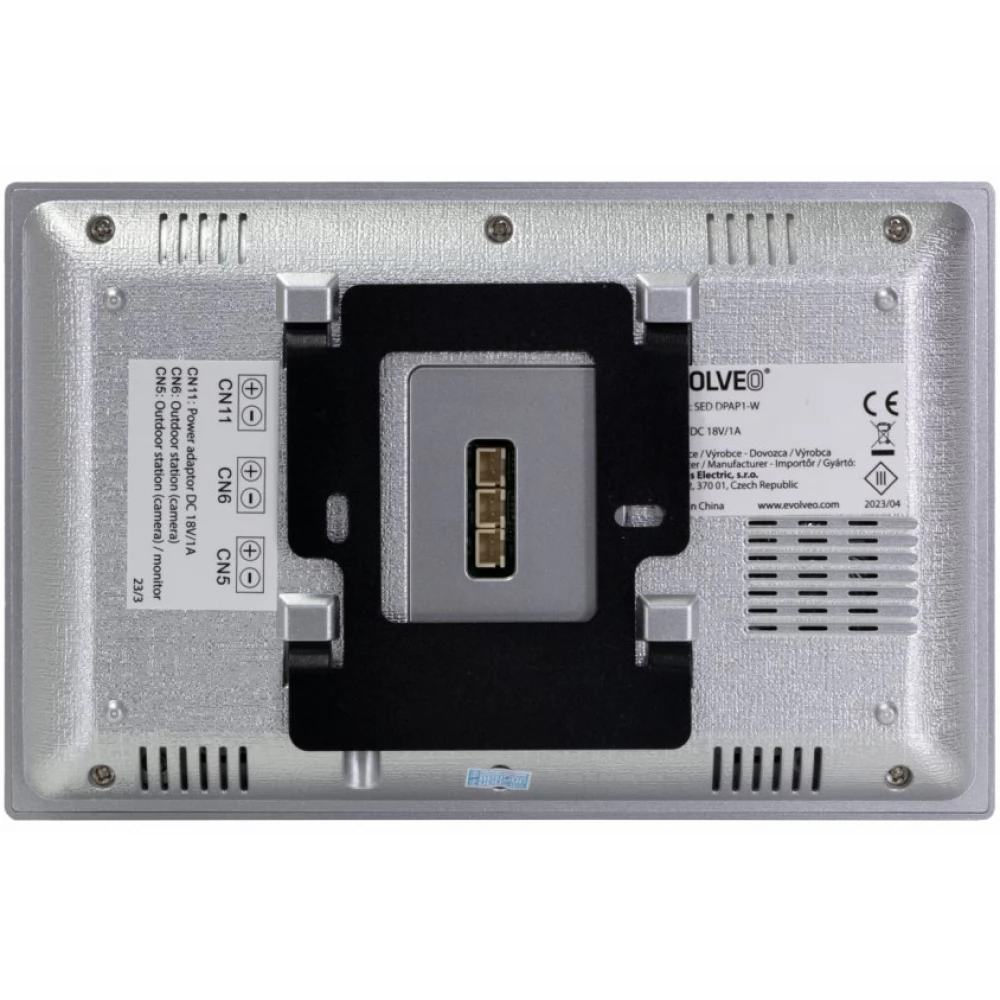

Installation has never been easier, only two wires are needed to connect the door unit to the monitor. The video phone can also be connected to the original doorbell with a two-wire cable. Also, there is no need to pay attention to the polarity of the wires, just use the prepared arm clamps and quickly connect everything. The network adapter is connected to the side of the monitor. Both the door unit and the monitor are designed to be mounted on the standard KU68 mounting box.

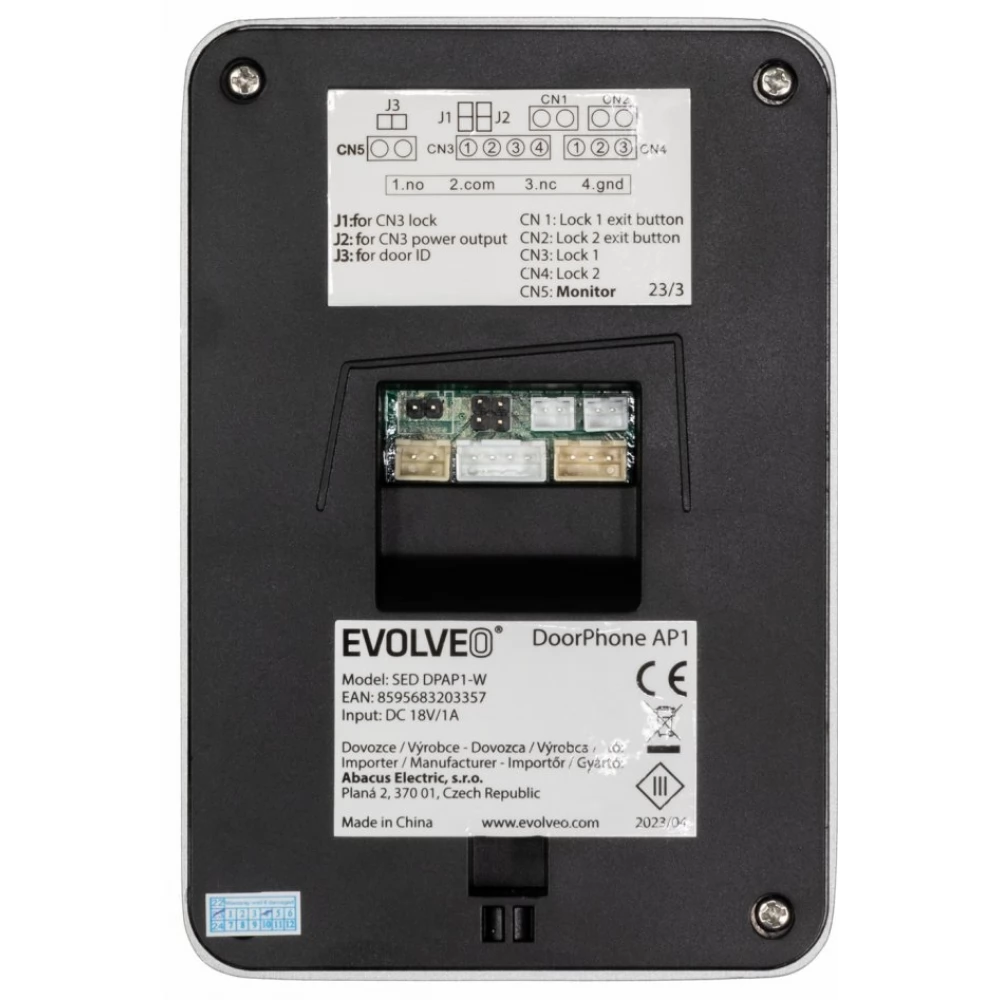

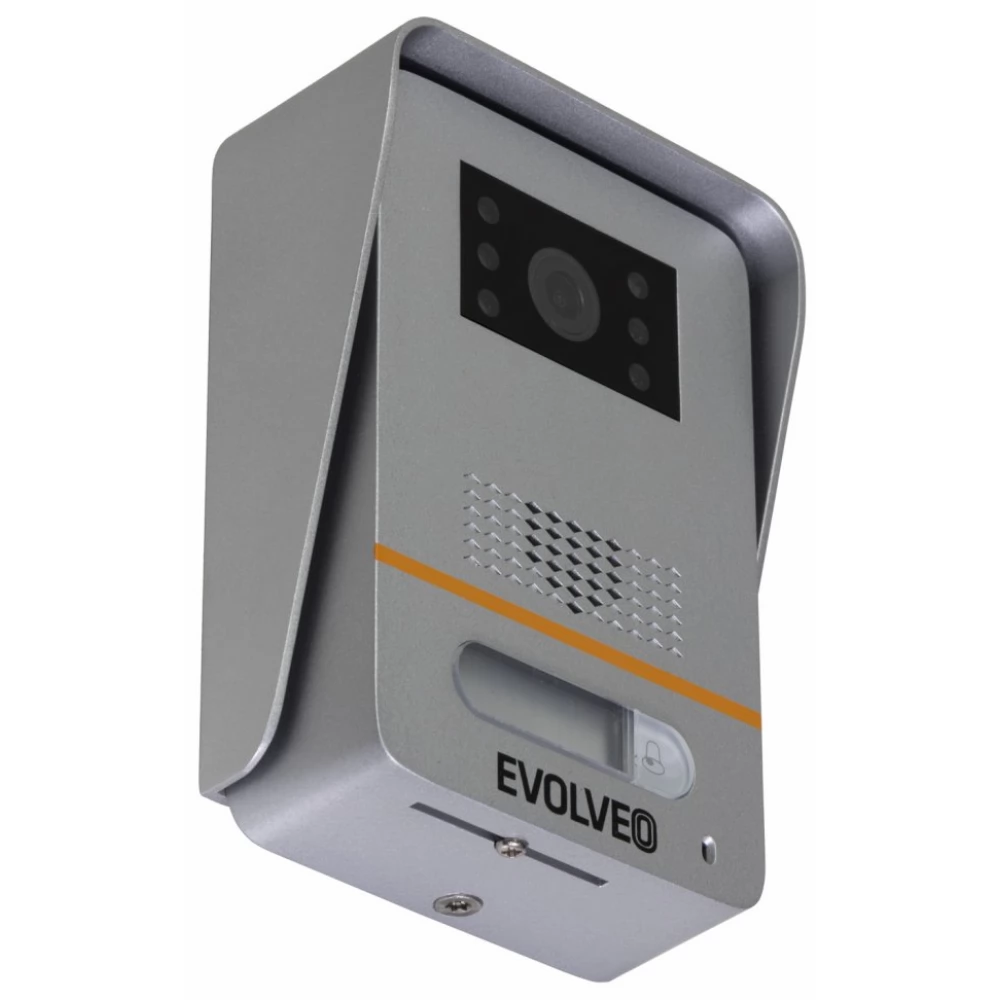

The door-external unit with push button and camera is made of durable aluminum alloy. Properly equipped with the included seal, the device achieves IP65 weather protection. The camera is equipped with an invisible night light, so you can see who has visited you even at night.

The weatherproof top panel is equipped with buttons and a camera so guests can call you. When a guest presses the call button on the outdoor station, the monitor will ring, and at the same time the visitor's image will appear on the screen, you decide whether to open the door or not. This impressive feature provides a complete access control system.

- Camera: CMOS 1/3 sensor, 1.22mm
- Image resolution: 1080P
- Microphone: Yes, two-way audio communication
- Selectable ringtones: yes 6 ringtones
- Internet connection: WiFi 2.4Ghz monitor
- Monitor color: white

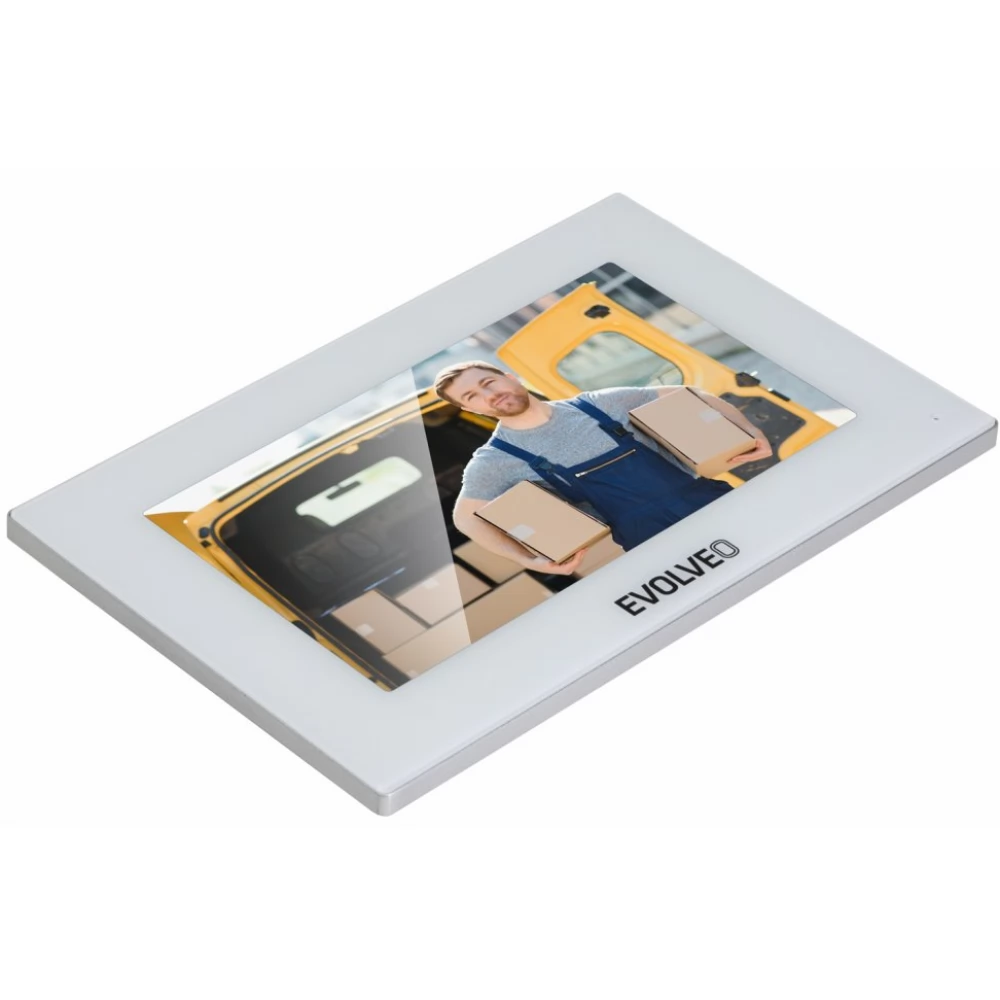

- Monitor size: 7"
- Door plate color: aluminium
- Intercom function: yes (communication between monitors)
- Remote control: yes Smart Life (Tuya platform)
- Non-polar, two-wire system for simplified installation
- Model with 1 button
- Equipped with clips to add a button to open the gate
- Night IR lighting night black and white photo
- With surface mountable seal
- Weatherproof IP65
- Large, backlit nameplate
- 2x 5A relays for gate and gate opening
- Monitor power supply: 18V DC
- Adapter cable length: 120cm
- Menu in languages: CZ, SK, EN, HU and RO

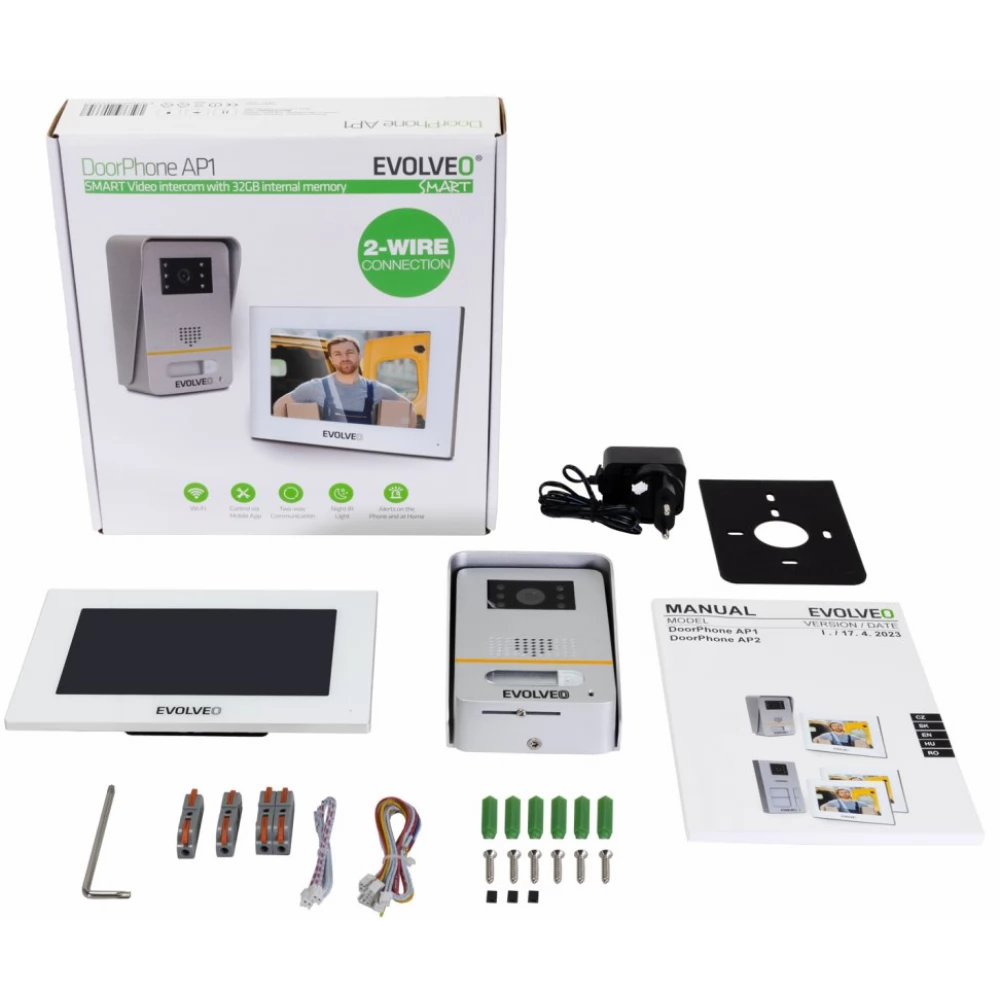

Included in the package
- 1 x 7″ monitor
- 1 x entrance panel, door unit
- 1 x power supply unit
- 1x set of screws and dowels

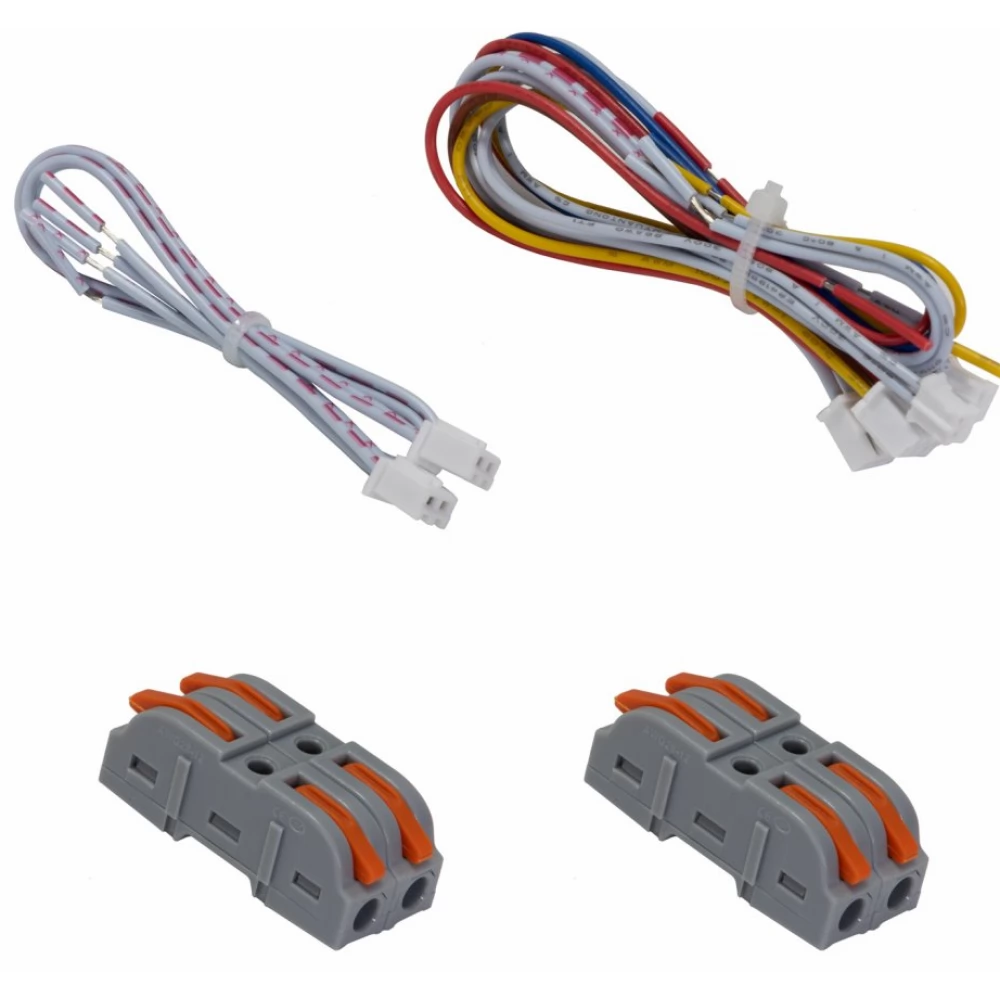

- 1x set of cables to connect the units
- 1x user manual
