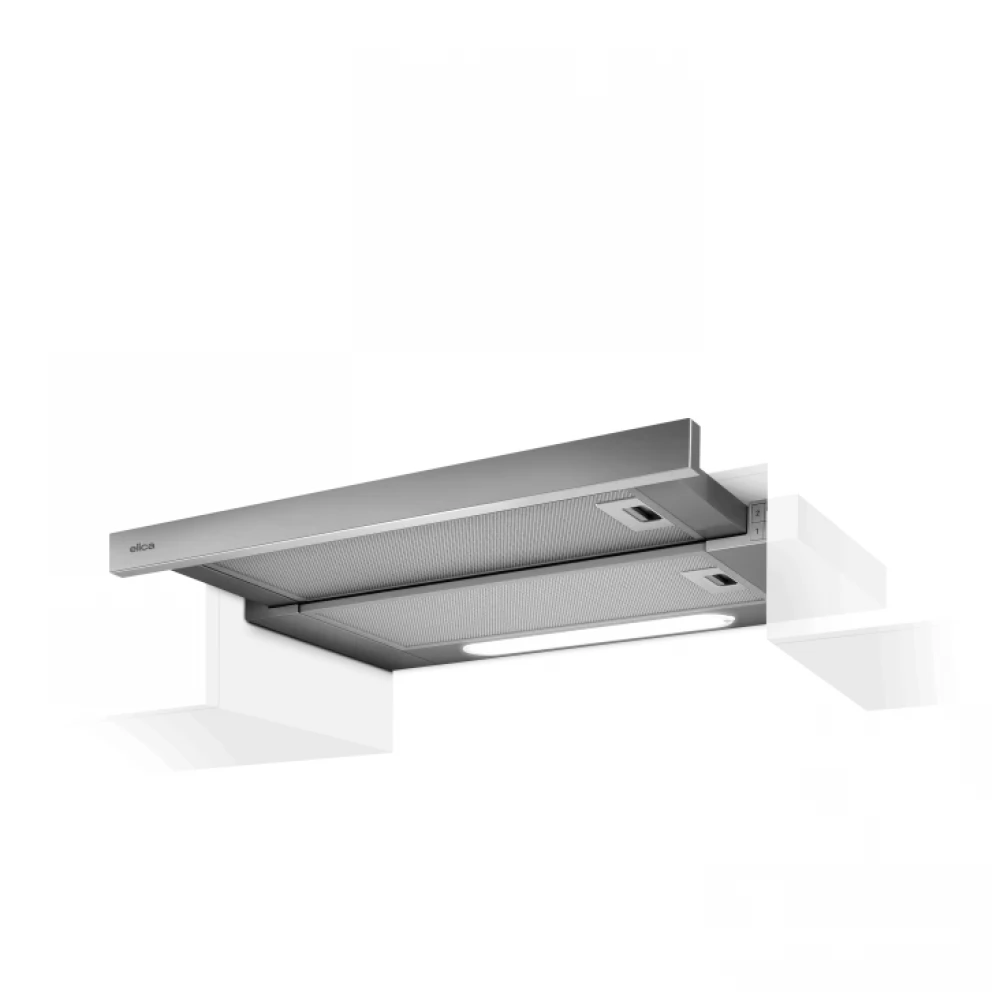

Elica Elite 14 Lux Grvt/A/60 Telescopic Excurable Voo hood with Black Glass front

When designing ELICA products, it also places great emphasis on low noise and lighting. The originality of its devices is the special synthesis of design and functionality, which raises the daily user experience to a new level. Its innovative solutions do not require compromise.

The Elica Elite series is available at 50, 60, 90 cm wide and with inox, white, black or glass front panels, making almost all width hobs.

The power of the engine has a power of 500 m3/h. Energy classification: "D" category.

Controlling mechanical (3 -speed tilt switch) or separate light switch that switches the energy saving LED lighting. The engine and lighting only work if you pull the front. After finishing the cooking, it is recommended to turn off the exhaust.

Its front panel is removable so that it can be fitted with the same front panel as kitchen furniture.
The air leaves outdoors through a pipeline (exit mode) then connected to a 125 mm diameter opening using a pipe.

Free outlet mode

If the air goes out into the outdoors via a pipeline (ie, in the exit mode), it must be connected to a 125 mm diameter opening using the pipe bump. It is forbidden to introduce it into channels and chimneys used for combustion products! Make sure that when the hood and other non -electric stove or stove operates at the same time, there is a sufficient amount of air supply. For proper operation, air intake through doors, windows, or other air intracules.

If you are unable to drain it, you can use it in internal circulation mode, but in this case, an active carbon filter filter must be installed in the opening above the metal filters. The air flows through the filters and returns to the room through the opening on the top of the exhaust. The filter is not washable, not regenerated and should be replaced every 3-6 months.
At the bottom of the device is metal fat filters. These should be cleaned once a month. For cleaning, use hot water, but the filters can also be washed in a dishwasher.

Other features:

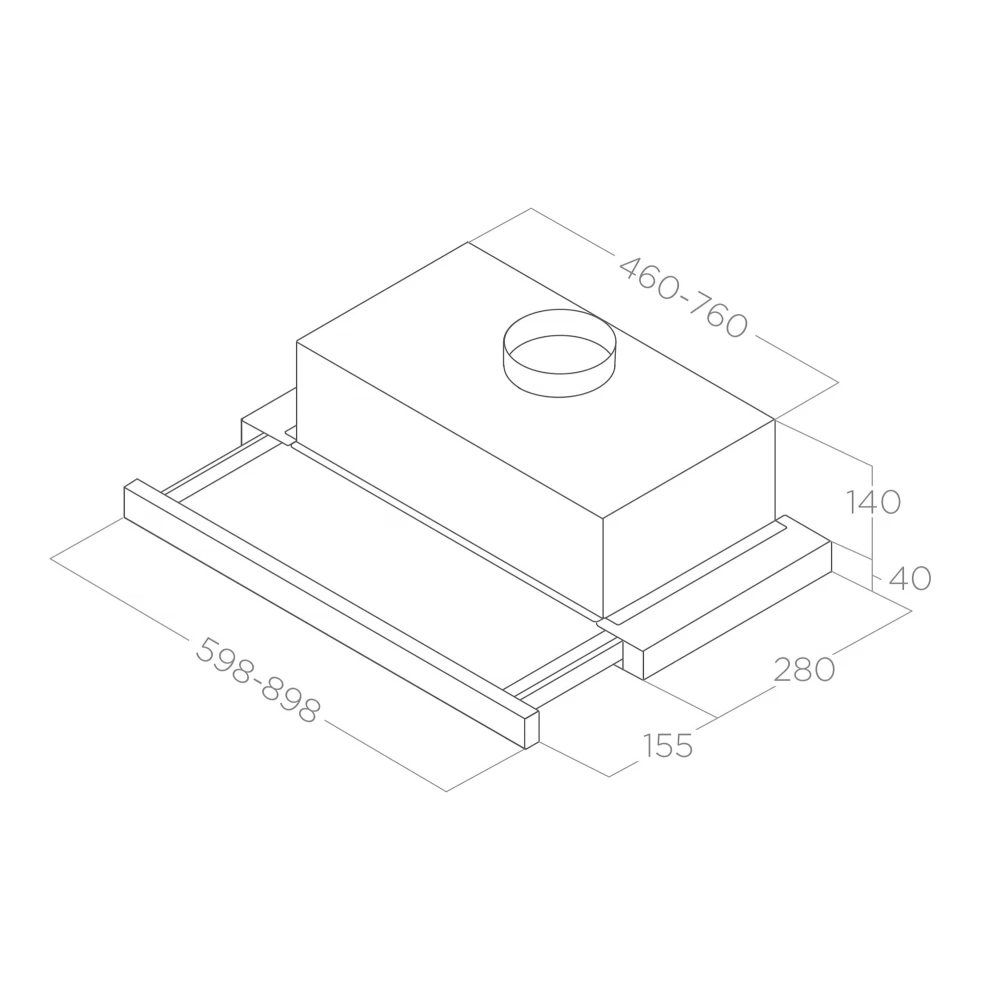

- Form, design: telescopic
- Width: 60 cm
- Min. Cabinet Size: 60 cm
- Color: black glass
- Control: push button
- Number of degrees: 3
- Number of motors: 1
- Air transport: 500/304 m3/hour
- Noise level: 46-62 (db/A)
- Min -Max Airflow: 125m3/hour - 304m3/hour
- Min -Max noise level_ 46pcs (a) - 62pcs (a)
- Control: 3V mechanical button panel
- pressure category: low
- Printing value: 185 PA
- Lighting: LED 2x3 W - 2700 K - 73 lux
- Pipe connection: 125 mm
- Energy class: D
- Note: Black glass front, gray body
- Weight: 5.5 kg
