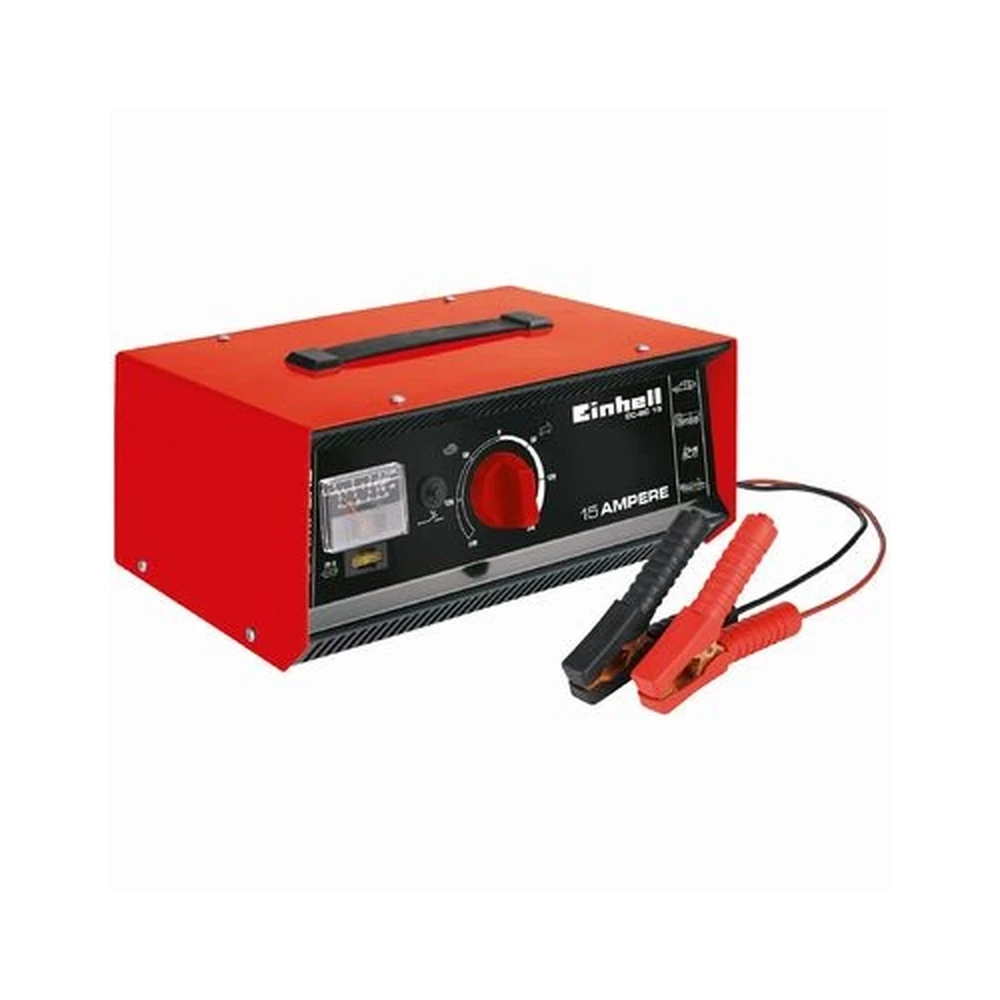

EINHELL CC-BC 15 Battery charger device
not available
Product description
The CC-BC 15 is a universal battery charger designed for 6/12/24 volt car batteries. You can adjust the charging voltage and two-stage charging current using the easily accessible rotary switch. You can check the charging process using the ammeter, which always shows the current charging current. You can easily and safely connect the charging cable with strong and insulated crocodile clips to the battery poles. With the handy and strong handle, you can move the device quickly, safely and easily.
- Protective insulated design
- Overload, short circuit and reverse polarity protection
- Sheet steel housing
- Carrying handle
- Switch for normal and fast charging, with voltage adjustment
- Built-in ammeter
- Power cable with European mains adapter
- Charging cable with strong crocodile clips
Specifications
- Electrical network 230 V | 50 Hz
- Charging voltage 6 V/ 12 V/ 24 V
- Can be used for the following batteries (Min/Max Ah) 10-300 Ah
- Charging current min. (nominal/actual) - max. (nominal/actual) at 6 volt direct current 4.4 / 6.5 - 10.4 / 15 A
- Charging current min. (nominal/actual) - max. (nominal/actual) at 12 volt direct current 5.4 / 8 - 10.4 / 15 A
- Charging current min. (nominal/actual) - max. (nominal/actual) at 24 volt direct current 4.7 / 7 - 6.8 / 10 A
