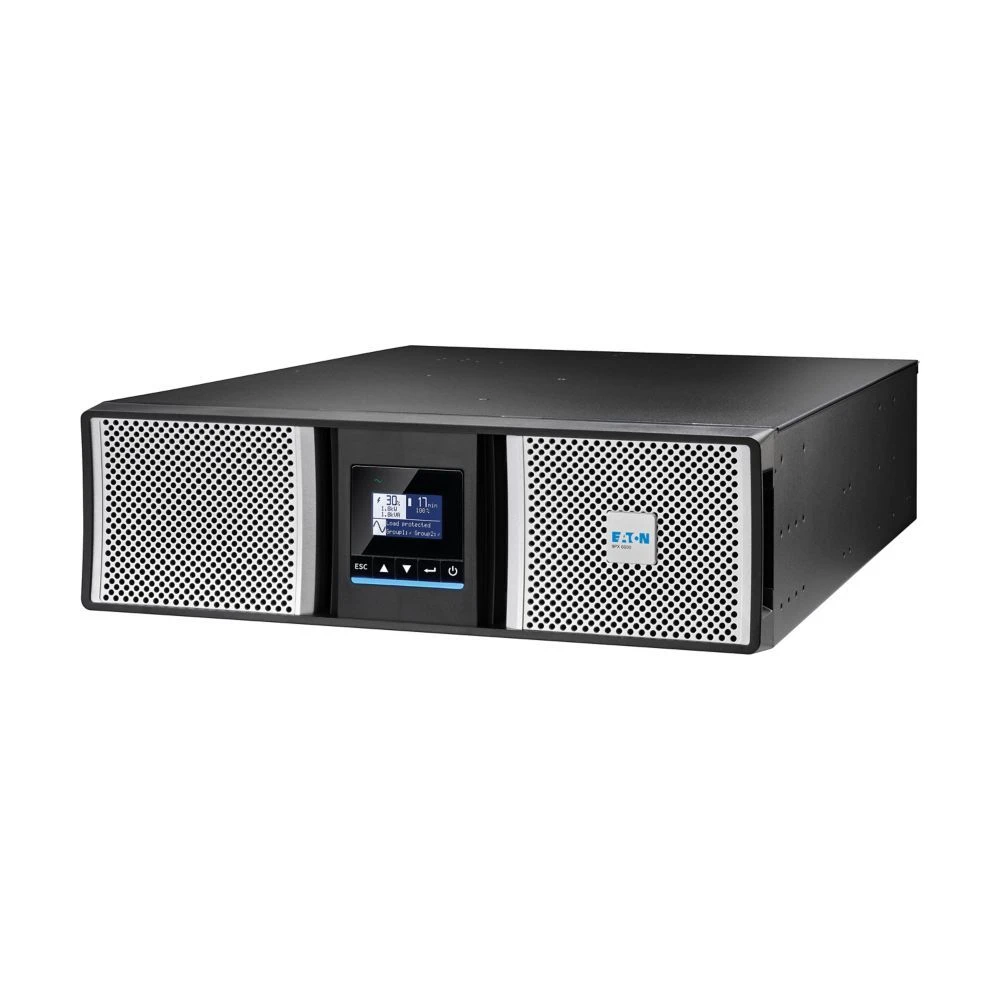

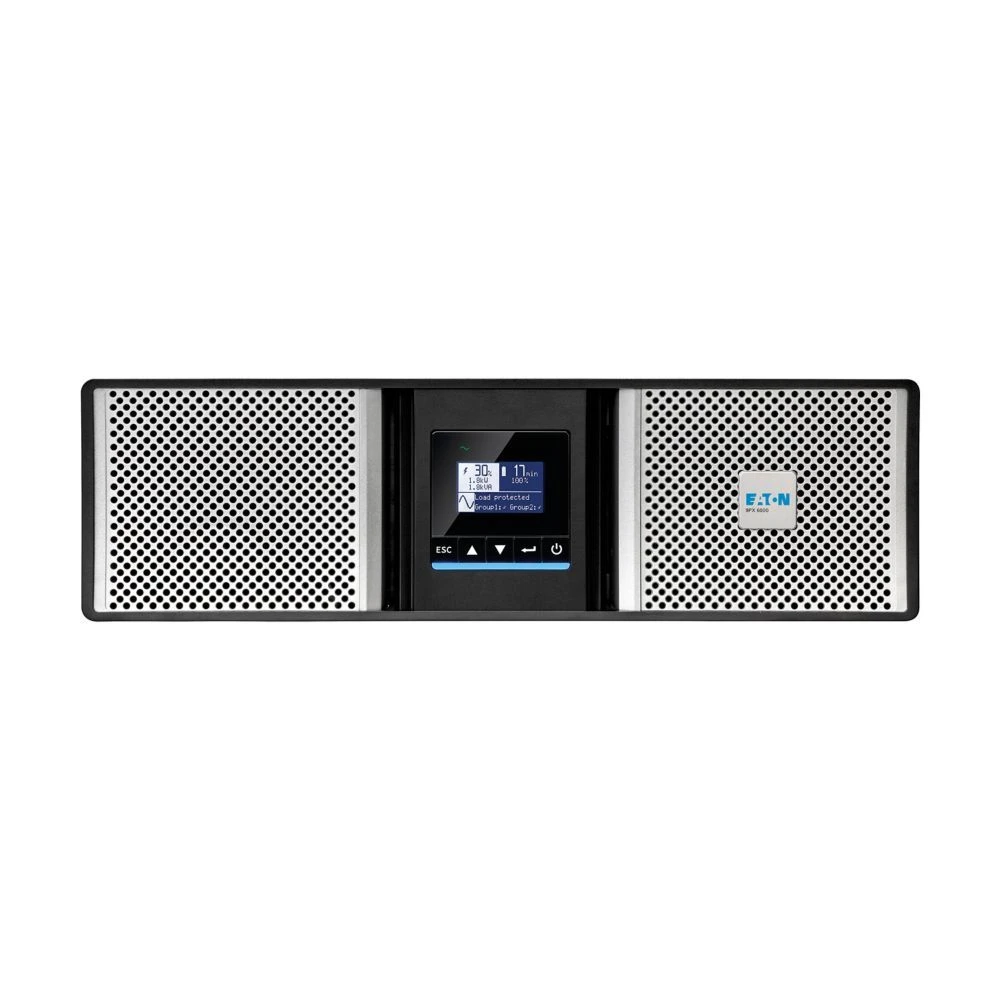

The Eaton 9PX 6000i RT3U HotSwap Netpack G2 is a professional online double-conversion uninterruptible power supply specifically designed for critical IT and industrial environments. 6000 VA / 6000 W power, 1 output power factor and pure sine wave output ensure stable, uninterrupted operation of sensitive equipment even in unstable network environments. The device can be installed both in a rack and in a tower design, so it can be flexibly adapted to different infrastructures.

The built-in hot-swap battery system and ABM+ intelligent battery management predict battery status, optimize charging and increase service life. The internal bypass, as well as the included maintenance bypass unit, allow the UPS to be serviced without disconnecting the connected loads, which is especially important in data center and enterprise environments. The system also supports the connection of external battery units, so the operating time can be extended as needed.

The package includes the Network Management Card, which provides full-scale network monitoring and remote management. Multiple communication interfaces, a multilingual graphic LCD display and extensive standard and certificate support ensure safe, transparent and efficient operation. The excellent efficiency of up to 96.5% contributes to lower energy consumption and lower operating costs.

Main features:
Input:
- Rated voltage: 176-276V (100-276V with reduced load)
- Nominal frequency: 50/60 Hz
- Frequency range: 40–70 Hz
- Input power factor: > 0.99
- Connection type: 1 phase

Output:
- Nominal voltage: 230 V (adjustable: 200 / 208 / 220 / 230 / 240 V)
- Voltage tolerance: ±1%
- Power: 6000 VA / 6000 W
- Output power factor: 1
- Output waveform: pure sine

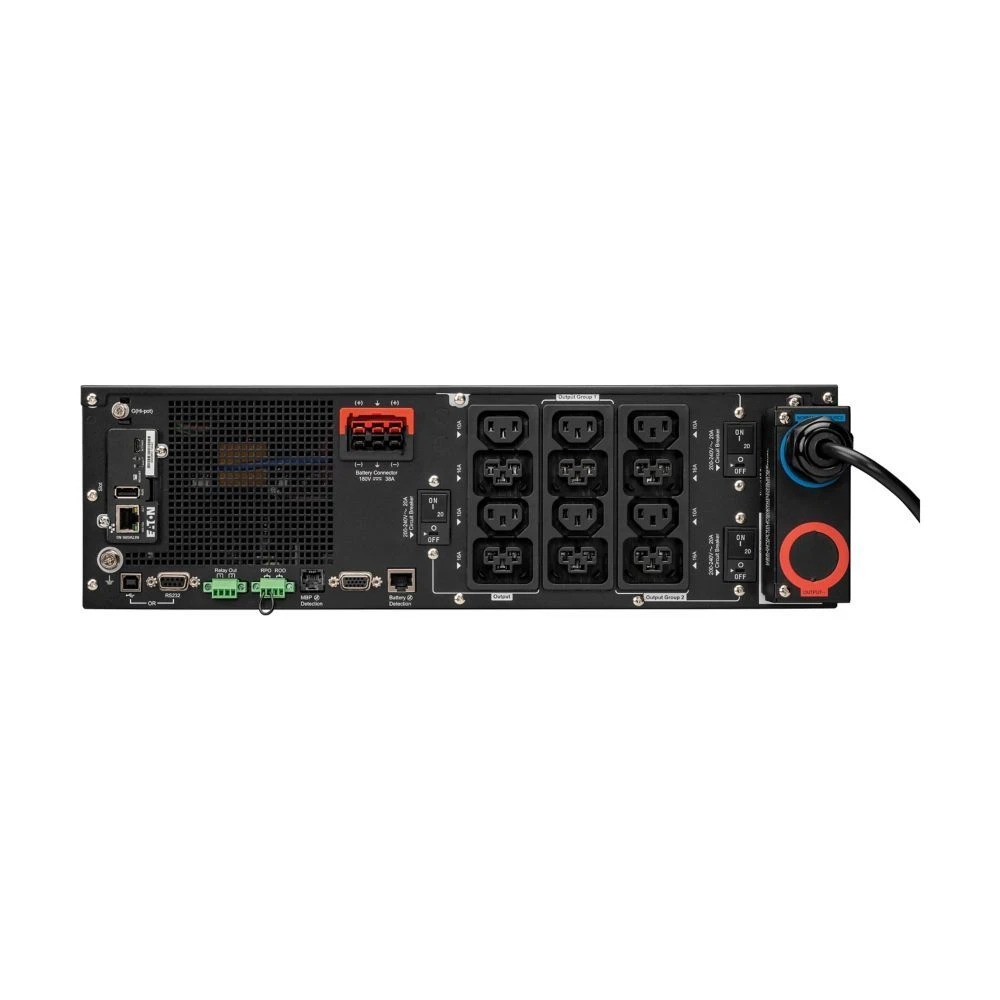

- Sockets: 6× C13, 6× C39, fixed connection
- Topology: Online / Double-conversion

Battery:
- Number of batteries: 15 pcs
- Type: closed, lead-acid
- Battery specification: 12 V / 5 Ah
- Hot-swap support: yes
- Intelligent battery management: ABM+, automatic test, deep discharge protection
- External battery expandable: yes

Communication:
- USB port (HID compatible)
- Serial port (RS232)
- Ethernet (Network Management Card included)
- Dry contact outputs
- Support remote on/off and emergency stop
- Software: Eaton Brightlayer Software Suite

Other:
- Version: 19" rack / tower
- Size (W x H x D): 440 x 130 x 684 mm
- Weight: 45.1 kg
- Color: black / silver
- Efficiency max. at load: 96.5%
