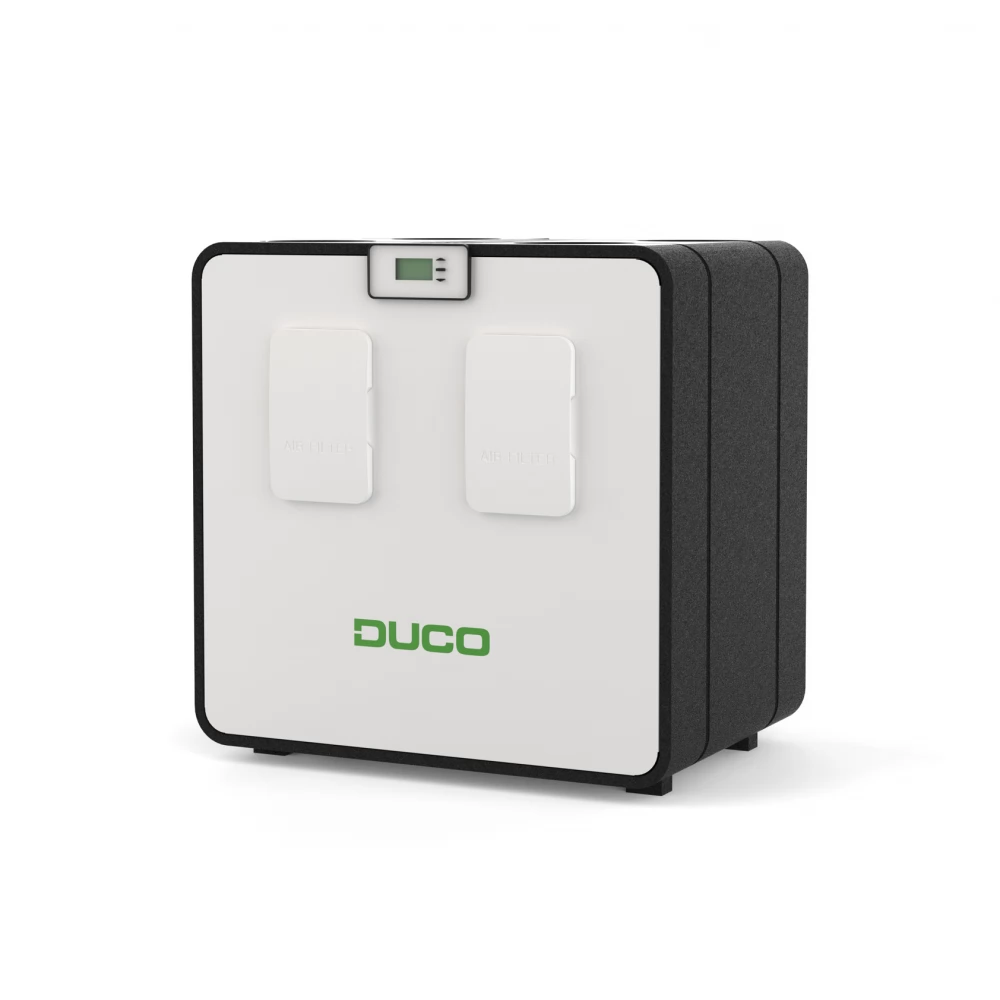

Ducobox Energy Comfort D325 is a mechanical
ventilation equipment with heat recovery. This Ducobox Energy Premium is compact and
easy version. With a power of up to 325 m3 per hour, this is an ideal balanced ventilation solution for homes and area houses.

- Dimensions: Width x Height x Depth: 700 x 705 x 525 mm
- Cover coated steel sheet + EPP
- Colors white + black
- connections internal diameter: ^ 160 mm
- condensation drainage ^ 32 mm (1 1/4 ”) (2x)
- heat exchanger pet / polystyrene
- Inner Material: EPP / PP / ABS
- Weight: 21 kg
- Power cable length: 2 m (from top of the device)
- Installation wall assembly (basic equipment), optional flooring with support frame

- Maximum power at 50 PA: 96.5 W
- Power supply: 230 V, 50 Hz, 3 power cable with grounded plug
- Motor type: dc
- IP class: IP40
- Energy transformation efficiency 89.0 % (EN 13141-7)

- Supply and exhaust power at 150 PA: 325 m3/hour
- Supply and exhaust power: 200 PA: 292 m3/hour
- 2 zoning system: Yes (external - optional)
- frost protection: imbalance or external heating element (optional)
