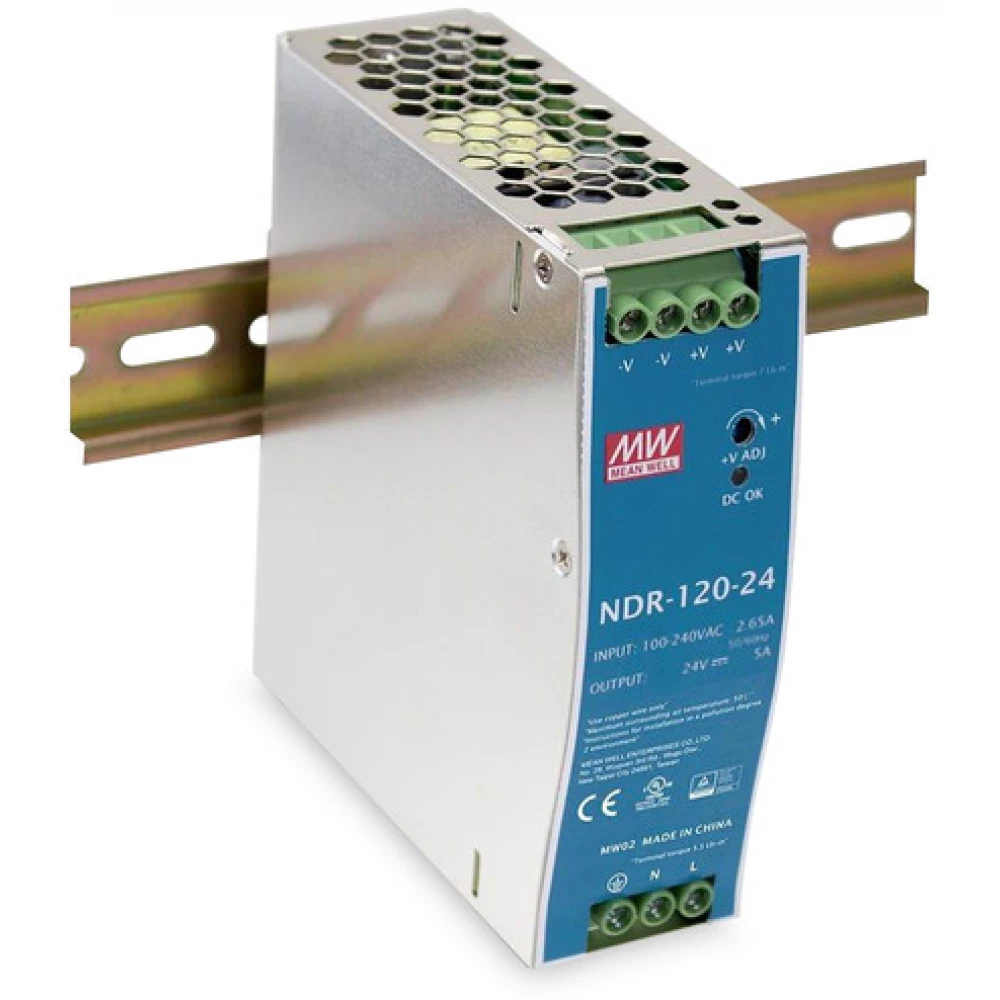

The DIGITUS® economical, slim DIN-rail power supply series can be mounted on TS-35/7.5 or TS-35/15 mounting rails. The series has a wide range AC input from 90V AC to 264V AC and has a metal housing design, improving the power distribution of the unit. DIN rail power supplies offer an operating efficiency of 88% and can operate between -20°C and 60°C. It is equipped with overload, short-circuit, over-voltage and over-temperature protection, making it a competitive power supply solution for industrial applications.

- 48V DC output voltage
- 2.5A nominal output current
- 0 ~ 2.5A current output range
- 120 W nominal output power
- 120mVp-p ripple and noise
- 48V ~ 55V output voltage adj. range
- ± 1.0% output voltage tolerance
- ± 0.5% line control
- ±1.0% load regulation
- 1200ms, 60ms/230VAC setting, ramp-up time
- 16ms/230VAC endurance time
- 90 ~ 264VAC input voltage range
- 47 ~ 63 Hz input frequency range
- 88% typical efficiency
- 1.3A/230VAC typical input AC current
- 35A/230VAC switching current
- <1mA/240VAC leakage current
- 105 ~ 130% rated output power overload protection
- 56 ~ 65 V overvoltage protection
- Protection against overheating
- ±0.03%/°C temperature coefficient
- Operating temperature: -20 ~ +60°C
- Operating humidity: 20 ~ 95% relative humidity
- Storage temperature: -40 ~ +85°C
