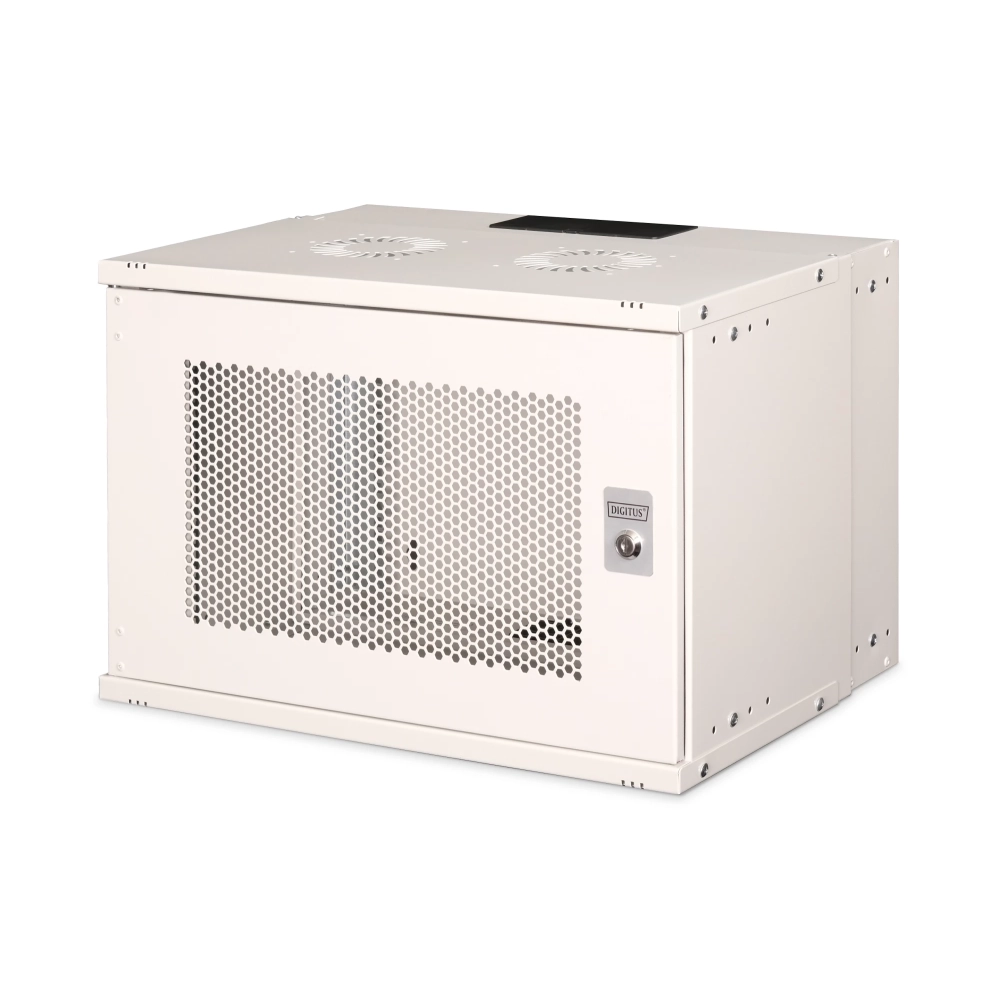

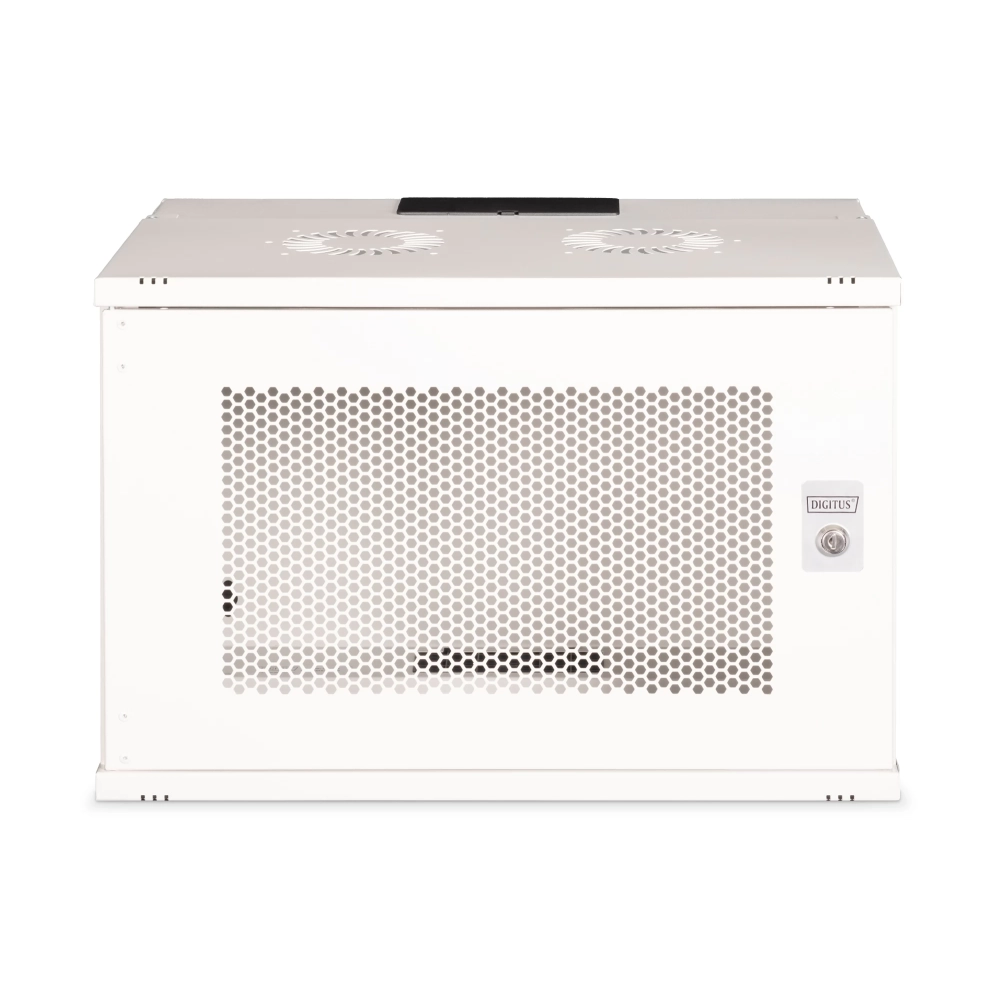

Whether it's home, office or limited sub-distribution boards: You can install your network anywhere with compact, 483mm (19 ") solutions of the Soho Pro series. They can be adjusted at depth. Each cabinet is a robust steel structure, up to 1.5 mm thick steel. The coloring is performed in the form of an electrostatic powder coating in standard gray (RAL 7035) and black (RAL 9005). The door legs can be replaced. The mains covering is supplied in an optimized flat packaging. The assembly takes place in a few steps and, thanks to the step -by -step instructions attached, it is a child's play.

- Protection IP20
- lockable steel front door with perforation

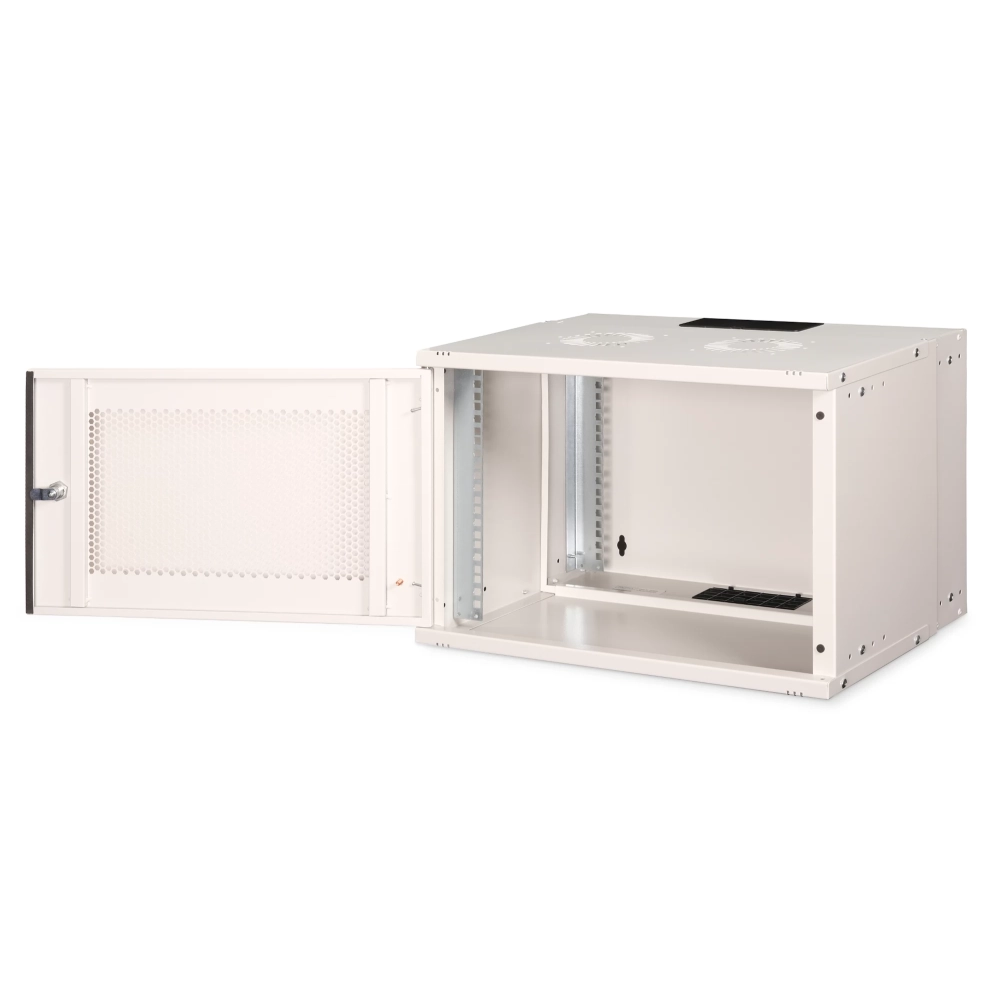

- a door opening angle of 200 °

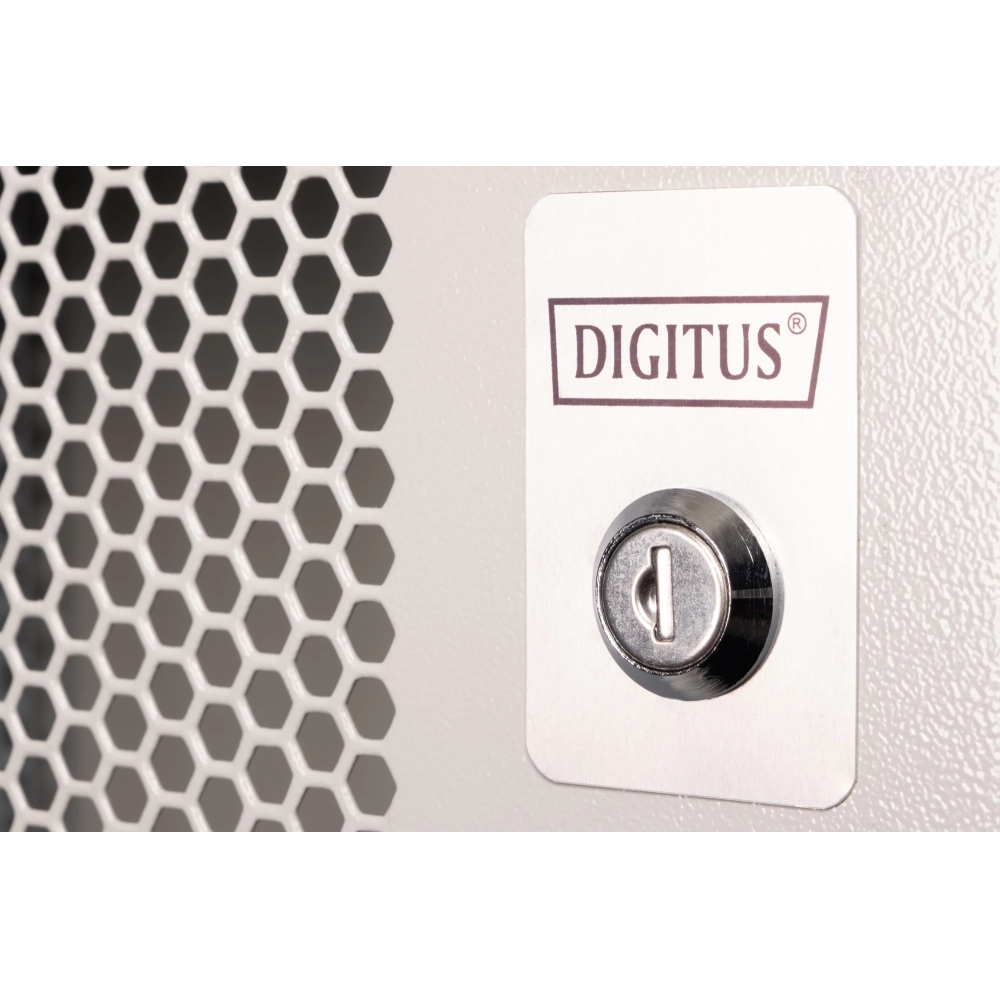

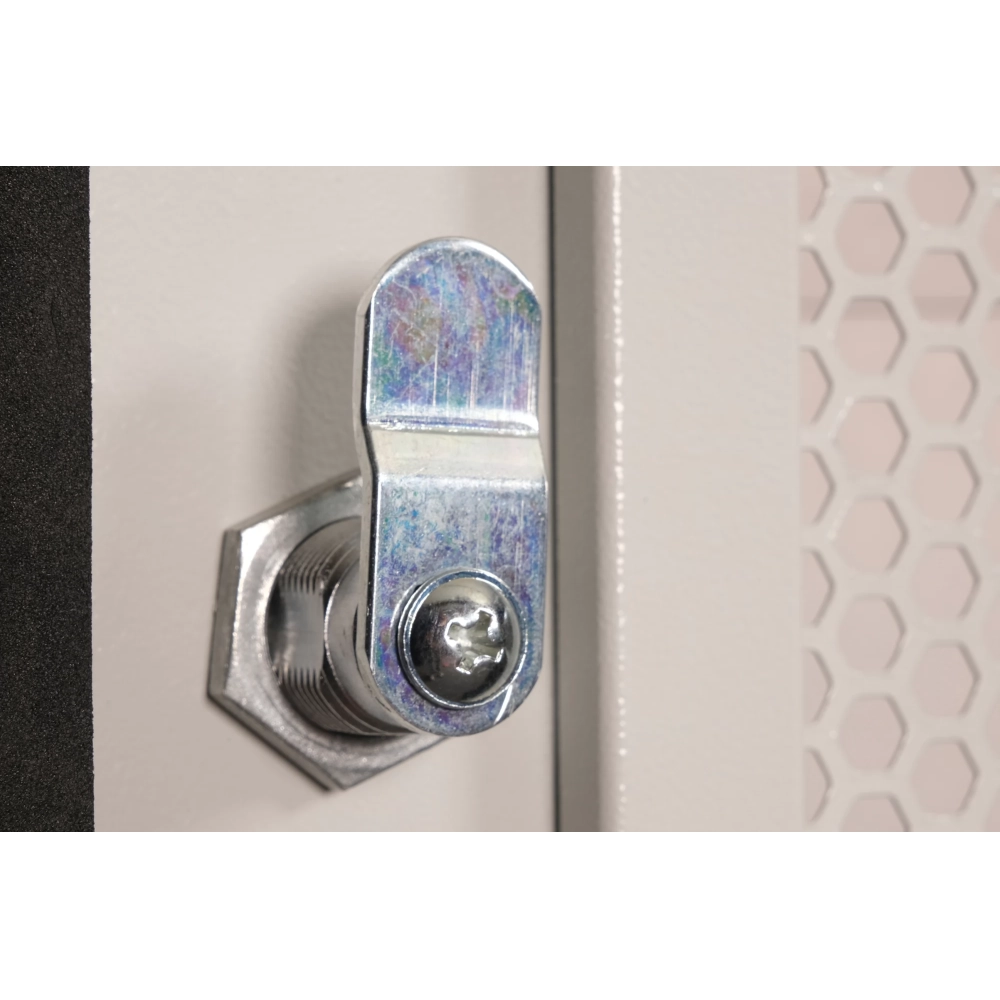

- 1 point lock on the front door

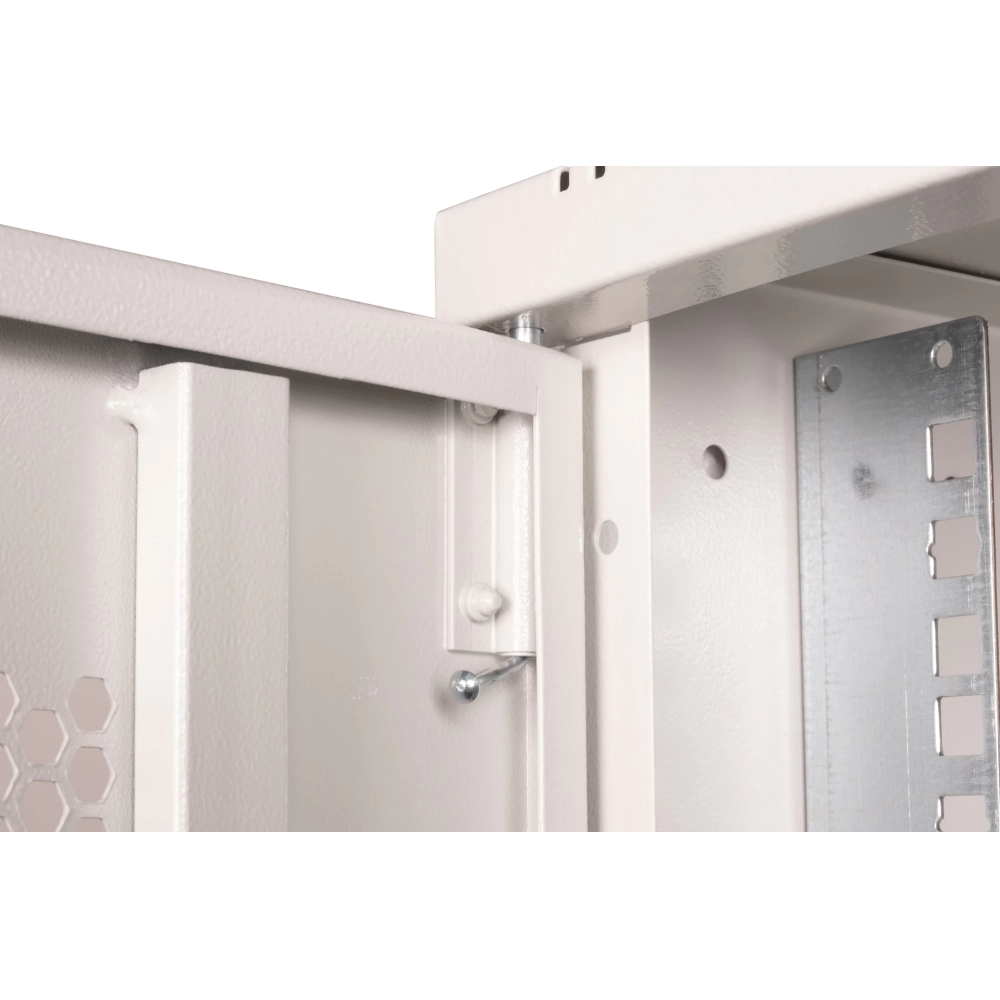

- 483 mm (19 ") profile rails front and back on the cover, galvanized

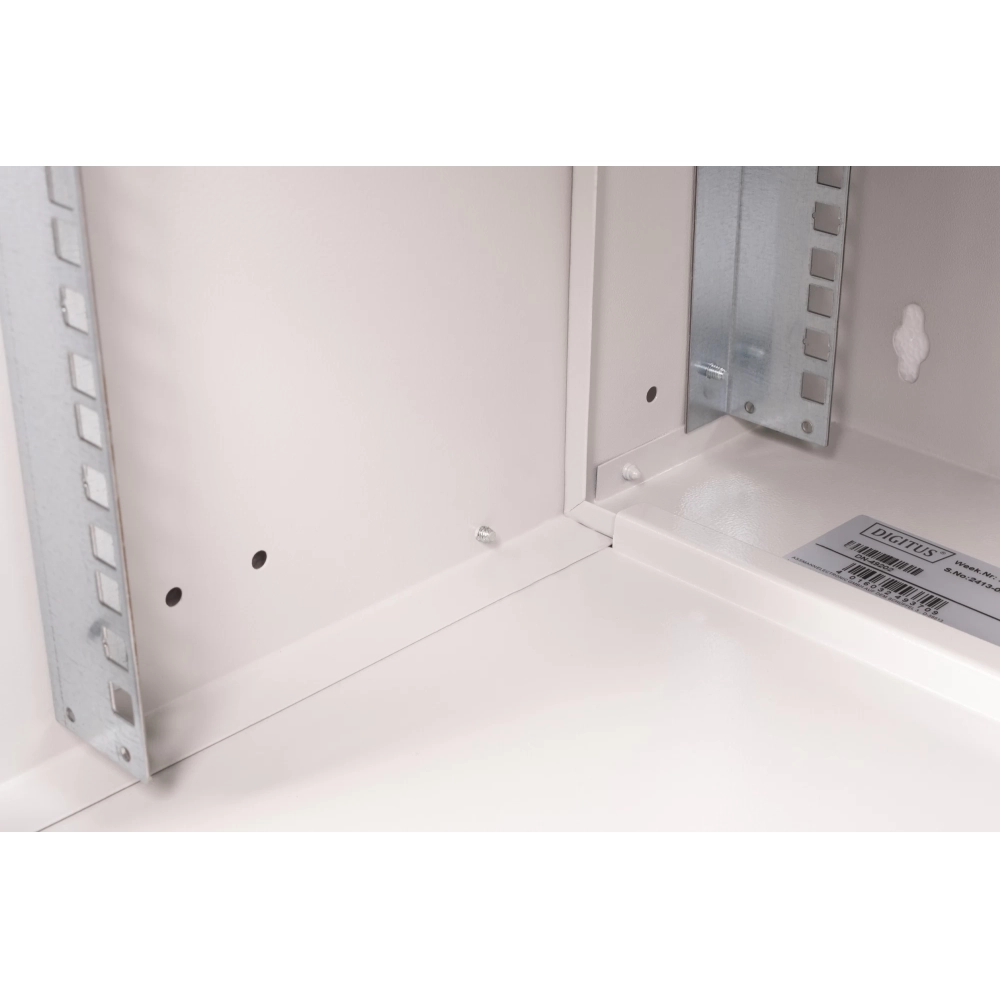

- The depth of 483 mm (19 ") profile rails is adjustable
- 1.1 1.5 thick, high -load steel sheet, dust sprinkled

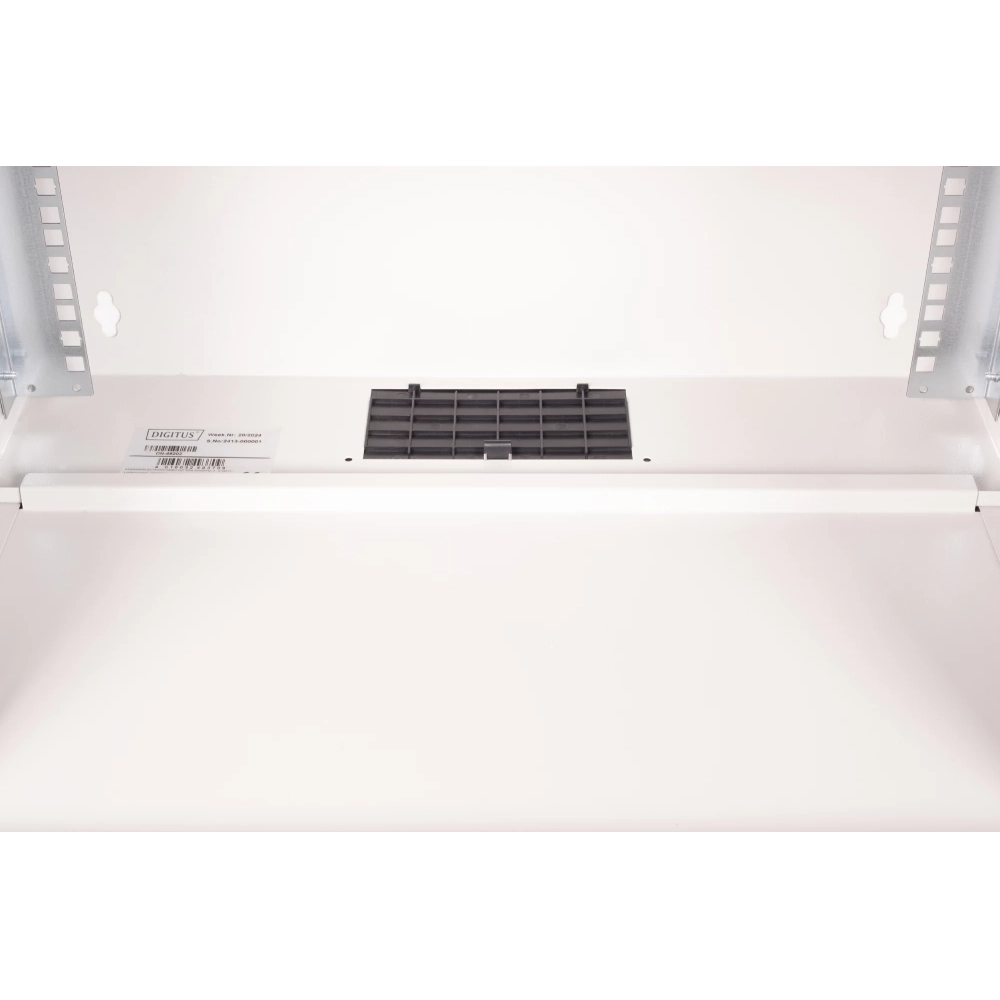

- Cable intake with plastic covers on the roof and floor
- Ventilation openings for active and passive ventilation
- Installation depth of parts max: 327 mm
- Product dimensions (today x s x): 370 x 540 x 400 mm
- Type of cabinet: Wall -mounted cabinet
- Color: light gray, Ral 7035
- Depth: 400 mm
- front door: steel door, perforated, single -opening
- load capacity: 60 kg
- side panels: both sides
- Units: 7
- Width: 540 mm
- IP Protection Class: IP20
- equipped with: sz
