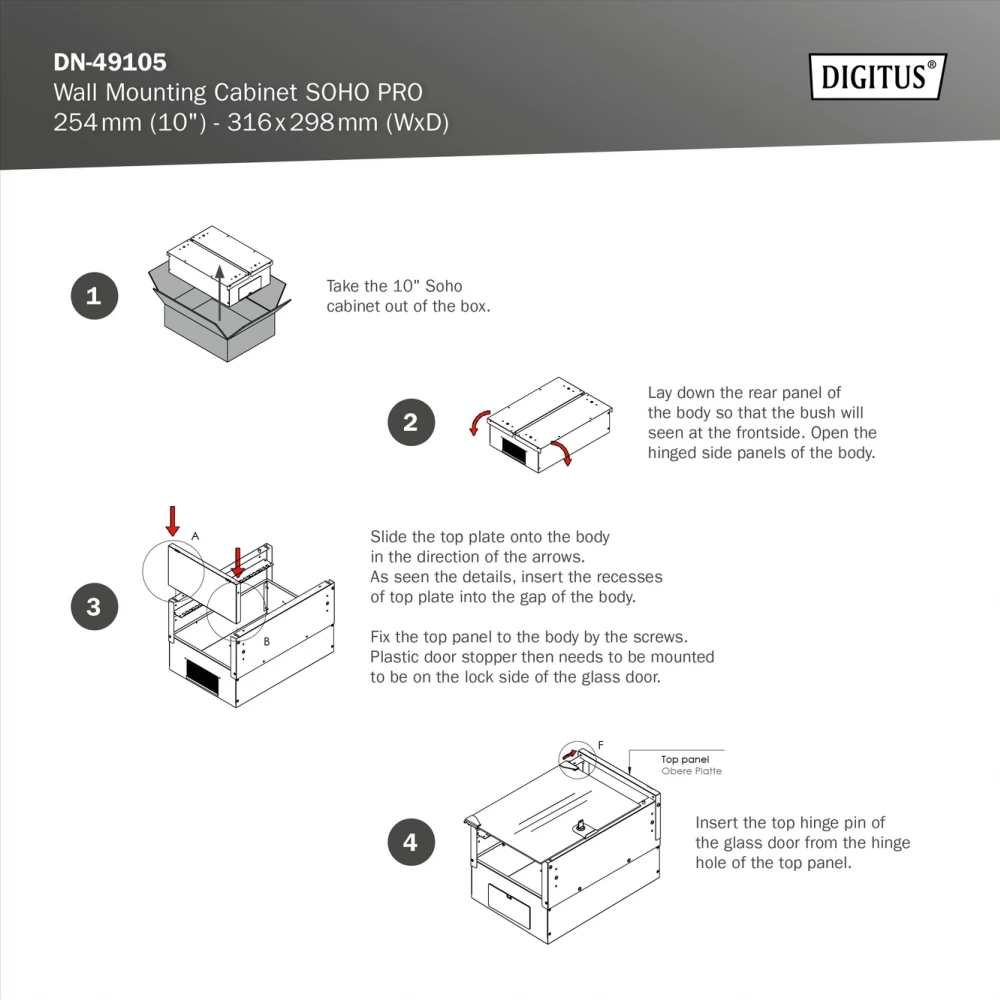

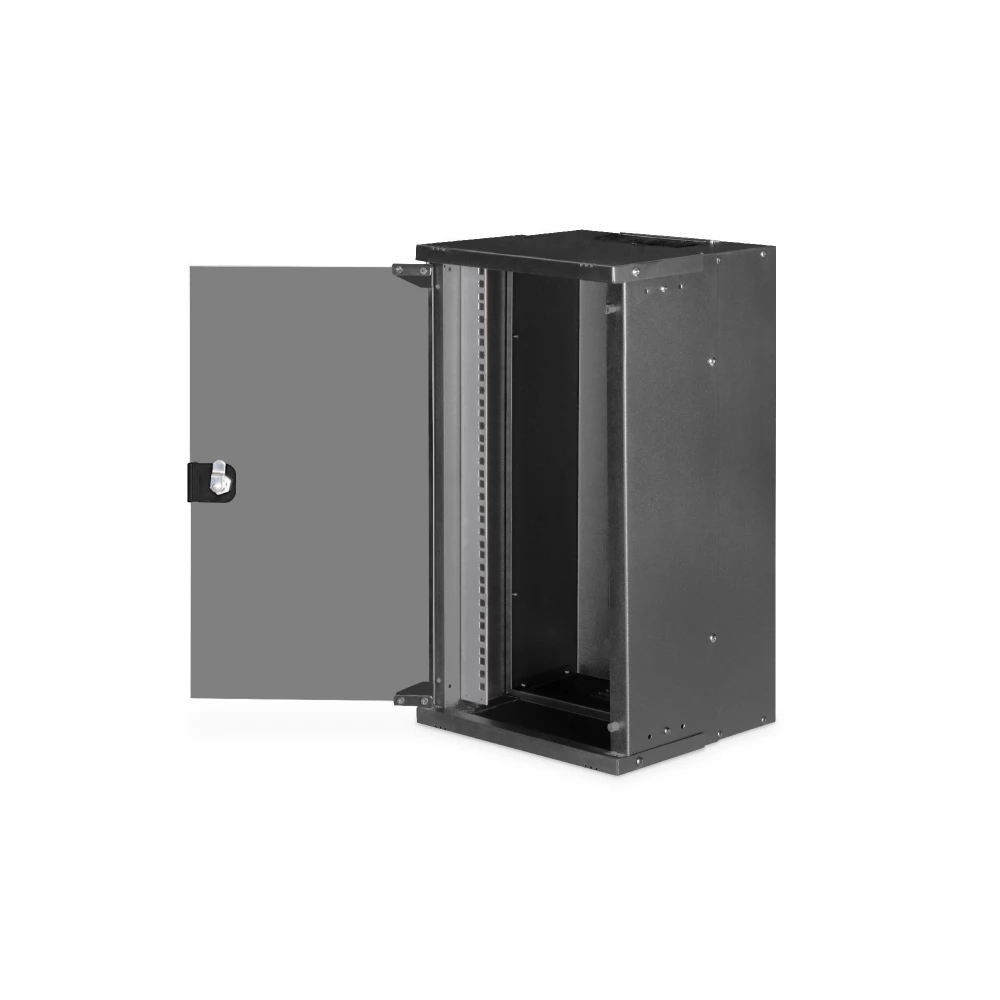

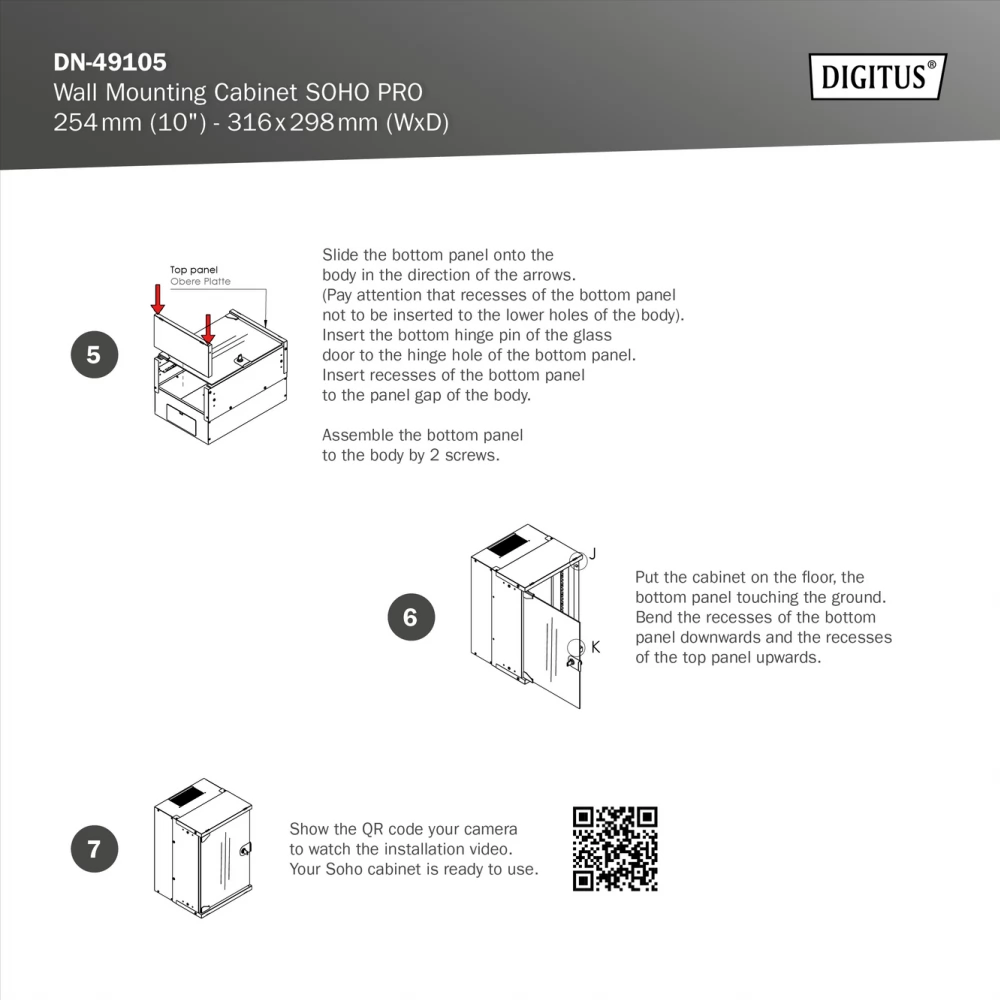

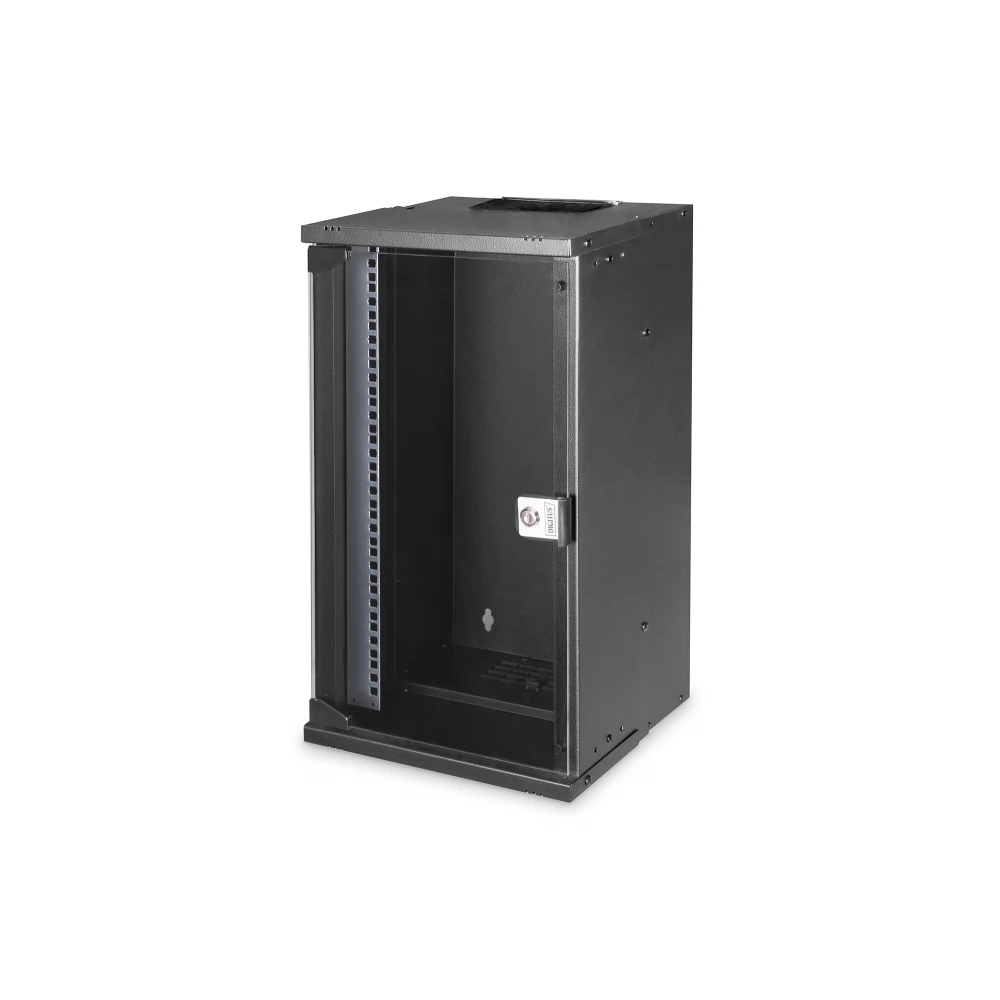

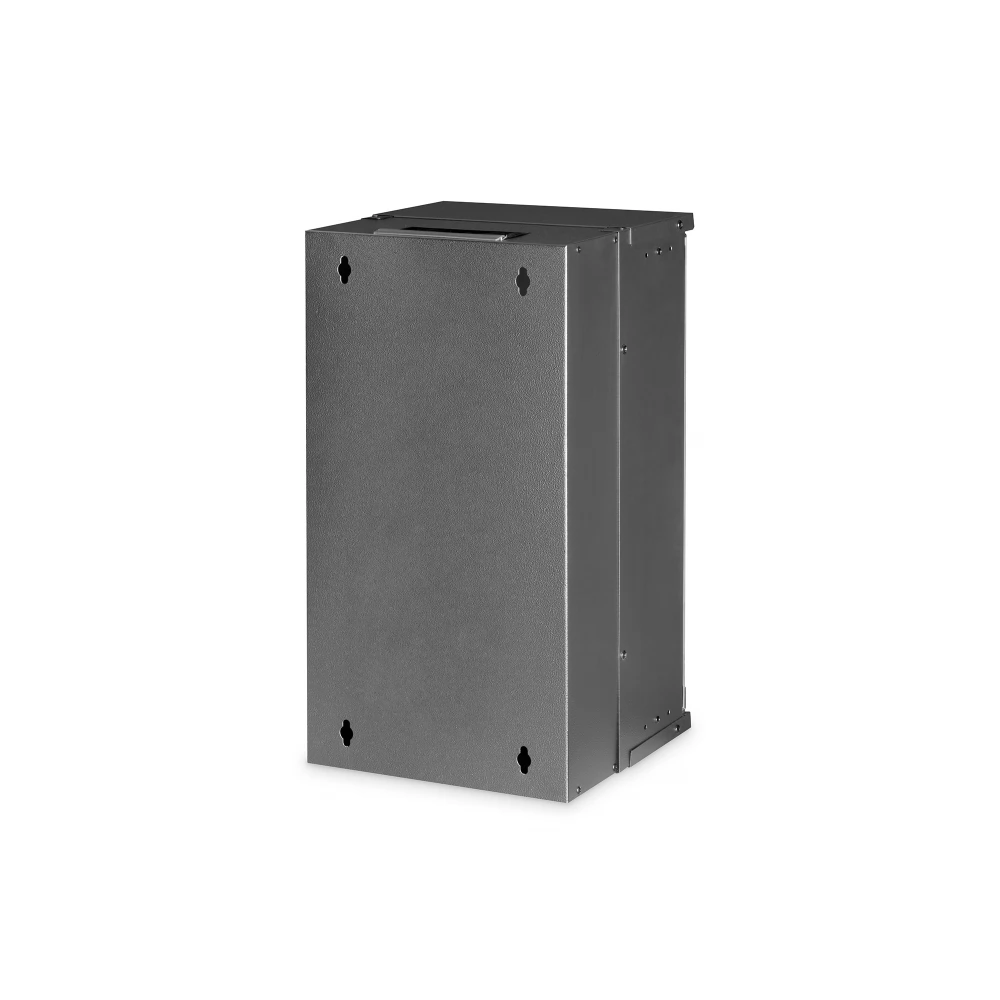

Whether it's a private area, an office or distribution units with limited space: With the compact, 254 mm (10”) solutions of the SOHO PRO series, you can install your network anywhere. Available in three rack units (6 rack units, 9 rack units, 12 rack units), the wall housings are equipped with full glass doors and cable entry on the roof and floor. Inside is a pair of galvanized 254mm (10”) profile rails fitted with easy-to-read rack units. Their depth is adjustable. All cabinets have a robust steel construction, made from sheet steel up to 1.5 mm thick. The coloring is done with electrostatic powder coating in standard gray (RAL 7035) or jet black (RAL 9005). The door hinges are replaceable. The network is disassembled during delivery, in optimized flat packaging. Installation takes just a few steps and is super easy thanks to the included step-by-step instructions.

- Protection IP20
- Lockable safety glass door
- 200° door opening angle

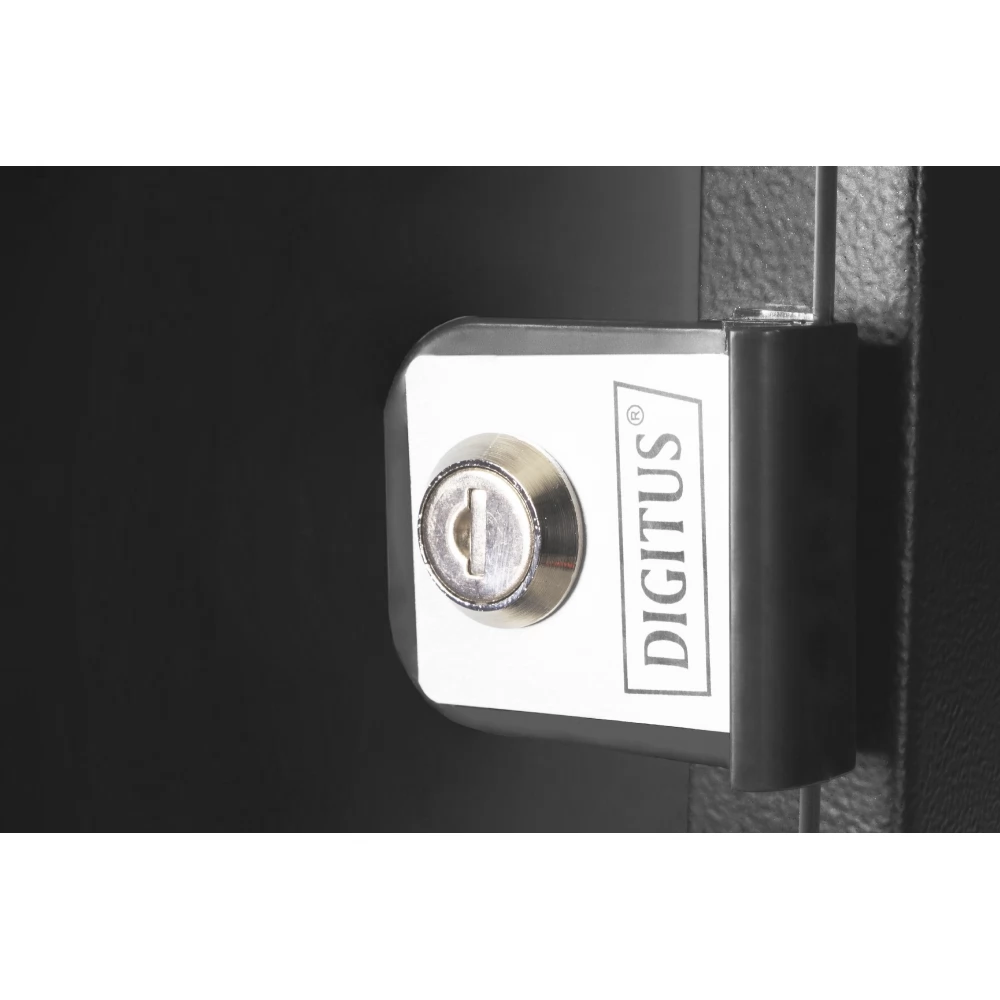

- 1 point lock on the front door
- in front of 254 mm (10") profile rails, mounted on the front panel inside the cabinet, galvanized
- The depth of the 254 mm (10”) profile rails is adjustable
- 1.1 1.5 thick steel plate with high load capacity, powder coated

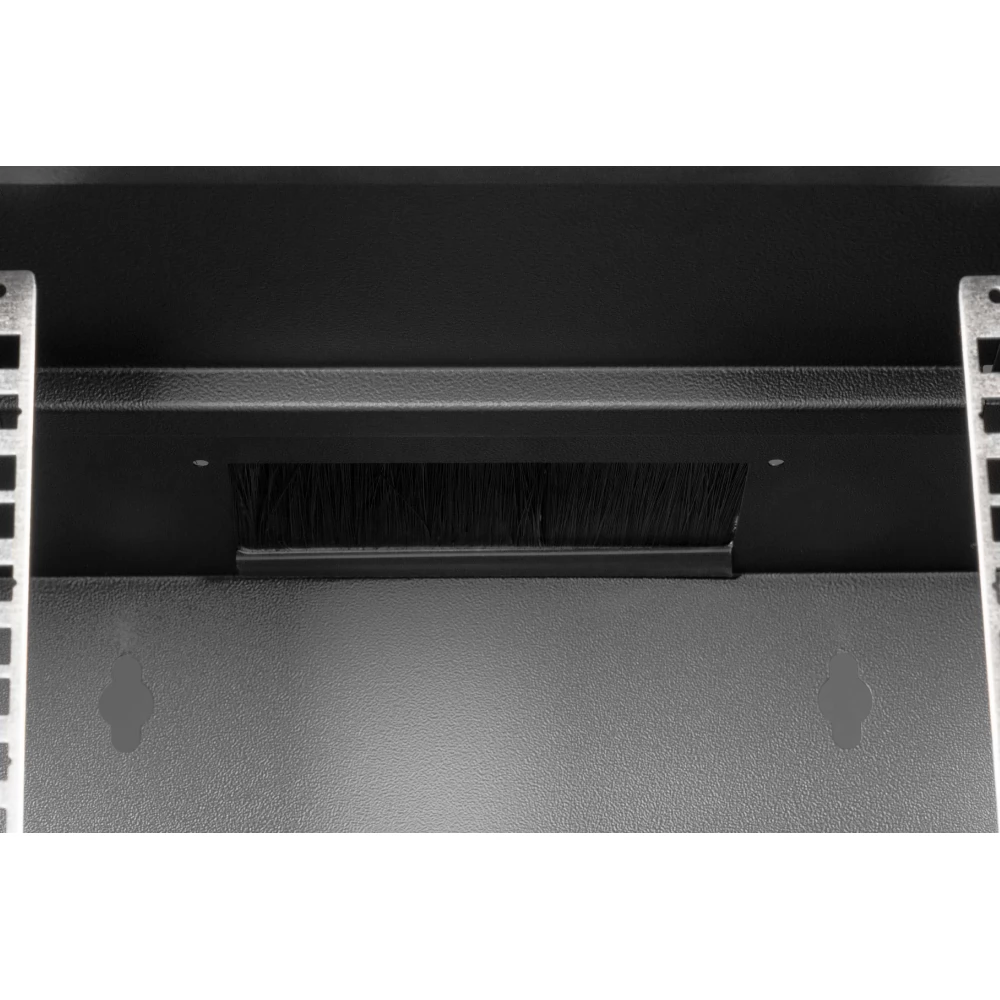

- Cable entry with brush management panel on the roof and plastic covering on the floor

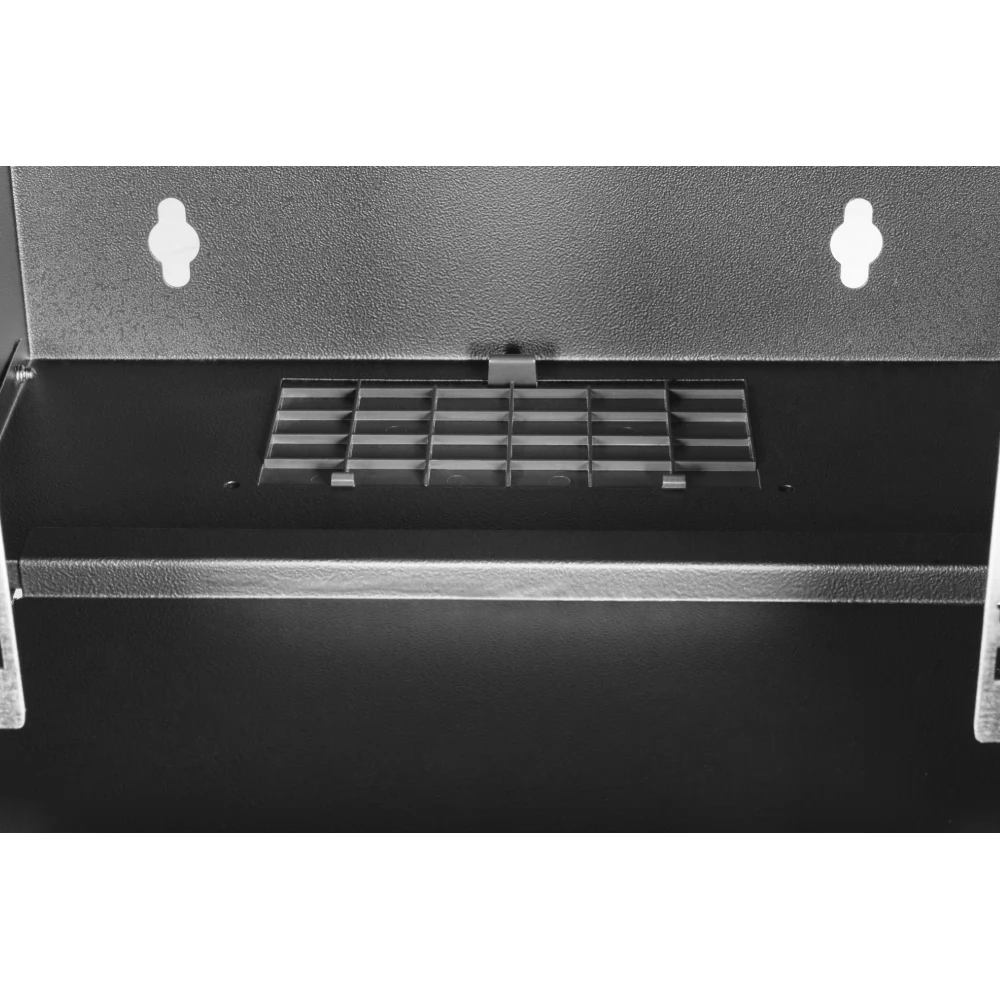

- Vents for active and passive ventilation
- Installation depth of components max.: 254 mm
- Product dimensions (H x W x D): 595 x 315 x 300 mm
- Packaging dimensions (H x W x D): 175 x 360 x 610 mm
- Weight (net/gross): 7.92 / 8.39 kg
- Cabinet type: Wall-mounted cabinet
- Color: black, RAL 9005
- Entrance door: Glass door, with one opening
- Load capacity: 60 kg
- Side panels: Both sides
- Units: 12
- Width: 316 mm
- IP protection class: IP20
- Equipped: no
