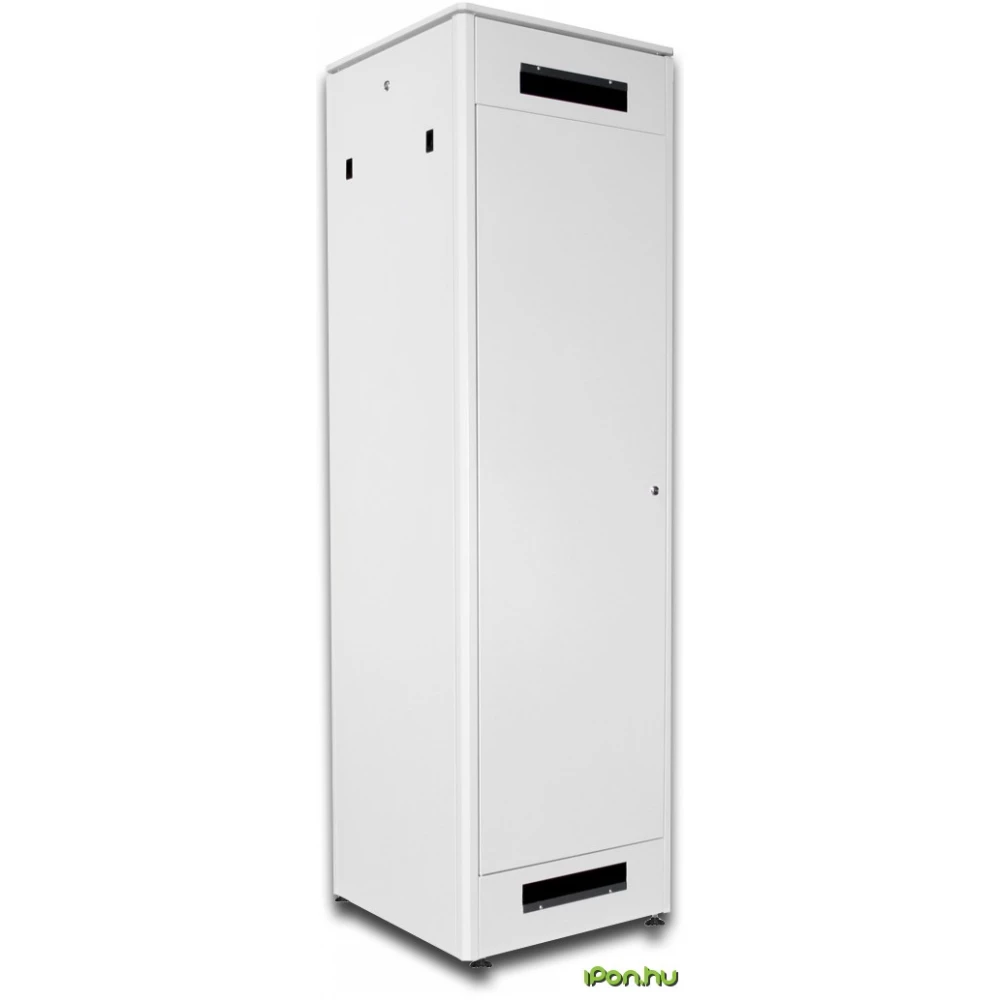

DIGITUS DN-19 42U-6/6-1
Product description
The DIGITUS® Network Cabinet Unique Series is designed and produced for cabling and networking components. They provide maximum optimization resulting in optimum performance between quality and added value. Each cabinet is designed with strength, ease of use and aesthetics in mind. Features such as 1 unit marking on the mounting profiles, easy and quick release doors and side panels, fully adjustable front and rear profiles of the cabinet make the product extremely attractive to installers. The incredible design of the Unique Series is rounded off with the use of a framed smoked safety glass front door fitted with a swing handle lock. Door hinge can be quickly reversed left to right. The Unique Series is available in 5 heights from 22 units up to 47 units. The various sizes of 600mm, 800mm and 1000mm depth are in the portfolio of the Unique Series. Each cabinet includes lockable glass front door, lockable steel back door and lockable side panels. Furthermore, 2 sets of adjustable mounting profiles are equipped, and the roof is prepared for fan trays and entry brush stripes are included. A huge range of DIGITUS® accessories are available to customize the cabinet due to the needs of the end-user.
1.5 mm strong sheet steel with a high loading capacity, powder coated
Side sections detachable and lockable
Ventilation slots for active and passive ventilation and exhaust
IP 40 rating

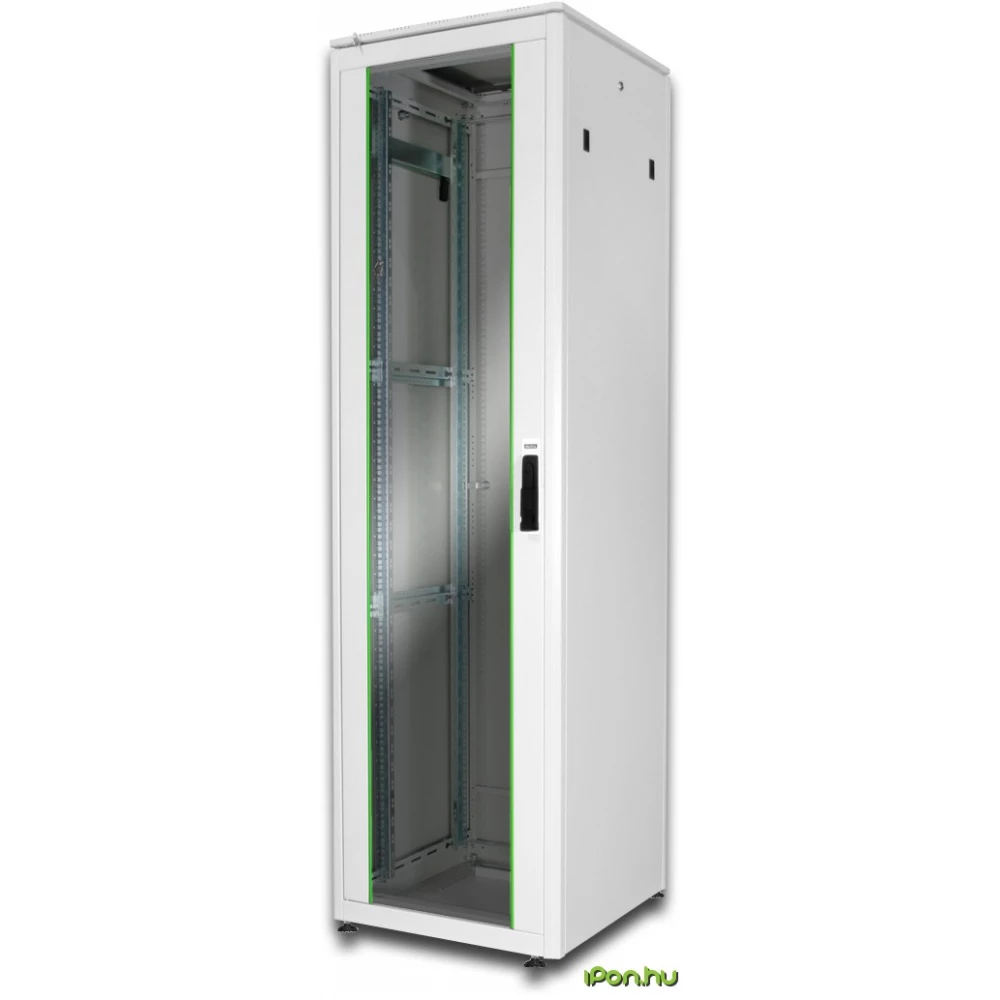

Smoked safety glass door with steel frame with a swing handle lock
Loading capacity up to 600 kg
Lockable backdoor and lockable side panels
483 mm (19") profile rails on the front and back side, adjustable in depth
Cable entry in the middle of the bottom with movable sheet and rubber sealing
Leveling feet, adjustable in height
Including set of 28 x 483 mm (19") assembly screws
Roof module for ventilation unit
Complying with international standards IEC 297-1/2 and IEC 917-2-1
2 keys for opening doors and side panels
Including a set of 28 assembly screws
Extensive range of accessories available
