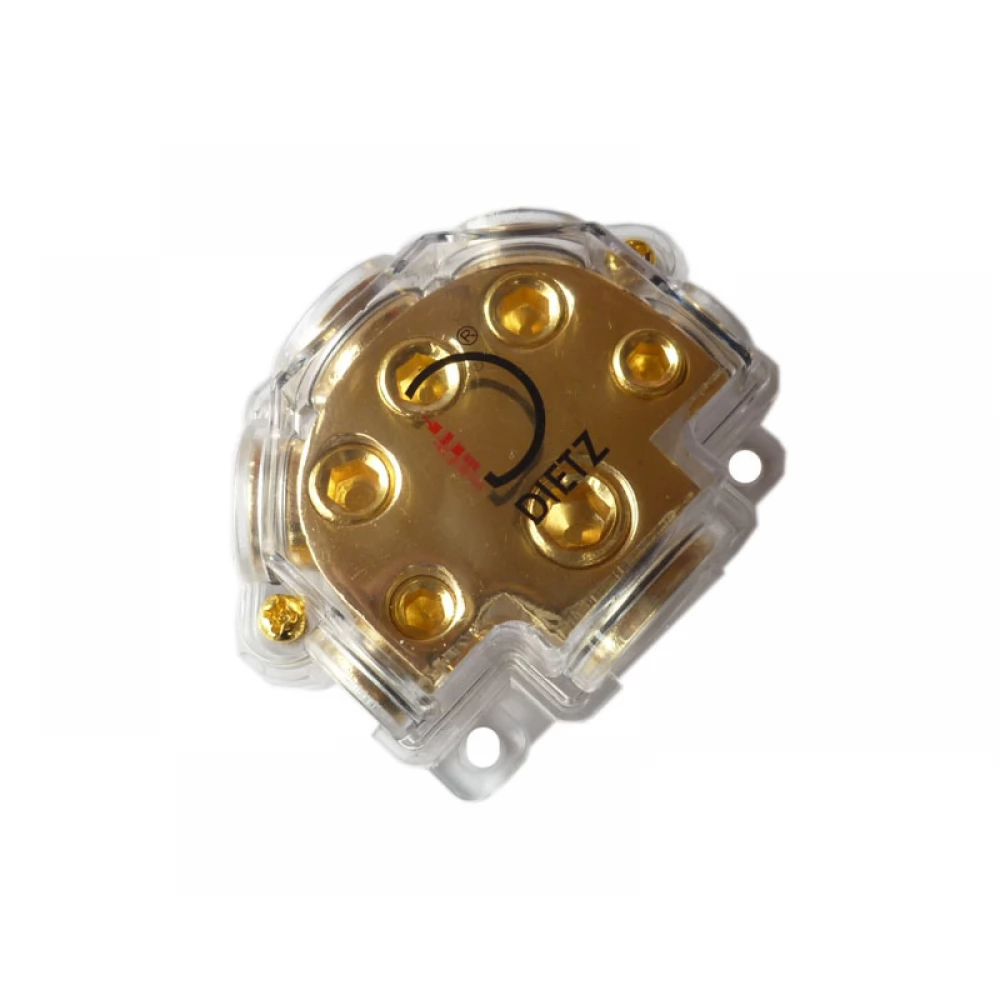

DIETZ 20106 Azanyozott tömör copper testelosztó

This gilded -coated body distributor provides maximum help when using multiple amplifiers for the ideal connection of body cables. There is no need to force any more on the screw selected for the body point, it is sufficient to drive up to 50 mm2 to the distribution and further with the appropriate diameter to the amplifiers. Thanks to the gilded coating, it provides perfect riples and minimal surface resistance without oxidation. Its design is both practical and demanding at the same time. Using the body distributor, you can save you excess cable length, wire harness weight and, last but not least, with multiple output diameters to drive the right cross -section cable for each amplifier, which is an important consideration under competition as it is evaluated separately.

Features:

- Gold plated surface to achieve minimal surface resistance and perfect contact
- Up to five amplifiers can be connected directly
- Input with a large 50 mm2 diameter
- Shockproof polycarbonate housing provides protection

Technical data:

- Design: body distributor
- Material: gold plated solid copper
- Input cable cross section: 35 50 mm2
- Output dimensions: 3 x 20 mm2 plus 2 x 10 mm2
- Weight: 0.21 kg
