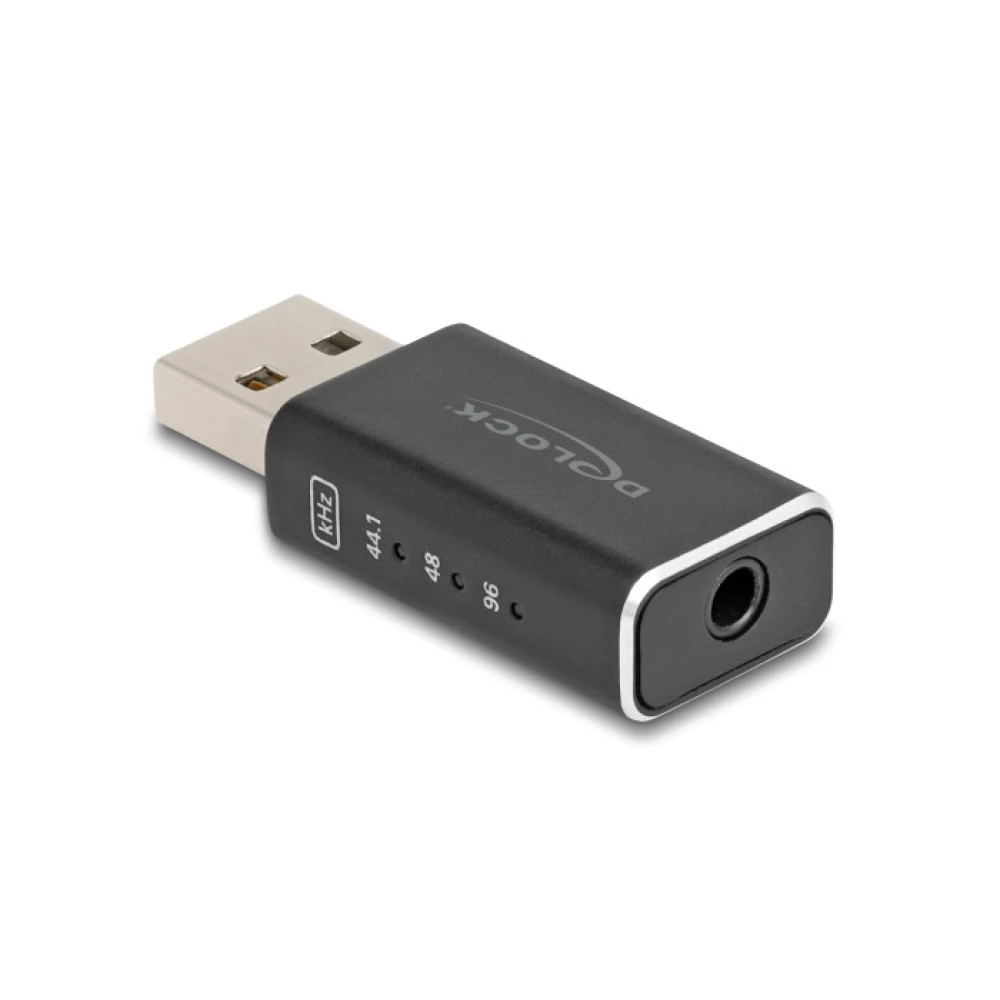

The Delock USB Gaming DAC is a compact and portable digital-to-analog converter (DAC) that can definitely improve the sound experience of gaming headphones and earphones.

High resolution audio

The sound adapter supports high-resolution audio experience up to 24 bit / 96 kHz, which provides a crystal clear sound experience with convincing details.

Seamless applicability

The gaming DAC can be used with a wide range of audio devices, such as gaming headphones and earphones, as well as external microphones.

Compact design

The compact design of the Game DAC provides an ideal solution for mobile gamers or perfect sound fanatics. It can be easily carried in a backpack or hand bag, so you can enjoy high-quality sound playback on the go.

Plug & Play

Due to the USB Plug & Play function, the adapter can be used immediately and no driver installation is required. The adapter is compatible with all common operating systems such as Windows, Mac, Chrome, Linux and Android.

Technical data

- Connector: 1 x USB 2.0 A-type plug, 1 x 3.5 mm 4-pin stereo jack socket (CTIA standard)
- Chipset: KT02F20 + MAX97220A
- Supported sampling rates: 44.1 / 48 / 96 kHz (depending on the system and connected devices)
- LED indicator for sampling rates
- USB audio device specification 1.0
- Up to 24 Bit / 96 kHz sampling rate for playback and 24 Bit / 48 kHz for recording
- Signal-to-noise ratio (SNR): approx. 103 dB
- Response frequency: 20 Hz 20 kHz +/0.5 dB
- Total harmonic distortion + noise (THD+N): 0.003 % at 1 mW
- Headphone driving capacity: 16,300 Ohms
- USB bus power source
- Plug & Play
- Dimensions (LxWxH): approx. 41.8 x 17.2 x 9.8 mm

System requirements

- Android 13.0 or later
- Chrome OS 116.0 or later
- Linux Kernel 6.2 or higher
- Mac OS 13.1 or later
- Windows 10/10-64/11
- IPad Air (4th generation) or later
- PC or notebook computer with a free USB A-type connector
