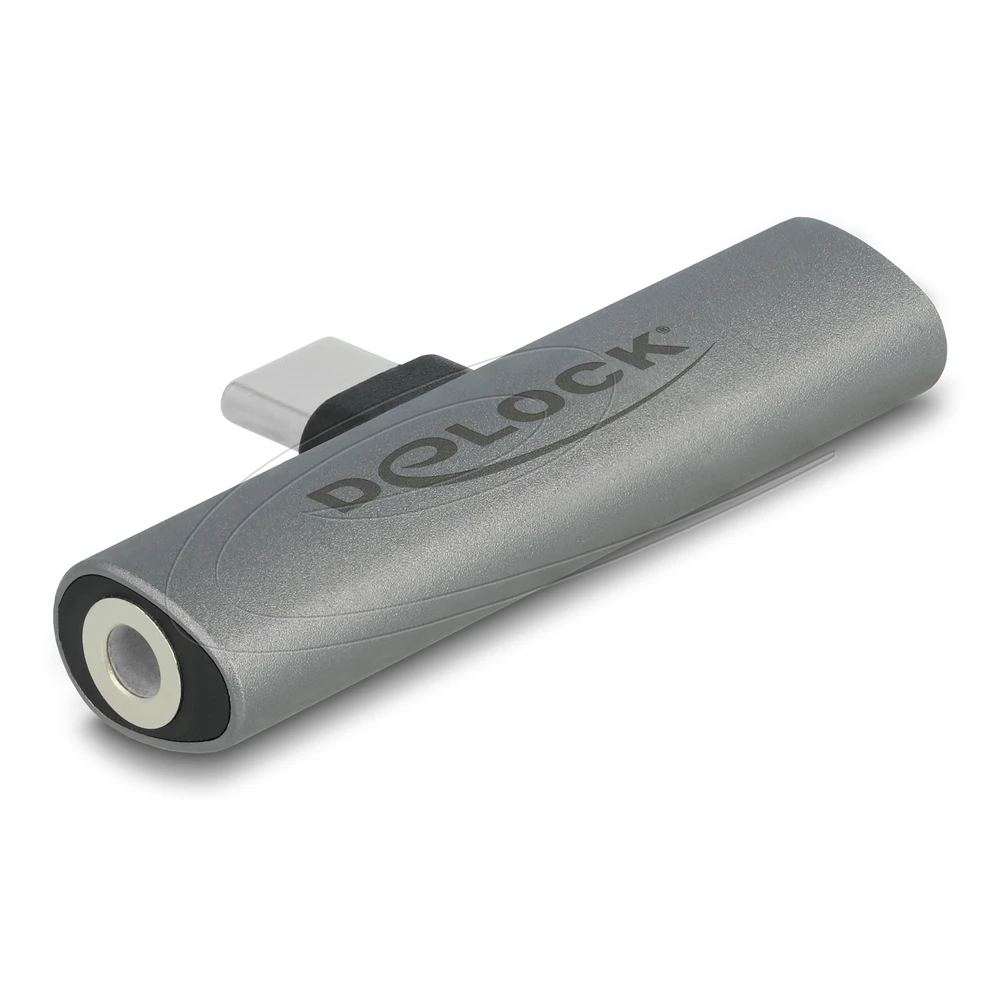

This Delock audio adapter enables the connection between a stereo jack headset or microphone and a device with a USB Type-C™ port, such as a smartphone, MacBook or Chromebook.

USB Type-C™ power supply with PD 3.0
Furthermore, the connected device can be charged via the USB Type-C™ port. The maximum charging current is 20 V / 3 A (60 W). The device also supports the PD 3.0 standard.

Note

- The USB Type-C™ interface of the device must support digital audio signals
output.
- If you connect a mobile phone that does not have a PD function, the audio and charging
functions become alternative and the charging function has less priority.
- If you connect a mobile phone that does not support Data Role Swap
function, the audio may not work when the power adapter is connected.
- If you connect a mobile phone or laptop that does not have
With the Fast Role Swap function, it is possible that the audio playback will be intermittently interrupted.
It will continue when the power is turned on and off.

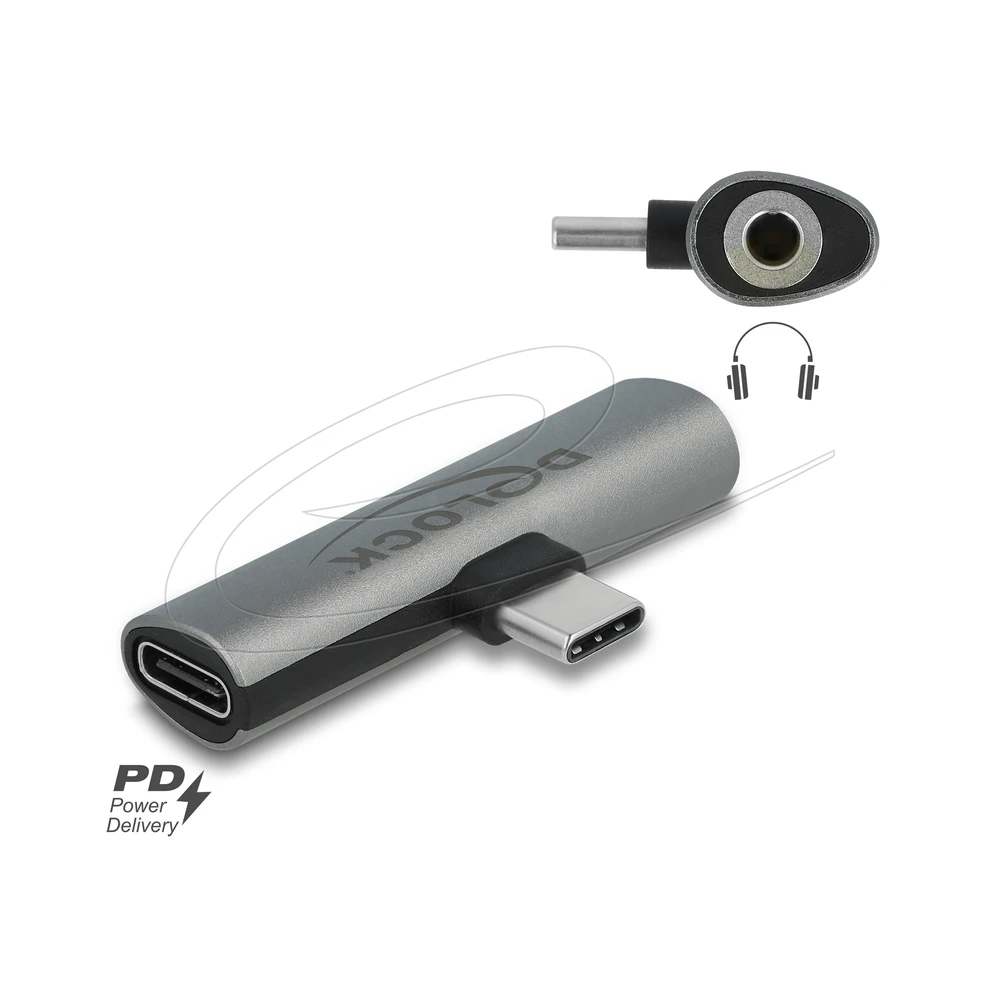

- Connector:
- 1 x USB Type-C™ plug >
- 1 x 3.5 mm 4-pin stereo jack socket
- 1 x USB Type-C™ socket (PD)
- Signal-to-noise ratio (SNR): approx. 93 dB
- DAC Sampling value: up to 24 Bit / 96 kHz
- ADC Sampling value: up to 16 Bit / 48 kHz
- Supports the use of Digital Hi-Res Audio
- USB Power Delivery (PD) 3.0
- USB bus power source
- Plug & Play
- Dimensions (LxWxH): approx. 50 x 16 x 9 mm
- Color: gray
