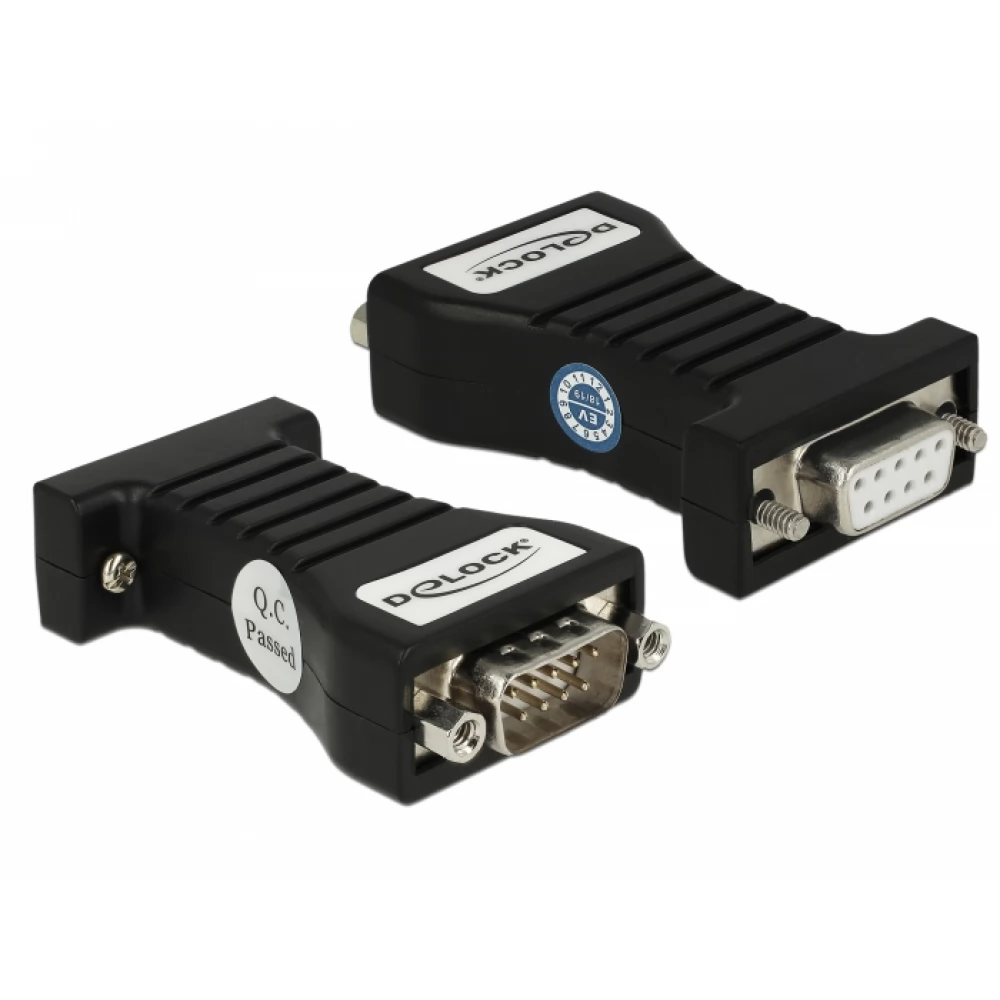

This Delock RS-232 isolator protects all connected devices, such as computers, machines, controllers, measuring devices, etc. Against electromagnetic and electrostatic discharges and overvoltage. Thanks to the complete galvanic isolation of the connected devices, continuous data transmission can be ensured even in the case of ground or ground loops. The isolator can be connected directly between two DB9 connections without an additional power supply.

- Connector:
- 1 x serial RS-232 DB9 socket with screws
- 1 x serial RS-232 DB9 plug with screw nuts
- Plug & Play
- Data transmission: asynchronous, full duplex
- Data transmission speed between 300 bps and 19200 bps
- Cut-off voltage: 2500 VRMS peak pulse or 500 VDC
- ±3 kV ESD protection on all connector pins

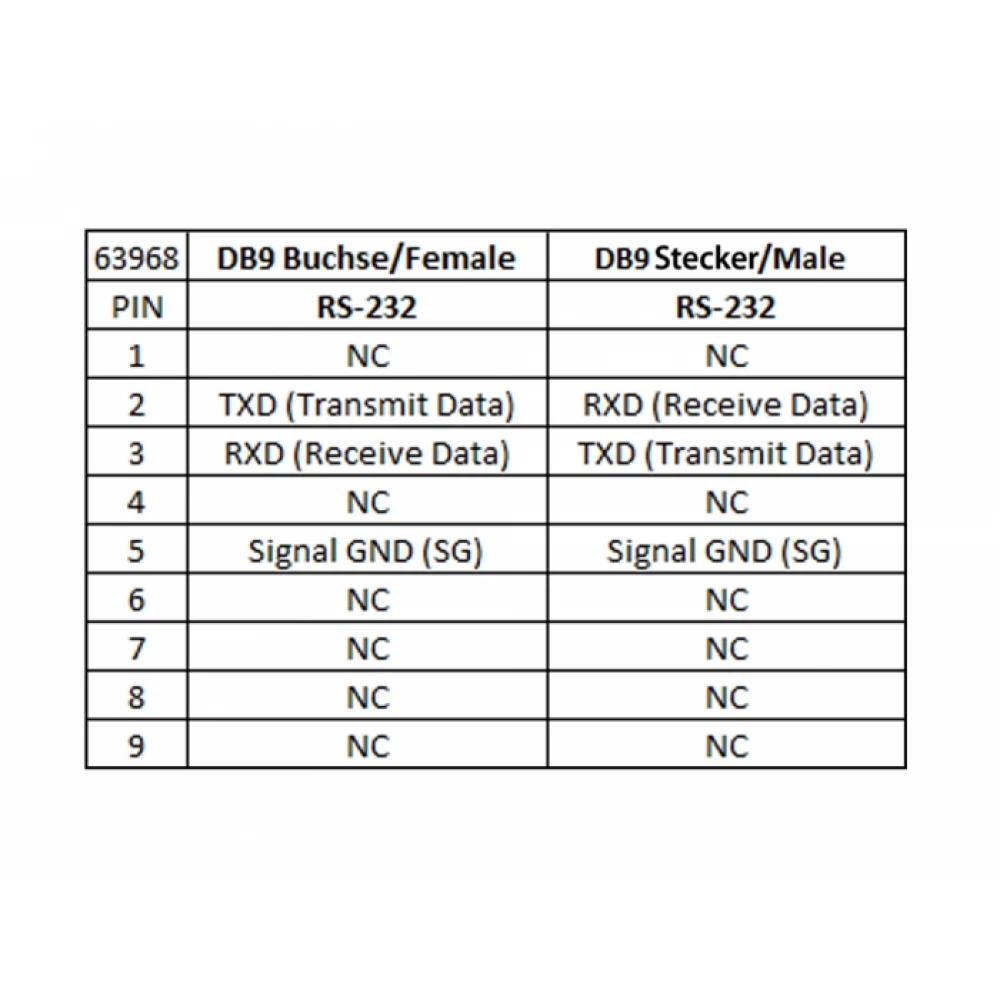

- Data lines: TXD, RXD, GND
- Cover material: plastic
- Colour: Black
- Operating temperature: -40 °C ~ 80 °C
- Relative humidity: 5-95% (non-condensing)
- Dimensions (L x W x H): approx. 63 x 33 x 17 mm
- Bus power from RS-232: TXD, RTS or DTR
- No external power supply required
