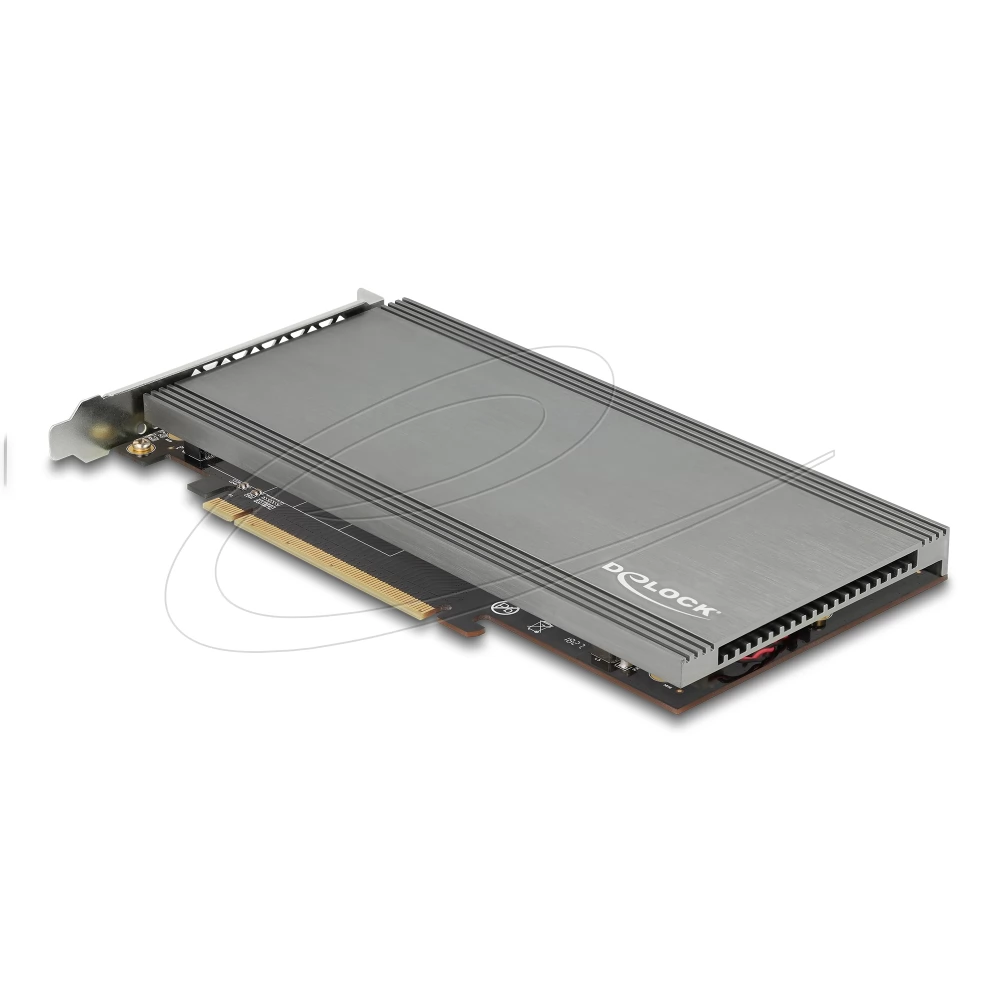

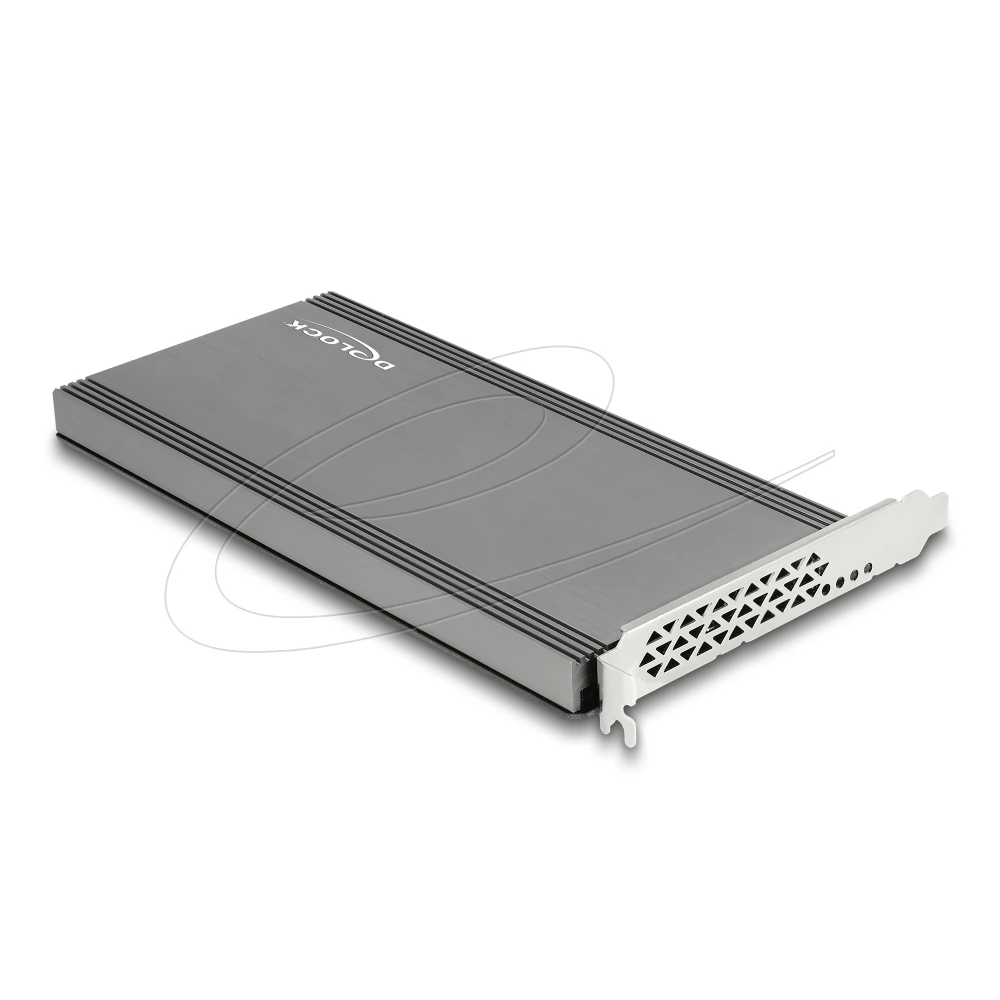

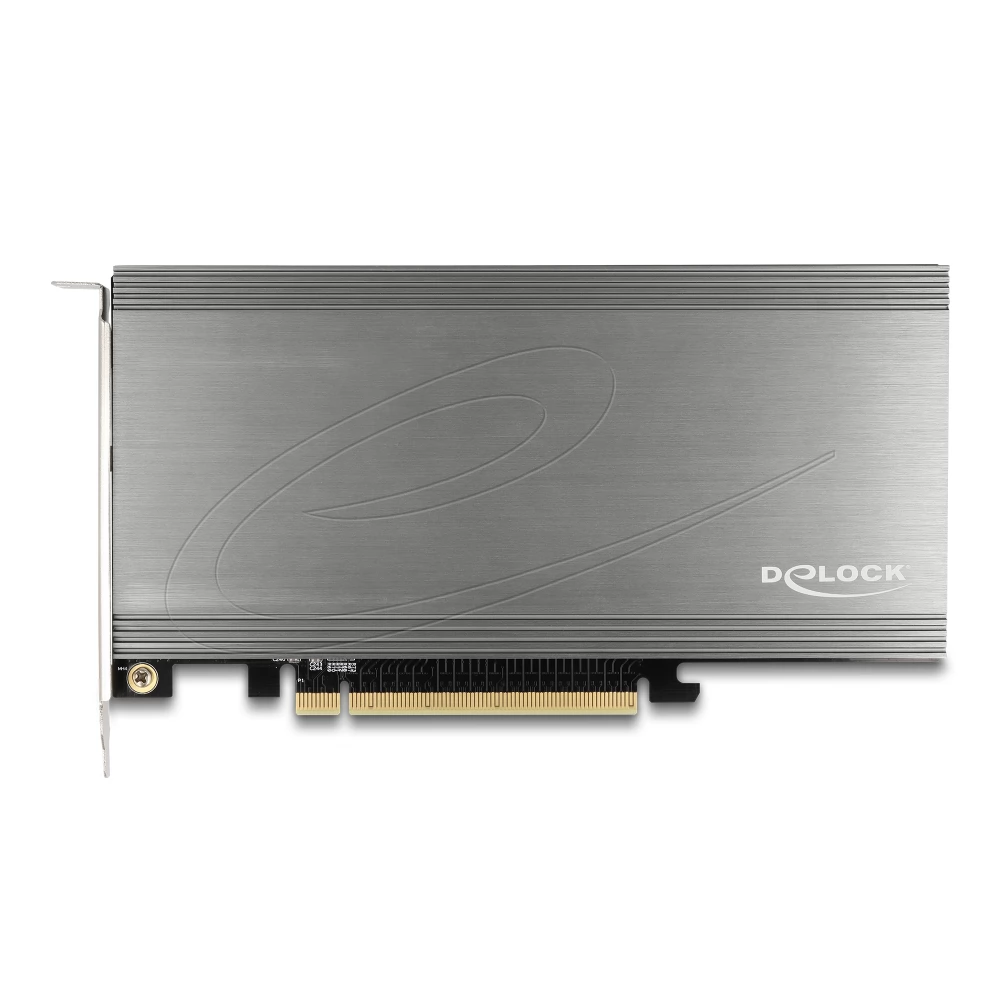

This Delock PCI Express card expands your computer with four m.2 substrates. Up to four M.2 SSD can be connected in the following formats: 2280, 2260, 2242 and 2230. The large heat sink and fan can be used to cool down for the M.2 modules.

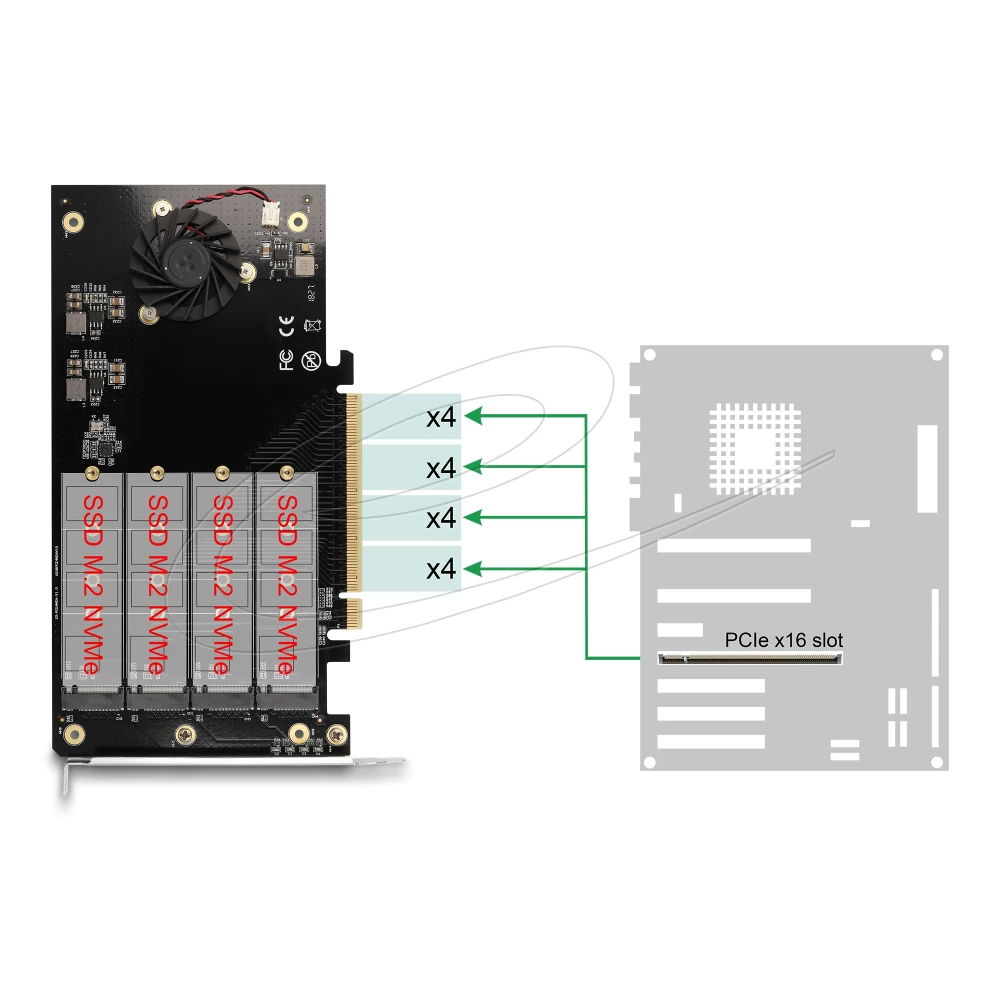

Pcie branching

To use the card, you need to separate the PCIe signal in a row to use the other ports by branching the motherboard.

Comment

Without PCIe separation, only the first M.2 connector of the card can be used.

- Connector:
- Inner:

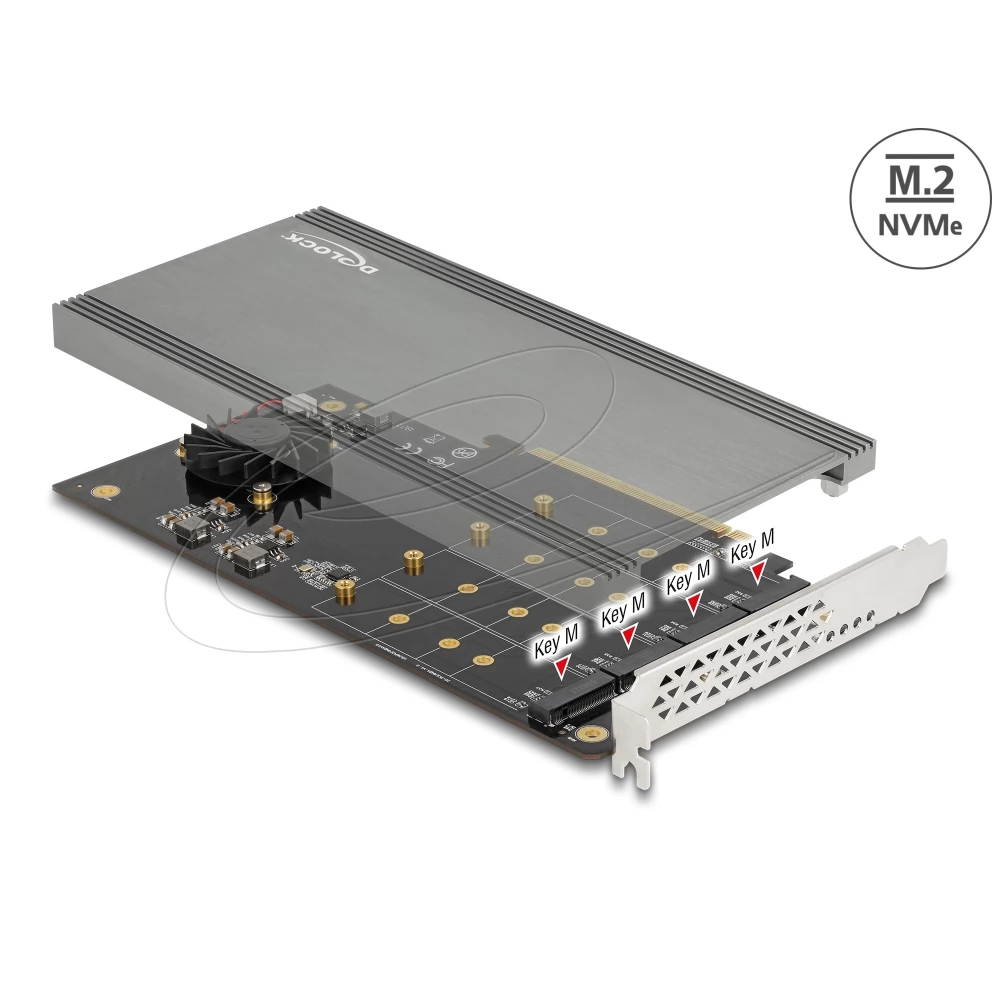

- 4 x 67 needle m.2 m-key opening
- 1 x PCI Express X16, V3.0
- interface: Pcie
- M.2 modules support in 2280, 2260, 2242 and 2230 formats PCIE
- based on a b+m key
- Maximum height of ingredients on the module: Double -sided assembled modules
- Application of 1.5 mm is supported
- Supports using NVM Express (NVME)
- 4 x LED light
- launched, UEFI 2.3.1 support
- Supports S.M.A.R.T. to use

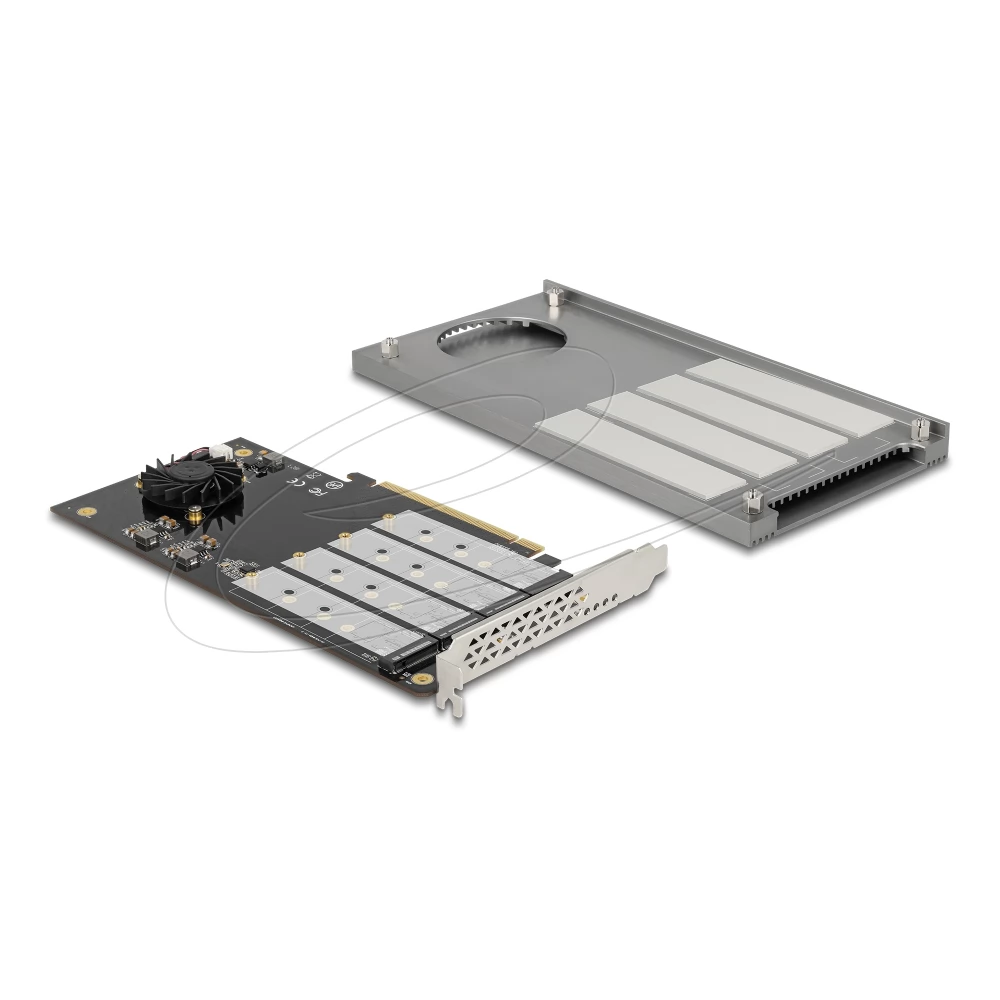

- Dimensions heat sink (Hxszxm): approx. 202 x 95 x 8 mm
- 1 x 40 mm ventilator for effective cooling of M.2 modules
