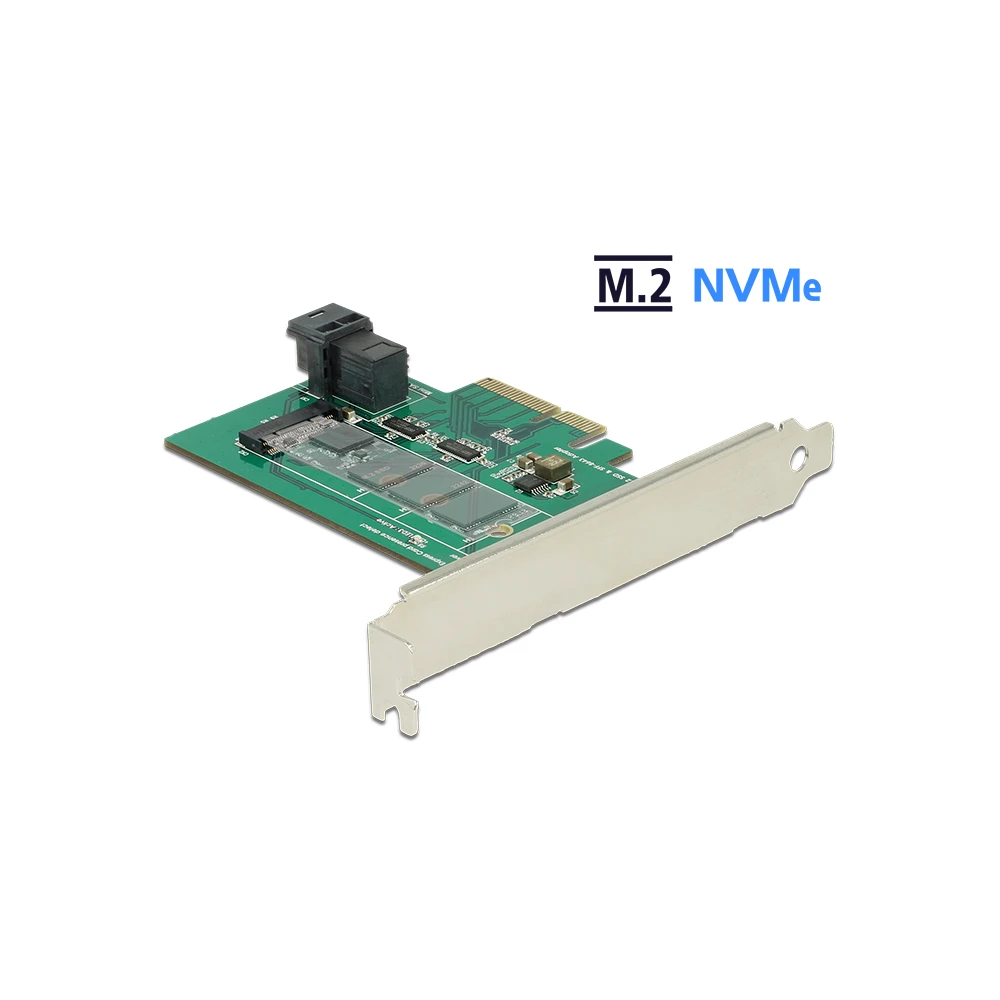

This Delock PCI Express card expands your computer with an M.2 slot. A 2280, 2260, 2242 or 2230 format M.2 module can be connected. In addition, for example, an SSD with a U.2 connector can be connected via a separately purchased cable. Only one connector can be used; if both are occupied, only the M.2 slot can be used.

Technical data

- Connector internal: 1 x 67-pin M.2 M-key slot, 1 x PCI Express x4, V3.0, 1 x 36-pin SFF-8643 socket
- Interface: PCIe
- Supports the use of M.2 modules in 2280, 2260, 2242 and 2230 format with PCIe-based M or B+M key
- Maximum height of components on the module: 1.35 mm application of double-sided assembled modules is supported
- Bootable, has UEFI 2.3.1 support (M.2 slot)
- Maximum output voltage: 4 A
- Protection against short circuit, protection against overheating
- ESD protection max. up to 2 kV
- LED display
- Power supply via PCI Express
- Supports the use of NVM Express (NVMe).

System requirements

- Linux Kernel 3.2 or higher
- Windows 7/7-64/8.1/8.1-64/10/10-64/11
- PC with a free PCI Express x4 / x8 / x16 / x32 slot
