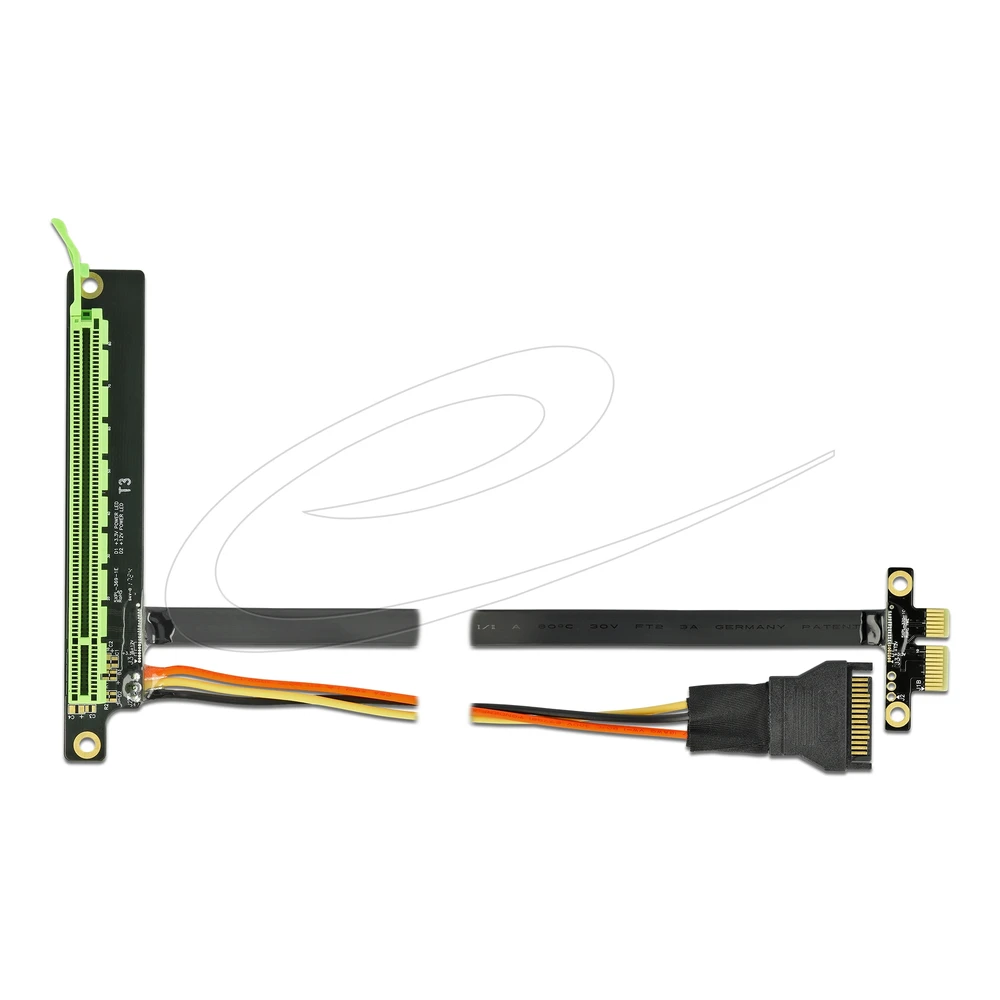

DELOCK PCI Express Riser card x1 - x16 flexible cable 80 cm
not available
Product description
This Delock PCI Express riser card can be used for a PCI Express x16 socket module. The flexible cable enables space-saving mounting in the computer case.
Note
For technical reasons, there is one row on the PCI Express x16 connector for data transfer.
- Connector:
- 1 x PCI Express x1 plug +
- 1 x 15-pin SATA connector plug >
- 1 x x16 PCI Express slot (1-Lane)
- Compatible with the PCI Express 3.0 standard
- Cable thickness:
- 30 AWG data wire
- 18 AWG power wire
- Color: black
- Independent of the operating system, no driver installation is required
- Cable length:

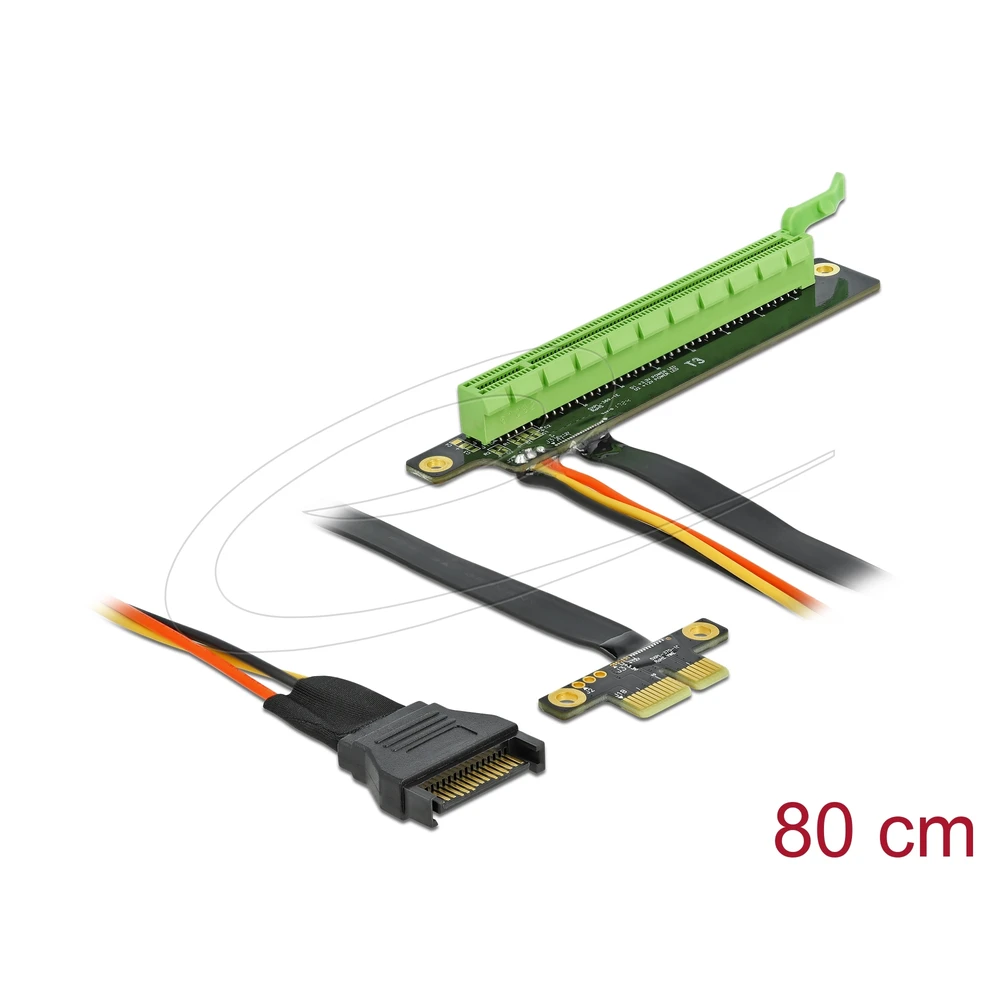

- Data cable approx. 80 cm
- Power cable approx. 15 cm
- Dimensions (LxWxH): approx. 115 x 18 x 20 mm
