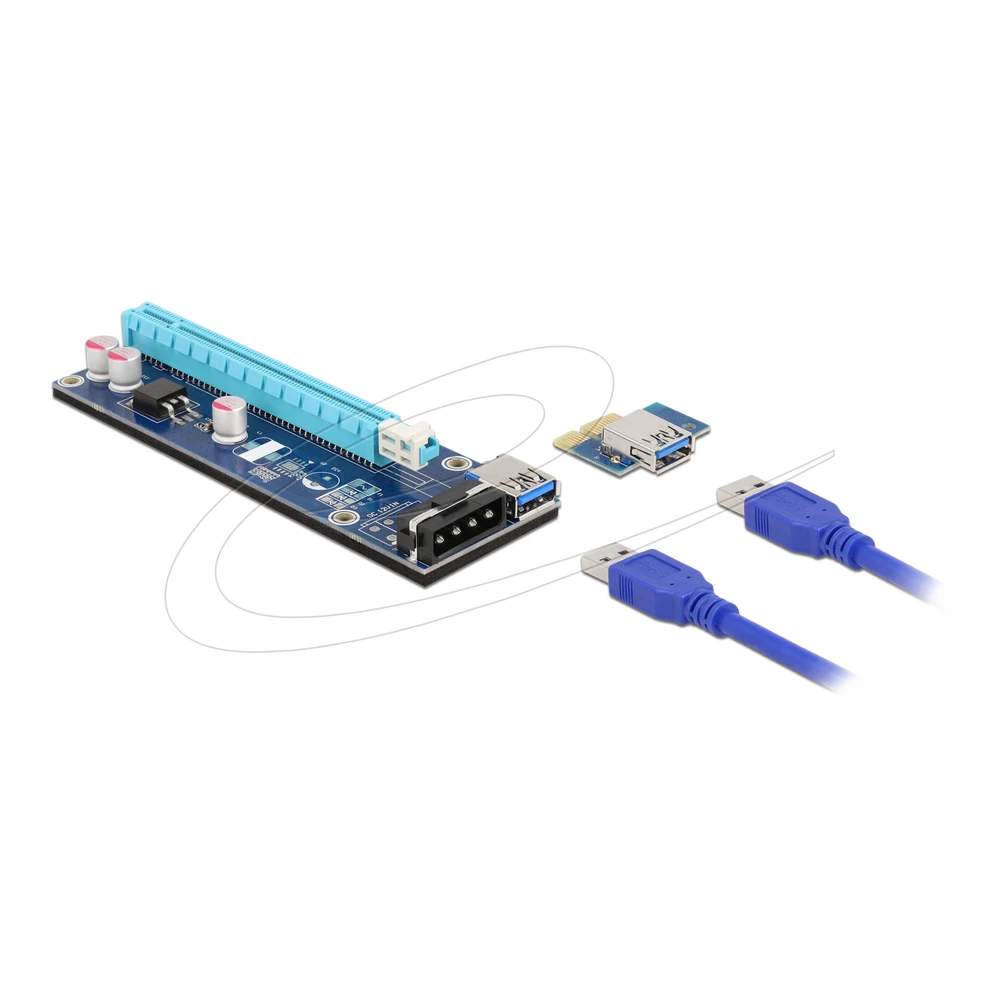

The Delock PCI Express expansion card can be connected to the PCI Express x1 expansion slot of the motherboard. The x16 PCI Express expansion slot can then be installed elsewhere in the computer case. This allows one graphics card to be operated from each PCIe slot on the motherboard, even if the graphics card is wider than one slot. By using several expansion cards, several graphics cards can be operated simultaneously on one motherboard, for example for mining digital currencies such as Bitcoin, Ethereum or Zcash.

Note
The package includes a 60 cm long USB 3.0 extension cable. There is no USB signal on this cable, so it cannot be replaced with another or longer cable.

Special features
A PCIe x16 graphics card can be used in PCIe x1 expansion slots.

- Connector:
- Motherboard page:
- 1 x PCI Express x1
- 1 x USB 3.0 Type A socket
- Extension page:
- 1 x PCI Express x16
- 1 x USB 3.0 Type A socket
- 1 x Molex 4-pin power connector
- Data transfer up to 800 MB/s

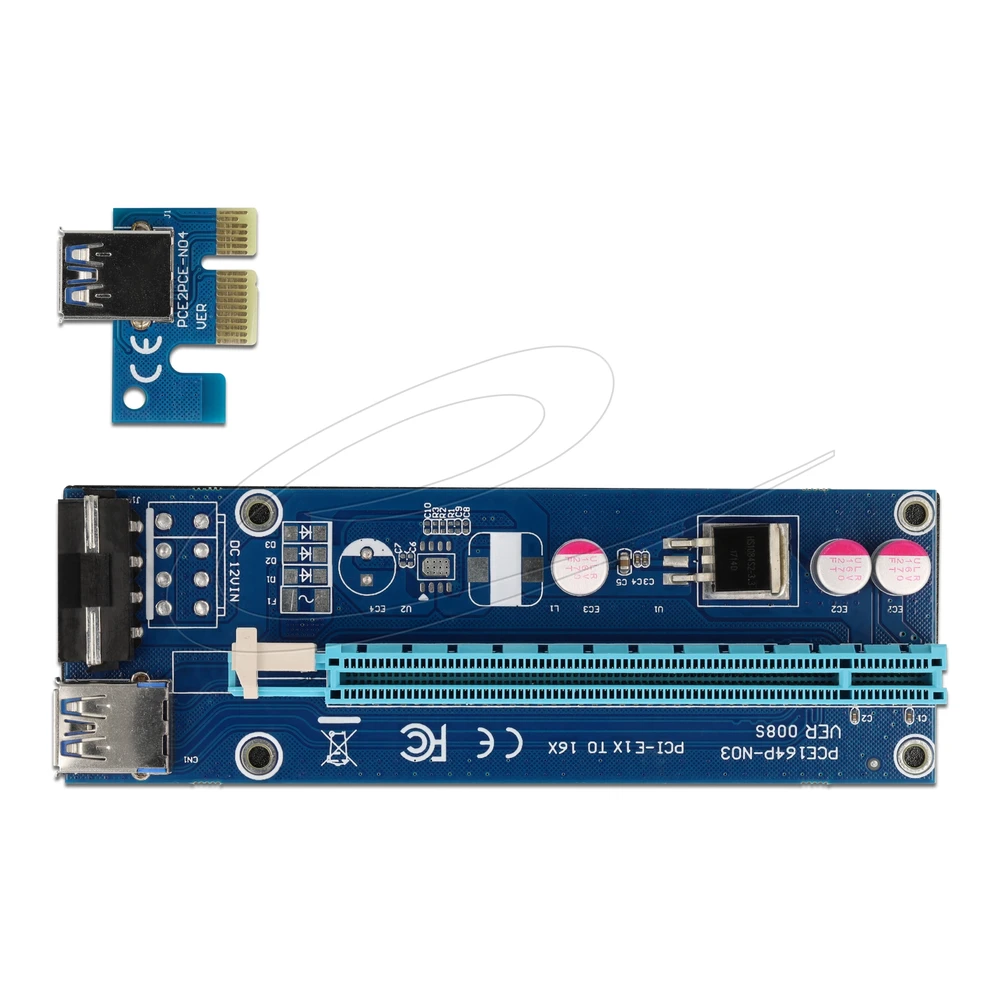

- 3 FP solid capacitors ensure the safe power supply of the graphics card
- 4 mounting holes on the expansion card
- Insulated, anti-slip pad on the bottom
- Cable data:

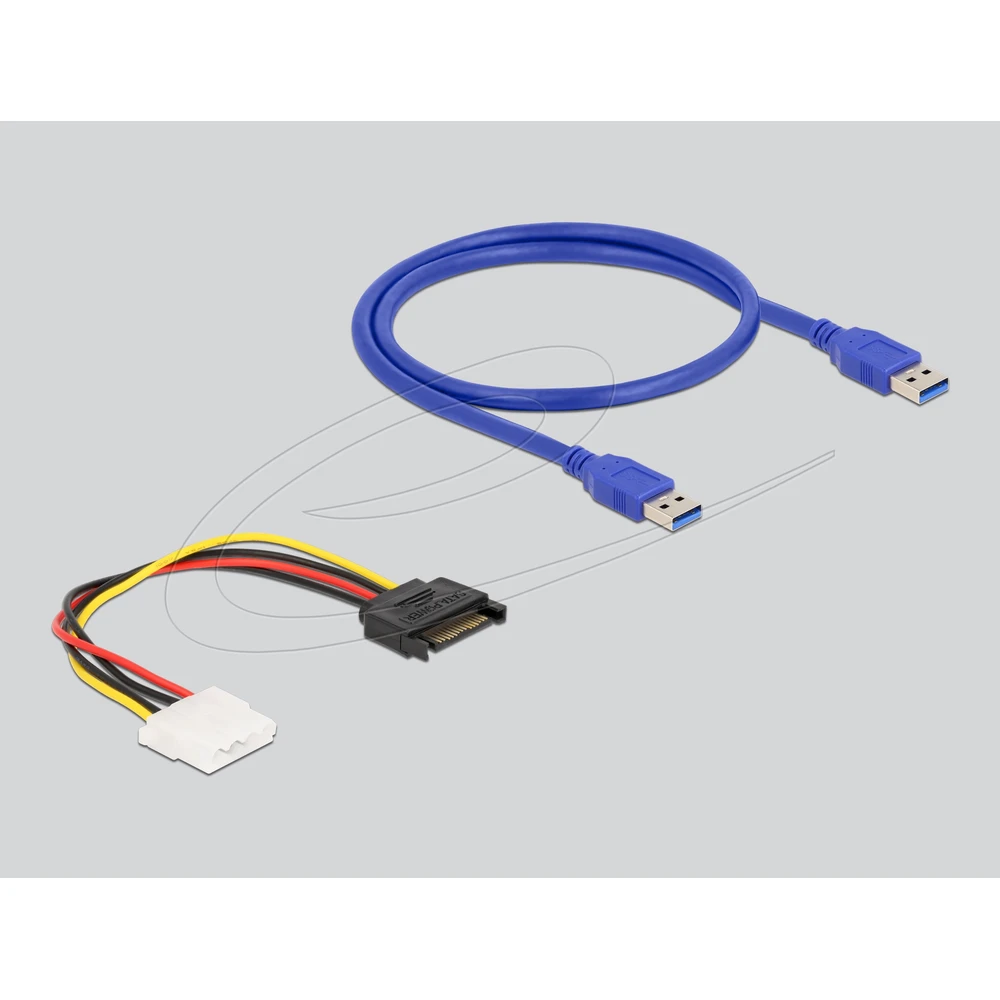

- 1 x extension cable USB 3.0 A-type, with male to male connectors approx. 60 cm (with connectors
- together)
- 1 x SATA power cable Molex connector, length approx. 20 cm (including connectors)
- Expansion card size (LxWxH): approx. 128.25 x 43.50 x 21.20 mm
