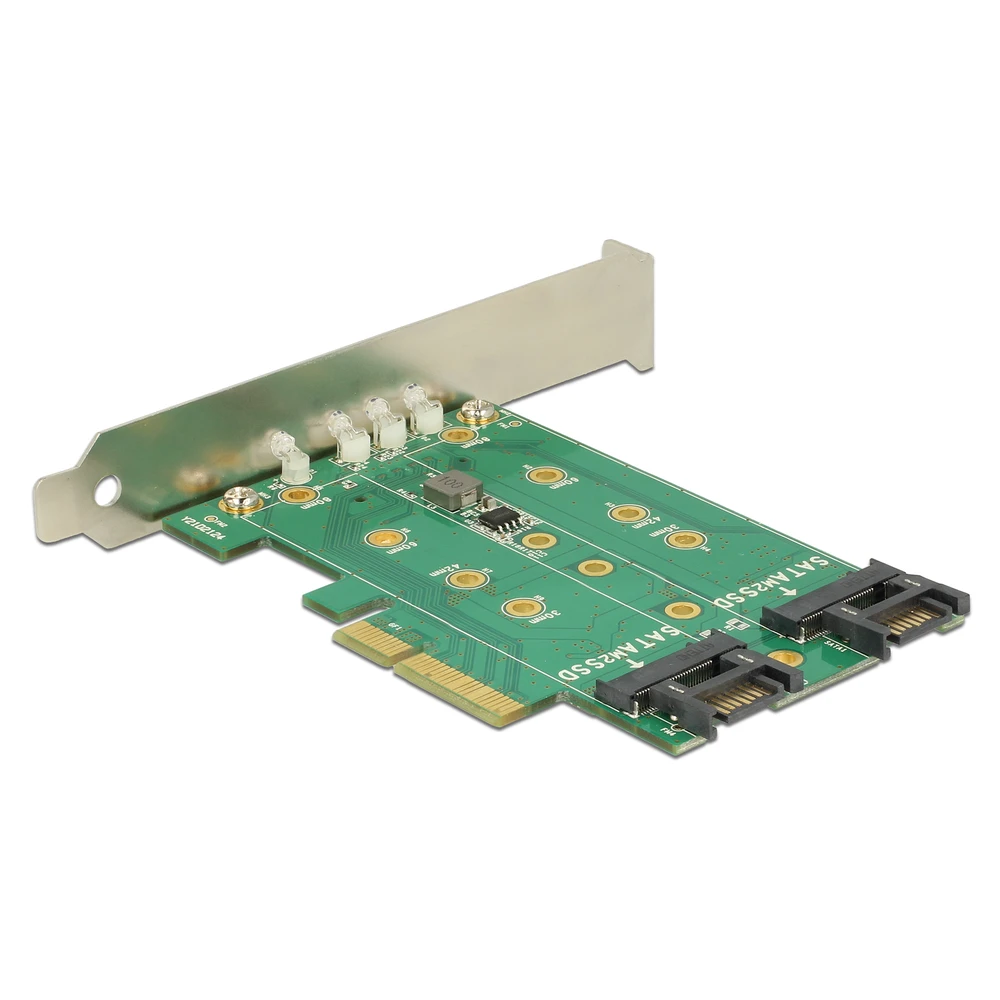

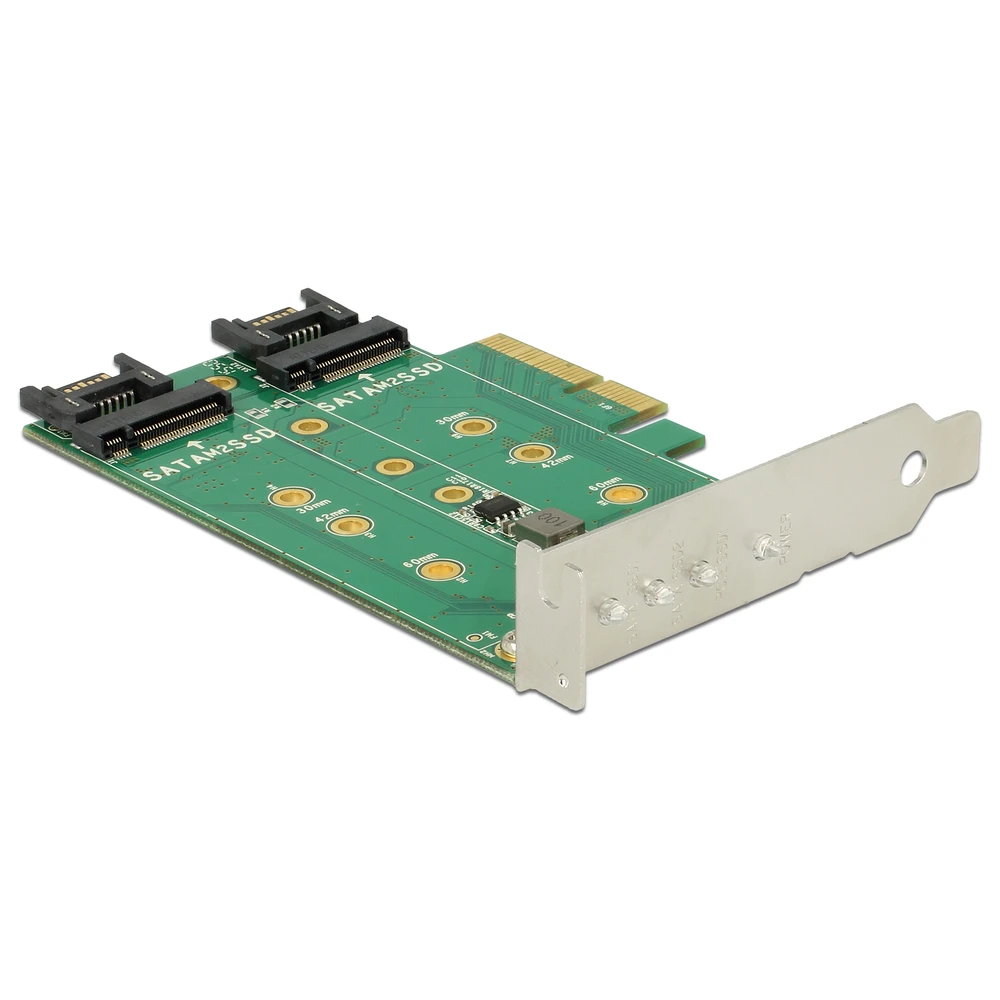

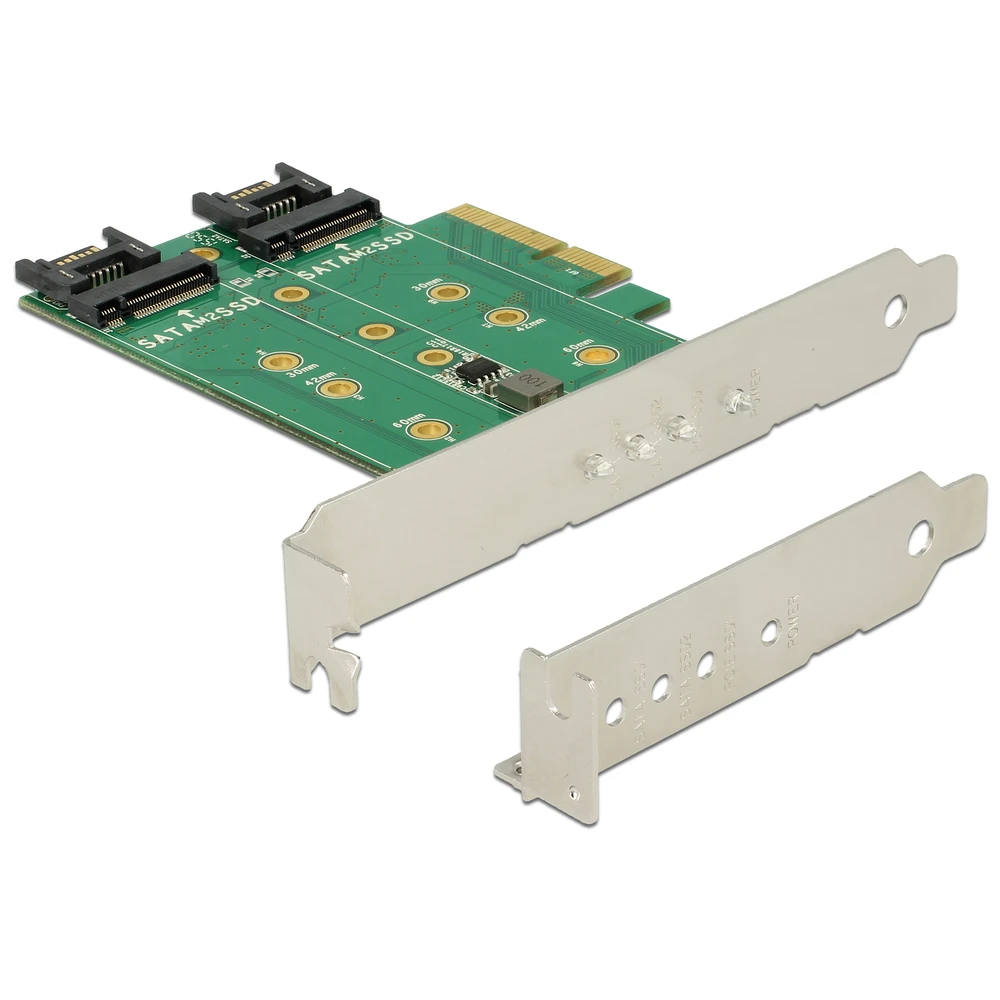

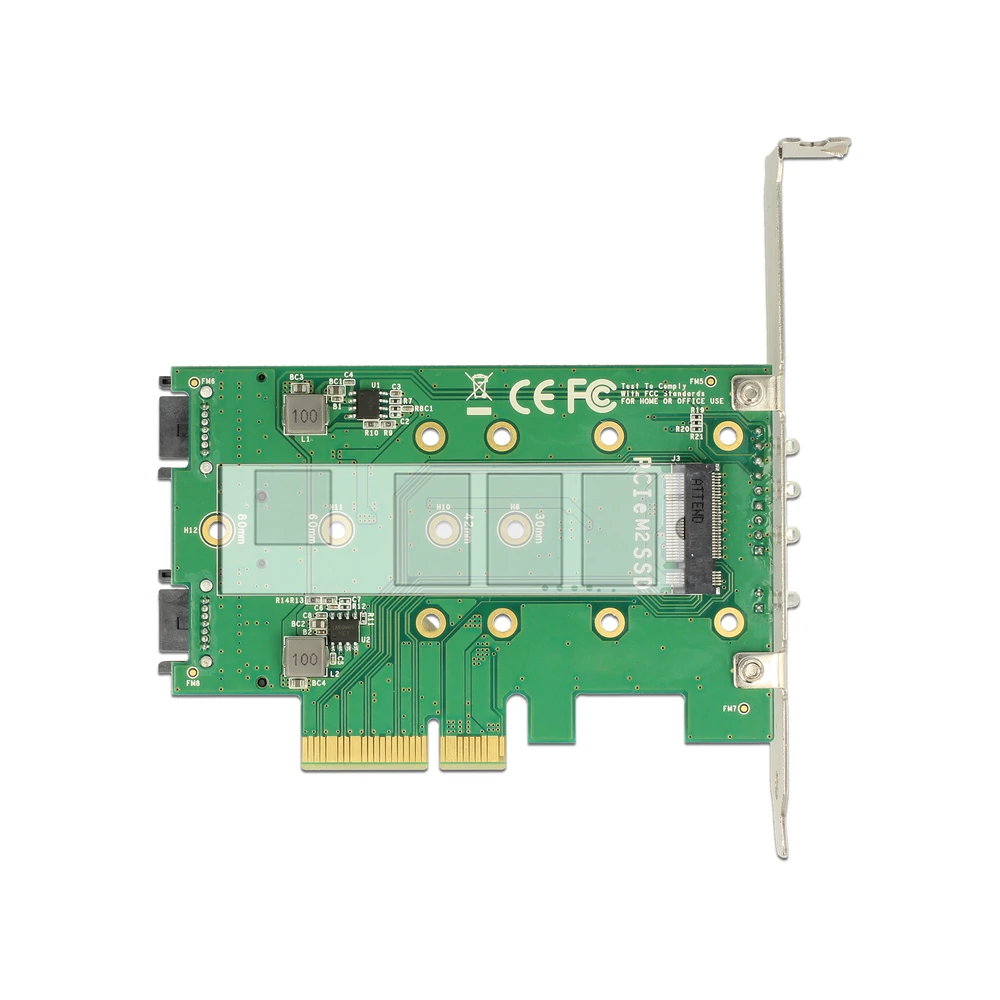

This Delock PCI Express card expands your computer with three M.2 slots. A maximum of two M.2 SATA modules in format 2280, 2260, 2242, 2230 and one M.2 PCIe module in format 2280, 2260, 2242, 2230 can be connected to the card. SATA modules are connected to the motherboard using SATA cables.

- Connector:
- Interior:
- 2 x 67-pin M.2 B-key slot
- 1 x 67-pin M.2 M-key slot
- 1 x PCI Express x4, V3.0
- 2 x SATA 7 pin plugs
- Interface: SATA + PCIe
- To support
- Use of two M.2 modules in the following formats: 2280, 2260, 2242 and 2230 "B"
- With slot or "B+M" slot based on SATA and
- Use of an M.2 module in the following formats: 2280, 2260, 2242 and 2230 "M"
- With slot or "B+M" slot based on PCIe
- Maximum height of the components on the module: The two-sided assembled
- 1.35 mm application of modules is supported
- Supports the use of NVM Express (NVMe).
- 4 x LED indicators
- Power supply via PCI Express
