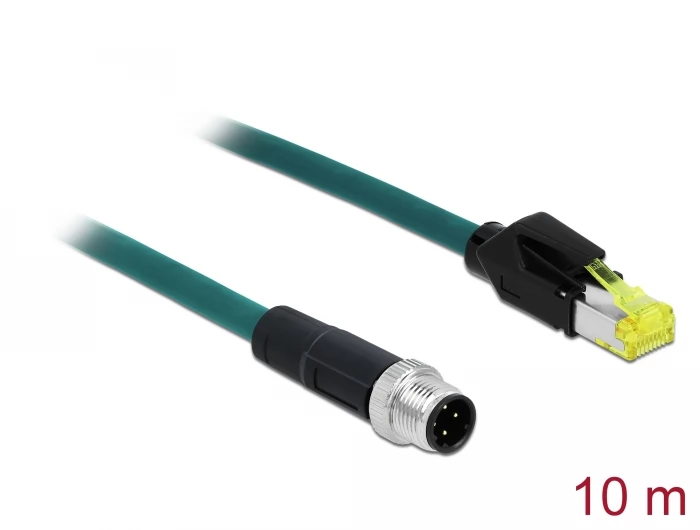

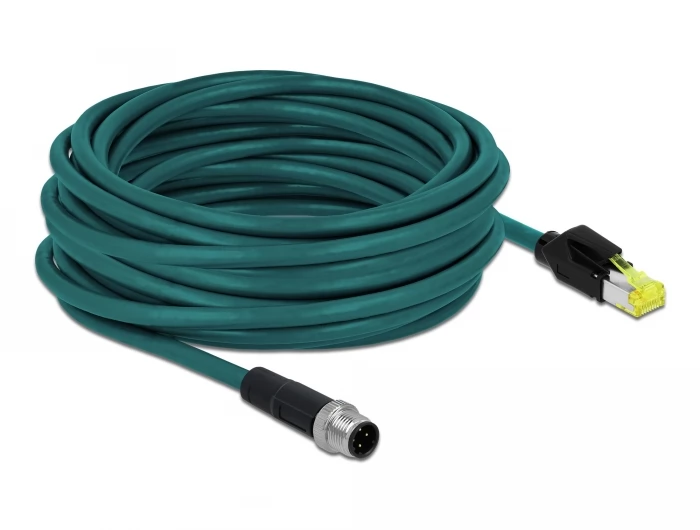

This Delock industrial ethernet cable can be used to connect various elements with an M12 connector, for example machine control or automation.

Durable TPU cable cover
The material of the cable cover makes the cable flexible and durable, enabling its use in harsh conditions and in cable guide chains.

The cable is oil and UV protected and meets the high expectations of industrial applications.

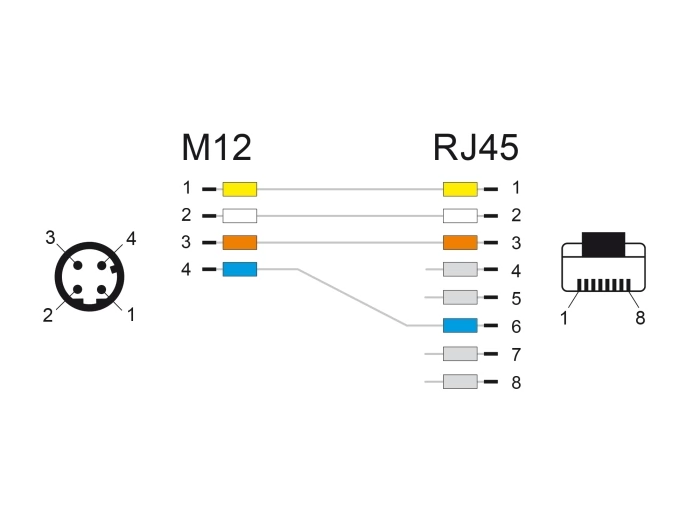

- Connector:

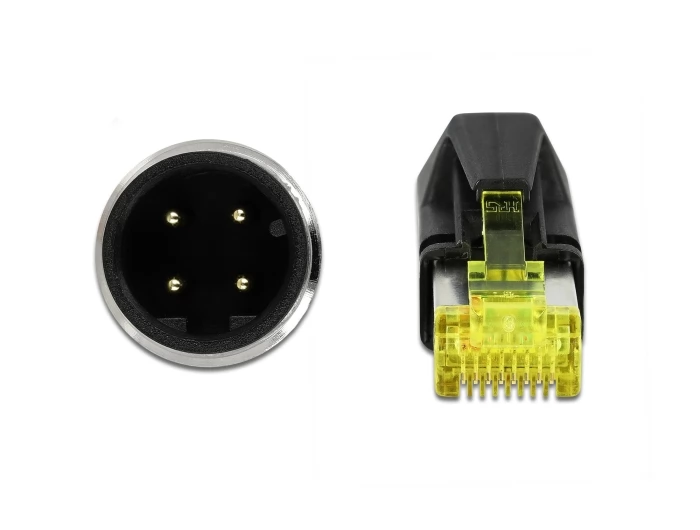

- 1 x M12 plug 4 pin D coded >
- 1 x RJ45 Hirose plug
- Its pin arrangement complies with the PROFINET standard
- Suitable for cable guide chains
- SF/UTP
- Covering: aluminum foil, transparent foil, tinned copper braiding
- Copper cable
- Cable thickness: 26 AWG
- Cable diameter: approx. 6.4 mm
- Cable cover material: PUR (TPU)
- Max. number of bending circles: 1,000,000
- Smallest bending radius:
- 32 mm with fixed placement
- 64 mm with free (unfixed) placement
- Resistant to oil according to DIN EN 60811-2-1
- UV protected
- LS0H (halogen-free)
- Fire resistance class: FT2
- Operating temperature: -20 °C ~ 80 °C
- Protection rating: IP20
- Color: water blue
- Length (including the connector): approx. 10 m
