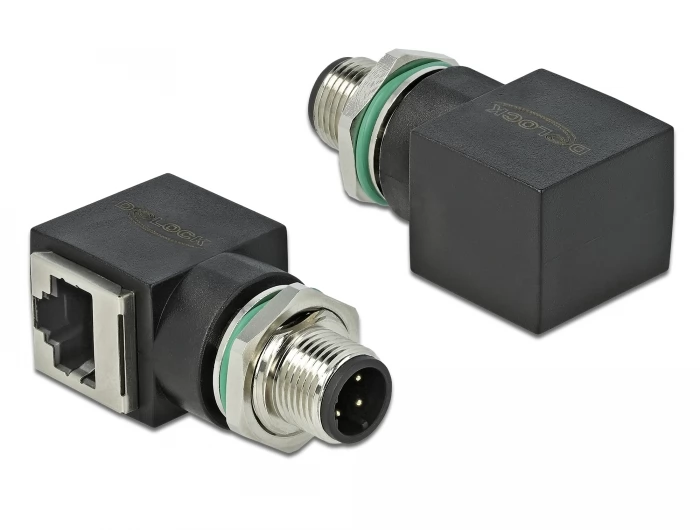

This Delock industrial Ethernet adapter can be used to connect various elements with M12 connectors, for example to a control or automation machine.

Fixing in switch cabinet
Due to its compact structure, the adapter is perfectly suited for installing a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.

- Connector:

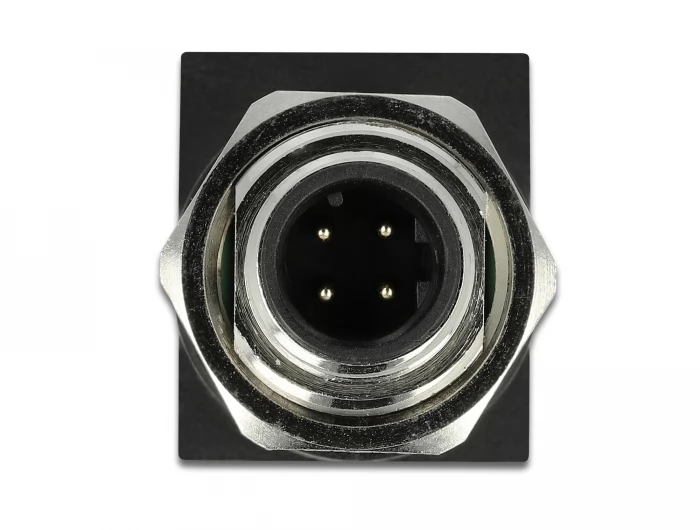

- 1 x M12 plug 4 pin D coded >
- 1 x RJ45 socket
- PROFINET specification

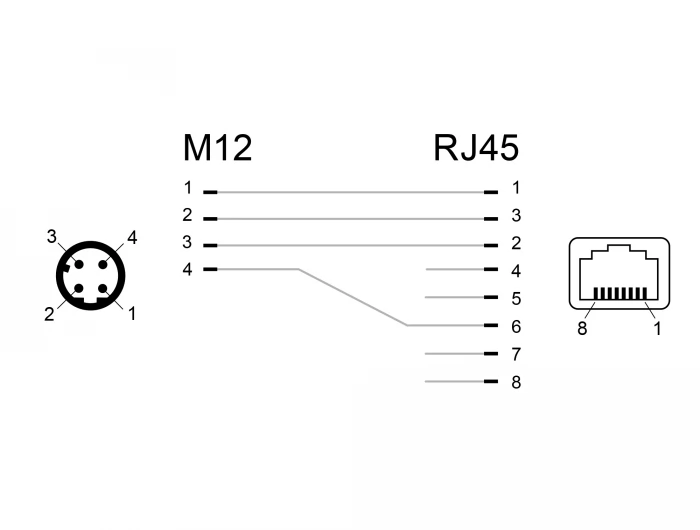

- Its pin arrangement complies with the PROFINET standard
- Cat.5e specification
- Cover material: PUR (TPU)
- With M16 external thread
- Gold plated contacts
- Operating voltage: max. 250 V
- Current quantity: max. 4A
- Operating temperature: -25 °C ~ 85 °C
- Protection rating: IP67
- Colour: Black
- Dimensions (LxWxH): approx. 47.0 x 19.6 x 25.0 mm
