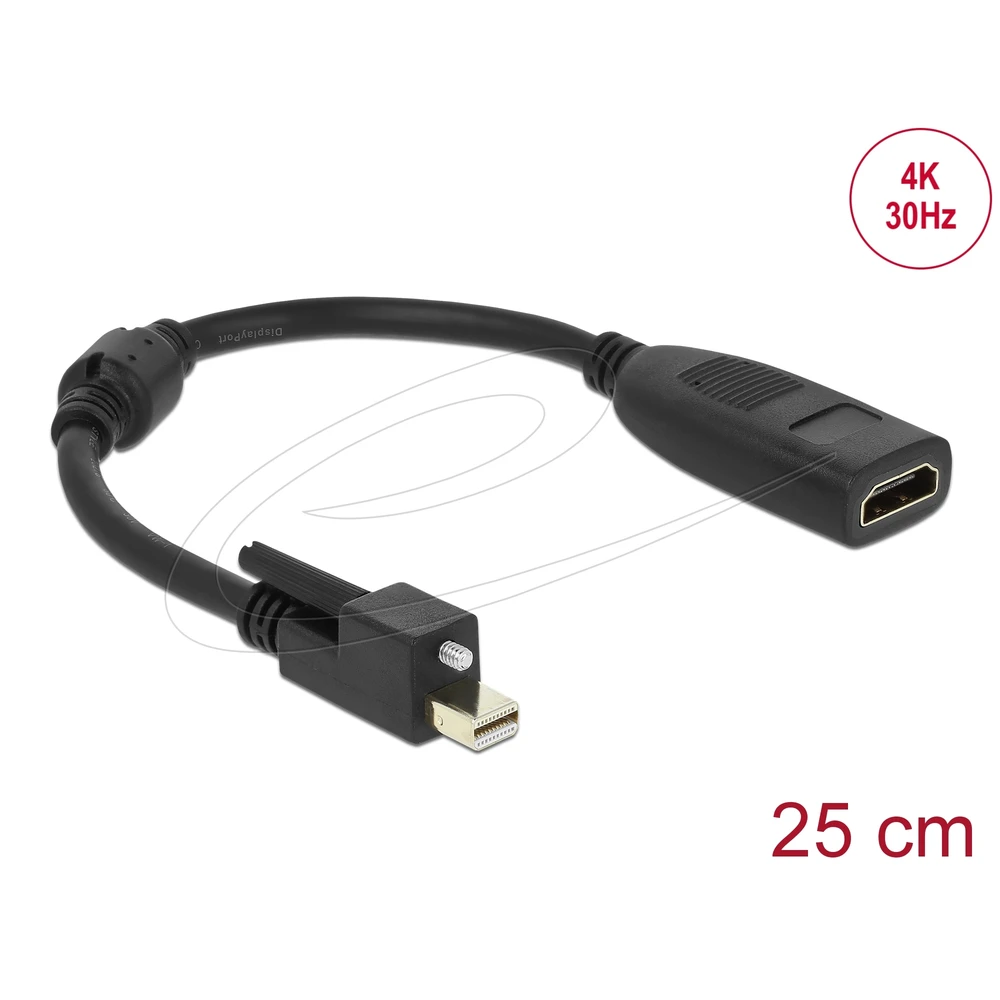

This adapter allows you to connect, for example, an HDMI monitor via a free mini DisplayPort connector. This adapter supports up to Ultra HD (4K) resolution and is backward compatible with the Full-HD 1080p standard. The adapter offers active conversion, so it can also be used with video cards that cannot output a DP++ signal. The screw on the mini DisplayPort connector can be used to secure the connection and prevent the cable from being accidentally pulled out.

- Connector:
- Mini DisplayPort 20-pin plug with screw >
- HDMI-A 19-pin socket
- Screw type: #4-40, UNC thread type, thread class 3A, American standard screw
- Chipset: Parade PS176
- DisplayPort 1.2 and High Speed HDMI specification
- Cable thickness: 32 AWG
- Cable diameter: approx. 5.5 mm
- Gold-plated connector
- Active converter for video cards with DP and DP++ output
- Transmission of audio and video signals
- Supports resolution up to 4K (4096 x 2160 pixels @ 24 Hz or 3840 x 2160 pixels @ 30 Hz) depending on the system and connected hardware
- Support for 3D displays (1080p @ 120 Hz)
- Supports HDCP 1.3
- Supports the use of Eyefinity
- Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio format with up to 24 Bit resolution and 192 kHz sampling frequency
- 1 x ferrite coil
- Cable length: approx. 25 cm (including the connector)
- Color: black
- Operating system independent, compatible
