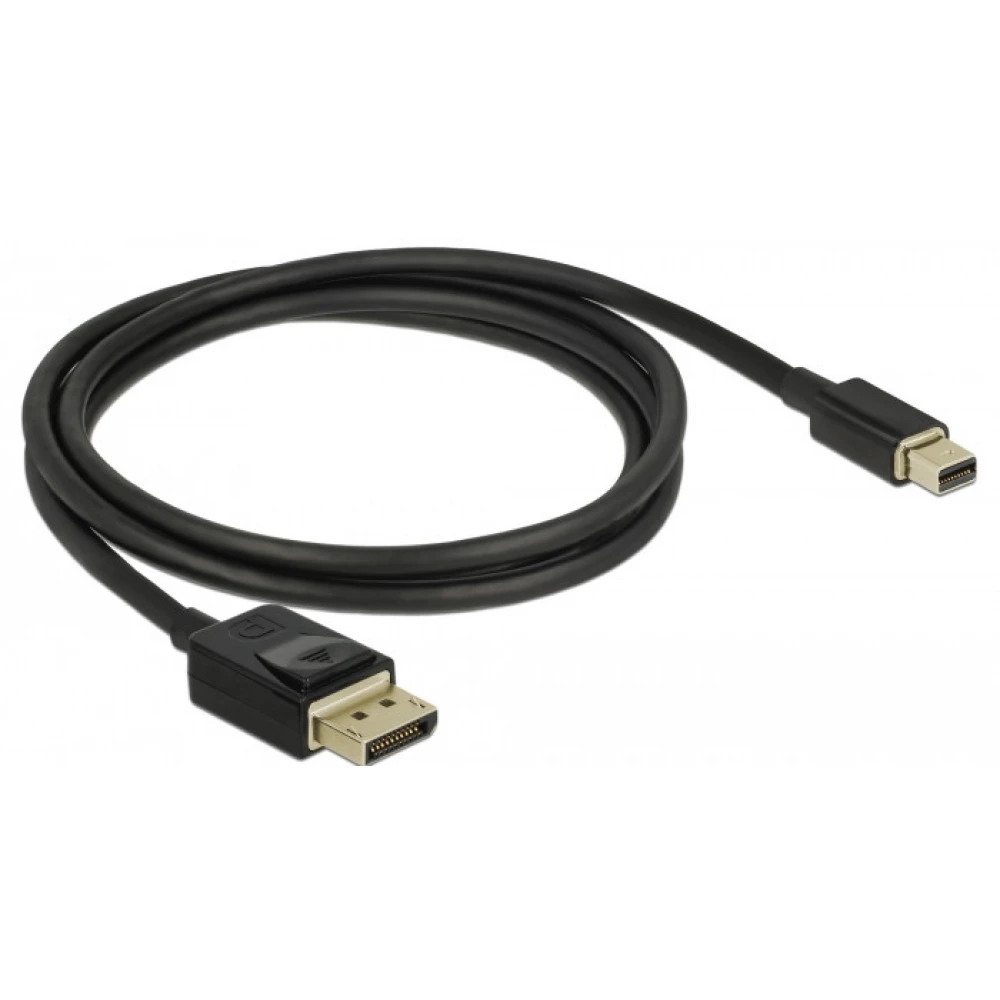

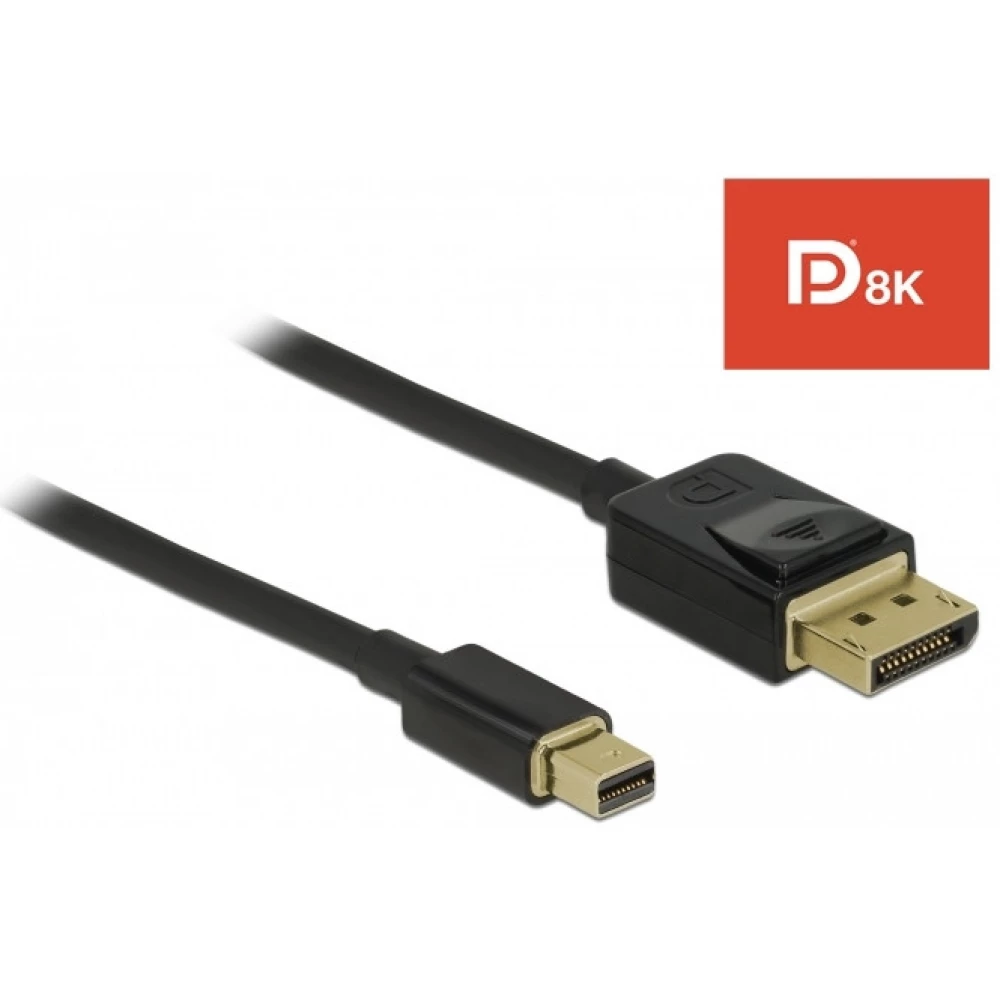

DELOCK Mini DisplayPort 1.4 Converter Black 1m 84927

With this certified Delock DisplayPort cable, devices with a DisplayPort interface, such as monitors, projectors or televisions, can be connected to a personal computer or laptop with a mini DisplayPort interface. Providing a maximum bandwidth of 32.4 Gb/s, content can be displayed at 8K Ultra HD (7680 x 4320 at 60 Hz) approximately 5K (5120 x 2880 at 120 Hz) and 4K Ultra HD (3840 x 2160 at 240 Hz) resolution. The high-quality, triple-shielded cable significantly improves sound transmission quality at a sampling rate of 1536 kHz.

- Connector:
- 1 x mini DisplayPort 20-pin plug >
- 1 x DisplayPort 20-pin plug
- DisplayPort 1.4 specification
- Downward compatible DisplayPort 1.3, 1.2 and 1.1
- DisplayPort® DP 8K certified cable
- Pin 20 is not connected
- Cable thickness: 34 AWG
- Cable diameter: approx. 4.5 mm
- Copper conductor
- Triple shielded cable
- Gold plated contacts
- Transmission of audio and video signals
- Data transmission at a speed of up to 32.4 Gb/s
- Resolution max.:
- Display with DSC support up to:
- 7680 x 4320 @ 60 Hz
- 5120 x 2880 @ 120 Hz
- 3840 x 2160 @ 240 Hz
- Display without DSC support:
- 7680 x 4320 @ 30 Hz
- 5120 x 2880 @ 60 Hz
- 3840 x 2160 @ 120 Hz
- (depending on the system and connected hardware)
- Supports the use of Display Stream Compression 1.2 (DSC).
- Supports the use of HDR
- Supports HDCP 1.4 and 2.2
- Supports HBR3 (8.1 Gb/s) data transfer rate
- Up to 32 audio channels for speakers
- Up to 1536 kHz audio sampling rate
- Supports 4:4:4, 4:2:2 and 4:2:0 color sampling
- Colour: Black
- Length (including the connector) (L): approx. 1 m
