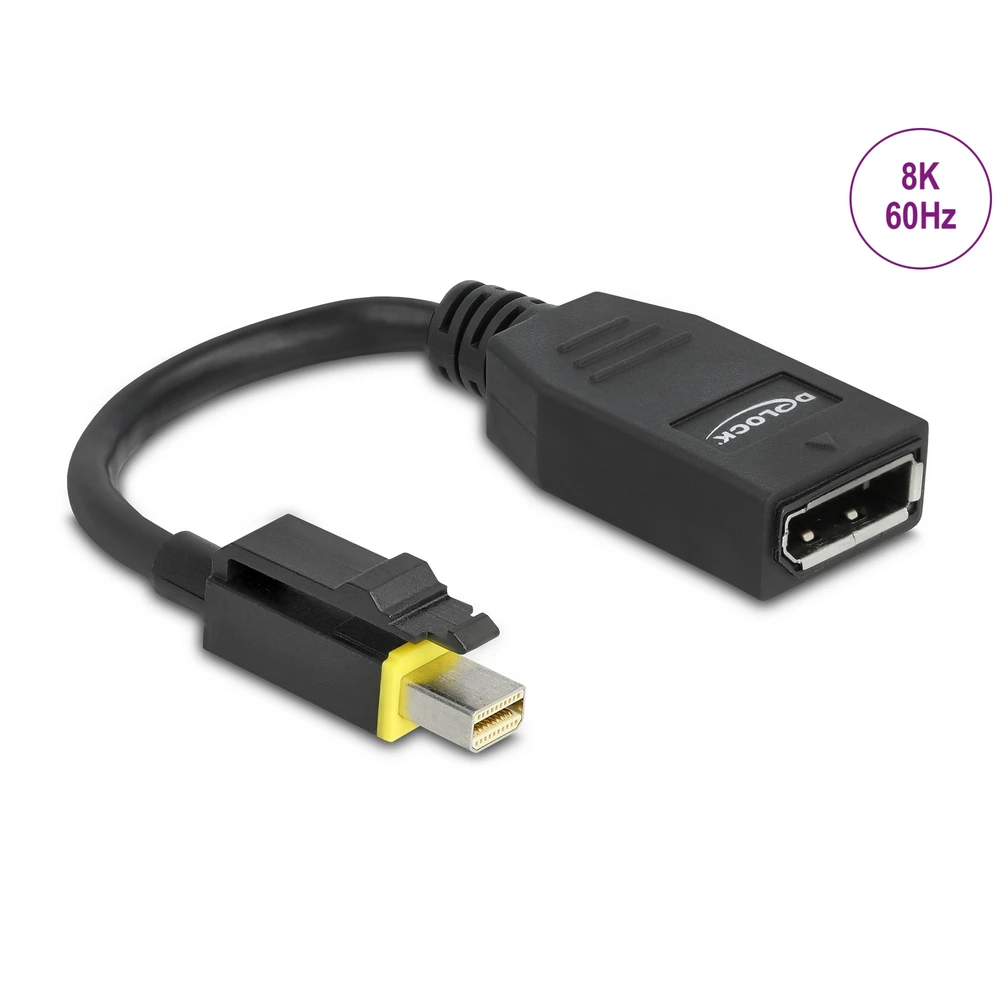

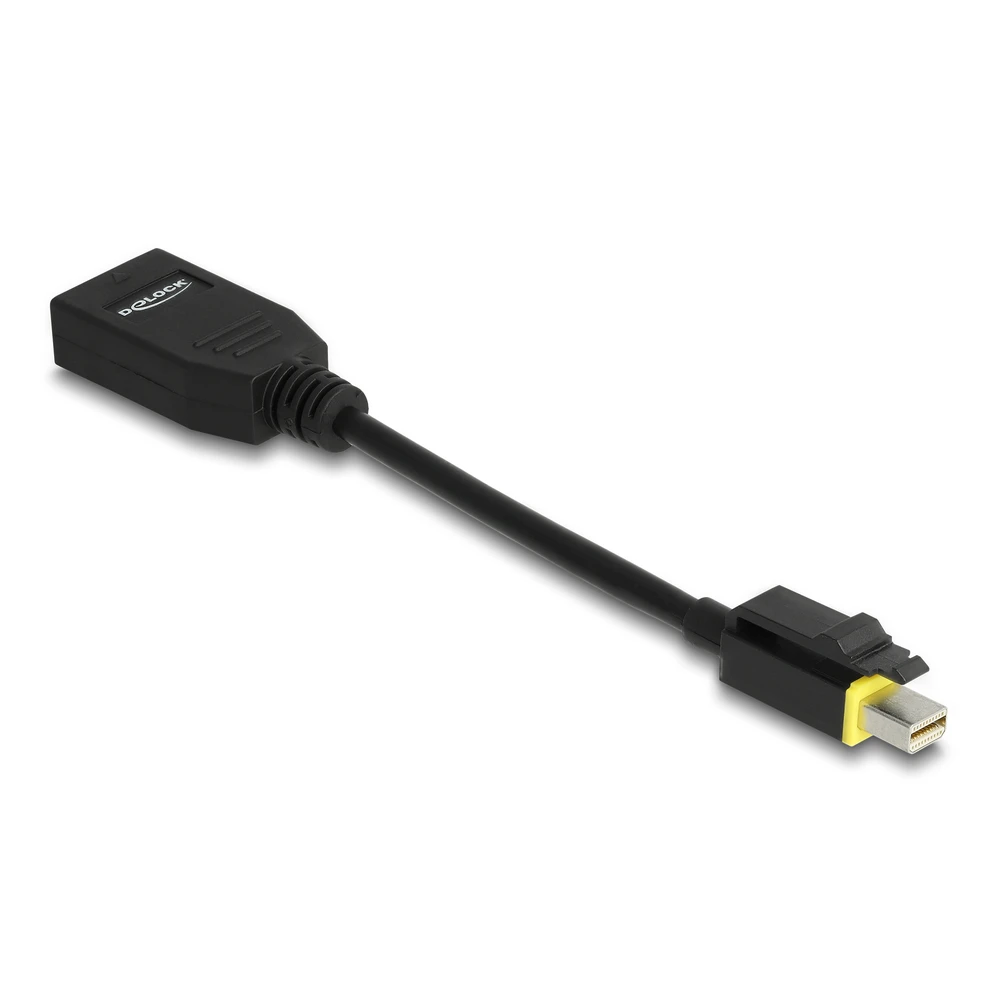

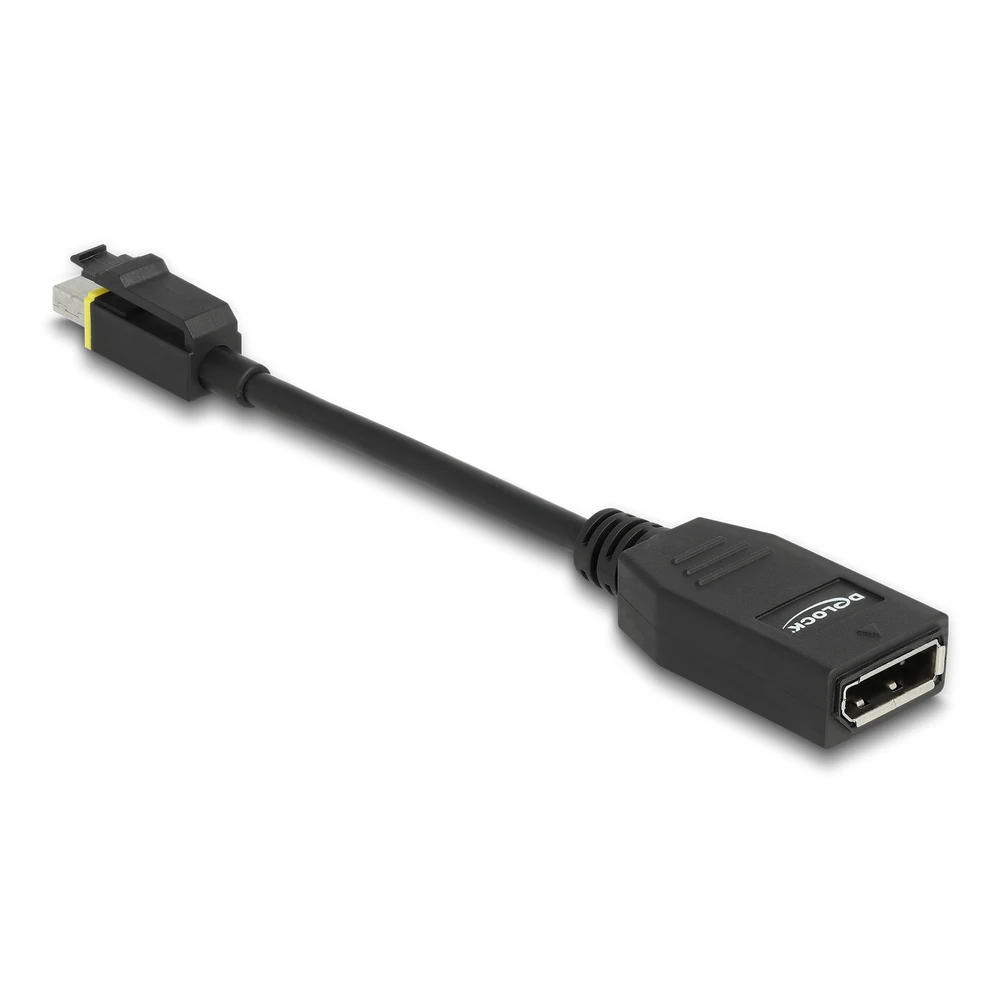

This Delock mini DisplayPort adapter can be used to connect a DisplayPort screen to graphics cards that have a special recess above their mini DisplayPort connection surface. The slide lock on the connection surface of the adapter engages in this recess and thus protects it from accidental disconnection of the adapter.

- Connector:
- 1 x mini DisplayPort plug with locking function >
- 1 x DisplayPort socket
- DisplayPort 1.4 specification
- Downward compatible DisplayPort 1.3, 1.2 and 1.1
- pin 20 connected (support 3.3V)
- Cable thickness: 32 AWG
- Cable diameter: approx. 4.8 mm
- Gold plated contacts
- LS0H (halogen-free)
- Transmission of audio and video signals
- Data transmission at a speed of up to 32.4 Gb/s
- Resolution max.:
- Display with DSC support up to: 7680 x 4320 @ 60 Hz Display without DSC support: 7680 x 4320 @ 30 Hz (depending on the system and connected hardware)
- Supports the use of HDR
- Supports HDCP 1.4 and 2.2
- Up to 1536 kHz audio sampling rate
- Cable length including connector: approx. 15 cm
- Color: black
