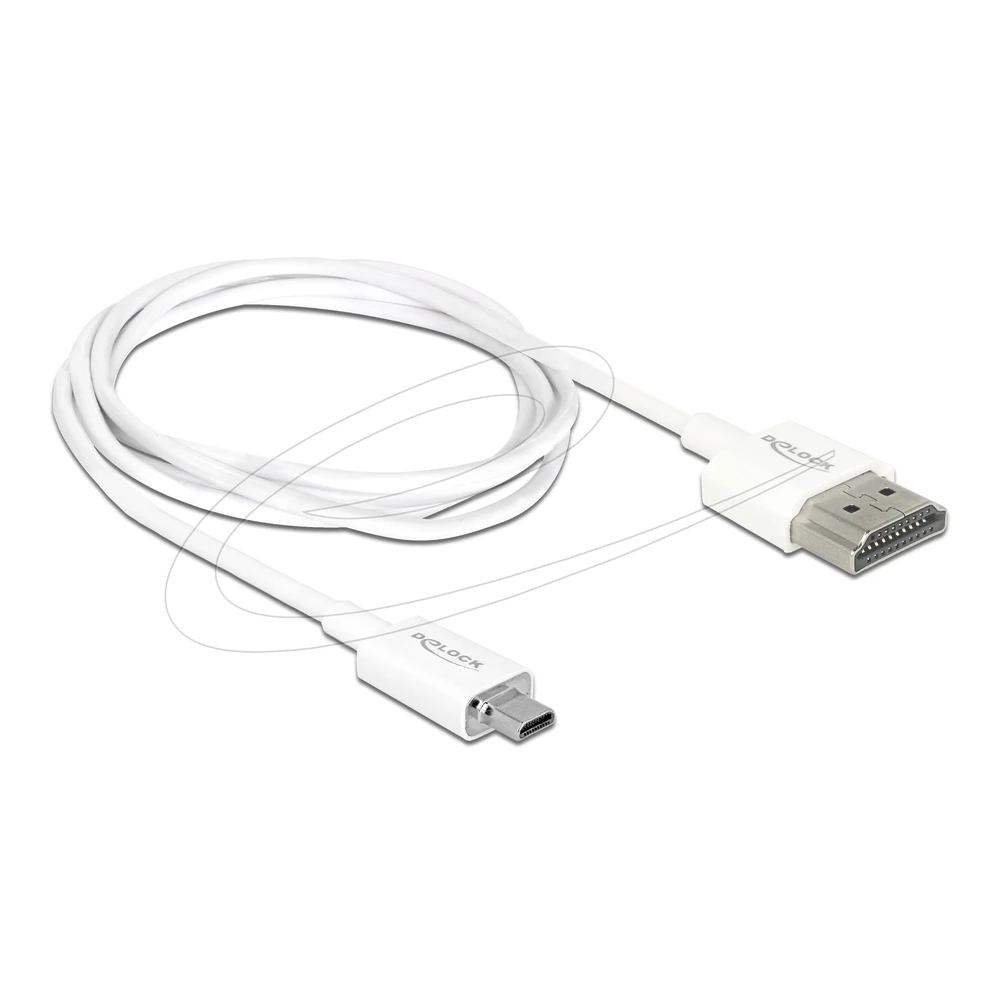

This premium high-speed HDMI with Ethernet cable from Delock allows you to connect a camera or tablet with a Micro HDMI connector and a monitor or TV with an HDMI-A port. Thanks to its thin diameter and short connectors, it stands out from other products. The triple-shielded cable provides fast data transfer and audio/video and Ethernet connections. Thanks to the maximum bandwidth of 18 Gb/s, 4K content (with a maximum frame rate of 60 Hz), 4K resolution 3D content (with a maximum frame rate of 24 Hz) and 21:9 (cinematic) aspect ratio content can now be played. With the help of the cable, two video channels can be transmitted simultaneously so that two users can display video streams on one screen, and up to four audio channels can also be transmitted simultaneously. The quality of the sound transmission is max. Significantly improved with a sampling frequency of 1536 kHz.

• Connector:
1 x High Speed HDMI-A 19-pin plug >
1 x High Speed HDMI Micro-D 19 pin plug
• High Speed HDMI with Ethernet (HEC) specification
• Cable thickness: 36 AWG
• Cable diameter: approx. 3.2 mm
• Twisted pair cable
• Copper conductor
• Gold-plated connector
• Triple shielded cable

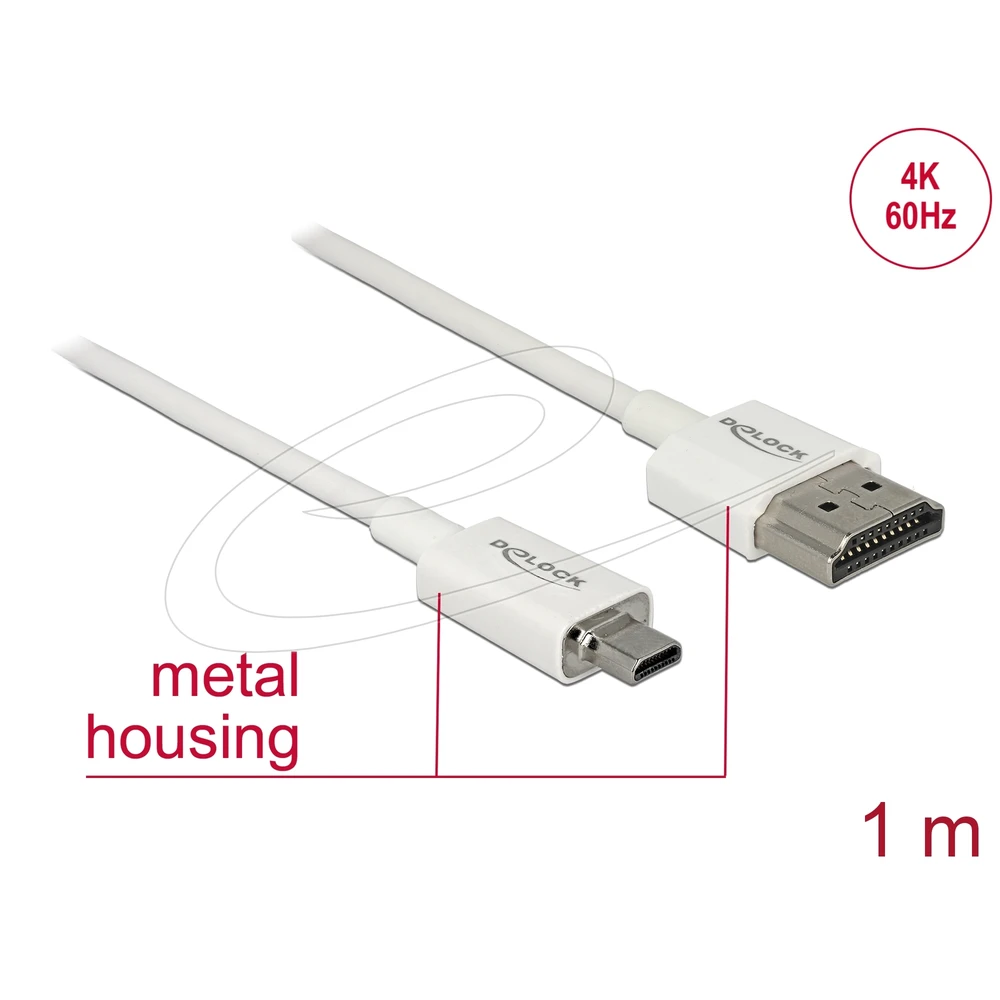

• Metal casing
• Transmission of audio and video signals
• Data transfer up to 18 Gb/s
• Resolution: max. 3840 x 2160 @ 60 Hz (depending on system and connected hardware)
• 3D support: maximum 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz resolution support (depending on system and connected hardware)
• 21:9 cinema aspect ratio support
• 1080p HFR (High Frame Rate) 3D support
• Up to 120Hz refresh rate
• Support for simultaneous transmission of two video channels, so two viewers can use the viewer at the same time
• Support for color sampling in 4:2:0 format (original format of Blu-Ray, DVD and TV)
• Contains an Audio Return Channel (ARC) channel
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Simultaneous transmission of up to 4 audio channels is supported
• Supports dynamic dialogue synchronization with mouth movement in case of audio / video delay
• Support for CEC 2.0 control commands
• Uses a new, advanced color space to display digital images
• Supports Dolby® TrueHD and DTS-HD Master Audio™ technology
• Brighter and more natural colors
• Color: white
• Cable length: approx. 1 m
