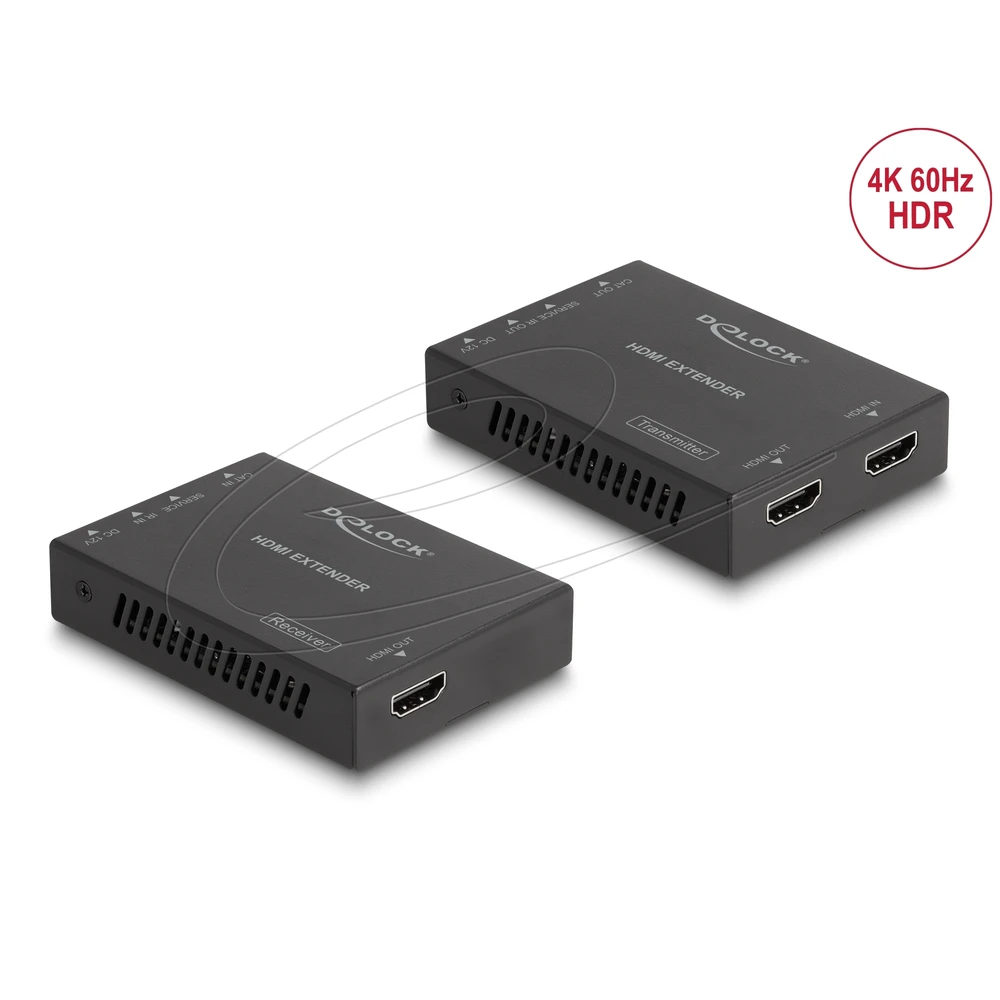

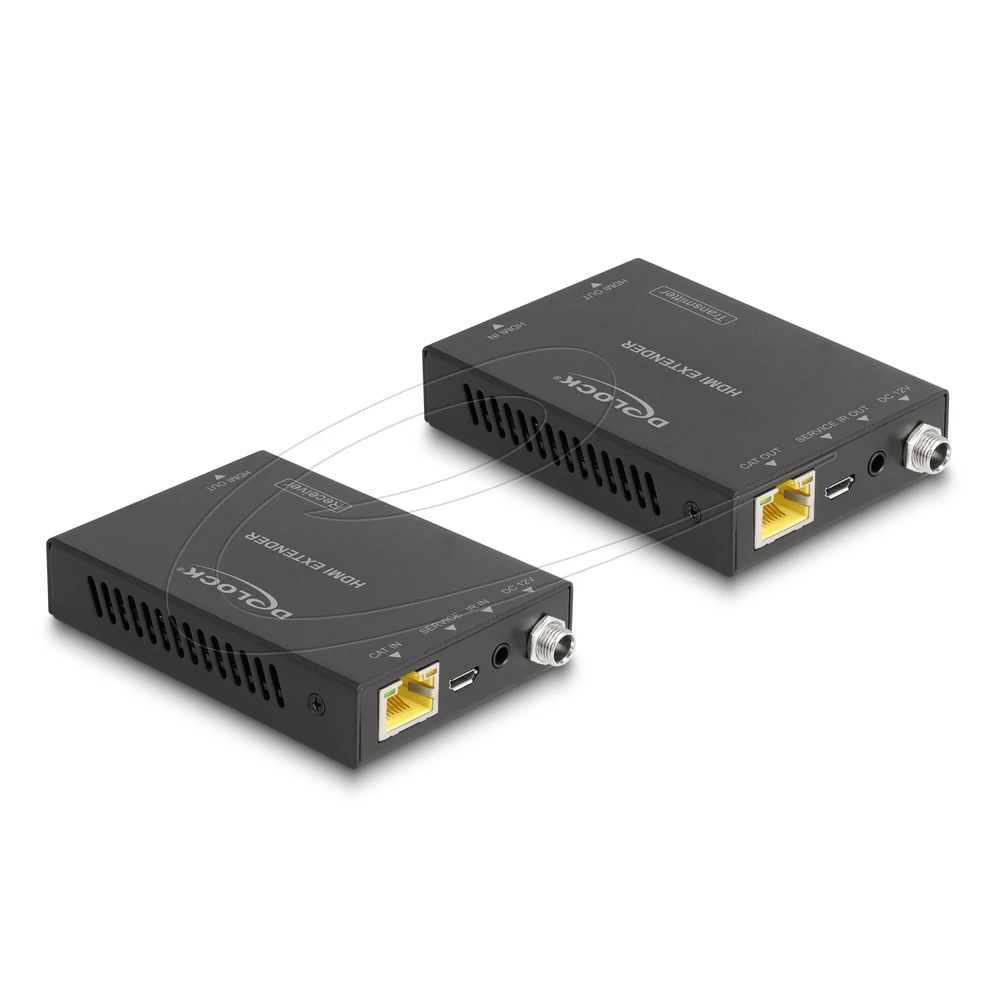

This Delock HDMI expansion set is suitable for transmitting high-quality video/audio signals and an IR control signal via a simple network cable. At 4K 60 Hz resolution, signal transmission is possible at a distance of up to 50 meters, and in the case of 1080p resolution, the distance can reach up to 70 meters. The set can be used in many ways in conference rooms for tele-education or large screens.

HDMI cycle output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or a display.

Infrared remote control

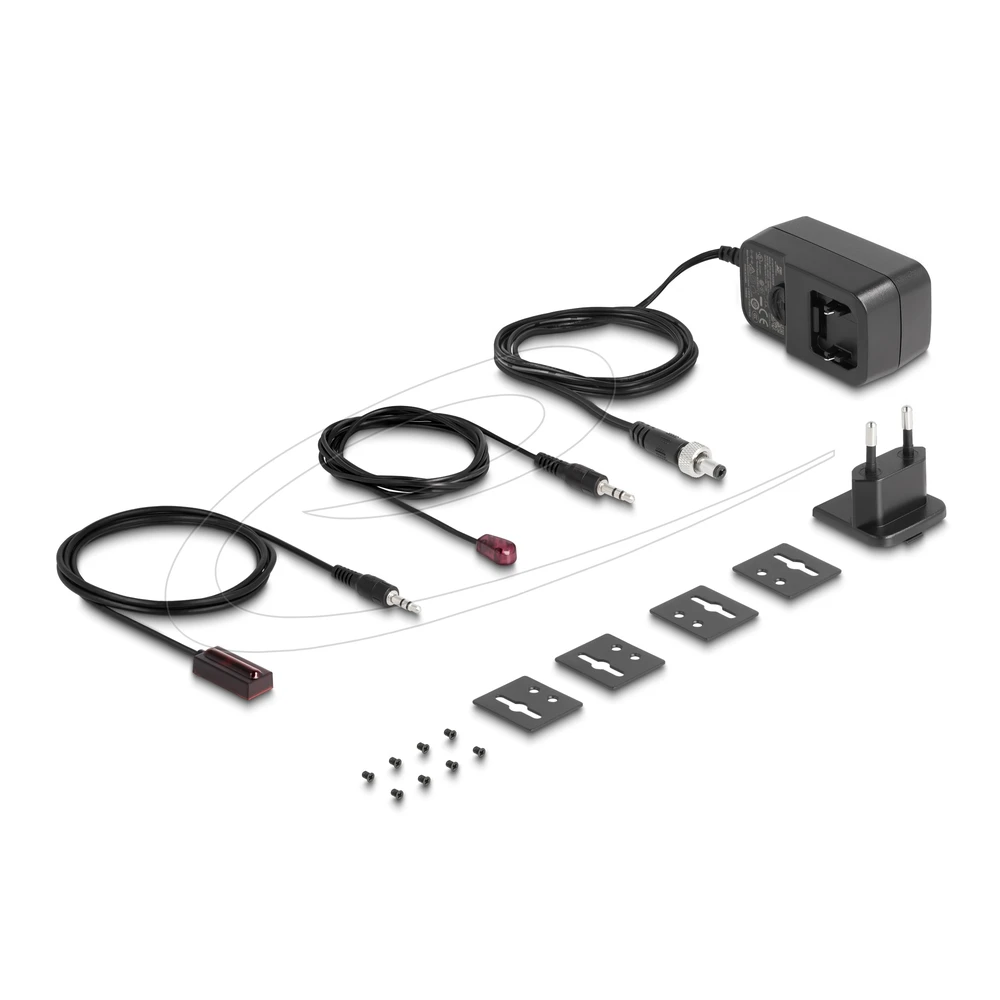

The included IR transmitter and receiver can be connected to the devices to transmit infrared signals through the cable.

PoC
The set supports (PoC) technology, so only one device needs to be powered. The power supply of the other device is ensured via the network cable and thus can be used more flexibly.

Screw-on DC connection
The power supply with a screw-on connector ensures a safe and reliable connection - suitable for professional installations, preventing possible interruption of the connection.

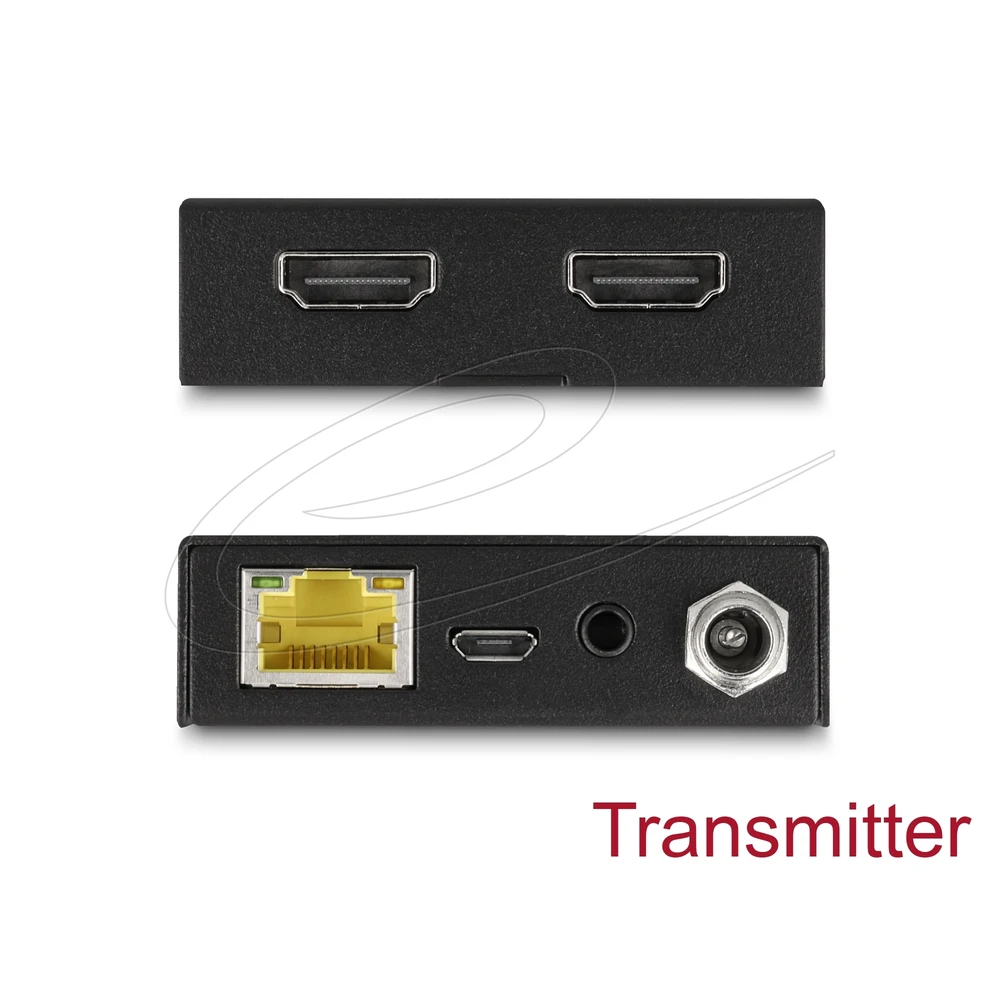

- Connection Tax:
- Input:
- 1 x HDMI-A socket
- 1 x DC 12 V screwable (threaded) power socket
- Output:
- 1 x RJ45 socket
- 1 x HDMI-A socket
- 1 x 3.5 mm 3-pin stereo jack socket (IR)

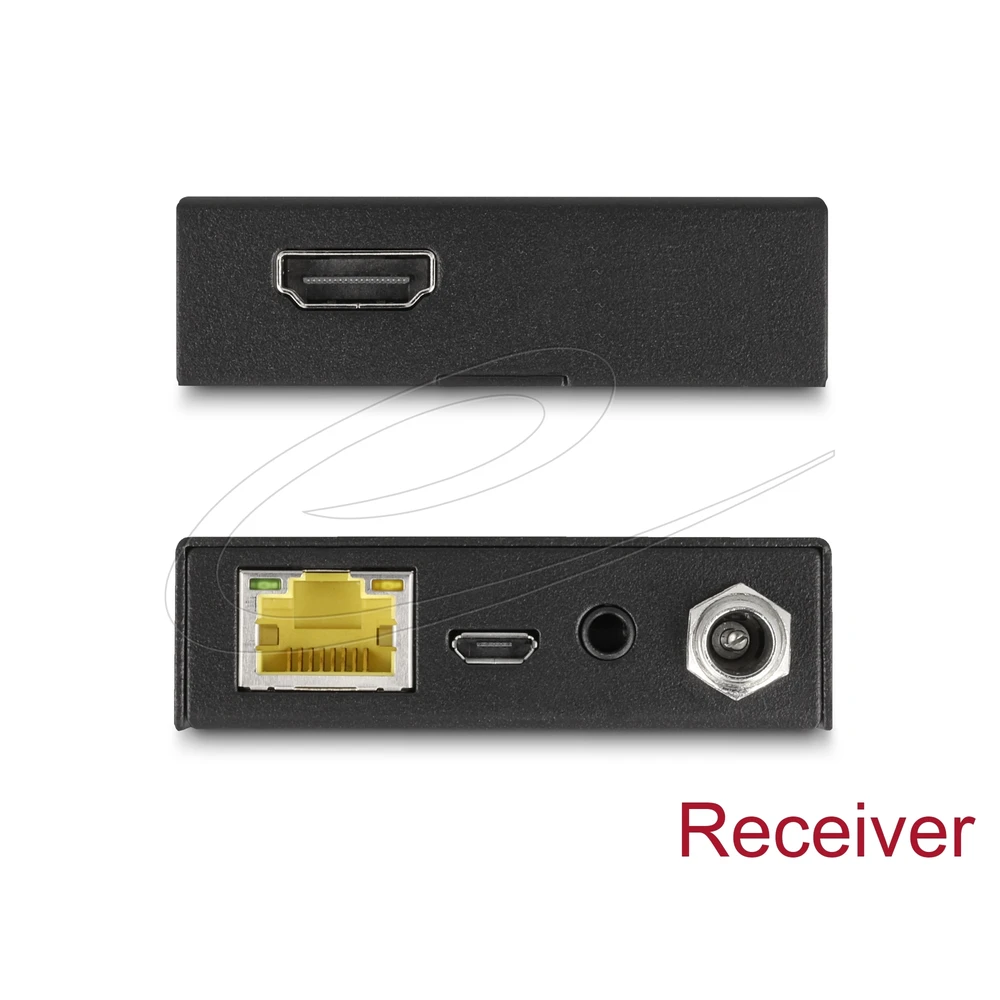

- Connector Receiver:
- Input:
- 1 x RJ45 socket
- 1 x 3.5 mm 3-pin stereo jack socket (IR)
- 1 x DC 12 V screwable (threaded) power socket
- Output:
- 1 x HDMI-A socket
- Service port: USB Micro-B type sleeve
- Transmission of audio and video signals
- Transmission of infrared signals 20 60 kHz
- Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
- Resolution: max. 3840 x 2160 @ 60 Hz (depending on system and connected hardware)
- Supports EDID and HDCP
- Supports the use of HDR
- Supports 7.1 surround sound with Dolby® TrueHD and DTS-HD Master Audio™ technologies
- PoC (Power Over Cable) support
- Operating range: max. 70 meters
- Energy consumption: max. 4 W
- Metal casing
- Can be wall mounted
- Color: black
- Dimensions (LxWxH): approx. 88 x 61 x 18 mm
