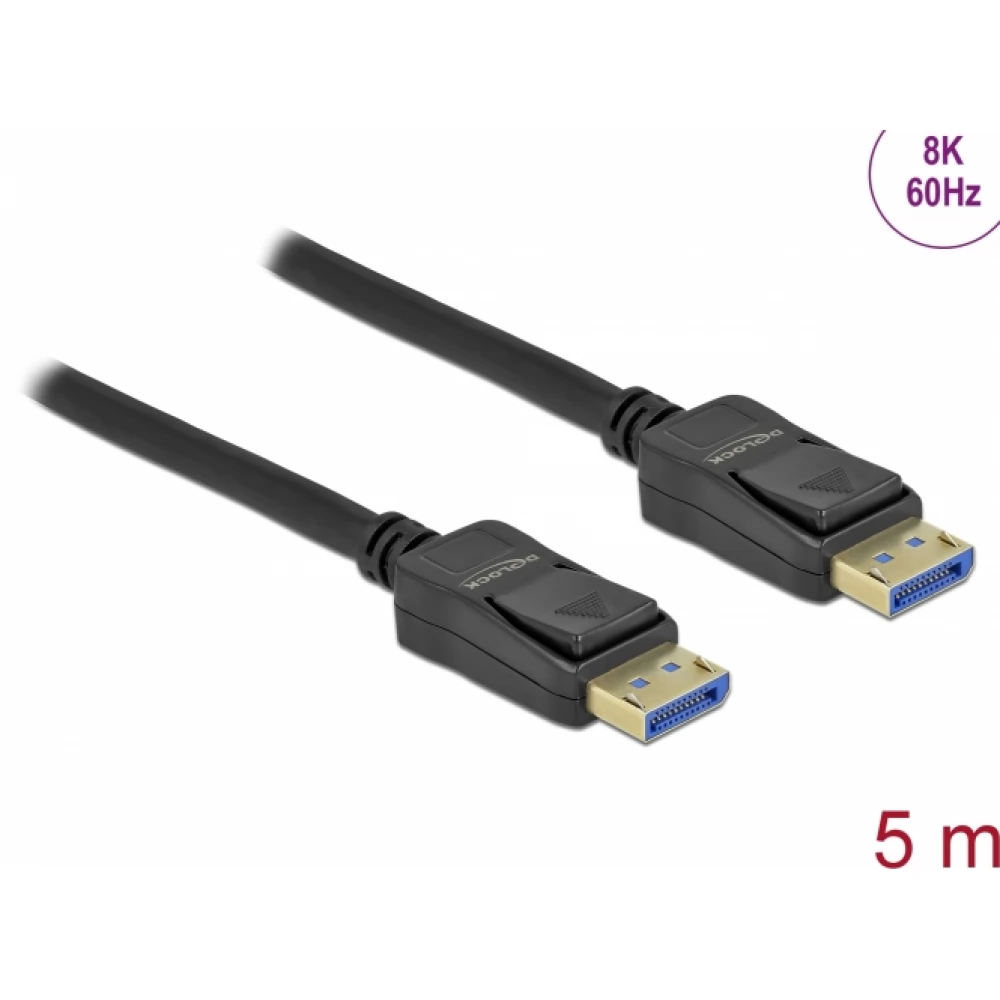

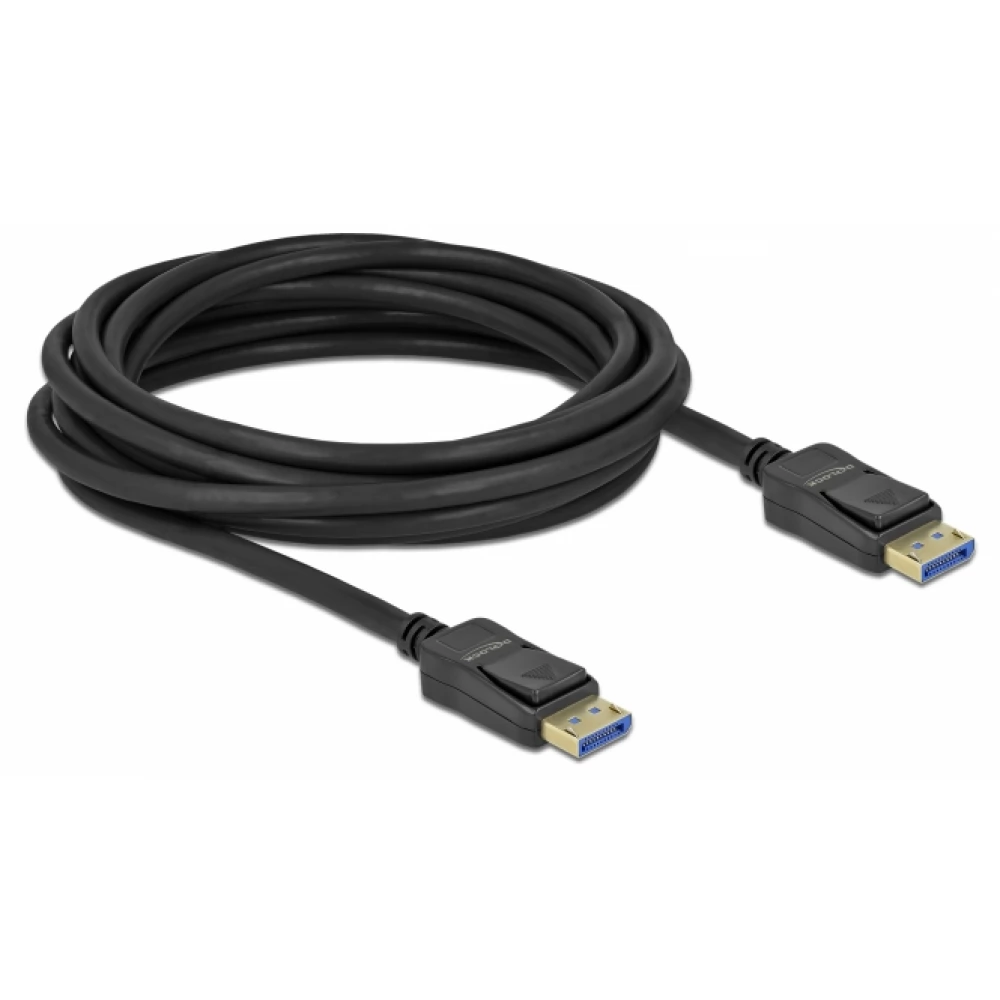

DELOCK DisplayPort 2.0 Connector Black 5m 80264
not available
Product description
With this Delock cable, you can connect devices with a DisplayPort interface, such as monitors or TVs, to a personal computer or laptop.
8K resolution and HDR support
By supporting a maximum bandwidth of 40 Gb/sec, the content can be displayed in 8K Ultra HD (7680 x 4320 at 60 Hz) resolution.
Thanks to HDR support, the displayed colors are lifelike with astonishing depth, and the brightness and contrasts are optimally realized.
- Connector:
- 1 x DisplayPort plug >
- 1 x DisplayPort plug
- DisplayPort 2.0 specification
- Downward compatible DisplayPort 1.4, 1.3, 1.2 and 1.1
- Pin 20 is not connected
- Cable thickness: 28 AWG
- Cable diameter: approx. 7 mm
- Copper conductor
- Triple shielded cable
- Gold plated contacts
- Connector coating: gold
- Transmission of audio and video signals
- Up to 40 Gbps data transfer
- Resolution max.:
- Display with DSC support up to: 7680 x 4320 @ 60 Hz
- Display without DSC support: 7680 x 4320 @ 30 Hz (depending on system and connected hardware)
- Supports the use of Display Stream Compression 1.2a (DSC).
- Supports the use of HDR10
- Supports HDCP 1.4 and 2.3
- Supports UHBR 10 (10 Gbps / Lane) data transfer rate
- Up to 32 audio channels for speakers
- Up to 1536 kHz audio sampling rate
- Supports 4:4:4, 4:2:2 and 4:2:0 color sampling
- Colour: Black
- Length including connector: approx. 5 m
