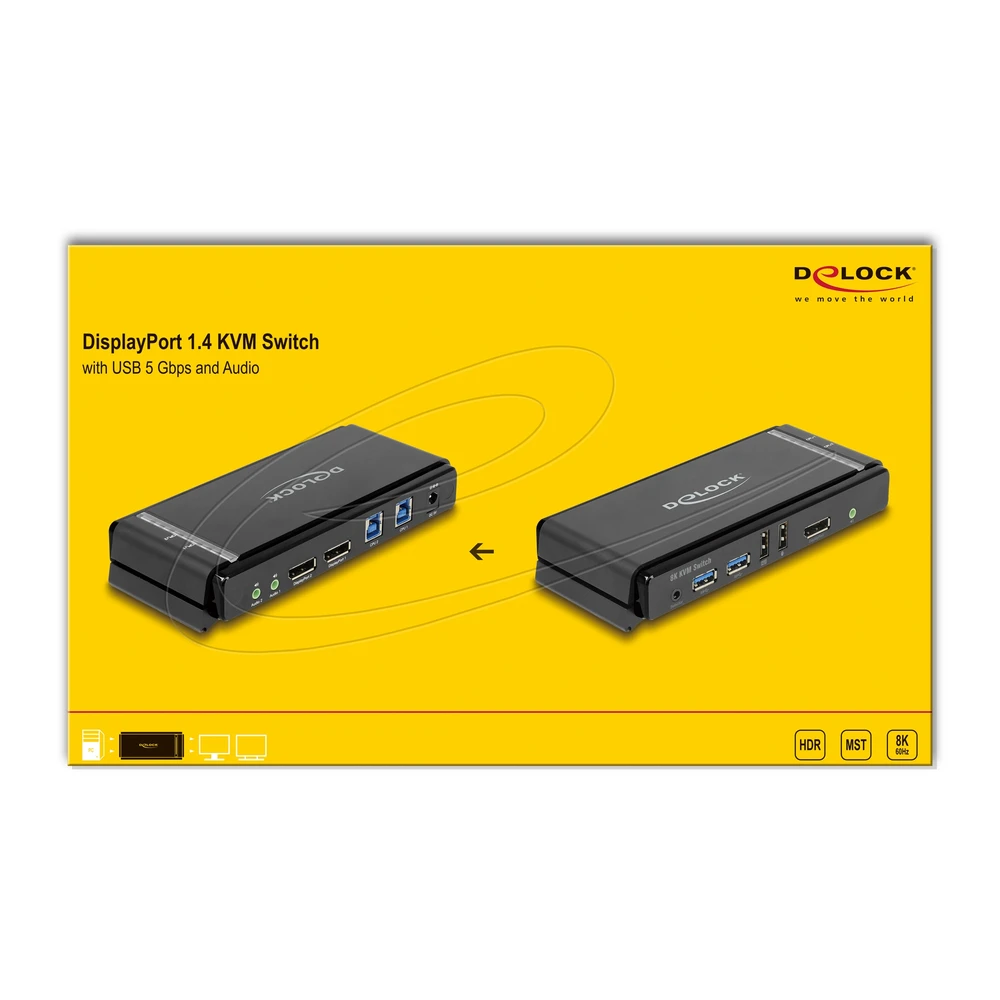

This Delock KVM switch is a convenient solution for connecting two computers with DisplayPort output to a DisplayPort monitor.

Peripherals

Furthermore, a mouse and keyboard can be connected to the two USB 2.0 ports, and a hard drive or USB memory can be connected via the two USB 5 Gbps ports.

Multi-Stream Transport (MST)

With MST (Multi-Stream Transport) support, multiple monitors can be used on the DisplayPort output using an optional MST hub.

Note

MST (Multi-Stream Transport) requires monitors that are compatible with DisplayPort edge chaining or using a powered DisplayPort MST Hub. The PC source must be DisplayPort MST compatible.

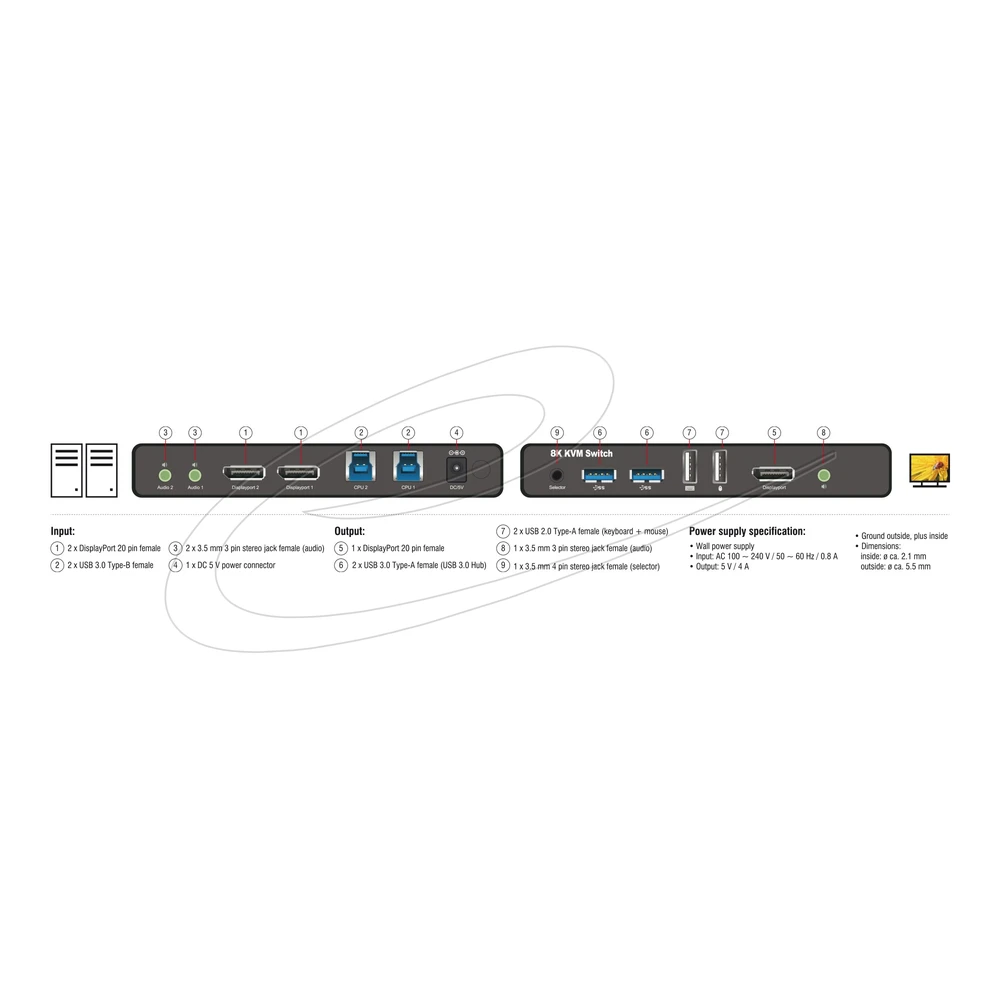

- Connector:

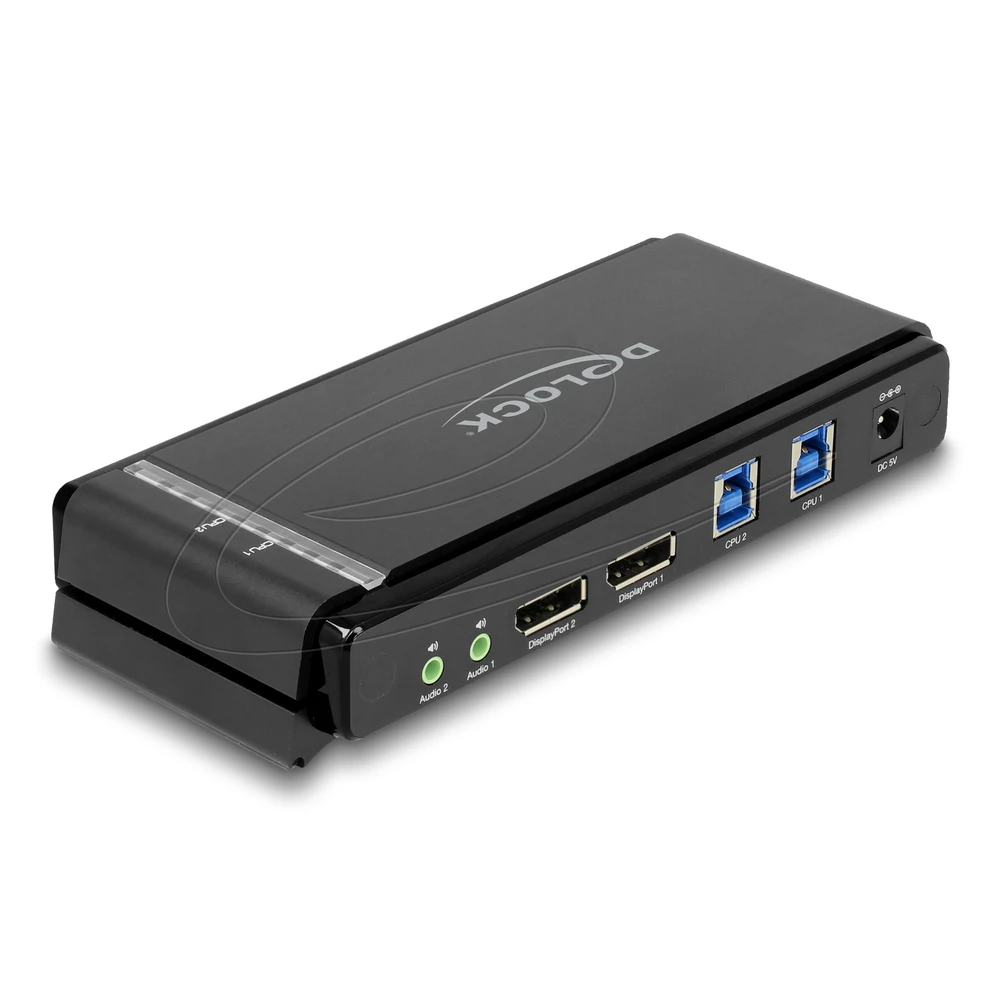

- Input:
- 2 x DisplayPort sockets
- 2 x USB 5 Gbps B-type sockets
- 2 x 3.5 mm 3-pin stereo jack socket (audio)
- 1 x DC 5 V power connector

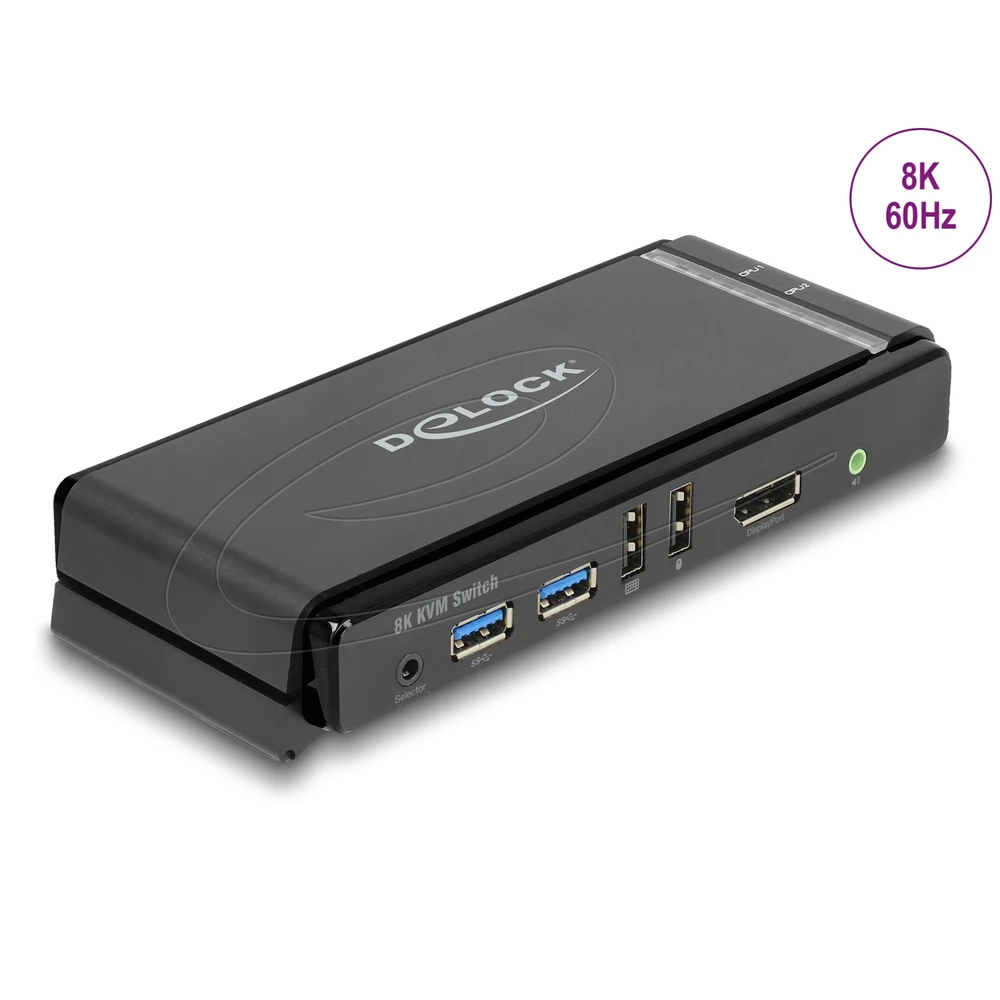

- Output:
- 1 x DisplayPort socket
- 2 x USB 5 Gbps A-type sockets (USB Hub)
- 2 x USB 2.0 A-type sockets (keyboard + mouse)
- 1 x 3.5 mm 3-pin stereo jack socket (audio)
- 1 x 3.5 mm 4-pin stereo jack socket (selector)
- Switch button with 2-color LED indicator for the source
- Using a switch button or hotkey
- Automatic switching when the personal computer is turned on or off
- Independent switching of source, sound and USB hub
- 2 x USB 5 Gbps Type A socket BC1.2 battery charging specification
- Up to 5 Gbps data transfer
- DisplayPort 1.4 specification
- Supports the use of Display Stream Compression 1.2 (DSC).
- Supports the use of HDR
- Supports HDCP 1.4 and 2.2
- Resolution max.:
- Display with DSC support up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- Display without DSC support:
- 7680 x 4320 @ 30 Hz
- 3840 x 2160 @ 120 Hz
- (depending on the system and connected hardware)
- DisplayPort output supports dual mode DP++
- Supports the use of MST (Multi-Stream Transport).
- Robust metal housing
- Color: black
- Dimensions (LxWxH): approx. 170 x 74 x 30 mm
