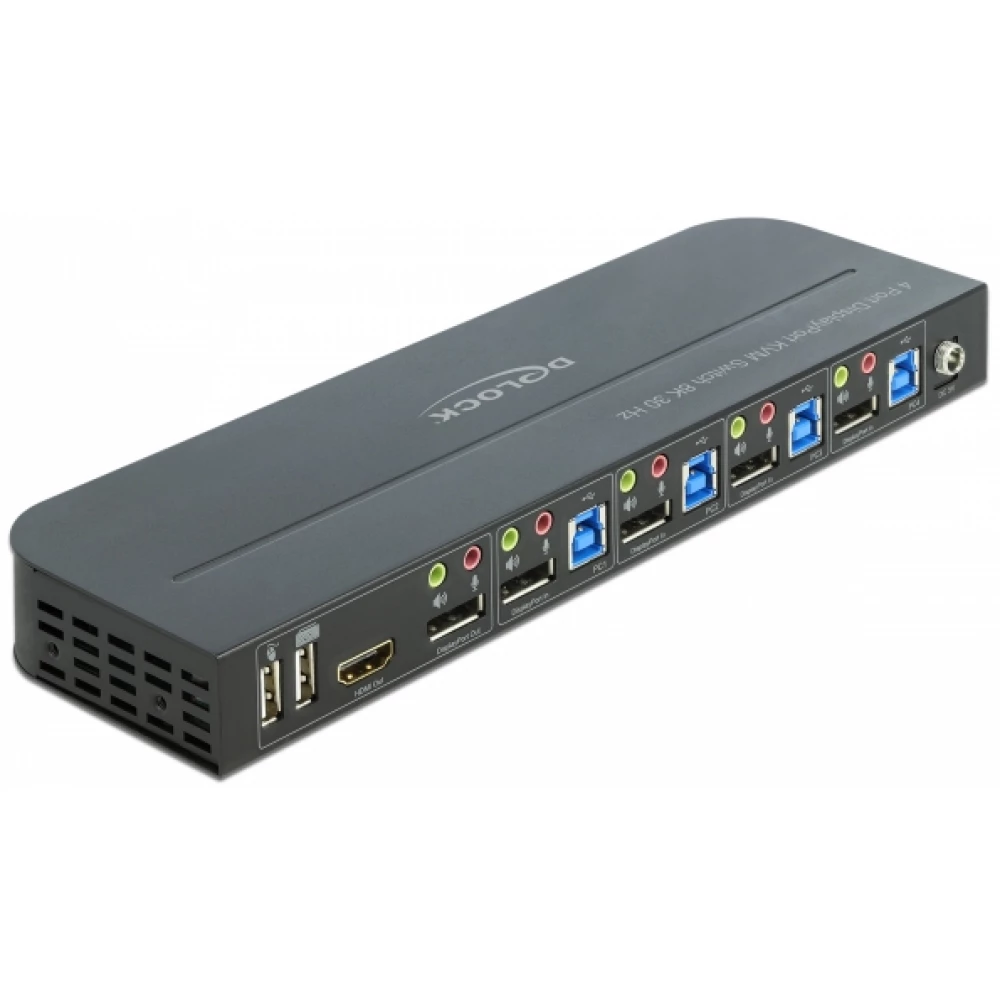

This Delock KVM switch is a convenient solution for connecting four computers with DisplayPort outputs to one DisplayPort monitor.
In addition, there is an HDMI output for connecting two monitors, of which only one can be active at a time.

Peripherals
A mouse and keyboard can also be connected to the two USB 2.0 ports, and a hard drive or USB memory can be connected via the two USB 3.0 ports.

Flexible management
The computer can be activated by moving the mouse, keyboard shortcuts, a button on the devices or a remote switch that emits an infrared signal.

Multi-Stream Transport (MST)
With MST (Multi-Stream Transport) support, multiple monitors can be used on the DisplayPort output using an optional MST hub.

Comment

KVMs compete with a standard wired 104-key keyboard and a wired generic 2- or 3-button mouse on their respective console ports. Whether a wireless or gaming mouse and keyboard will work on the KVM infrastructure depends on several conditions; in general, most wireless mice and keyboards do not support connection with KVM. We recommend that you use a standard wired mouse and keyboard with our KVM switches.

- Connector:
- Input:
- 4 x DisplayPort sockets
- 4 x USB 3.0 B-type sockets
- 8 x 3.5 mm 3-pin stereo jack socket (audio)
- 1 x 3.5 mm 3-pin stereo jack female connector for optional infrared receiver
- 1 x DC 5 V screwable (threaded) power socket
- Output:
- 1 x DisplayPort socket
- 1 x HDMI-A socket
- 2 x USB 3.0 A-type sleeves (USB 3.0 Hub)
- 2 x USB 2.0 A-type sockets (keyboard + mouse)
- 4 x 3.5 mm 3-pin stereo jack socket (audio)
- Switching is possible with a switch, mouse button, hotkey or remote switch with infrared light
- Automatic switching when the personal computer is turned on or off
- Supports HDCP 1.4 and 2.2
- Supports the use of HDR
- Supports the use of MST (Multi-Stream Transport).
- Resolution max.:
- DisplayPort output:
- 7680 x 4320 @ 30 Hz
- 3840 x 2160 @ 60 Hz
- HDMI output:
- 3840 x 2160 @ 60 Hz
- (depending on the system and connected hardware)
- Robust metal housing
- Colour: Black
- Dimensions (LxWxH): approx. 243 x 75 x 26 mm
