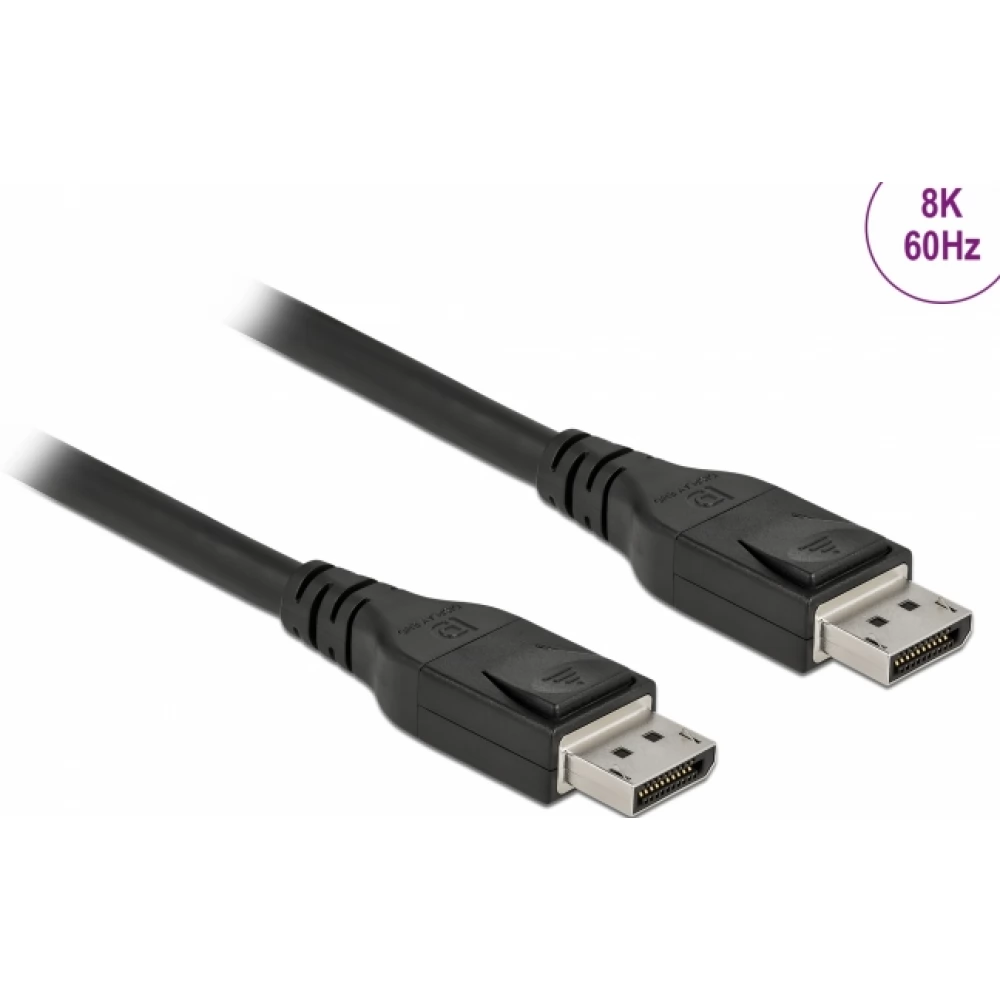

With this Delock cable, you can connect devices with a DisplayPort interface, such as monitors or TVs, to a personal computer or laptop.

8K Ultra HD resolution and HDR support
By supporting a maximum bandwidth of 32.4 Gb/sec, content can be displayed in 8K Ultra HD (7680 x 4320 at 60 Hz) resolution.
Thanks to HDR support, the displayed colors are lifelike with astonishing depth, and the brightness and contrasts are optimally realized.

- Connector:
- 1 x DisplayPort plug >
- 1 x DisplayPort plug
- Chipset: Spectra7 VR8300
- DisplayPort 1.4 specification
- Downward compatible DisplayPort 1.3, 1.2 and 1.1
- pin 20 connected (support 3.3V)
- Cable thickness: 28 AWG
- Cable diameter: approx. 7.5 mm
- Copper conductor
- Triple shielded cable
- Gold plated contacts
- Transmission of audio and video signals
- Data transfer up to 32.4 Gbps
- Resolution max.:
- Display with DSC support up to:
- 7680 x 4320 @ 60 Hz
- 5120 x 2880 @ 120 Hz
- 3840 x 2160 @ 240 Hz
- Display without DSC support:
- 7680 x 4320 @ 30 Hz
- 5120 x 2880 @ 60 Hz
- 3840 x 2160 @ 120 Hz
- (depending on the system and connected hardware)
- Supports the use of Display Stream Compression 1.2 (DSC).
- Supports the use of HDR (High Dynamic Range).
- Supports HDCP 1.4 and 2.2
- Supports HBR3 (8.1 Gbps) data transfer rate
- Up to 32 audio channels for speakers
- Up to 1536 kHz audio sampling rate
- Supports 4:4:4, 4:2:2 and 4:2:0 color sampling
- Colour: Black

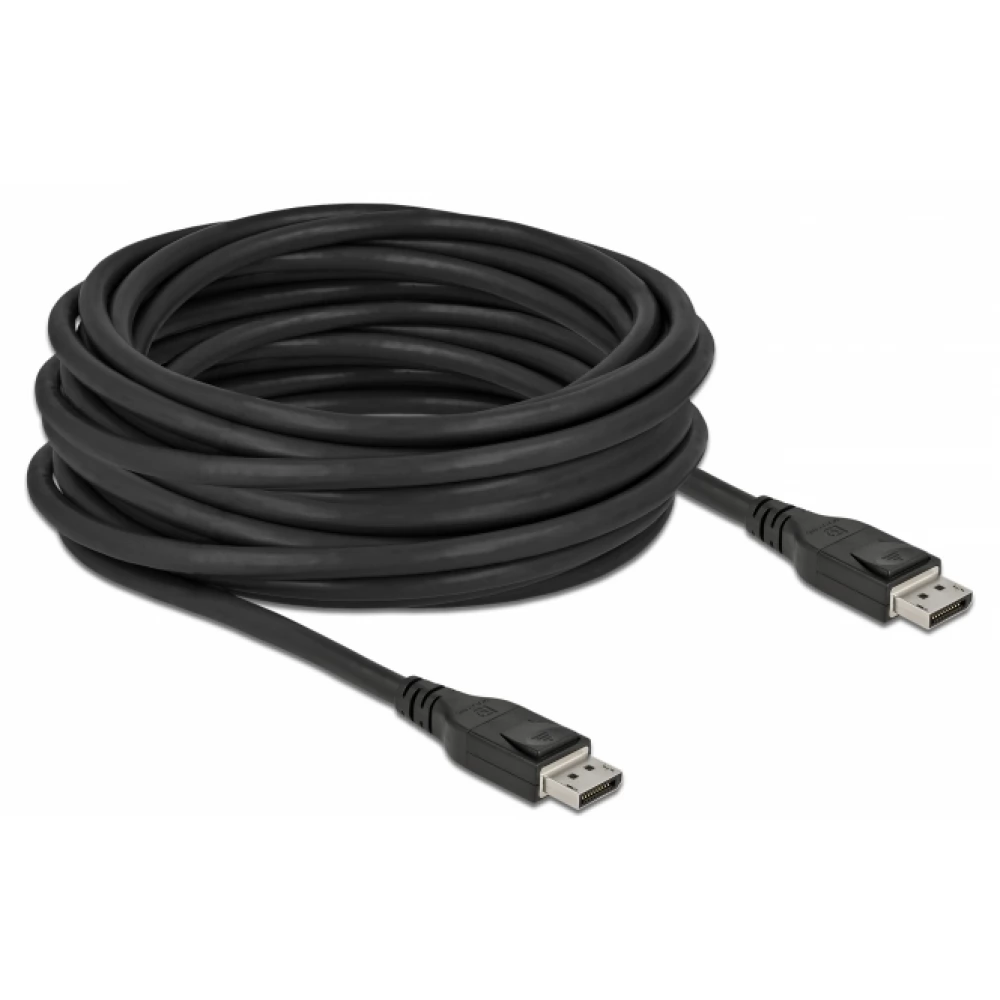

- Length including connector: approx. 10 m
