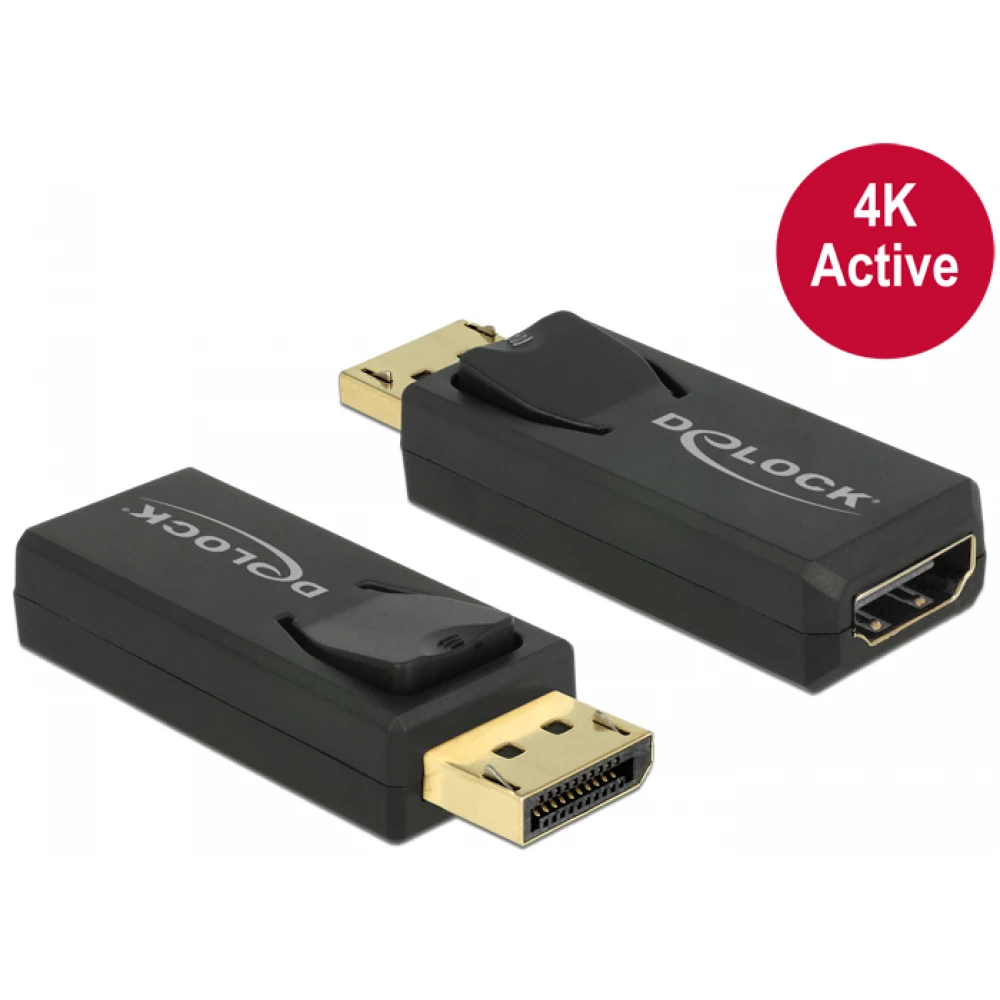

This adapter allows you to connect, for example, an HDMI monitor via a free Displayport connector. This adapter supports up to Ultra HD (4K) resolution and is backward compatible with the Full-HD 1080p standard. The adapter offers active conversion, so it can also be used with video cards that cannot output a DP++ signal.

- Connector:
- 1 x Displayport 20-pin plug >
- 1 x HDMI-A 19-pin socket
- Chipset: Parade PS171
- Displayport 1.2 and High Speed ​​HDMI specification
- Active converter for video cards with DP and DP++ output
- Resolution: max. 3840 x 2160 @ 30 Hz (depending on system and connected hardware
- Depends)
- Support for 3D displays (1080p @ 120 Hz)
- Supports HDCP 1.3
- Supports the use of Eyefinity
- Audio input formats: 8-channel LPCM, compressed audio (AC-3, DTS) and HBR
- Sound format with up to 24 Bit resolution and 192 kHz sampling frequency
- Gold-plated connector
- Device dimensions including connector (L x W x H): approx. 62 x 22 x 15 mm
- Colour: Black
- Independent of the operating system, no driver installation is required
