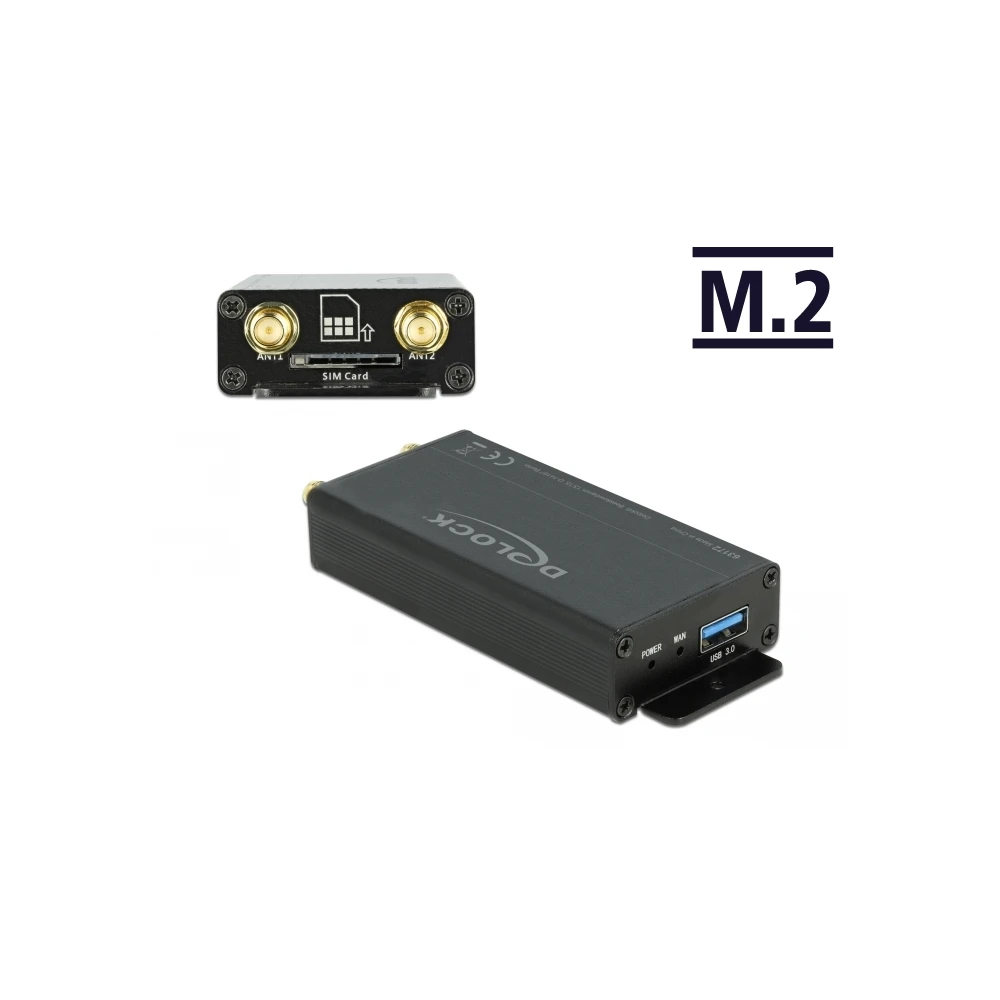

This Delock adapter allows you to connect an M.2 module, e.g. GSM, GPRS, 3G, WLAN or LTE, in 2242 or 3042 format. The converter can be installed in the system via the USB interface.

Robust metal frame with antenna socket
The robust housing protects the built-in M.2 module from damage, for example during use while driving. A radio signal such as LTE can be received using the SMA antenna connector and the corresponding antennas, or one antenna can be used at 2.4 GHz and the other at 5 GHz when using WiFi mode.

Technical data
- Connector external: 1 x USB 3.0 A-type sleeve, 1 x SIM slot, 2 x SMA plug
- Connector internal: 1 x 67-pin M.2 B-key slot, 2 x MHF® IV plug
- Interface: USB
- Supports the use of M.2 modules in 2242 and 3042 formats with a USB-based B or B+M key
- Maximum height of components on the module: 1.5 mm application of double-sided assembled modules is supported
- Antenna specification: Frequency range: 2.4 GHz + 5 GHz band, Antenna gain: 5 dBi omnidirectional
- 2 x LED indicators
- Robust metal housing
- Dimensions (LxWxH): approx. 107 x 45 x 18 mm
- Hot Swap, Plug & Play
- USB bus power source

System requirements
- One free USB Type A connector

Package contents
- Transformative
- Fixing material
- Screwdriver
- Cable with USB 3.0 A-type plug and USB 3.0 A-type plug, length approx. 55 cm
- 2 x antennas
- Instructions for use
