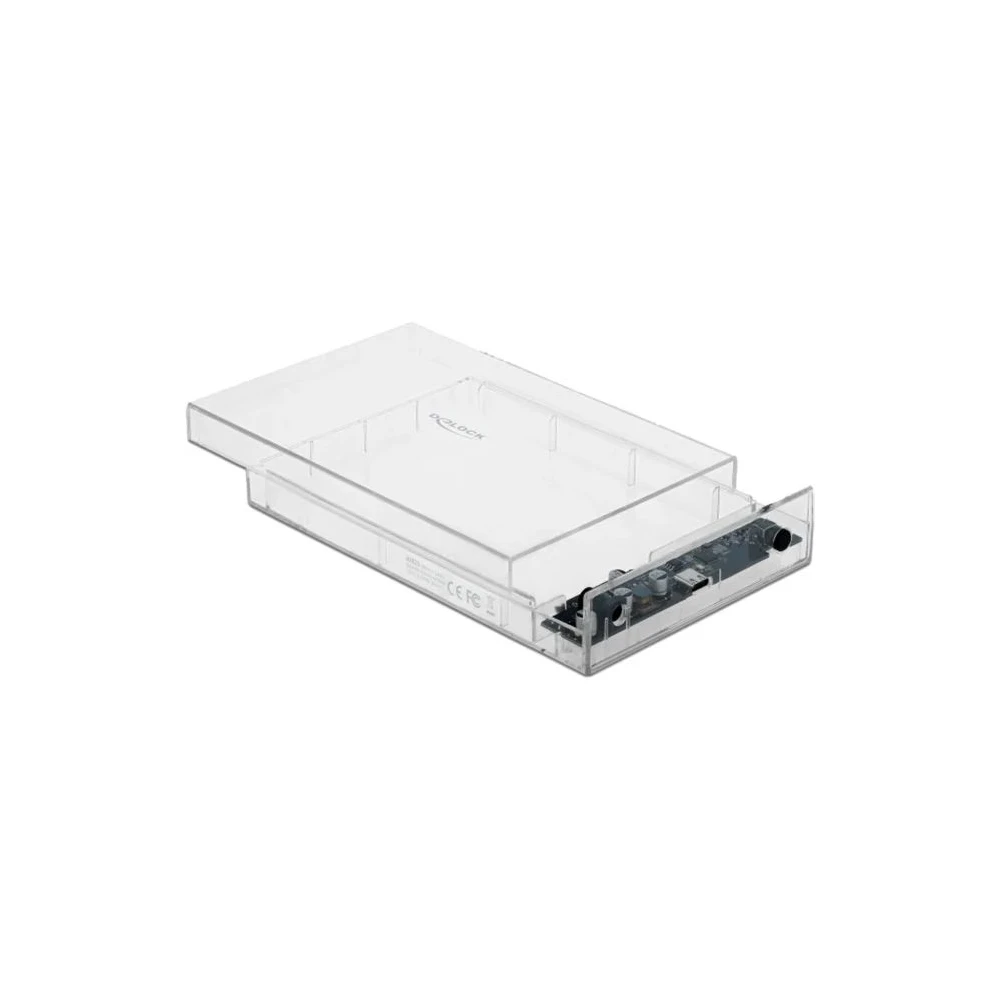

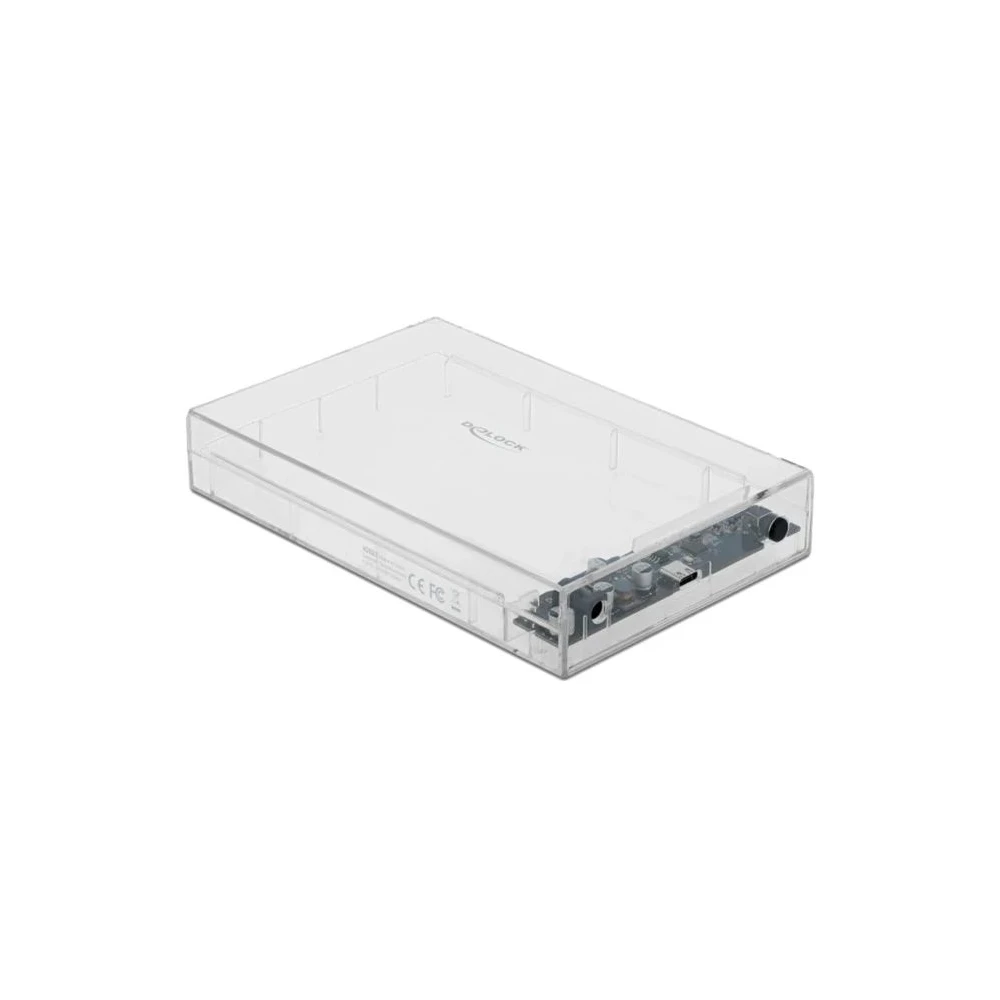

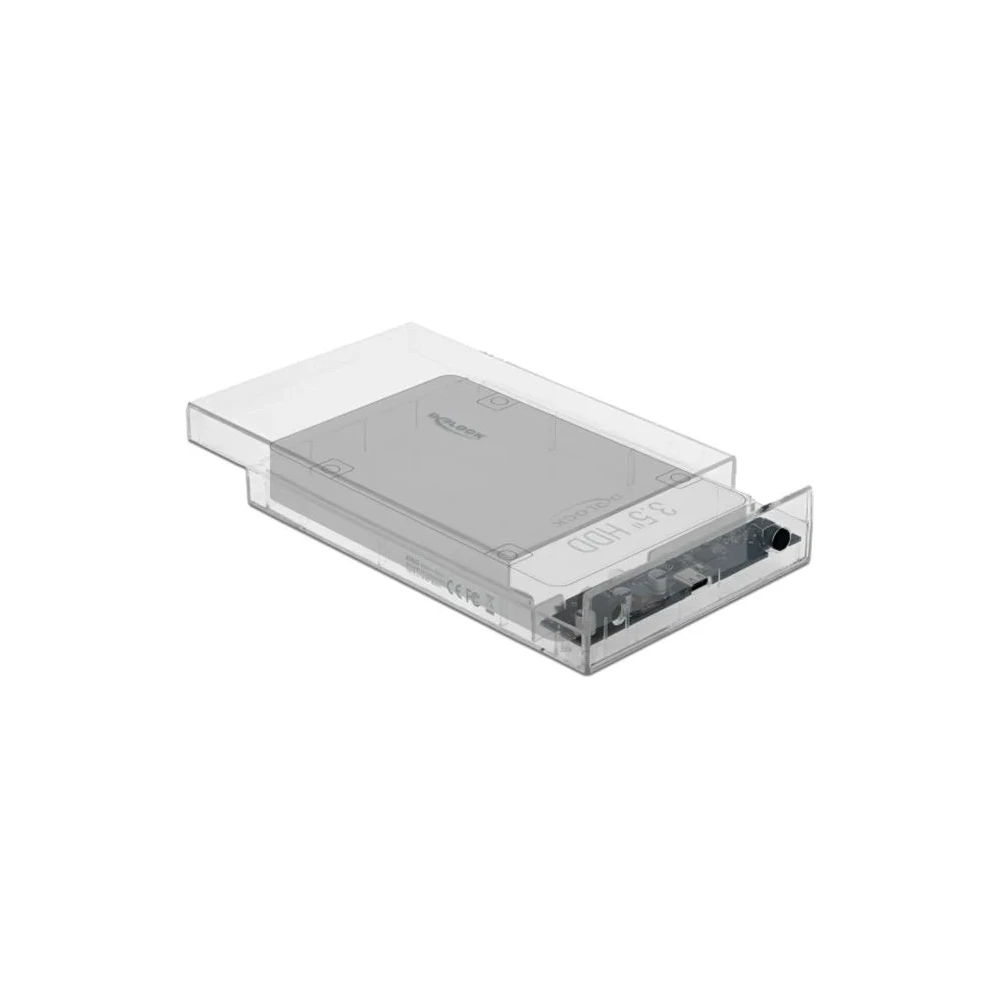

This Delock plastic housing can be used to install a 3.5″ SATA hard drive. The included USB cables ensure the connection via a free A or USB Type-C™ port.

Transparent housing with legs

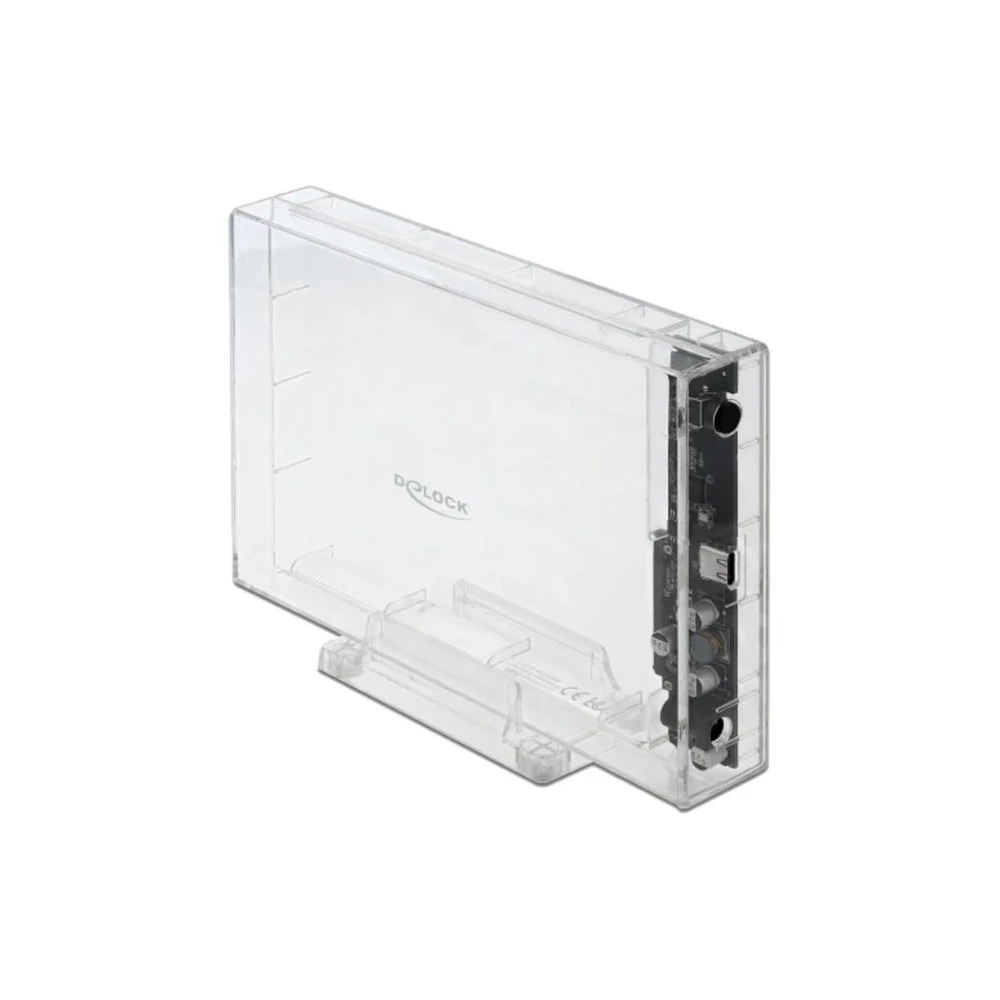

The rigid, transparent plastic housing allows you to see at a glance which memory is inside. The device can also be used vertically with foot support.

HDD installation without tools
The special feature of this housing is that no tools are required to install the HDD. The cover can be pushed back with little effort, the HDD is connected to the SATA port and then the cover can be put back until it clicks.

Technical data
- Connection external: 1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ socket, 1 x DC socket
- Internal connector: 1 x 22-pin SATA 6 Gb/s socket
- Main switch
- Chipset: VIA VL716
- Data transfer speed: SuperSpeed USB 5 Gbps
- LED indicator light to indicate power and access
- Transparent plastic housing
- Dimensions (LxWxH): approx. 179 x 116 x 30 mm
- Hot Swap, Plug & Play

Technical data of the power supply
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1 A
- Output: 12 V / 2 A
- Ground outside, positive inside
- Size inside: ø approx. 2.0 mm
- Outside dimensions: ø approx. 5.5 mm
- Length: approx. 10 mm

System requirements
- Chrome OS 75.0 or later
- Linux Kernel 3.3 or higher
- Mac OS 10.14.6 or later
- Windows 7/7-64/8.1/8.1-64/10/10-64
- PC or notebook computer with a free USB Type-C™ connector
- PC or notebook computer with a free USB A-type connector

Package contents
- 3.5″ outer case
- Cable with USB-C™ connector and USB-C™ connector, length approx. 50 cm
- Cable with USB-C™ plug and USB A-type plug, length approx. 1 m
- Sole
- Power supply
- Instructions for use
