The DeepCool PN850D 850W is a reliable 850 watt ATX12V V3.1 standard power supply with 80 Plus Gold rating and all units have received a gold rating from Cybenetics. At a typical load (50% load), it provides at least 90% efficiency, which means energy-saving operation. DeepCool PN850D is a new non-modular power supply that complies with the latest Intel ATX 3.1 and PCIe 5.1 standards. With dedicated 12V-2x6, 2 EPS and 3 PCIe connectors, it provides a stable power supply for a wide range of modern, high-performance components.

As it can deliver 3x TGP in 0.1ms, random power spikes are never a problem. The PN850D provides stable and consistent power for legacy and next-generation PCs for the foreseeable future.

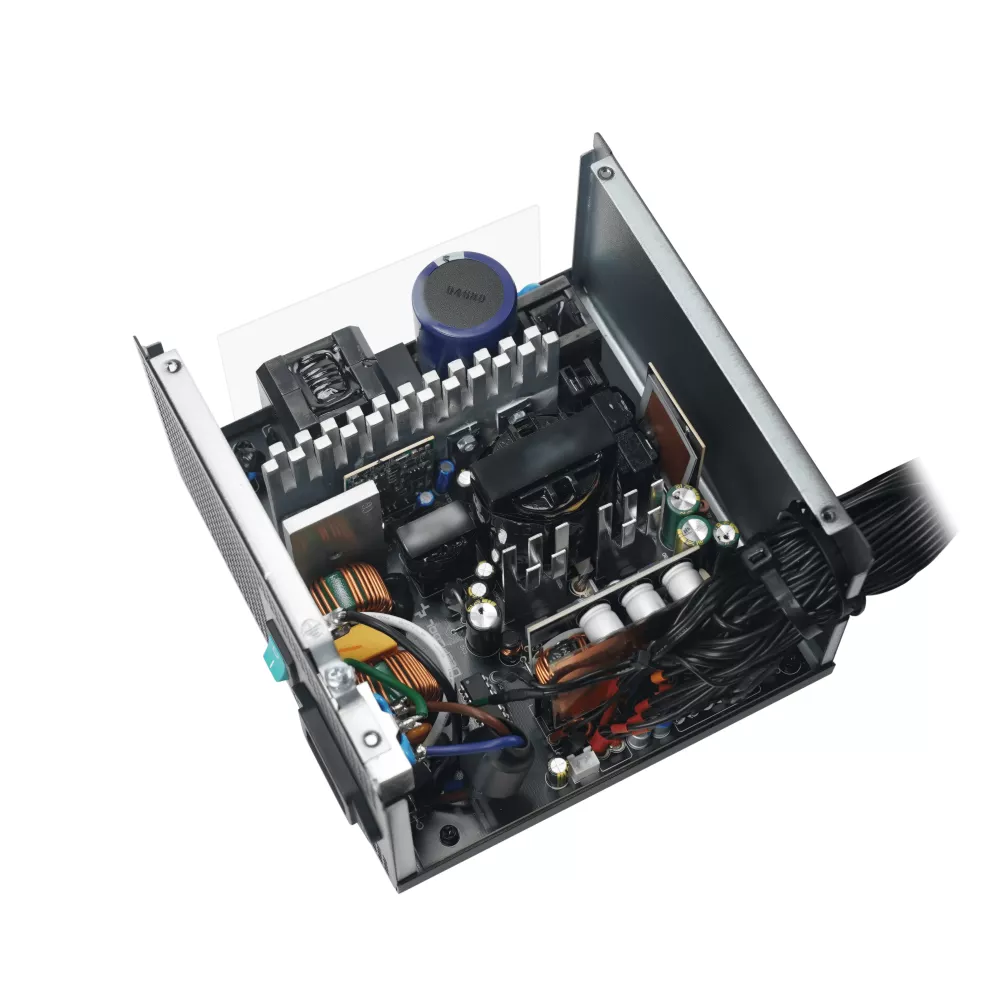

Using premium main electrolytic capacitor, active PFC, full-bridge SRC LLC and DC-DC topology, PN850D can keep the latency within ≥ 16ms under 80% high load.

The PN850D is equipped with a high-quality 105C-resistant 16AWG copper-core stocking 12V-2x6 cable that provides up to 600W for modern GPUs.

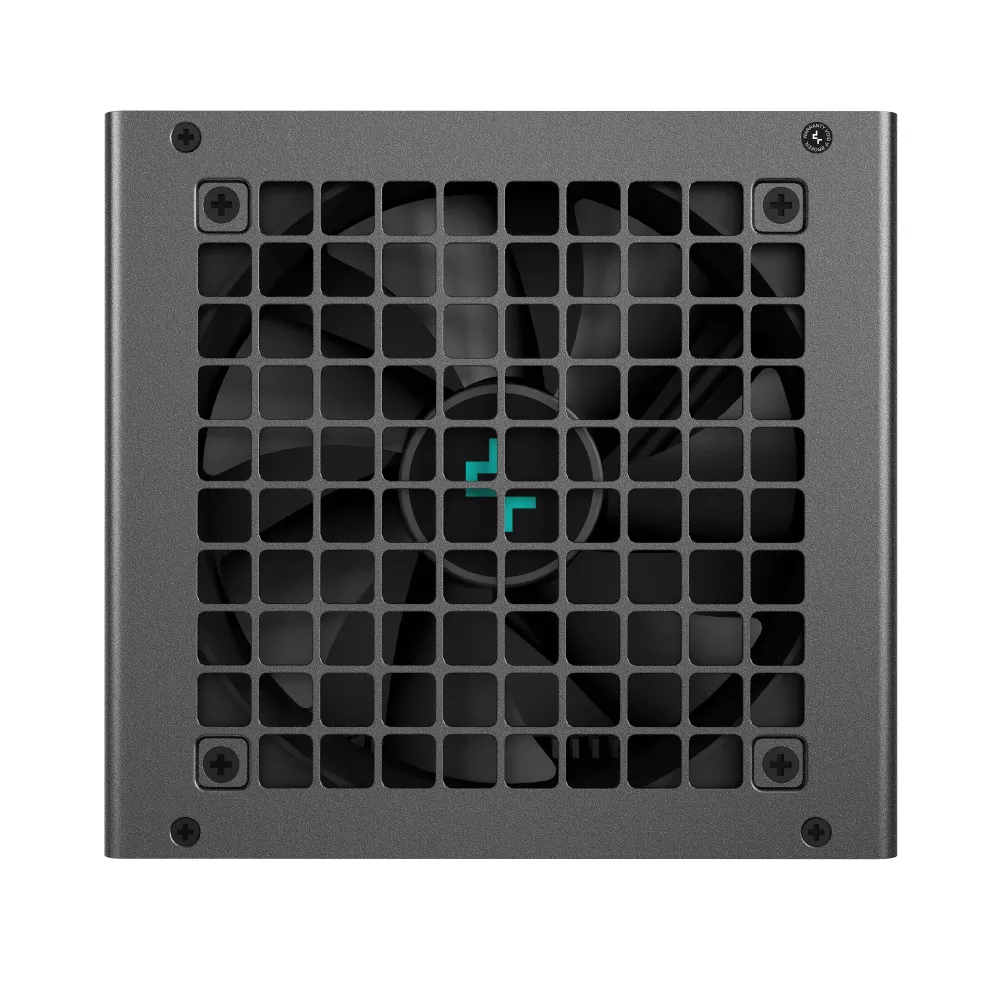

The 120 mm hydrodynamic bearing fan provides quiet and efficient cooling. The power supply adapts the speed to the cooling needs.

Thanks to the high quality of the components used, the PN850D can be operated at an altitude of up to 5000 meters above sea level.

It has a number of well-thought-out security features:
• OPP - Overvoltage protection
• OVP - Overvoltage protection
• SCP - Short circuit protection
• OTP - Protection against overheating
• OCP - Overcurrent protection
• UVP - Protection under voltage
• SIP - Surge and power-on protection
• NLO - No-load operation

The PN850D is designed and manufactured to such a high standard that DeepCool offers a 10-year hassle-free limited warranty.

Main features:
• Type: ATX12V V3.1
• Efficiency certificate: 80Plus Gold
• Fan size: 120 mm
• Fan bearing: HYB (hydraulic bearing)
• Topology: Active PFC + Full bridge SRC LLC + DC-DC
• Capacitors: Chinese electrolytic capacitors
• Signal strength: 100-150 ms
• Waiting time: ≥16 ms (80% load)
• Efficiency: ≥90% under typical load (50% load)
• Operating temperature: 0-40°C
• MTBF: 100,000 hours
• Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
• Certificates: CE/FCC/CCC/TÜV-RH/cTUVus/RCM/EAC certifications
• Environmental protection: WEEE/中国 RoHS/Triman/P65
• Erp regulation: ErP 2014
• Dimensions (W x D x H): 150 x 140 x 86 mm

In summary, the DeepCool PN850D 850W PSU is the perfect combination of reliability, performance and quiet operation. Thanks to advanced technological innovations, it is an excellent choice for all new and existing computer systems and for anyone who wants to get the most out of their computer.
