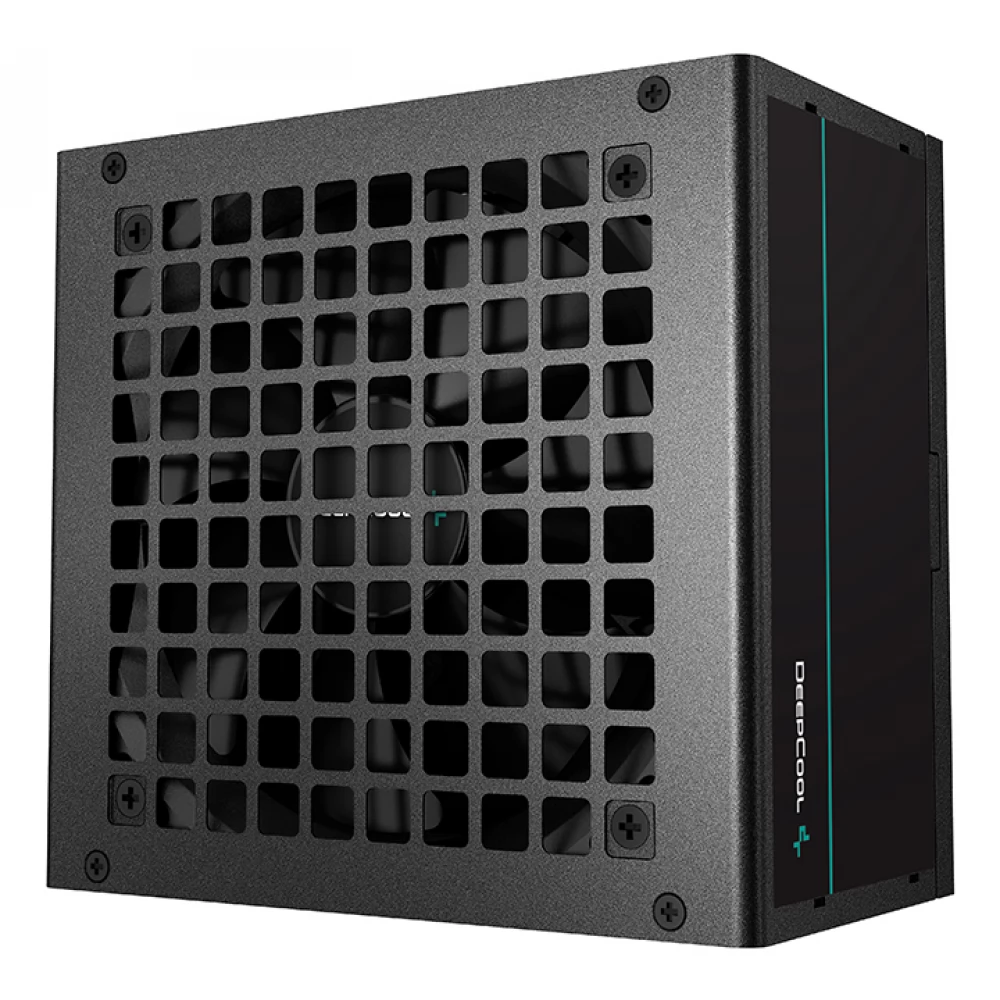

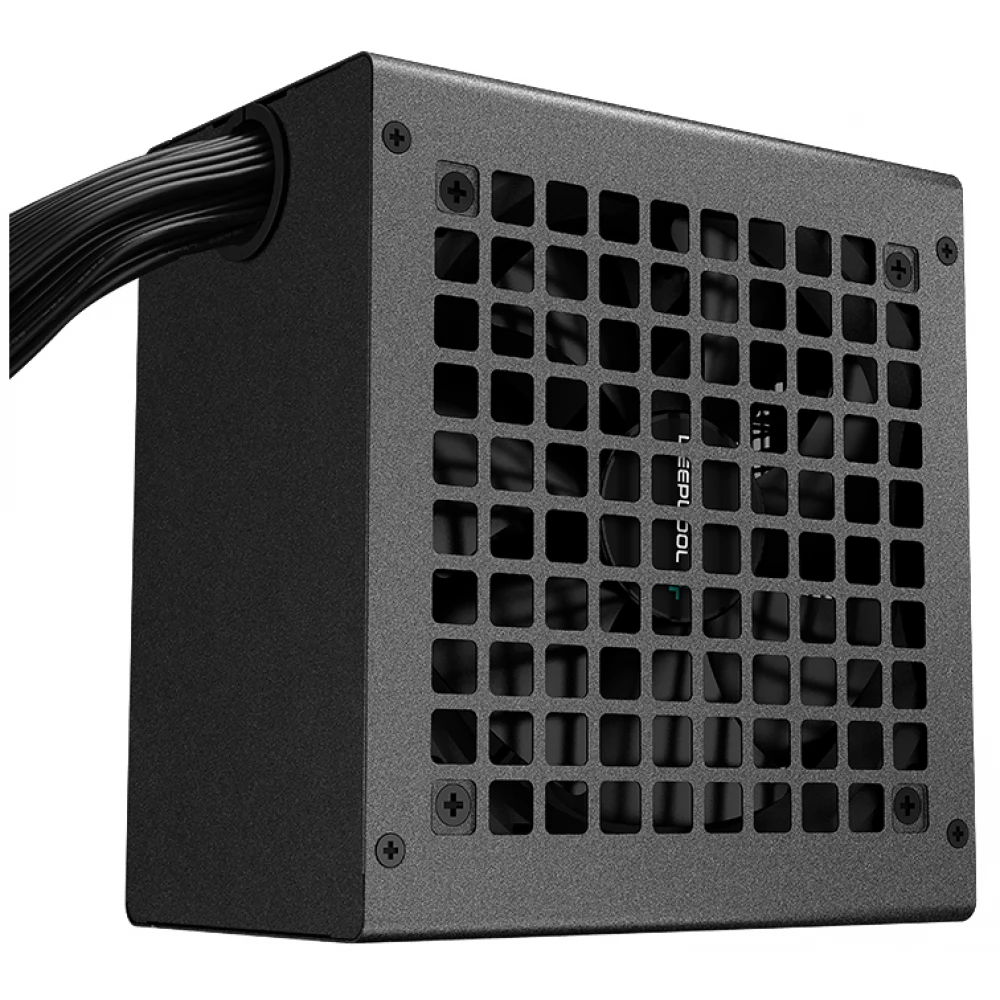

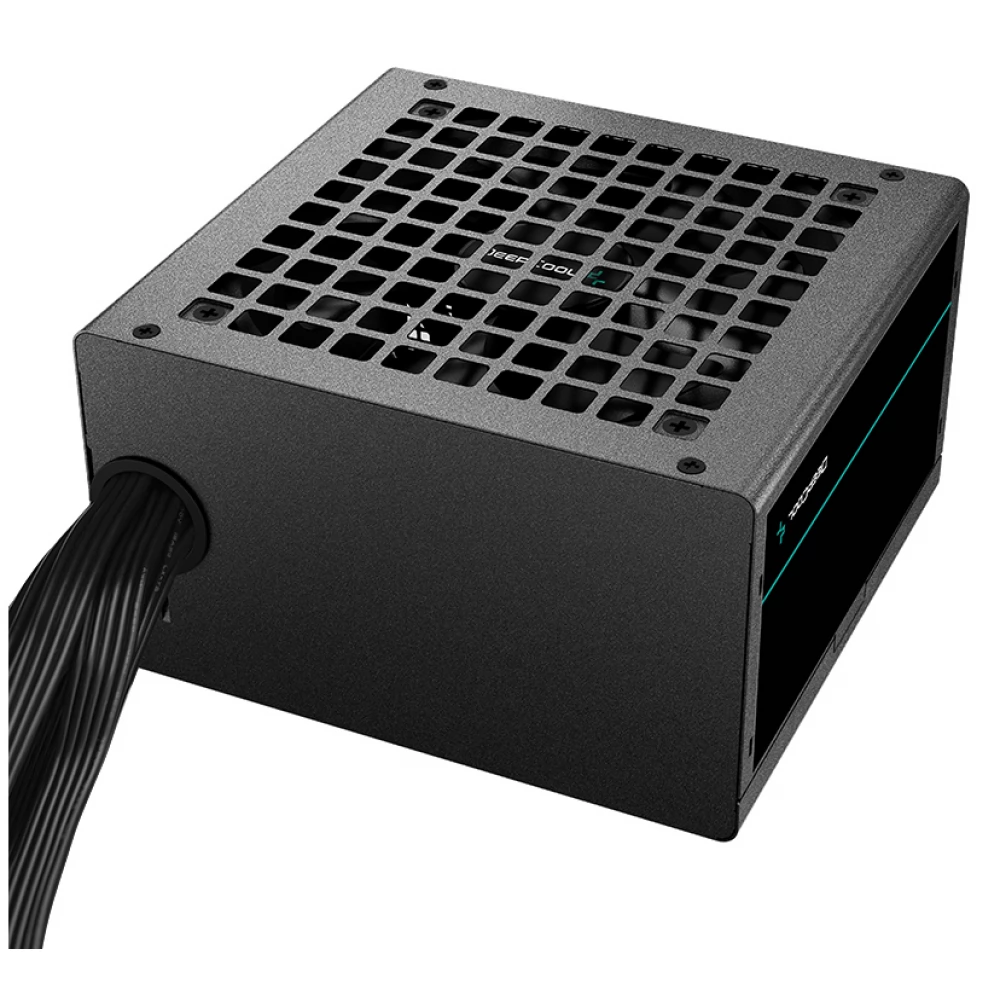

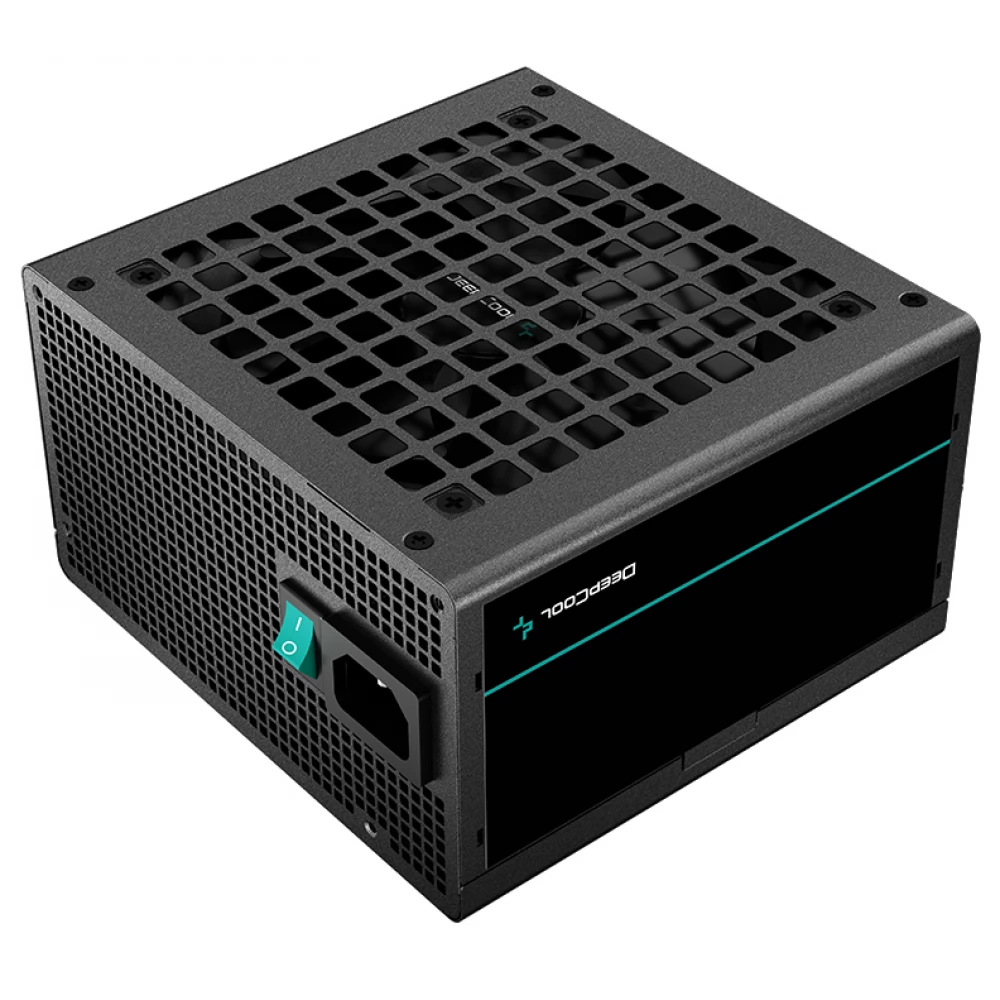

The DeepCool PF500 500W is a reliable 500 watt ATX12V V2.4 power supply with 80 Plus certification. At a typical load (50% load), it provides at least 85% efficiency, which means energy-saving operation. The DeepCool PF series power supply offers a safe and stable power supply. An excellent choice for the construction of new systems or the further development of existing ones, where quiet operation and stable, efficient performance are important considerations.

80 PLUS 230V has an efficiency certificate according to the EU standard, which provides an efficiency of 85% at a typical load of 50%. Better efficiency results in lower energy waste and lower temperatures, resulting in further cost savings.

The power supply supports the latest ATX 12V v2.4 standard, which enables compatibility with the latest hardware. This standard guarantees that the power supply can provide the desired performance to the system components while improving power management and efficiency.

It is equipped with an active PFC (Power Factor Correction) circuit topology and a dual-tube feed-forward switching circuit. Cooling is performed by a 120 mm fan with Hypro bearings, which guarantees quiet and durable operation. Taiwan-made capacitors ensure reliable performance.

The fixed, flat black cables are easy to manage and flexible, making it easy to manage cables while taking up less space in your system. The PF350 provides comprehensive protection: it protects the system against overload (OPP), overvoltage (OVP), short circuit (SCP) and undervoltage (UVP).

Main features:

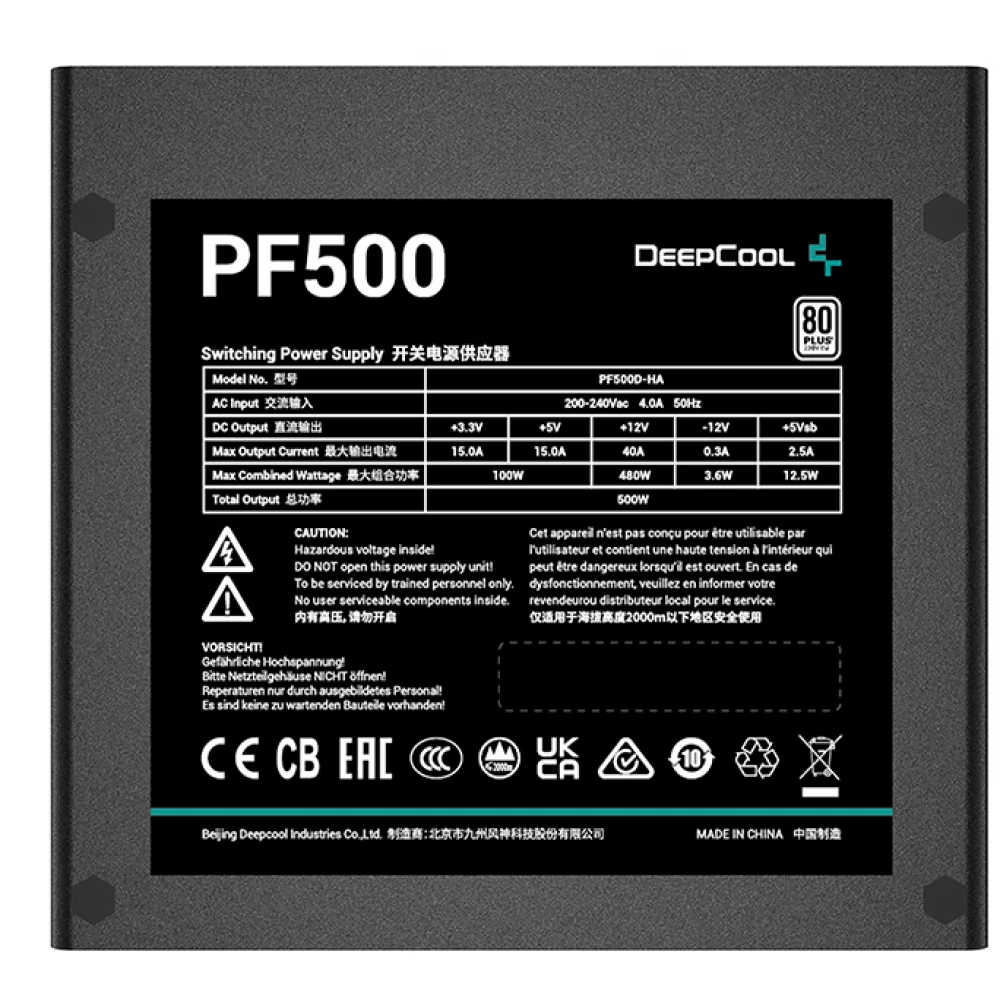

• Type: ATX12V V2.4
• 80 PLUS certificate 230V EU white

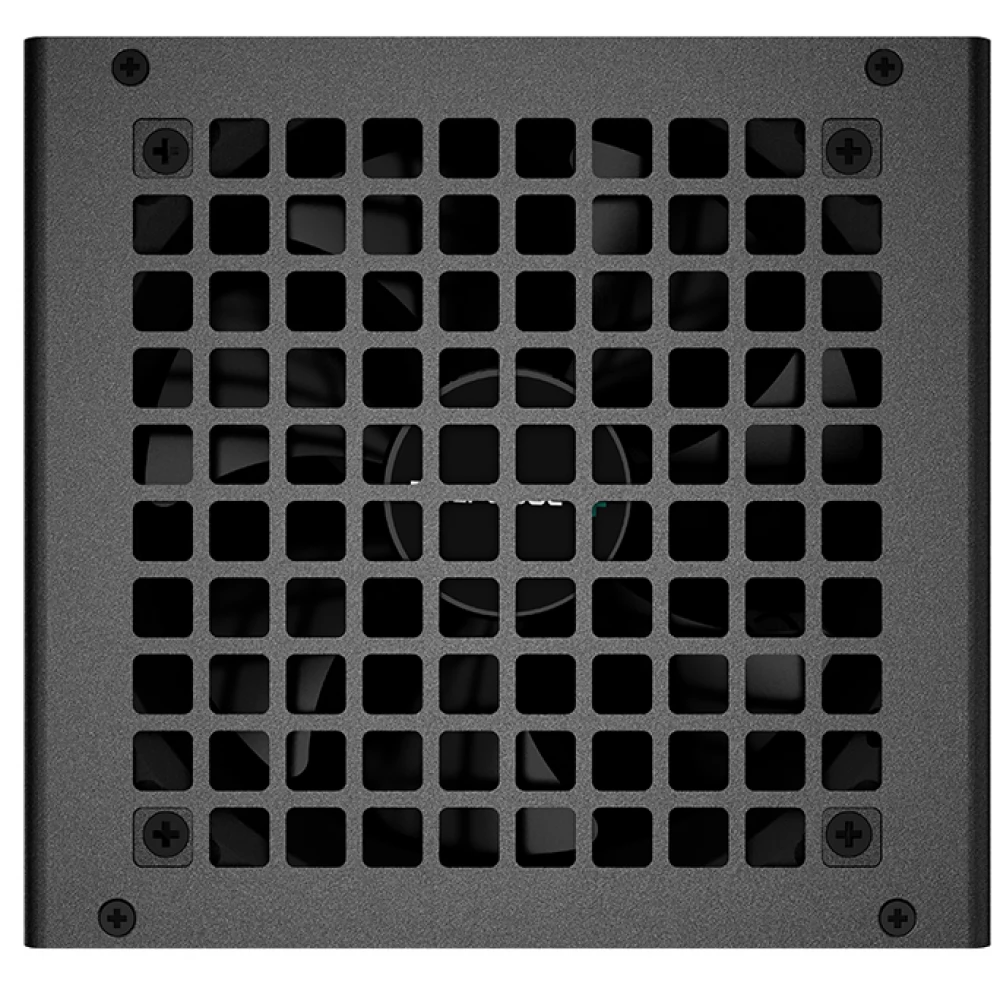

• Fan size: 120 mm
• Fan bearing: Hypro bearing
• Topology: Active PFC+Double pipe forward
• Capacitors: Taiwan bulk capacitor
• Signal strength: 100-500 ms
• Waiting time: ≥16 ms (75% load)
• Efficiency: ≥85% under typical load (50% load)
• Operating temperature: 0-40°C
• MTBF: 100,000 hours
• Protection: OPP/OVP/SCP/UVP
• Certificates: CB/CCC/CE/UKCA/EAC/RCM/BIS
• Erp regulation: ErP 2010
• Dimensions (W x D x H): 150 x 140 x 86 mm

In summary, the DeepCool PF500 500W PSU is the perfect combination of reliability, performance and quiet operation. Thanks to advanced technological innovations, it is an excellent choice for all new and existing computer systems and for anyone who wants to get the most out of their computer.
