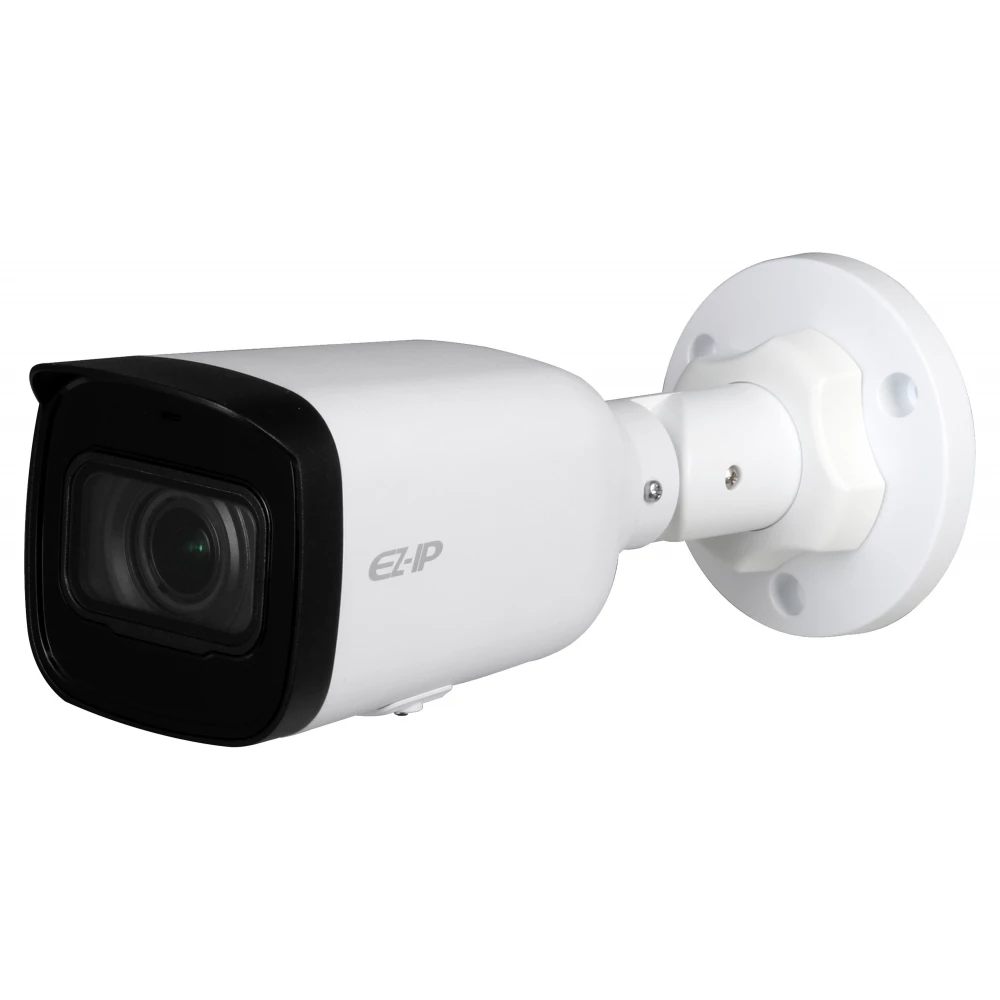

2 megapixel IR Mini Bullet network camera

EZ-IP is perfect for small to medium sized applications such as home/residential security, small retail stores and other typical SMB applications. It offers a perfect alternative for the transition from analog to IP system, thanks to its easy-to-use nature and cost-effectiveness.

EZ-IP fully complies with Dahua quality. Stable and reliable components are used and various tests such as vibration damping, water resistance and aging tests are carried out to ensure Dahua's quality standards.

- 1/2.7" 2 megapixel progressive CMOS
- H.265+ and H.265 dual stream encoding
- 25/30 fps @ 1080p (1920x1080)
- DWDR, day/night (ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: web viewer, CMS (DSS/PSS) and DMSS
- 2.8 ~ 12 mm varifocal lens
- Maximum IR LED distance 40 meters
- micro SD card slot, IP67, PoE

Specifications
- Image sensor: 1/2.7" 2 megapixel progressive CMOS
- Effective pixels: 1920x1080
- RAM: 64 MB
- ROM: 16 MB
- Scanning system: progressive
- Electronic shutter speed: Automatic/manual, 1/3 s ~ 1/100000 s
- Minimum illumination: 0.05 Lux/F1.8 (color, 1/3 s, 30IRE); 0.3 Lux/F1.8 (color, 1/30s, 30IRE); 0 Lux/F1.8 (IR on)
- Signal/noise ratio: More than 40 dB
- IR distance: Up to 40 meters
- IR on and off control: Automatic/Manual
- IR LED: 2 pcs
- Lens type: Motorized
- Focus distance: 2.8 mm ~ 12 mm
- Maximum aperture: F1.8
- Viewing angle: Horizontal: 105° ~ 33°, vertical: 56° ~ 18°
- Focus control: Motorized
- Close focus distance: 0.2 meters
- Trigger: Motion detection, Video manipulation, Network disconnection, Scene switching, IP address conflict, Illegal access, Storage abnormality
- Video compression: H.265/H.264/H.264B/MJPEG (sub stream)
- Smart Codec: H.265+/H.264+ supported
- Streaming capability: 2 streams
- Resolution: 1080p (1920x1080), 1.3 megapixel (1280x960), 720p (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)
- Number of frames: Main stream: 1080p (1 fps ~ 25/30 fps); Sub stream: D1 (1 fps ~ 25/30 fps)
- Bitrate control: CBR/VBR
- Bitrate: H.264: 16 kbps ~ 6144 kbps, H.265: 6 kbps ~ 6144 kbps
- Day/Night: Automatic (ICR)/Colour/B&W
- BLC mode: BLC/HLC/DWDR
- White balance: Auto/natural/street light/outdoor/manual
- Noise reduction: 3D DNR
- Motion detection: Off/On (4 zones, rectangle)
- Region of interest: Off/On (4 zones)
- Smart IR support
- Digital zoom: 16x
- Flip: 0°/90°/180°/270°
- Mirror: Off/on
- Privacy masking: Off/On (4 areas, rectangle)
- Ethernet: 10/100 Mbps RJ-45 port
- Protocol: HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPV4/V6, QoS, UPnP, NTP, Bonjour, IEEE 802.1X, Multicast, ICMP , IGMP, TLS, SSH
- Interoperability: ONVIF Profile S&G, API
- Streaming method: Unicast/Multicast
- Maximum user access: 10 users/20 users
- Storage: NAS (network attached storage), Local computer for immediate recording; micro SD card slot, 128 GB
- Web viewer: IE, Chrome, Firefox, Safari
- Management software: Smart PSS, DSS, DMSS
- Smartphone: iOS, Android
- Power supply: DC 12 V, PoE (802.3af, class 0)
- Power consumption: DC 12 V: 1.8 W, 5.8 W (IR on); PoE: 2.1 W, 6.7 W (IR on)
- Operating temperature: -30°C ~ +60°C
- Operating humidity: less than 95%
- Storage temperature: -30°C ~ +60°C
- Storage humidity: less than 95%
- Ingress protection: IP67
- Cover: Metal and plastic
- Size: 243.6 mm x 90.7 mm x 90.2 mm
- Weight: 0.434 kg (net), 0.693 kg (gross)
