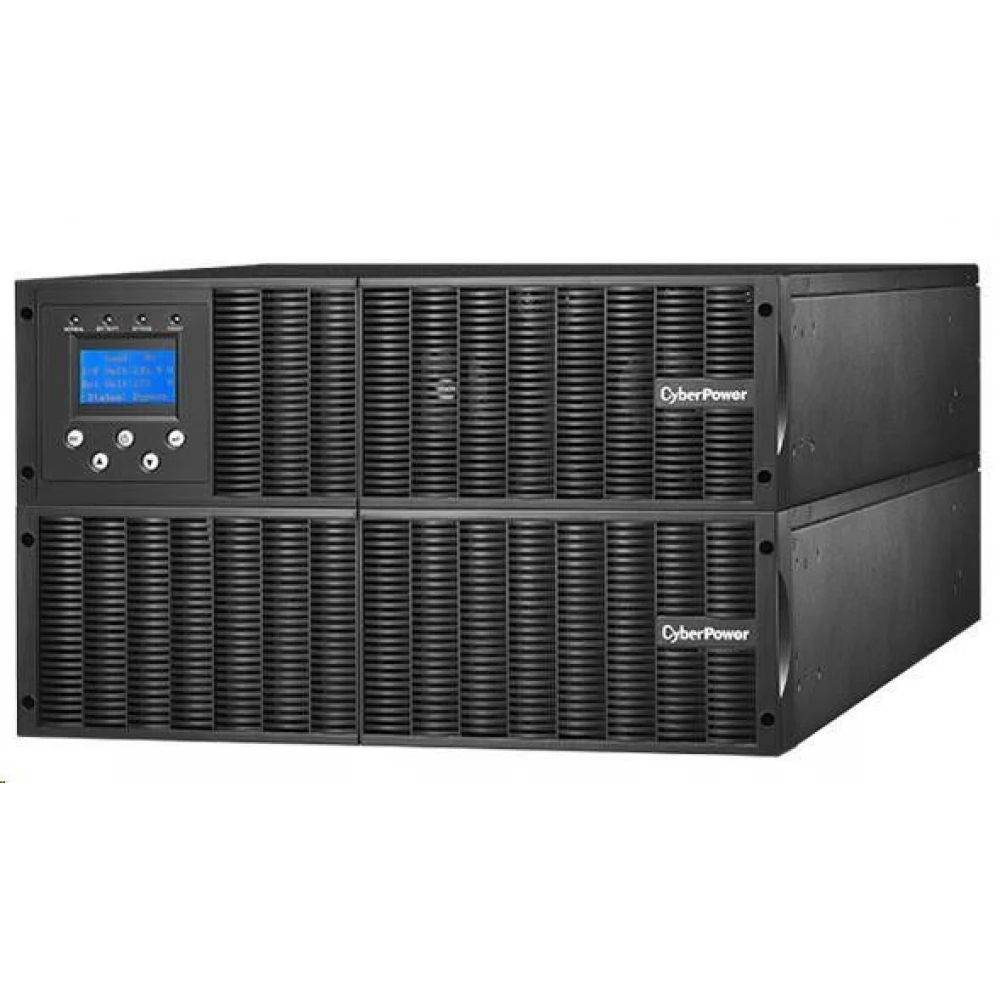

Cyberpower OLS6000ERTXL3U is a high -performance UPS module for servers, network devices, workstations and other critical systems that are essential for pure sinus wave protection. Thanks to online double conversion technology and zero switching time, it provides continuous and smooth sinus wave power supply to sensitive equipment.

The device can be expanded with XL battery packs so that the timeless power supply can be increased for maximum flexibility. The optional SNMP / HTTP remote monitoring allows you to manage and monitor the system remotely through a standard web browser. The attached PowerPanel® Business Edition software offers a comprehensive energy surveillance solution: supporting unattended shutdown, event logs, detailed reports and sending notifications for corporate servers and key workstations.

Properties:

- Topology: Online Double Conversion (Continuous Double Conversion)

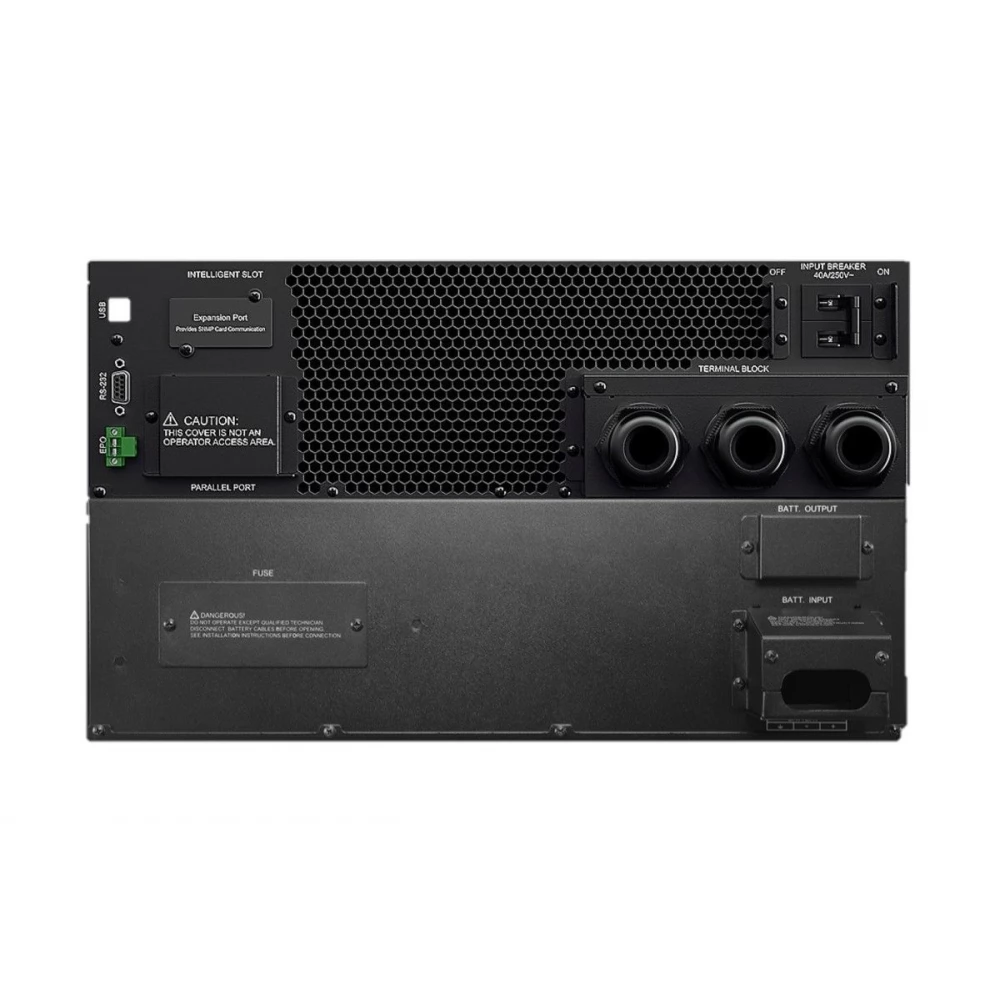

Input and output connectors:
- Input connector: 1 × Hardwire Terminal Block
- Output connector: 1 × Hardwire Terminal Block
- Total socket number: 1 piece input + 1 piece output

Voltage, frequency and waveform:
- Input voltage: 230 V rated, 110-276 V range
- Input frequency: 50 ± 5 Hz / 60 ± 6 Hz (automatic detection)
- Output voltages (from battery): 208/220 / 230 /240 V ± 1% (configurable)
- Output Frequency (from battery): 50 ± 0.1% / 60 ± 0.1% (configurable)
- Wave shape: Pure Sine Wave (Pure Sine Wave)

Power and battery:
- Power: 6000 VA / 5400 W
- Filling current: Max. 4 a
-Battery Type: Closed Lead-Acid (SEALED LEAD-ACID)
- Number of batteries: 20 pcs
- Voltage of a battery: 12 V
- Capacity of a battery: 9 Ah
- Compatible EBM: BPSE240V75ART3UAA (up to 15 pcs)
- Hot-SWAP Support: No (No User Replaceable Battery)

Network and Communication Relations:
- USB port: Yes (Hid-compatible)
- Soros port: Rs 232
- Dry contact: optional
- EPO (emergency stop): Yes
- SNMP/HTTP Support: Yes, with Optional RMCard205 module
- Software: PowerPanel Business (recommended)

Display:
- Display Type: Color LCD
- Functions: Status display (mode, error, warning, input/output, log, security settings, etc.)
- LED feedbacks: line, battery, bypass, error status

Package contents:
- USB cable, documentation, rack rail set, UPS, battery
