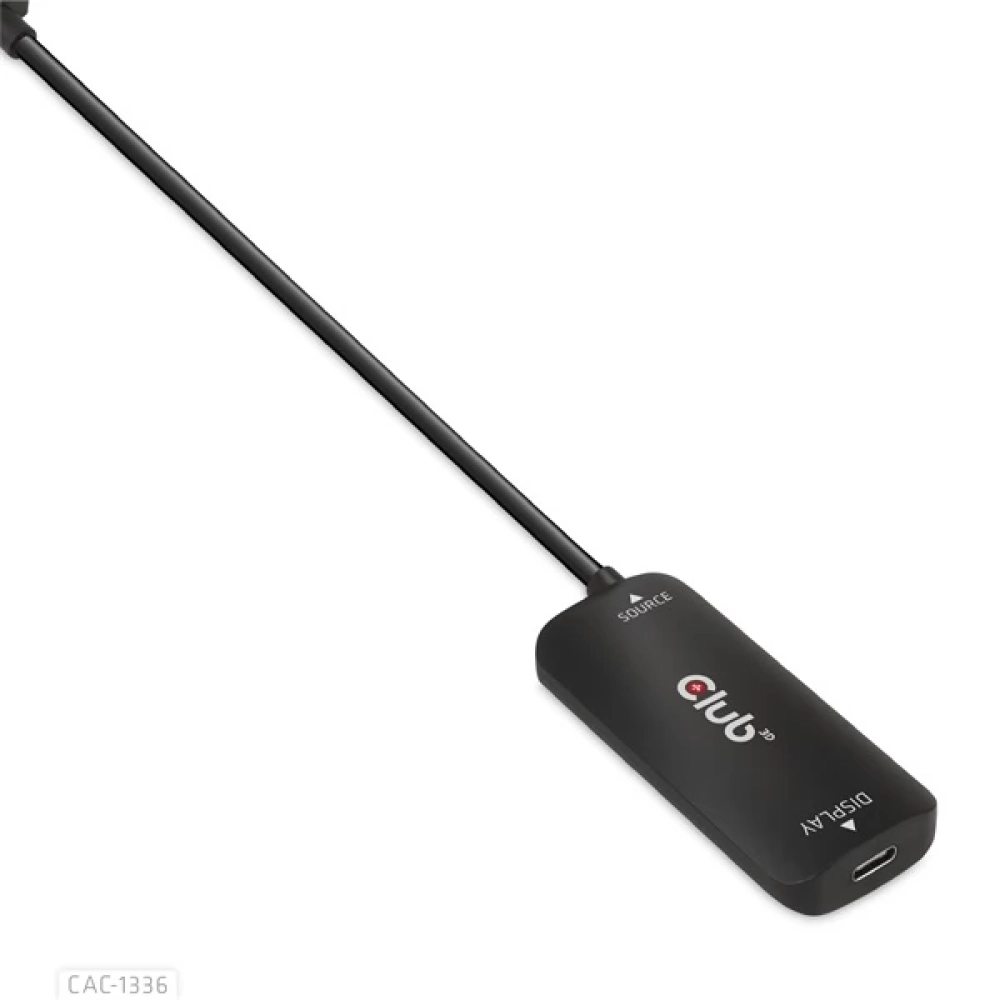

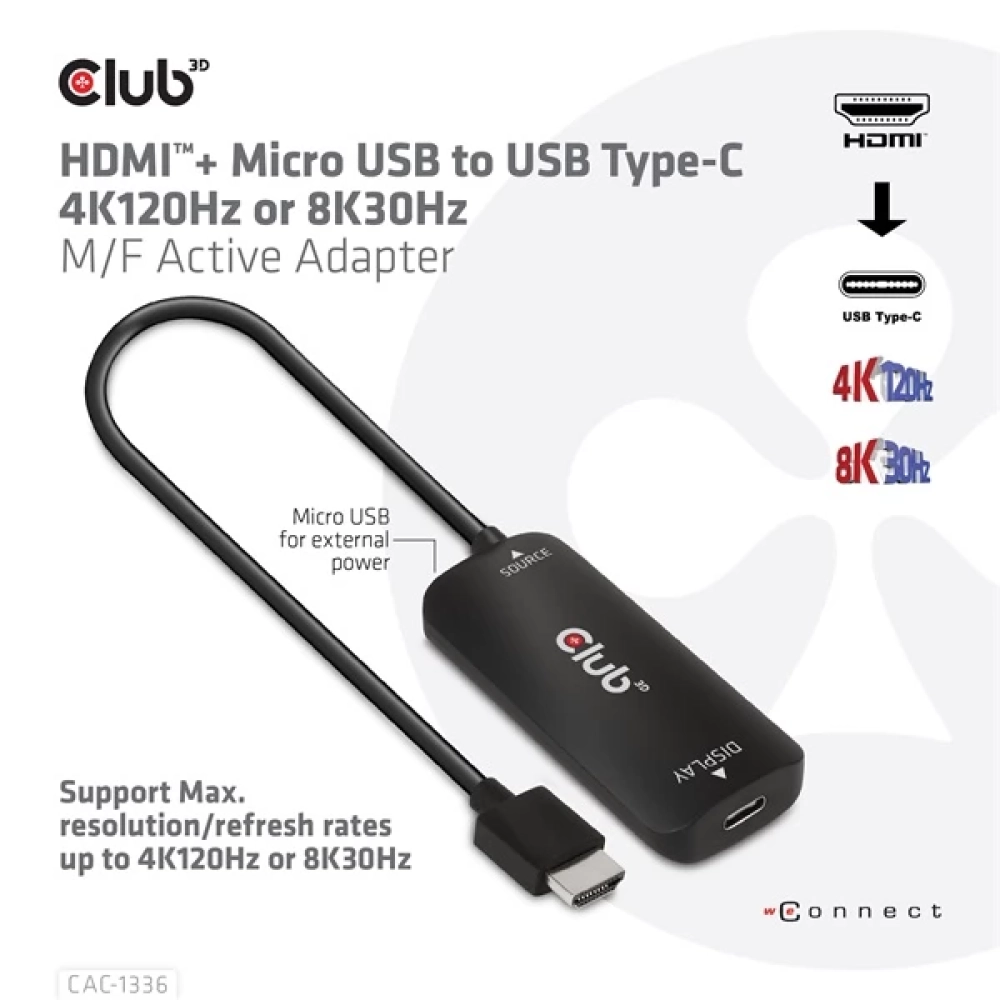

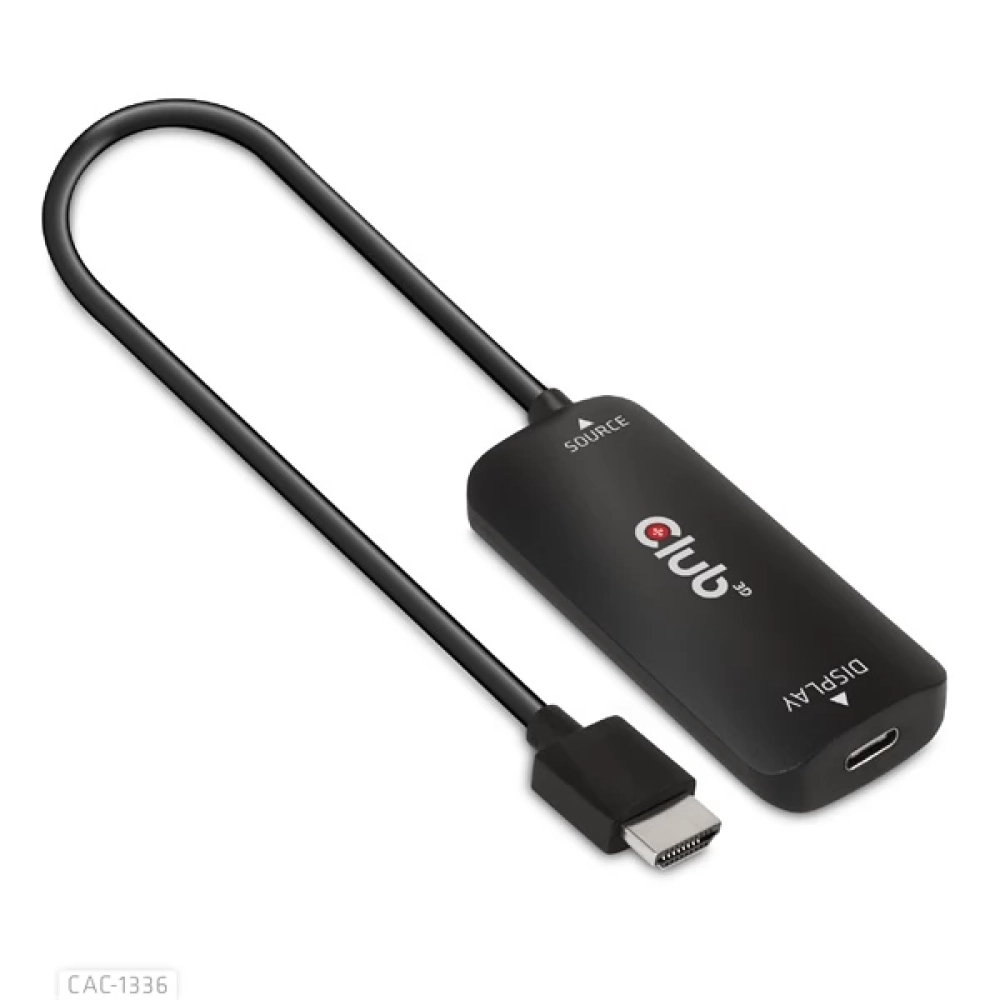

HDMI + Micro USB USB TYPE-C 4K120HZ or 8K30HZ M/F Active Adapter

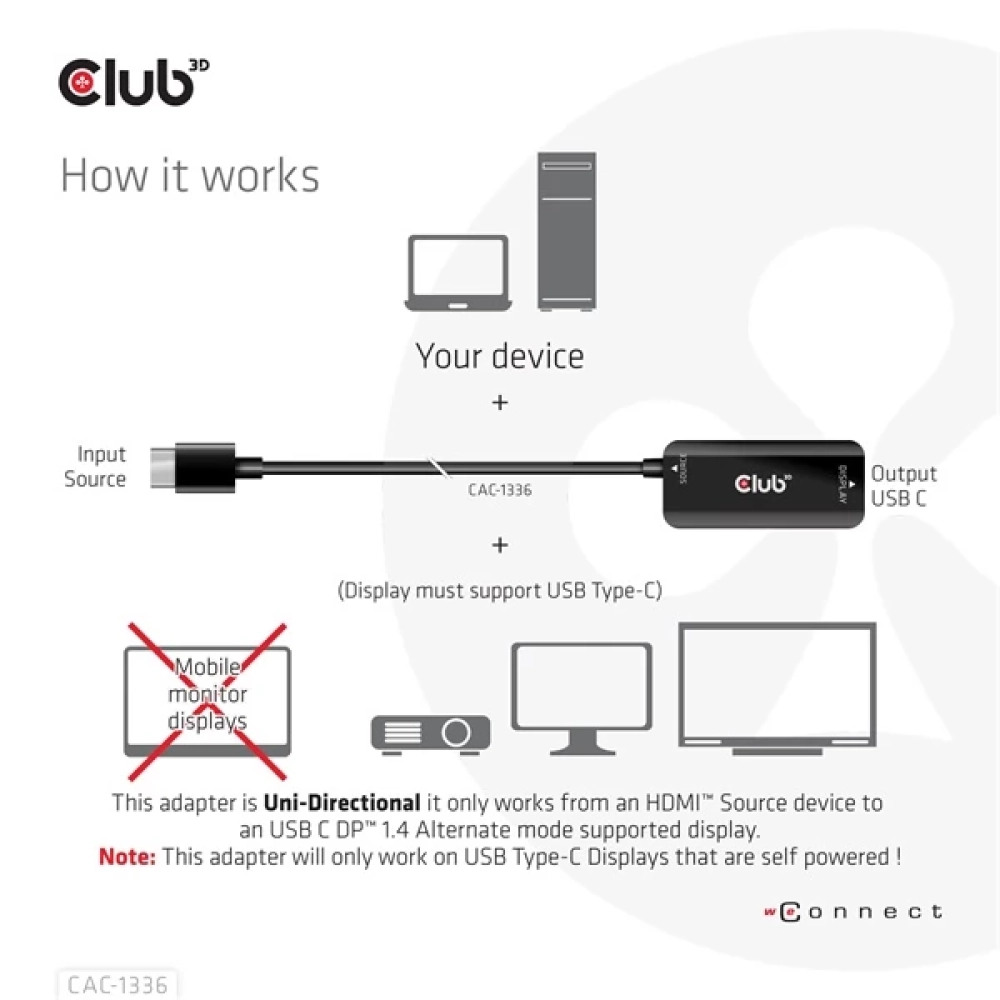

The Club 3D CAC-1336 is the perfect solution to connect any USB Type-C 8K30Hz or 4K120Hz ready display from an HDMI ™ source that supports these resolutions/specifications.
If your computer or any other device does not have the new USB Type-C 8K30Hz or 4K120Hz specifications, the Club3D CAC-1336 will be the easy way to connect your HDMI ™ source device to the new USB Type-C 4K120Hz or 8K30Hz display (provided the source supports these resolutions).
The adapter is powered by micro USB port (5V/1.5a). The box contains a USB Type-A-Micro USB M / M 1M / 3.28 Ft.
Note: This adapter only works on USB Type-C displays that have self-sufficiency!
Please use one of the Club 3D Certified Expansion/Adapter cables to connect to your devices. We strongly recommend using CAC-1570 to optimize adapter
If you need more help to select the right cable, please visit our website at www.club-3d.com or write to us for support@club-3d.com and we will be happy to help you.
Technical data
Product Name:
HDMI ™+ Micro USB-C USB 4K120Hz or 8K30Hz M/F Active Adapter
Product series: Adapter
Product code: CAC-1336
EAN Code: 8719214472504
UPC code: 841615102754
Features:
• Compatible with USB DP Alt Mode specifications up to 3840x2160/120Hz or 7680x4320/30Hz
• Compatible with HDMI ™ specifications up to 3840x2160/120Hz or 7680x4320/30Hz
• Support max. resolution/update frequency up to 4K120Hz or 8k30Hz

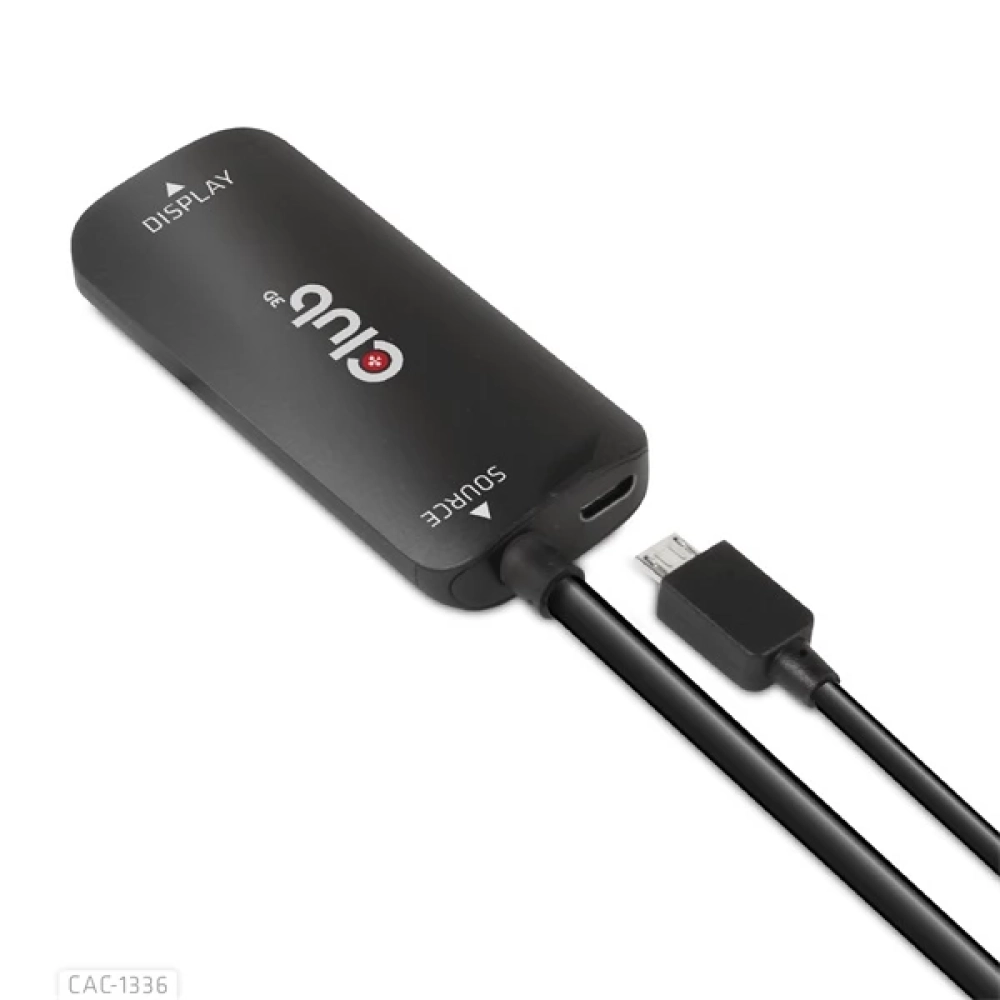

• The adapter is separately powered by the 7.5 Watt (5 V/1.5 A) Micro USB connector.
• USB Type-A-Micro USB M / M 1 M / 3.28 Foot Cable Cable in the box
Note: This adapter only works on USB Type-C displays that have self-sufficiency!
Applications:
• For devices such as laptop, desktop computer, game and display systems such as TV.
• Perfect for receiving equipment that has a video signal output for games and commercial applications.
Supported resolutions:
• Support max. resolution/timing up to 4K120hz or 8k30hz
• Games designed only for 4K120HZ provide this experience
This adapter will work with lower-specific GPUs, make sure that power will decrease due to the specifications of the given GPU!
• Use CAC-1576 or CAC-1571 with the adapter is highly recommended to achieve these resolutions
OS Support:
• Microsoft, Mac OS
In the box:

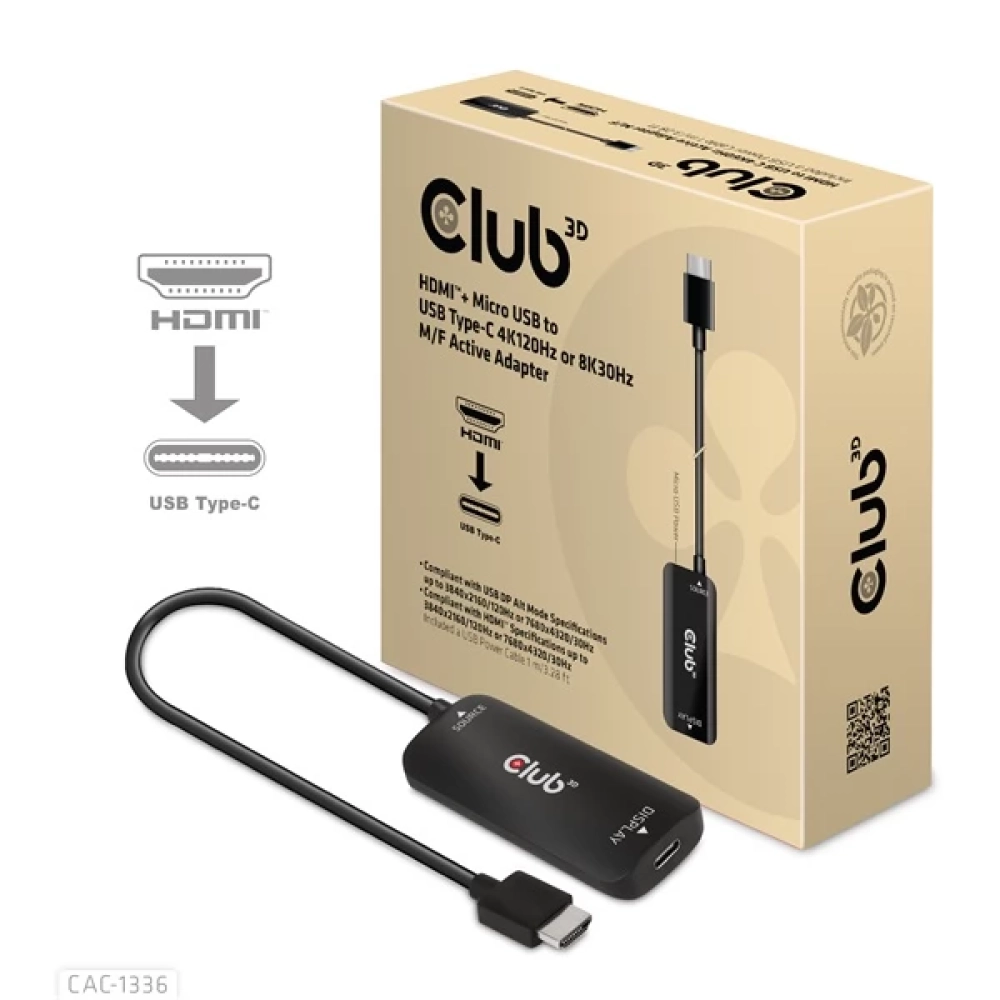

• CAC-1336 HDMI ™+ Micro USB-C USB 4K120Hz or 8K30Hz M/F Active Adapter

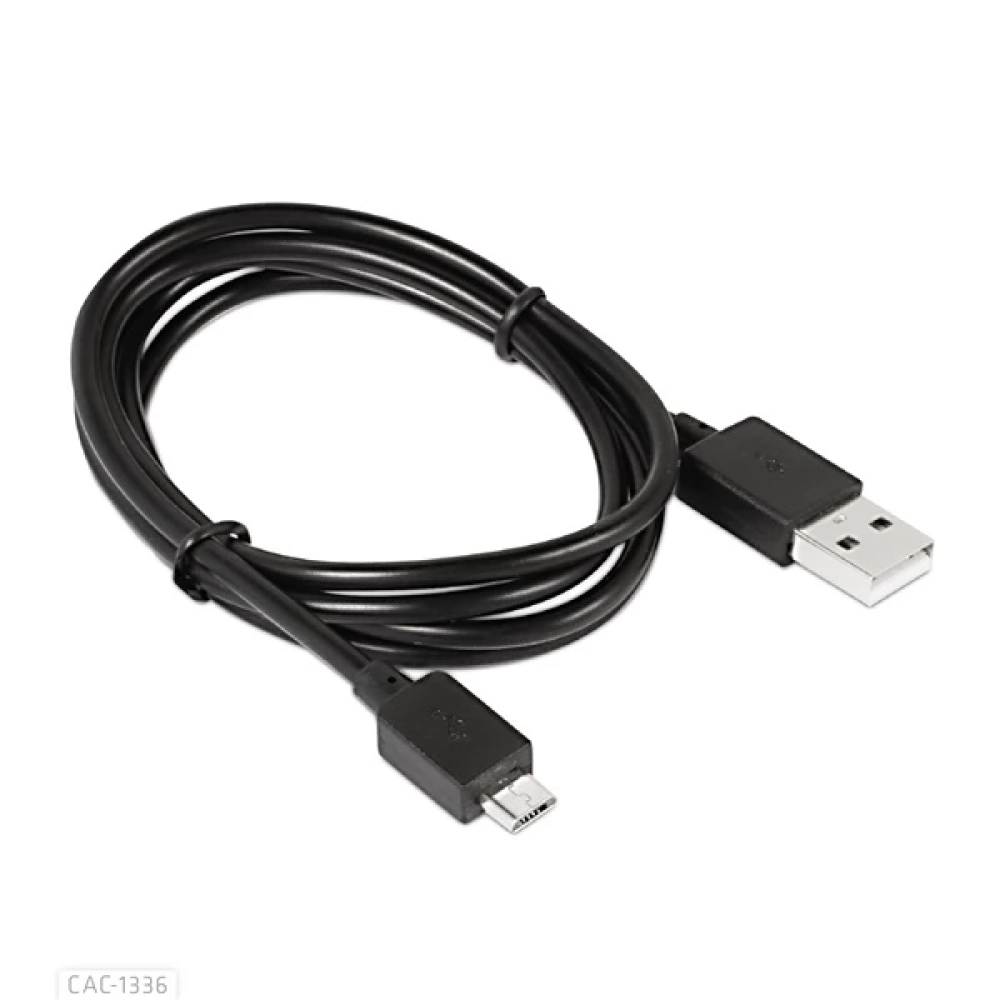

• USB Type-A-Micro USB M / M 1 M / 3.28 Foot Cable to Power Adapter
Interfaces available
Input:
• 1x HDMI ™ (male)
• 1x Micro USB (female)
Output:
• 1 x USB Type-C (female)
Other information:

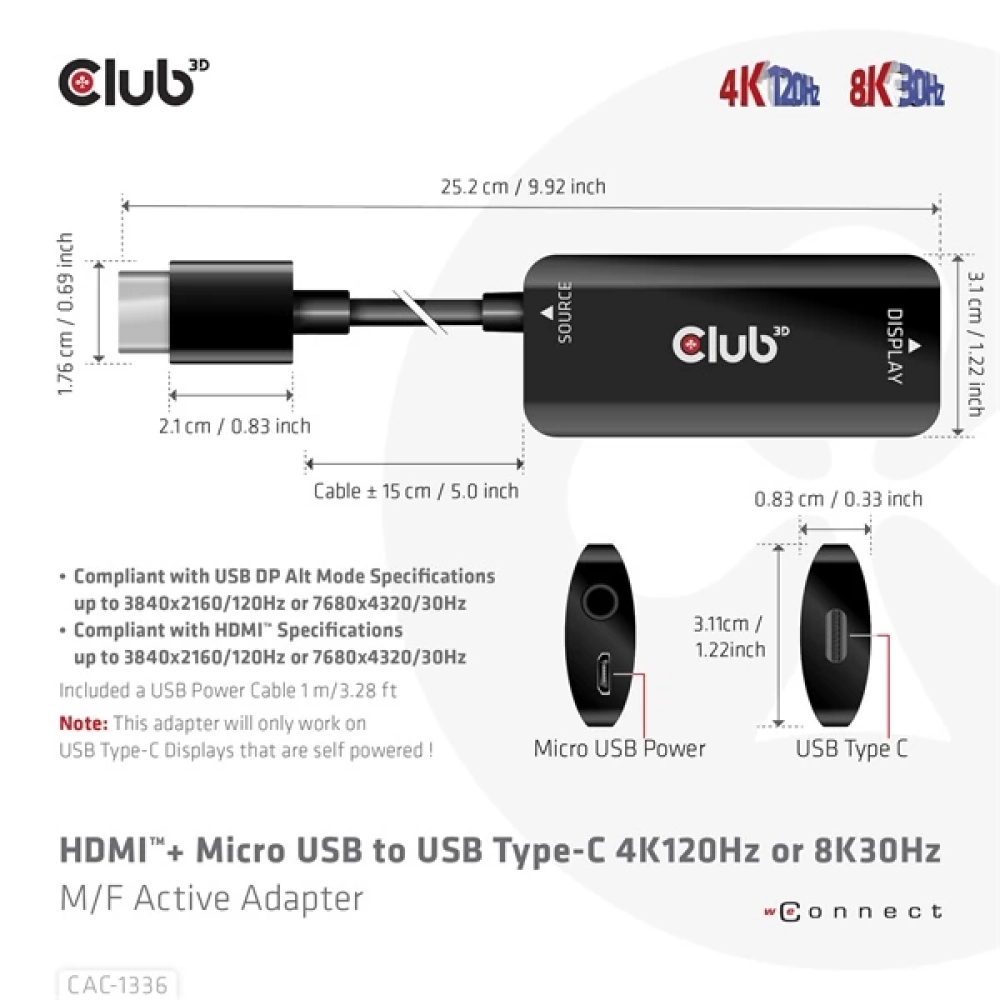

• box size 14.5 x 14.5 x 4.5 cm / 5.71 x 5.71 x 1.77 "
• The size of the device: 7.2 x 3 x 1.2 cm / 2.83 x 1.18 x 0.47 inches
• Weight of the device: 28 gr / 0.99 ounces
• Total cable length: approx. 26 cm / 10.24 "
• Power cable length: 1m / 3.28 Ft
• Power cable weight: 21 gr / 0.74 oz
• LDPE bag weight: 5g / 0.18 oz
• Connector dimensions:
- HDMI ™ plug: 4 x 0.7 x 1.8 cm / "
- USB Type-A plug: 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6 inches
- Micro USB connector: 2.8 x 0.6 x 1 cm / 1.1 x 0.24 x 0.39 inches
• Box weight: 45 gr / 1.59 ounces
• Total weight: 99 gr / 3.5 ounces
• meets Rohs, FCC and CE EMI requirements
Note:
- Please update your TV firmware to the version that supports these resolutions/update frequency!
- Please update the graphics drivers on your computer and make sure DSC1.2 supports your devices to support these resolutions/refreshments!
