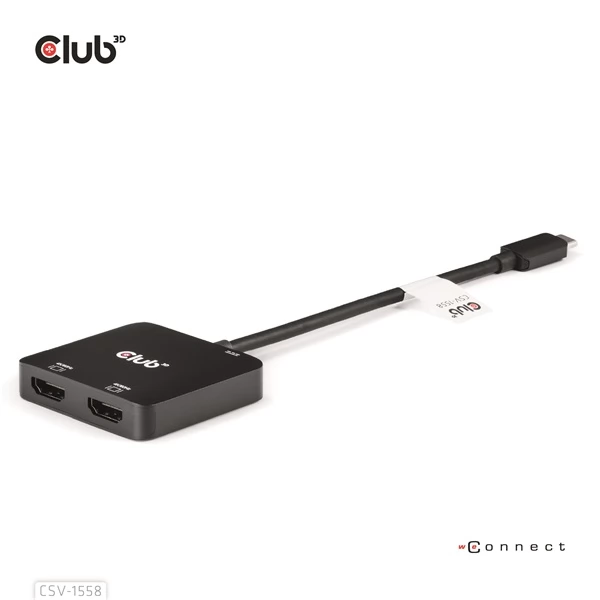

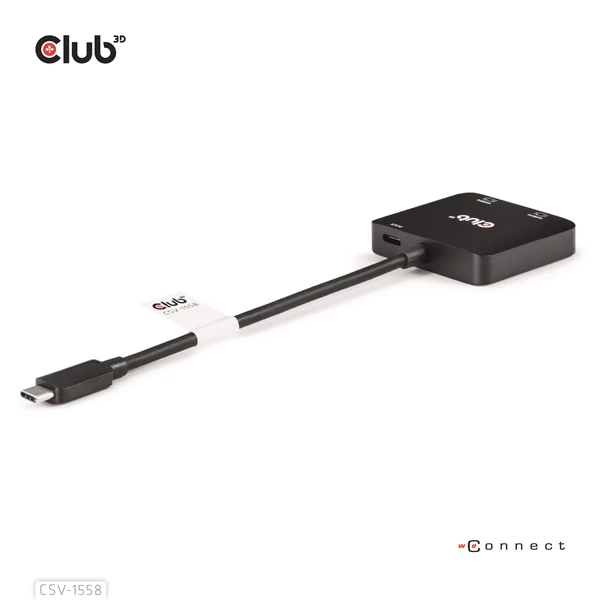

USB Type-C-Dual HDMI ™ 4K60HZ + PD 100 Watt
Club 3D CSV-1558 USB Type-C Dual HDMI ™ 4K60Hz + PD 100 Watt charging in DP1.4 Alt mode, allowing you to extend your host USB TYPE-C port to 2x HDMI ™, Ultra high resolution at a maximum 4K60Hz display. Supporting the MST function, the double display can be displayed at the same time with different video content. It also supports the PD charge with a maximum of 100 wat. It works on all USB Type-C or Thunderbolt ™ with all DP ™ Alt mode (including phones with USB Type-C connectors and DP ™ Alt mode).

Technical data
Product name: USB Type-C-Dual HDMI ™ 4K60HZ + PD 100 Watt
Product series: Adapter
Article Code: CSV-1558
EAN Code: 8719214472979
UPC code: 841615102914

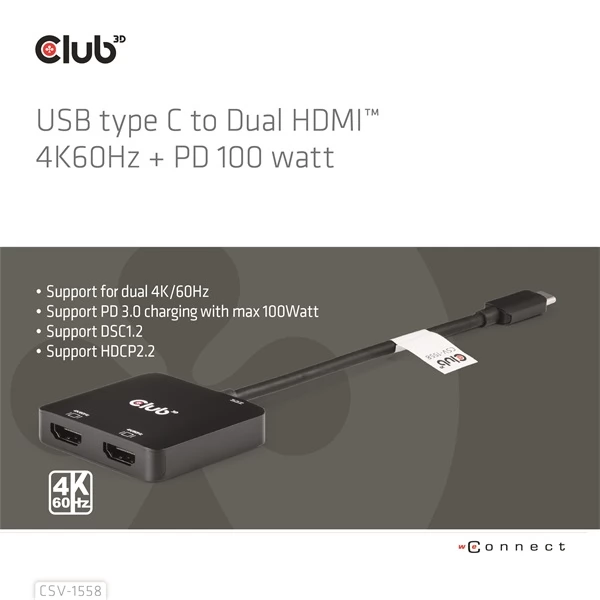

Features:
• Supports DP1.4 ™ Alt mode up

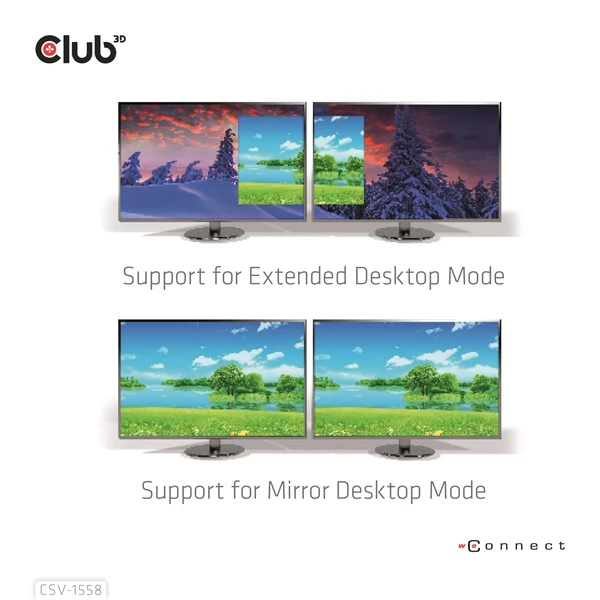

• Supports the double 4K/60Hz output with different images in mst mode when working on Windows
• Supports the double 4K/60Hz output with the same image in SST mode when you work on a Mac OS system
• Support DSC1.2
• Support for HDCP2.2
• Supports HDR
• Supports the PD 3.0 charging with a maximum power of 100 watts on the separate USB Type-C port
Input:
- 1x type C (for the host)
• Supports DP1.4 Alt mode up
• Supports reversible connection
Output:
- 2x HDMI ™ Mom
• Supports the double 4K/60Hz output with different images in mst mode when working on Windows
• Support for double 4K/60Hz output with the same image in SST mode if you work on a Mac OS system
• Supports 8/10/12 bit -depth output
• Support for the output pixel format RGB4: 4: 4/ycbcr4: 4: 4/ycbcr4: 2: 2/ycbcr4: 2: 0
• Support DSC1.2
• Support for HDCP2.2
• Supports HDR
• Note1: The double max. To reach 4k/60Hz, the host must support DP1.4 Alt mode if DP1.2 is a rich, the double max 4k/30Hz due to the restriction of bandwidth.
• Note2: HDR support ensures that every moment of the video is displayed at the ideal value of depth, richness, brightness, contrast and wider color-from scene to a scene or even frame.
-1x USB Type-C Women's PD Charging
• Supports the PD 3.0 charge max. 100 watts
Note 3: Use our CAC-1511 or CAC-1573 cables to charge host PD.

OS Support:
• Windows 10 or higher, Mac 13.5.2

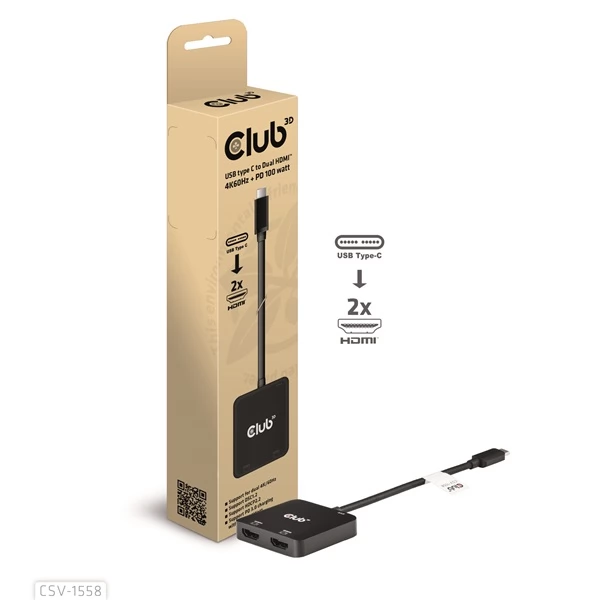

In the box:
• 1x CSV-1558 USB Type-C-Dual HDMI ™ 4K60HZ + PD 100 Watt

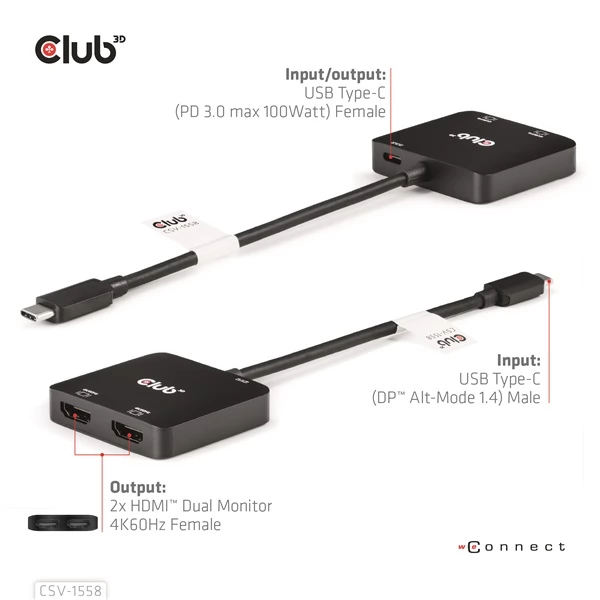

Interfaces available
Input:
• 1 x USB Type-C plug
Output:
• 2x HDMI ™ socket
• 1x USB Type-C Female (for PD charging) The host device max. 100 watts

Other information:
• Box size: 6 x 24 x 3.5 cm / 2.36 x 9.45 x 1.38 "

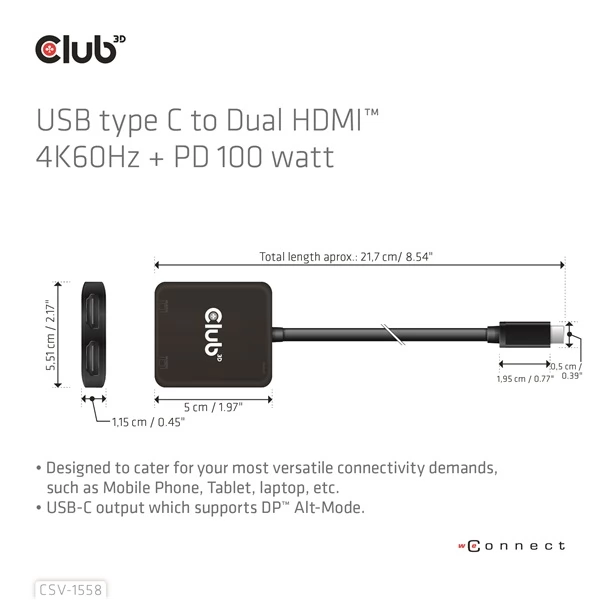

• Size of the device: 5 x 5.5 x 0.9 cm / 1.97 x 2.16 x 0.35 inches
• Input cable length approx. 15 cm / 5.91 "
• USB -type connector dimensions: 2.9 x 1.2 x 0.5 cm / 1.14 x 0.47 x 0.2 inches
• Weight of the device: 45 gr
• Box weight: 28 gr / 0.99 ounces
• Biologically degrading bag size: 9 x 30 cm / 3.54 x 11.81 "
• Weight of a biologically degradable bag: 1 gr./ 0.04 oz
• Total weight: 74 gr / 2.61 ounces
• meets Rohs, FCC and CE EMI requirements
Note:
- Please update your TV firmware to the version that supports these resolutions/update frequency!
- Please update the graphics drivers on your computer and make sure DSC1.2 supports your devices to support these resolutions/refreshments!
- Club 3D uses biologically degradable bags according to EN/DIN 13432
- Club 3D uses environmentally friendly packaging and is printed on recycled paper.
Warning, safe use
- The product can only be used at 2000 meters/6562 feet
