The Club 3D CAC-1180 is an adapter from Mini DisplayPort ™ 1.4 to HDMI ™ 2.0B, HDR video support to play deep-colored media content. The Mini DisplayPort ™ receiver manages up to 5.4 Gbps bandwidth per lane for 4 lanes. Completely corresponds to the HDMI ™ 2.0B specification and supports up to 4K UHD resolutions at 4096 x 2160p 60Hz. Supported RGB/YCBCR Color formats up to 16BPC depth (48 bit per pixel) with a pixel code conversion. To operate HDR, the source must have DisplayPort ™ 1.4 support and the display with HDR/HDMI ™ 2.0 A or B support.

Specifications:
Product Name: Mini DisplayPort ™ 1.4 To HDMI ™ 2.0b HDR Active Adapter
Product series: adapters
Product code: CAC-1180
EAN Code: 8719214470869
UPC code: 841615101054
Operating System Support:
- Windows 10, 8.1
- Apple os x
Contents of the box:
- Club 3D Mini DisplayPort ™ 1.4 To HDMI ™ 2.0b HDR Active Adapter
Input:
- Mini DisplayPort ™ 1.4 Male
Output:
- HDMI ™ 2.0b Female
Other information:
- Box size: 182 x 60 x 35 mm

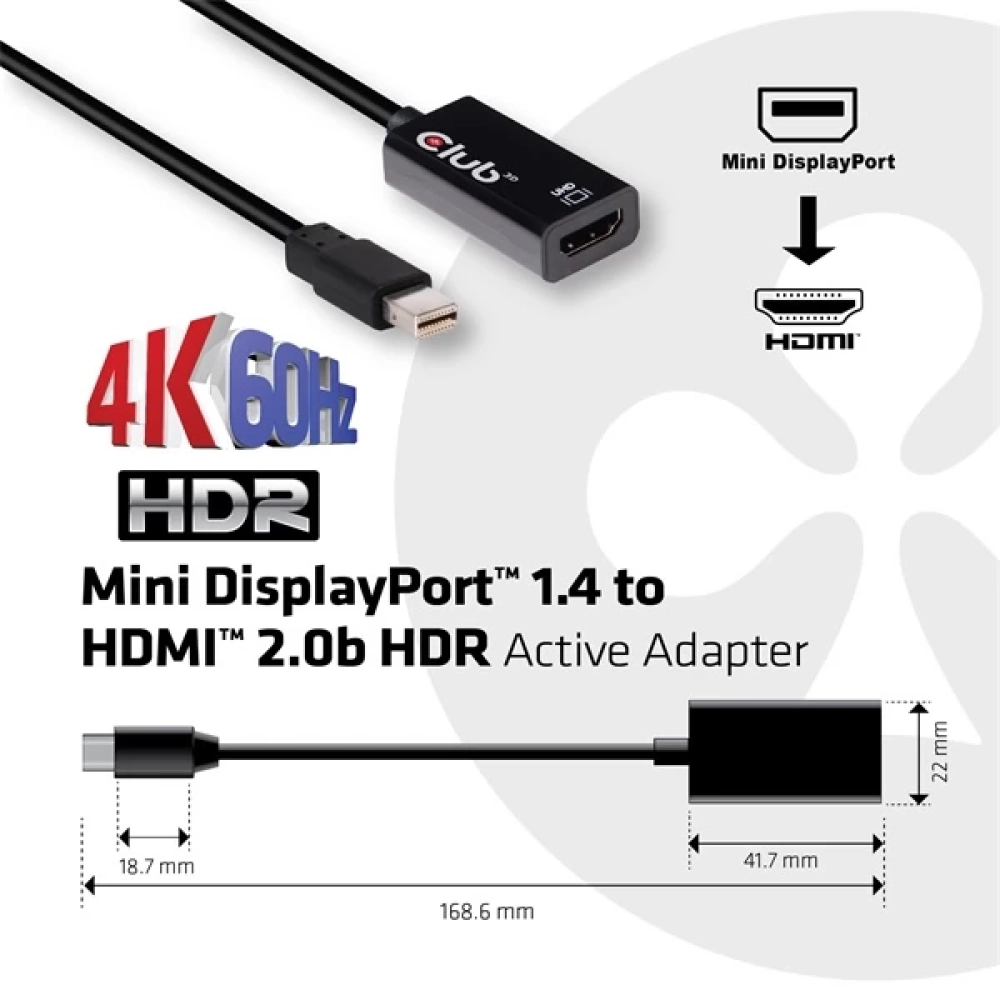

- cable: 168.6 x 20 x 11 mm
- Weight: 30 g
- meets Rohs, FCC and CE EMI requirements
Functions:
- DisplayPort ™ 1.4 receiver, up to 5.4Gbps link speed
- Video Stream Treatment: 600 MHz Dual Pixel Path 16BPC
- Displayport ™ to HDMI ™ stereoscopic 3D transport
- Audio Stream Treatment: LPCM and compressed formats
- HDMI ™ Tax: HDR and CEC Support.
